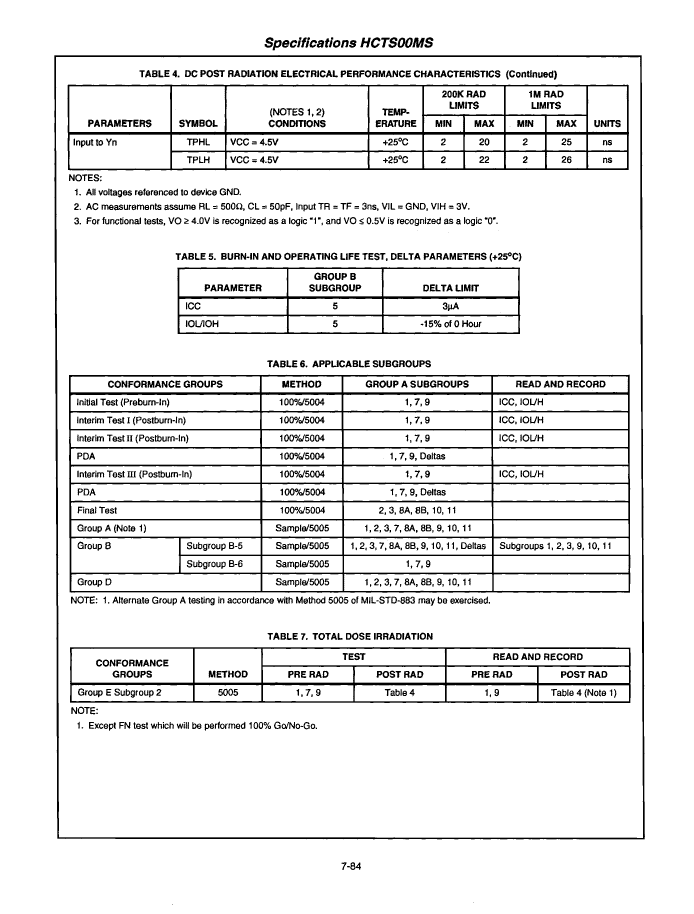

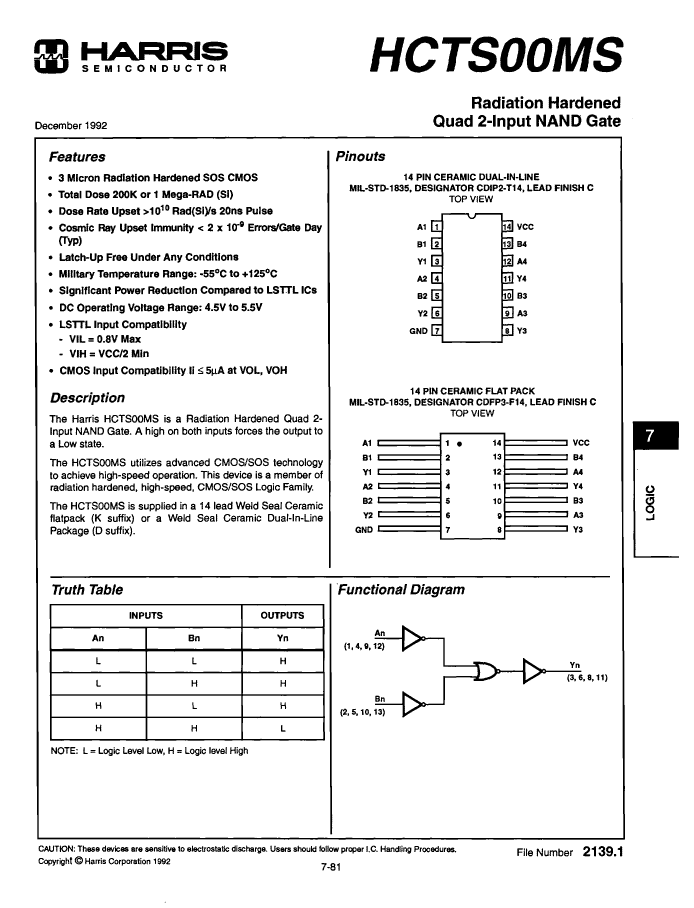

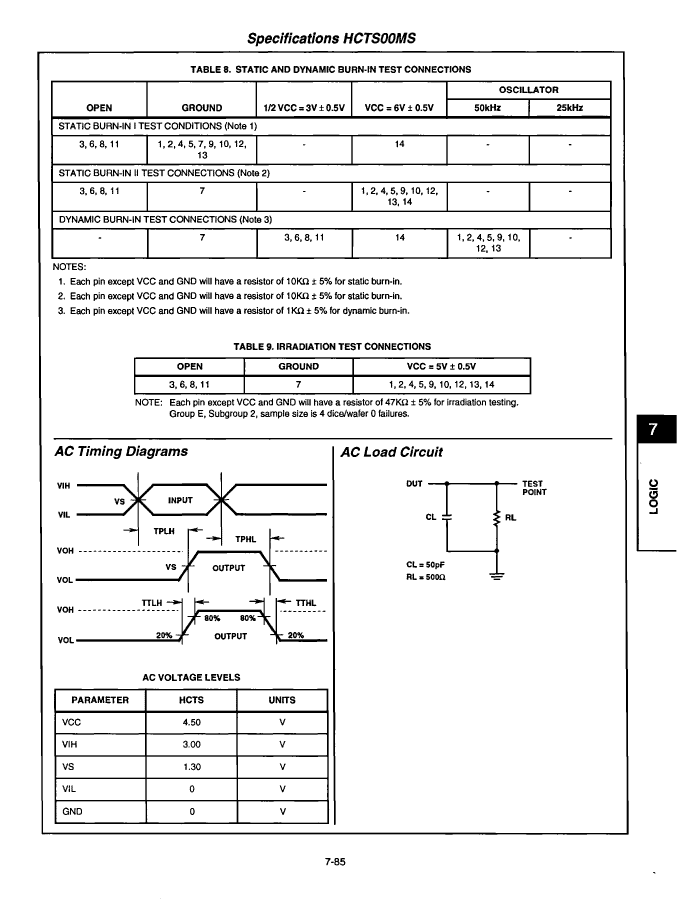

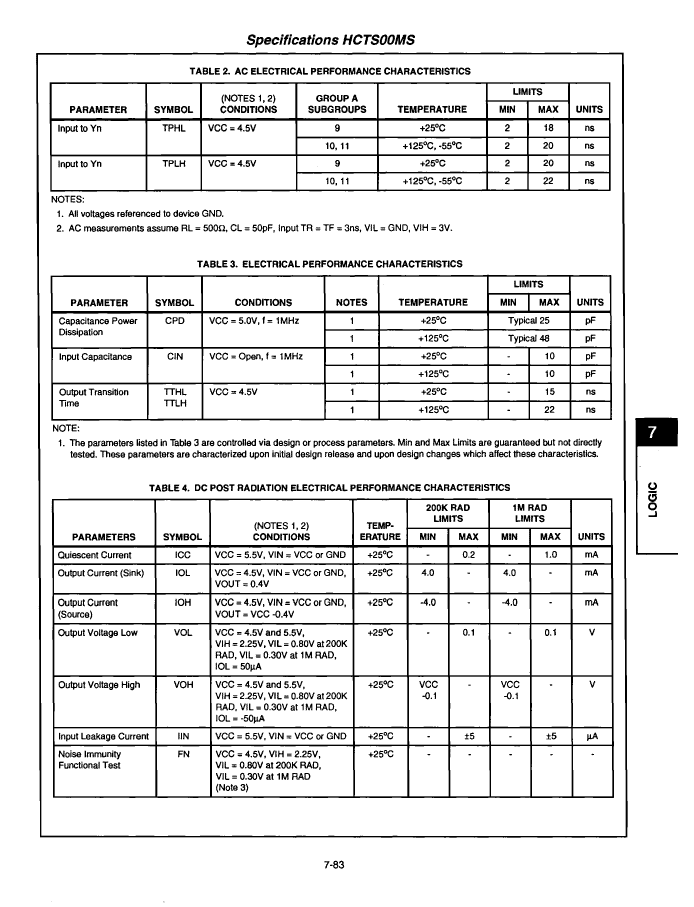

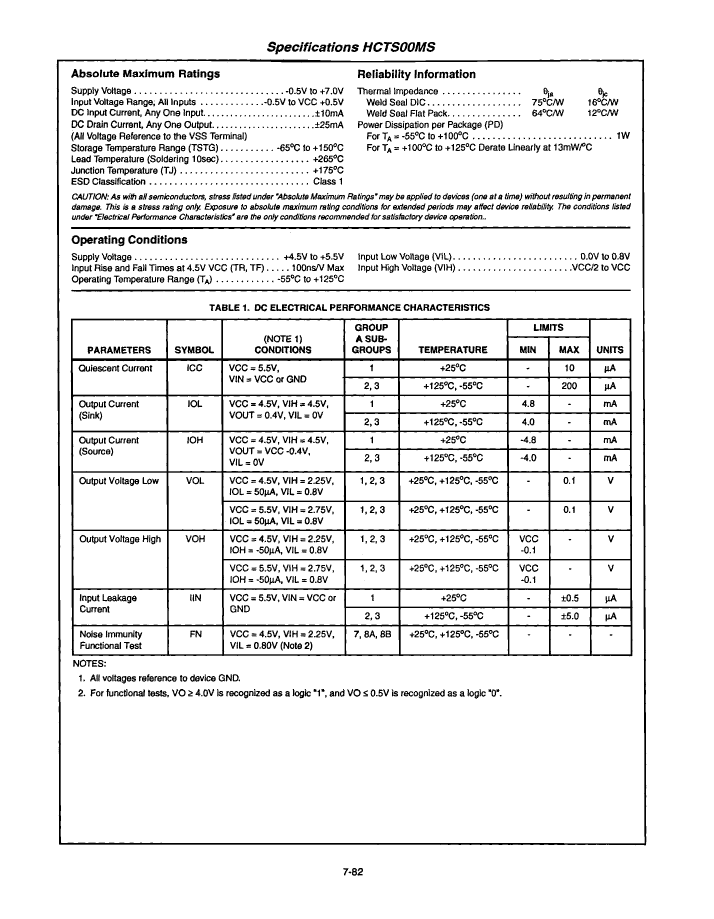

5962R9563701VXC datasheet, PDF

5962R9563701VXC: DescriptionHCT SERIES, QUAD 2-INPUT NAND GATE, CDFP14, CERAMIC, DFP-14; Categorylogic logic; File Size214KB，6 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Parametric View All

5962R9563701VXC Overview

HCT SERIES, QUAD 2-INPUT NAND GATE, CDFP14, CERAMIC, DFP-14

Parameter Name	Attribute value
Objectid	1532325071
Parts packaging code	DFP
package instruction	DFP, FL14,.3
Contacts	14
Reach Compliance Code	unknown
Other features	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY
series	HCT
JESD-30 code	R-CDFP-F14
JESD-609 code	e4
length	9.525 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.004 A
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Prop。Delay @ Nom-Sup	22 ns
propagation delay (tpd)	20 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535V;38534K;883S
Maximum seat height	2.92 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
width	6.285 mm
