• New
cable screw connection with
clamping ring
•
Strain relief and mounted gasket
all in one component
• Ergonomically shaped handle for
a better grip and safer handling
• Fastening for the protective caps
on the receptacle housing
• One cable housing for all cable
diameters (6 mm - 12,5 mm)
Content
General Information
Product Description
Technical Data
Derating Curves / Order Information
Products
Technical Data 600V - Version
Products 600V - Version
Crimp Contacts
Accessories
Mounting Instructions
Technical Information
Remarks / Safety Classification
Summary of Part Numbers
Amphenol
Page
2
4
5
5
6
8
9
10
11
12
13
16
17
3

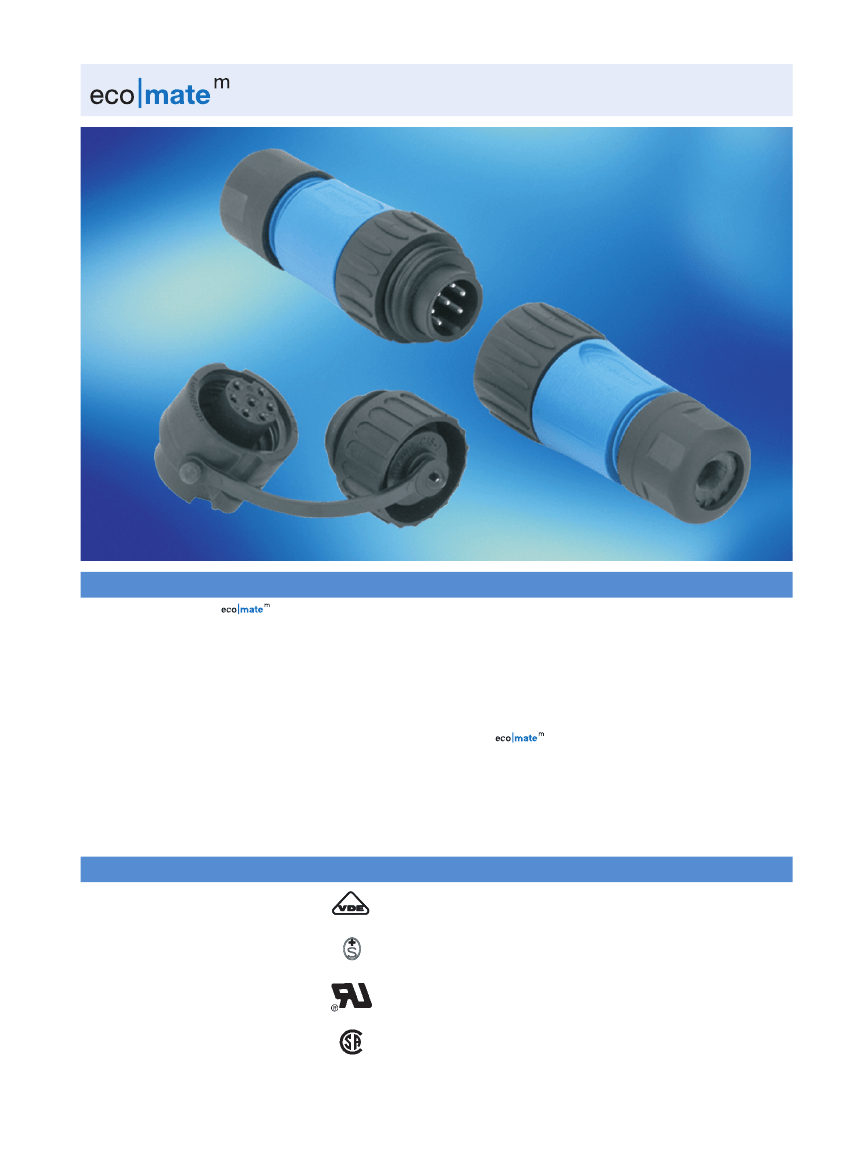

Product Description
Product Description
In design and conception the
program meets the high
requirements for applications in industrial technology. Easy operation,
reduced dimensions and a more robust design are only a few of
the features of the series.
The connector’s main area of application is in the fields of plant
construction and machine building. The connector is used for measuring
and controlling applications as well as for power supply.
technology. The series is comprised of a large selection of housings
and shapes and offers models with screw, solder and crimp termination.
Features:
•
Circular Connectors with 3+PE and 6+PE contacts
• Housing components made from premium molding material
• Cable housing straight or angled
• Protection class IP 65/67 in mated condition in accordance with DIN EN 60526
• Clamping ring or internal strain relief
Testhouse
VDE
Advantages:
•
Quick and easy assembly
• Screwed cable gland with clamping ring
• Strain relief and mounted gasket all in one component
• Cable housing, straight or angled, for the cable diameter 6 - 12,5 mm
• Robust thread for the screwed cable gland
• Ergonomically designed product range for safe handling
•
Pre-loaded ground contact
•
Fastening for the protective caps on the housing of the receptacles
• The
program is compatible with the C16-1 series
Additional standards:
• The 6+PE model corresponds to DIN 9684-1 interface to the signal
transmission on inside cabin applications for agricultural machines
and tractors
Characteristics
3+PE, 400 V, 16 A
6+PE, 250 V, 10 A (solderversion)
6+PE, 250 V, 13 A (crimpversion)
3+PE, 400 V, 16 A
6+PE, 250 V, 10 A (solderversion)
6+PE, 250 V, 13 A (crimpversion)
3+PE, 400V, 16A
6+PE, 250V, 13A
3+PE, 250 V, 12 A
6+PE, 250 V, 8 A
SEV
UL
1)
CSA
In general approvals refer to versions of the connector series. Test report upon request.
1)
Please refer to „Conditions of Acceptability“
4
Amphenol
Technical Data
General Characteristics
Number of contacts
View on male mating side
Standard
3 + PE
Characteristics
6 + PE
Electrical Characteristics
Rated voltage
Rated impulse withstand voltage
Pollution degree
Installation (overvoltage) category
Material group
Current carrying capacity
Insulation resistance
Contact resistance
Climatic Characteristics
Climatic category
Operating temperature
Mechanical Characteristics
Degree of protection
Insertion and withdrawal force
Mechanical operation
Materials
Housing material
Dielectric material
Gasket material
Material lace for protective cap
Contact plating
Other Characteristics
Termination technique
Wire gauge / AWG
Flammability
Locking system
1)
screw type
DIN EN 60664-1
1)
DIN EN 60664-1
1)
DIN EN 60664-1
1)
DIN EN 60664-1
1)
DIN EN 60664-1
1)
DIN EN 60512-5-2, Test 5b
DIN EN 60512-3-1, Test 3a
DIN EN 60512, Test 2a
DIN EN 60068-1
400 V
6000 V
3
III
II
16 A / + 55 °C
≥
10
8
Ω
≤
5m
Ω
40 / 100 / 56
-40°C ... +100°C
solder type
250 V
4000 V
3
III
II
12 A/ + 55 °C
crimp type
250 V
13 A / + 55 °C
≥
10
8
Ω
≤
5m
Ω
40 / 125 / 56
-40°C ... +125°C
IP 65 / IP 67
DIN EN 60529
DIN EN 60512-13-2, Test 13b
DIN EN 60512, Test 9a
≤
15 N
≤
30 N
≥
500 mating cycles
PA 6.6 / PA 6
PA 6.6 / PA 6
Neopren
TPE
silver plated / gold plated
screw
0,75 - 2,5 mm
2
AWG 18-14
UL 94
VO
solder
max. 0,75 mm
2
AWG 18
crimp
0,14 - 1,5 mm
2
AWG 26 - 16
round thread
^
^
DIN EN 60664-1
= VDE 0110-1 = IEC 60664-1
The stated technical values refer to the use as connector without breaking capacity (COC). If these components are used as plug and socket device a
reduced current carrying capacity has to be considered. The characteristics have to be requested from the manufacturer.
C016-1 EcoMate m
C016-1 EcoMate m
Derating Curves
Current carrying capacity
30,0
30,0
Current carrying capacity
25,0
25,0
No. of contacts 3 + PE
a)
b)
30,0
25,0
20,0
15,0
Stromstärke [A]
30,0
25,0
No. of contacts 6 + PE
all contacts under load
a) wire gauge 1,5 mm
2
,
stamped crimp contacts
b) wire gauge 0,75 mm
2
,
stamped solder contacts
20,0
20,0
15,0
15,0
10,0
10,0
all contacts under load
a) wire gauge 2,5 mm²
b) wire gauge 1,5 mm²
100
100
20,0
Stromstärke [A]
15,0
10,0
0
10,0
a)
b)
0
5,0
5,0
5,0
5,0
0
0,0
0
20
20
Ambient temperature
40
40
Um gebungstem peratur [°C]
60
60
80
80
120
120
0,0
20
20
Ambient temperature
40
40
Um gebungstem peratur [°C]
60
60
80
80
100
100
120
120
