T222B155J050GS7443 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> T222B155J050GS7443

T222B155J050GS7443: DescriptionTantalum Capacitor, Tantalum (dry/solid),; CategoryPassive components capacitor; File Size2MB，11 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

T222B155J050GS7443 Overview

Tantalum Capacitor, Tantalum (dry/solid),

T222B155J050GS7443 Parametric

Parameter Name	Attribute value
Objectid	7071509422
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.68
capacitance	1.5 µF
Capacitor type	TANTALUM CAPACITOR
diameter	3.51 mm
dielectric materials	TANTALUM (DRY/SOLID)
leakage current	0.0014 mA
length	9.91 mm
Installation features	THROUGH HOLE MOUNT
multi-layer	No
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	Axial
method of packing	AMMO PACK
polarity	POLARIZED
positive tolerance	5%
Rated (DC) voltage (URdc)	50 V
surface mount	NO
Delta tangent	0.03
Terminal shape	WIRE

Preview

Download Datasheet

View All

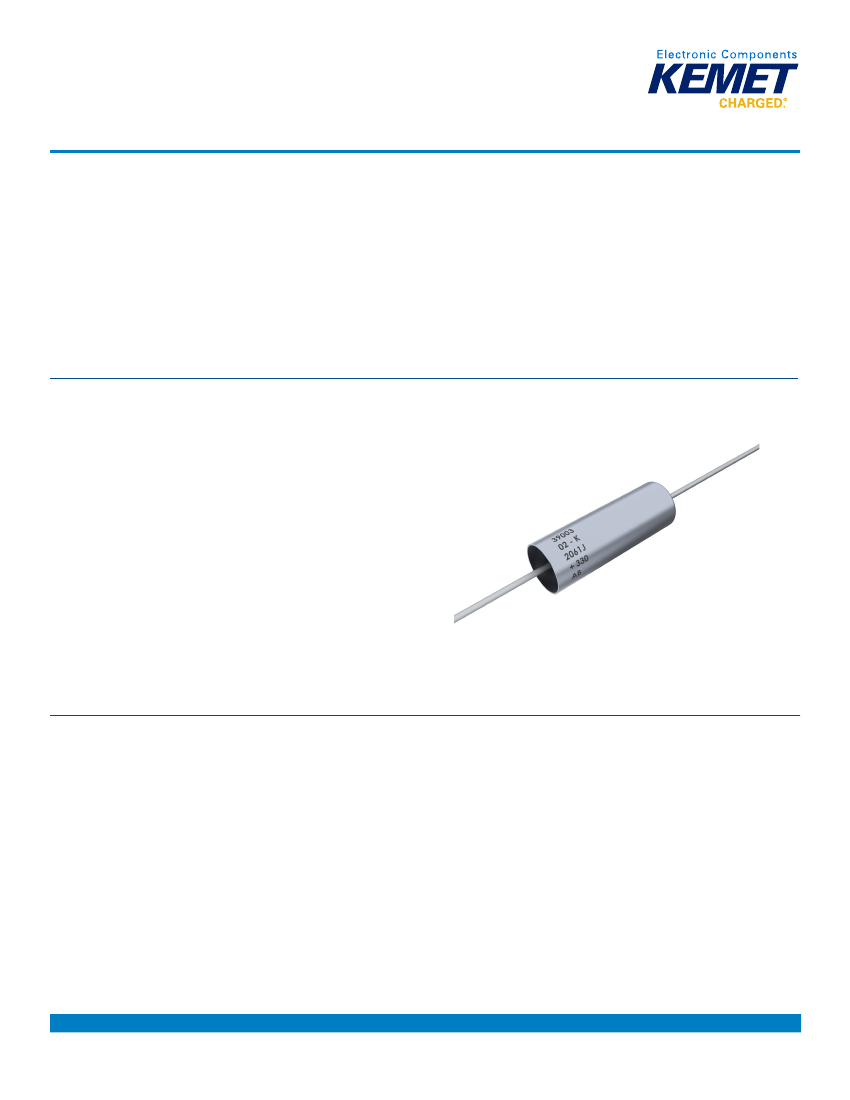

Tantalum Through-Hole Capacitors – Hermetically Sealed

T222 Series Axial MIL–PRF–39003 Polar Miniature

(CSR09 Style)

Overview

The KEMET ultra-miniature T222 Series solid tantalum

capacitors are especially designed for miniaturization

and employ a unique glass-to-metal compression end

seal which has no protruding eyelet. This flush end seal

construction ideally suits the T222 Series for all miniature

high density packaging applications. The capacitors consist

of a dry porous tantalum pellet hermetically sealed in a

solder coated metal case with solder coated alloy 52 and

solder coated nickel. The T222 series is approved to all

ratings and failure rates of MIL–PRF–39003/2.

Benefits

• Taped and reeled per EIA Specification RS–296

• Marking per MIL–STD–1285

• Qualified to MIL–PRF–39003 (CSR09 Style)

• Failure rate options: Graded - B, C, D, and G

Exponential – M, P, R, and S*

• Capacitance values of 0.047 μF to 18 μF

• Tolerances of ± 5%, and ±10%

• Voltage rating of 6 – 75 VDC

• Operating temperature range of −55˚C to +125˚C

• Case sizes: A and B

*Failure rates apply to military products only

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Applications

KEMET ultra-miniature T222 Series solid tantalum capacitors are especially designed for miniaturization.

One world. One KEMET

Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

T2033_T222_AXIAL • 10/19/2018
