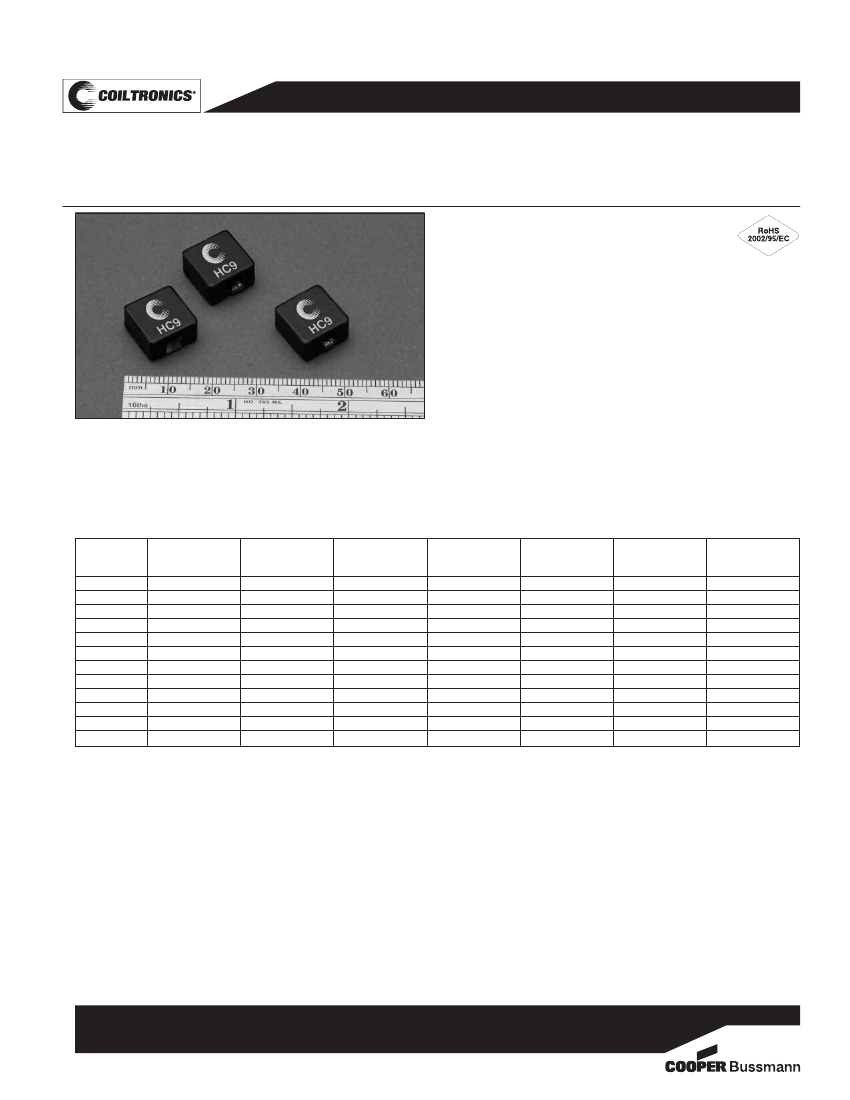

HC9 Series
High Current 9 Power Inductors
• Design utilizes high temperature powder iron material
with a non-organic binder to eliminate thermal aging
• Inductance Range from 0.2µH to 47.0µH
• Current Range from 3.65 amps to 95.0 amps
• Frequency Range 1kHz to 500kHz
Applications
• Next generation processors
• High current DC-DC converters
• VRM, multi-phase buck regulator
• PC, workstations, routers, servers
Environmental Data
• Storage temperature range: -40°C to +155°C
• Operating temperature range: -40°C to +155°C
(range is application specific)
• Solder reflow temperature: +260°C max for 10 seconds maximum
Packaging
• Supplied in tape and reel packaging, 450 parts per reel
Description
• 155°C maximum total operating temperature
• Surface mount inductors designed for higher speed switch
mode applications requiring lower inductance, low voltage and
high current
Part
Number
HC9-R20-R
HC9-R47-R
HC9-1R0-R
HC9-1R5-R
HC9-2R2-R
HC9-3R3-R
HC9-4R3-R
HC9-6R8-R
HC9-100-R
HC9-220-R
HC9-330-R
HC9-470-R
Rated
Inductance
µH
0.20
0.47
1.0
1.5
2.2
3.3
4.3
6.8
10.0
22.0
33.0
47.0
OCL
(1)
Nominal
+/-15% µH
0.218
0.544
1.04
1.70
2.53
3.52
4.67
7.45
10.9
22.4
34.5
49.2
Irms
(2)
Amps
(Typ.)
46.7
33.7
23.7
21.0
17.2
14.3
13.0
10.3
8.50
6.30
4.42
3.65
Isat
(3)
Amps
20% rolloff
65
40
28
22
18
15
13.2
11.4
8.6
6.0
4.8
3.9
Isat
(4)
Amps
30% rolloff
95
57
41
32
26
22
19.1
15.1
12.5
8.7
7.0
5.7
DCR (m
Ω
)
max. @
20°C
0.50
0.88
1.87
2.27
3.37
4.87
5.90
9.40
14.0
25.7
48.8
72.3
Volts
(5)
µSec
(VµS)
2.87
4.78
6.70
8.46
10.4
12.4
14.4
18.1
22.0
31.5
37.3
44.8
1) Test Parameters: 100kHz, 1.0Vrms
2) Irms amps for approximately
∆T
of 40°C without core loss.
Derating is necessary for AC currents. Pad layout, trace thickness and width, airflow,
and proximity of other heat generating components will affect the temperature rise. It is
recommended that the temperature of the part not exceed 155°C under worst case
conditions verified in the end application.
3) Peak current for approximately 20% rolloff @20°C
4) Peak current for approximately 30% rolloff @20°C
5) Applied Volt-Time product (V-µS) across the inductor. This value represents the applied V-µS at
operating frequency necessary to generate additional core loss which contributes to the 40°C
temperature rise. De-rating of the Irms is required to prevent excessive temperature rise. The
100% VµS rating is equivalent to a ripple current Ip-p of 20% of Isat (30% rolloff option).
Part number definition:
First 3 characters = Product code and size.
Last 3 characters = Inductance in µH. R = decimal point.
If no R is present third character = # of zeros.
-R suffix = RoHS compliant
1207
BU-SB07346
Page 1 of 3
Data Sheet 4312

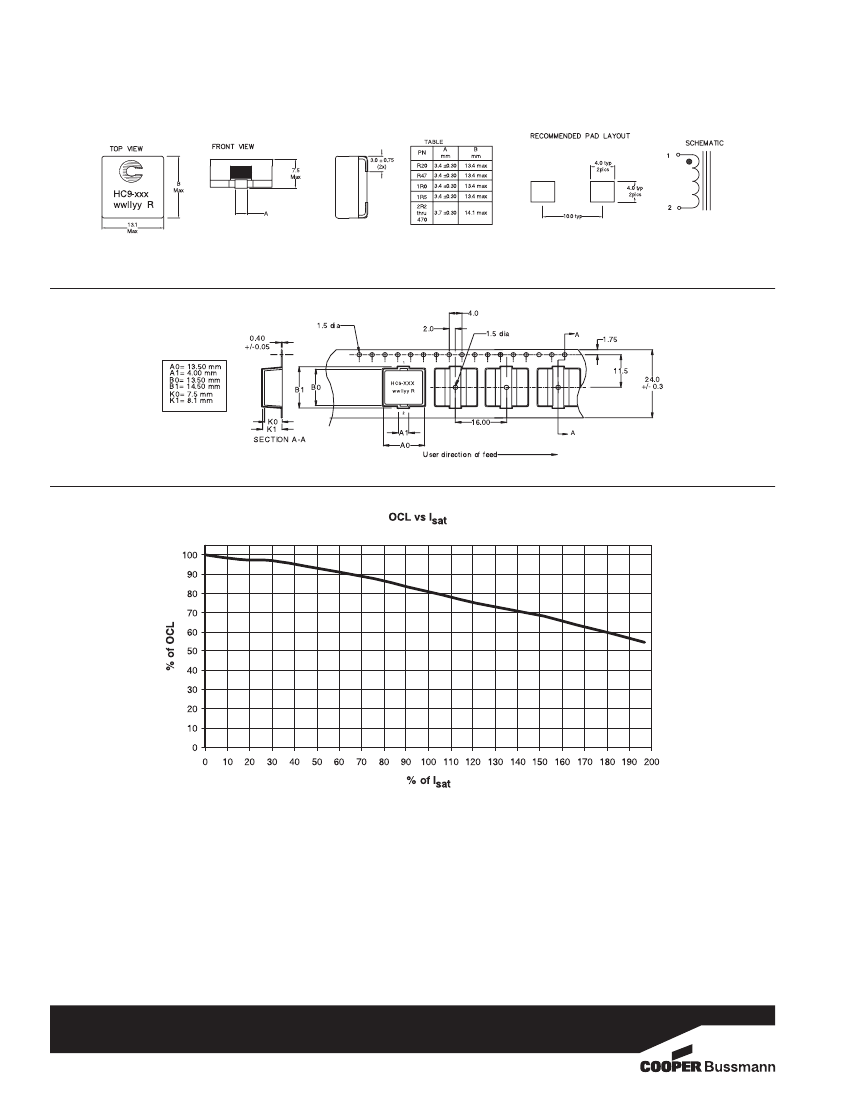

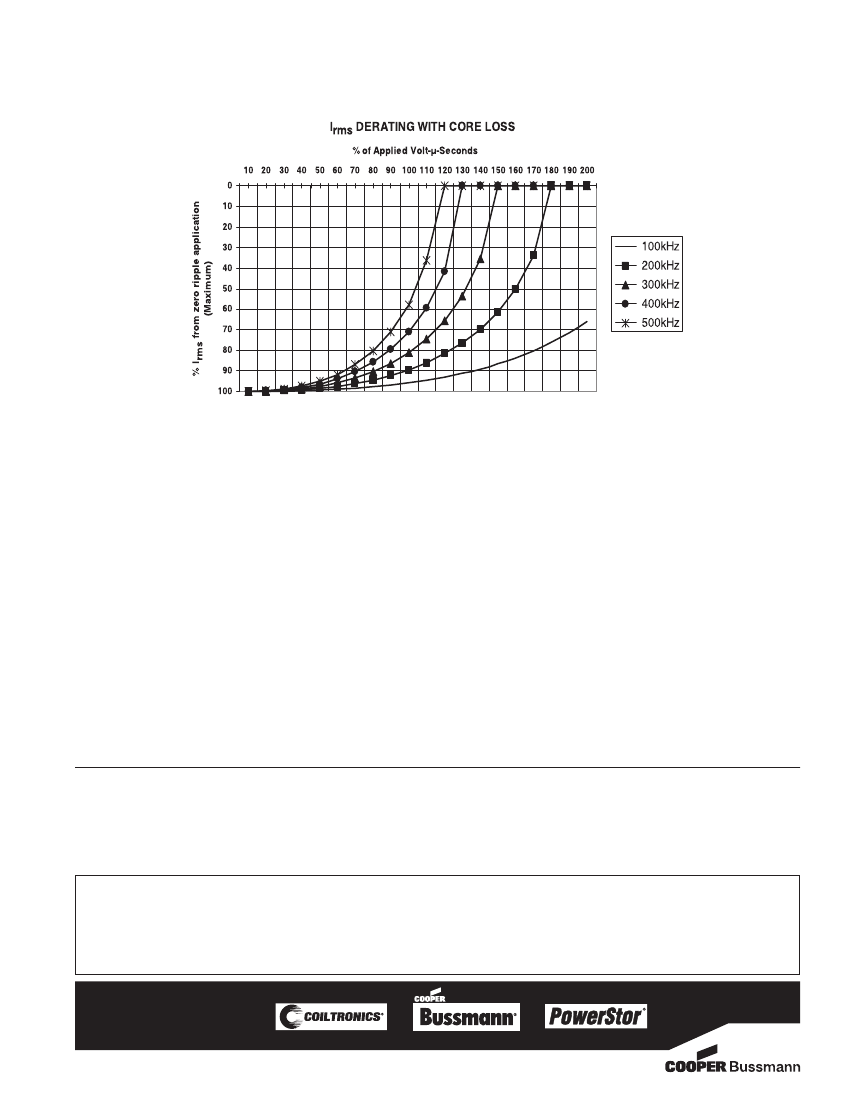

Core Loss
