PM1008S-1R8M-RC datasheet, PDF

Datasheet> All Categories > Passive components> PM1008S-1R8M-RC

PM1008S-1R8M-RC: Descriptionfixed inductors 1.8uh 20%; CategoryPassive components; File Size153KB，2 Pages; ManufacturerJ.W. Miller ( Bourns ); Environmental Compliance

Download Datasheet Parametric View All

PM1008S-1R8M-RC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM1008S-1R8M-RC	-	-	View	Buy Now

PM1008S-1R8M-RC Overview

fixed inductors 1.8uh 20%

PM1008S-1R8M-RC Parametric

Parameter Name	Attribute value
Manufacture	Bourns
Product Category	Fixed Inductors
RoHS	Yes
Inductance	1.8 uH
Tolerance	20 %
Maximum DC Curre	2 A
Maximum DC Resistance	90 mOhms
Self Resonant Frequency	225 MHz
Q Minimum	35
Shielding	Shielded
Termination Style	SMD/SMT
Package / Case	1008
Case Length	3.81 mm
Case Width	3.81 mm
Case Heigh	2.74 mm
Packaging	Reel
Factory Pack Quantity	1500

Preview

Download Datasheet

View All

Features

■

Formerly

■

Magnetic shielding

■

High Q characteristic

■

High current rating

■

RoHS compliant*

Applications

model

■

Prevention of electromagnetic interference

to signals on the secondary side of

electronic equipment

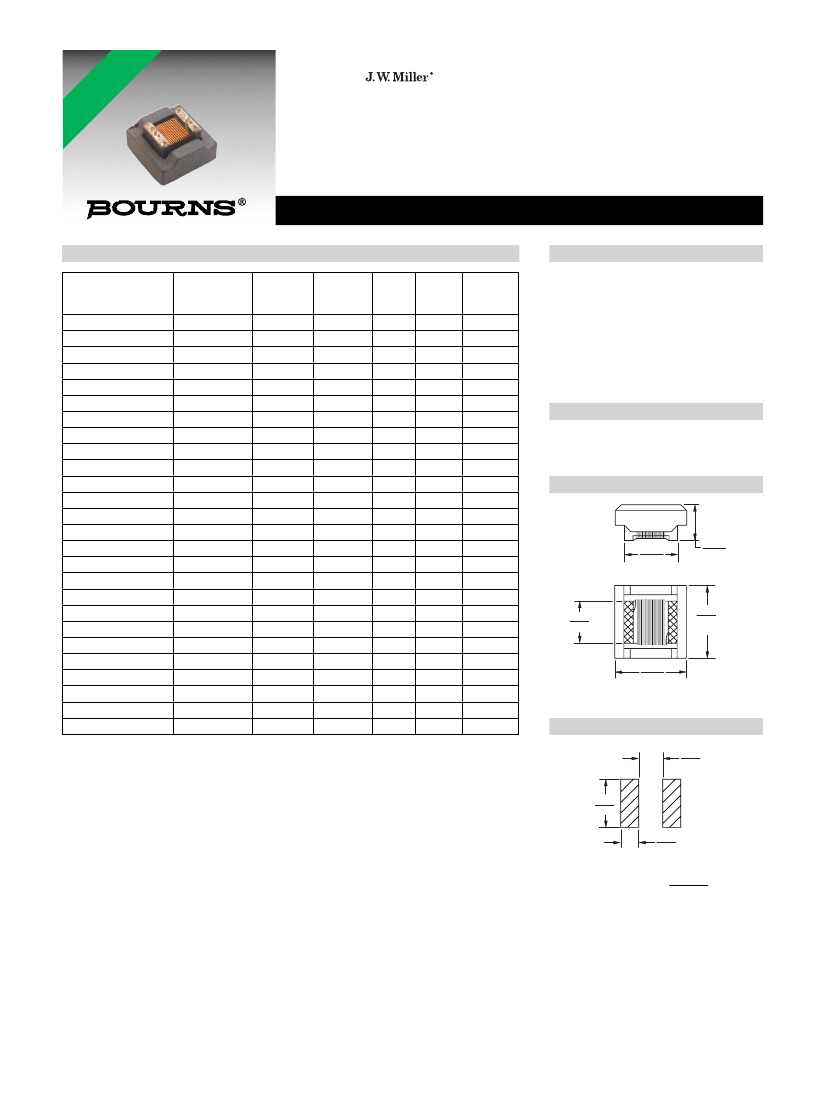

PM1008S Series - Shielded Wirewound Chip Inductors

Electrical Speciﬁcations

Inductance

μH

(@100 KHz)

1.0

1.5

1.8

2.7

3.9

4.7

5.6

6.8

100

120

150

220

330

470

560

680

820

1000

Tolerance

±20

Q min.

(@ 1 MHz)

SRF

MHz

min.

344

260

225

185

175

160

150

120

105

5.6

4.5

3.8

3.0

2.8

2.5

1.5

1.3

DCR

max.

0.05

0.06

0.09

0.14

0.26

0.35

0.40

0.60

1.0

1.2

1.4

1.6

1.9

2.5

3.8

4.2

5.8

6.2

7.5

10.0

11.5

16.5

18.0

24.0

26.0

30.0

Idc

max.

3000

2800

2000

1300

1200

1000

850

780

700

650

500

450

400

300

280

260

250

220

210

200

160

130

120

100

3.81

(.150)

MAX.

2.11

MAX.

(.083)

3.81

(.150)

MAX.

2.54

(.100)

MAX.

2.74

(.108)

MAX.

Bourns Part No.

PM1008S-1R0M-RC

PM1008S-1R5M-RC

PM1008S-1R8M-RC

PM1008S-2R7M-RC

PM1008S-3R9M-RC

PM1008S-4R7M-RC

PM1008S-5R6M-RC

PM1008S-6R8M-RC

PM1008S-100M-RC

PM1008S-150M-RC

PM1008S-220M-RC

PM1008S-330M-RC

PM1008S-390M-RC

PM1008S-470M-RC

PM1008S-680M-RC

PM1008S-820M-RC

PM1008S-101M-RC

PM1008S-121M-RC

PM1008S-151M-RC

PM1008S-221M-RC

PM1008S-331M-RC

PM1008S-471M-RC

PM1008S-561M-RC

PM1008S-681M-RC

PM1008S-821M-RC

PM1008S-102M-RC

General Speciﬁcations

Current Rating

............10 % drop in inductance at Idc

Temperature Rise

................. 15 °C max. at rated current

Operating Temperature

.................................. -40 °C to +85 °C

Storage Temperature .....-40 °C to +85 °C

Reﬂow Soldering ....230 °C; 50 sec max.

Resistance to Soldering Heat

.............................260 °C, 5 sec. max.

Materials

Core Material ................................ Ferrite

Terminal Electrode ..........................Sn/Ni

Packaging .....................750 pcs. per reel

Product Dimensions

Recommended Pad Layout

1.27

REF.

(.050)

REF.

2.54

(.100)

1.02

REF.

(.040)

DIMENSIONS:

(INCHES)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.
