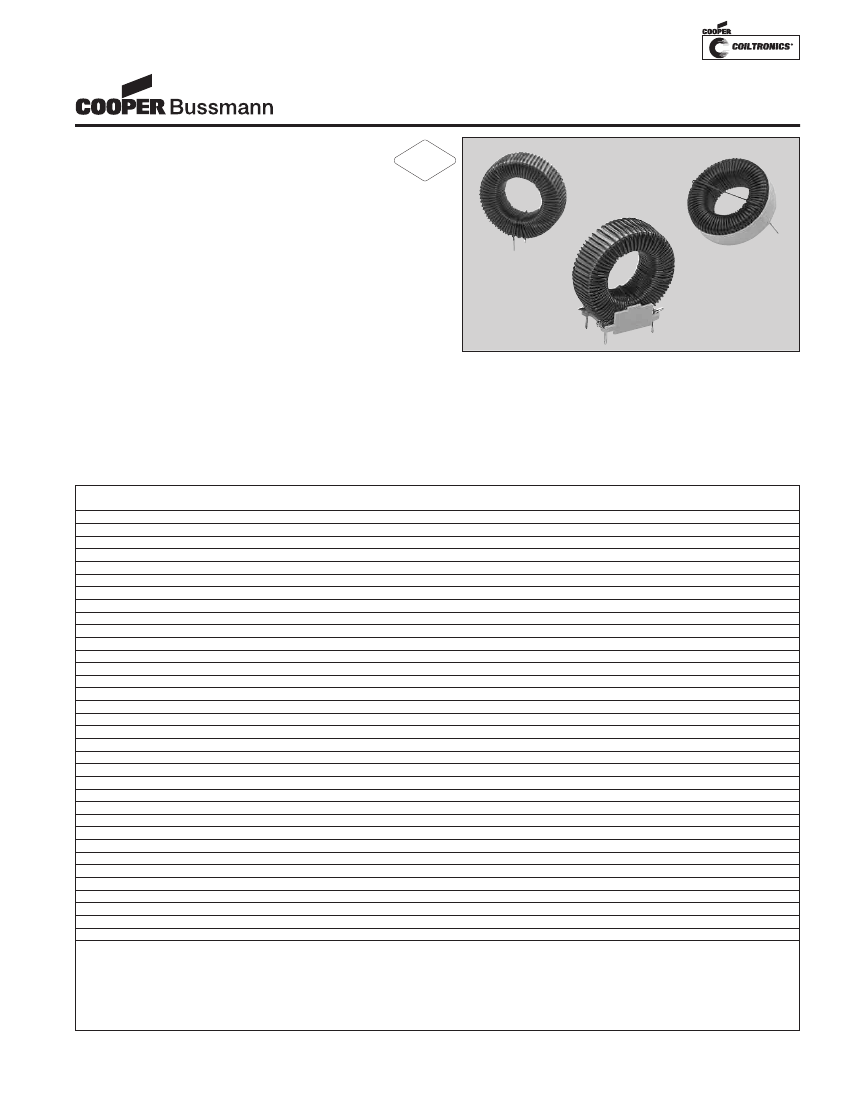

LOW COST POWER INDUCTORS

Toroidal Inductors

Description

RoHS

2002/95/EC

• Low loss, powdered iron cores with stable

electrical operating characteristics maximize

inductor efficiency by minimizing copper losses

• Available in vertical and horizontal self leaded and

header mounted configurations

• Inductance values range from 10uH to 1000uH

• Current values range from 1.5 to 29.5 Amps

• Meets UL 94V-0 flammability standard

• Powder Iron core material

Applications

• Filters

• Buck and boost switches

• Chokes

Environmental Data

• Storage temperature range: -40°C to +105°C

• Operating ambient temperature range: -40°C to +75°C

(range is application specific)

Family Table

Ver tical

Par t Number

CTX10-1-52-R

CTX20-1-52-R

CTX50-1-52-R

CTX100-1-52-R

CTX150-1-52-R

CTX250-1-52-R

CTX500-1-52-R

CTX750-1-52-R

CTX1000-1-52-R

CTX10-2-52-R

CTX20-2-52-R

CTX50-2-52-R

CTX100-2-52-R

CTX150-2-52-R

CTX250-2-52-R

CTX500-2-52-R

CTX750-2-52-R

CTX10-5-52-R

CTX20-5-52-R

CTX50-5-52-R

CTX100-5-52-R

CTX150-5-52-R

CTX250-5-52-R

CTX10-7-52-R

CTX20-7-52-R

CTX50-7-52-R

CTX100-7-52-R

CTX150-7-52-R

CTX10-10-52-R

CTX20-10-52-R

CTX50-10-52-R

CTX100-10-52-R

CTX10-16-52-R

CTX20-16-52-R

Notes:

Packaging

• Supplied in bulk packaging

Horizontal

Par t Number

CTX10-1-52LP-R

CTX20-1-52LP-R

CTX50-1-52LP-R

CTX100-1-52LP-R

CTX150-1-52LP-R

CTX250-1-52LP-R

CTX500-1-52LP-R

CTX750-1-52LP-R

CTX1000-1-52LPR

CTX10-2-52LP-R

CTX20-2-52LP-R

CTX50-2-52LP-R

CTX100-2-52LP-R

CTX150-2-52LP-R

CTX250-2-52LP-R

CTX500-2-52LP-R

CTX750-2-52LP-R

CTX10-5-52LP-R

CTX20-5-52LP-R

CTX50-5-52LP-R

CTX100-5-52LP-R

CTX150-5-52LP-R

CTX250-5-52LP-R

CTX10-7-52LP-R

CTX20-7-52LP-R

CTX50-7-52LP-R

CTX100-7-52LP-R

CTX150-7-52LP-R

CTX10-10-52LP-R

CTX20-10-52LP-R

CTX50-10-52LP-R

CTX100-10-52LPR

CTX10-16-52LP-R

CTX20-16-52LP-R

Header Mounted

Inductance

Par t Number

µH (rated)

CTX10-1-52M-R

10

CTX20-1-52M-R

20

CTX50-1-52M-R

50

CTX100-1-52M-R

100

CTX150-1-52M-R

150

CTX250-1-52M-R

250

CTX500-1-52M-R

500

CTX750-1-52M-R

750

CTX1000-1-52M-R

1000

CTX10-2-52M-R

10

20

CTX20-2-52M-R

CTX50-2-52M-R

50

CTX100-2-52M-R

100

CTX150-2-52M-R

150

CTX250-2-52M-R

250

500

CTX500-2-52M-R

CTX750-2-52M-R

750

CTX10-5-52M-R

10

CTX20-5-52M-R

20

CTX50-5-52M-R

50

CTX100-5-52M-R

100

CTX150-5-52M-R

150

250

CTX10-7-52M-R

10

CTX20-7-52M-R

20

50

CTX50-7-52M-R

100

150

10

20

50

100

10

20

OCL

(1)

µH +/- 20%

10.14

20.22

50.29

100.40

151.70

250.90

505.00

754.40

1004.00

9.60

19.60

50.00

101.70

148.00

251.10

499.40

749.30

9.68

21.25

49.60

97.20

150.60

254.40

10.04

20.96

52.27

101.40

152.80

10.04

21.17

52.37

99.38

9.90

19.24

I

DC

(2)

Amper es

2.4

1.8

2.6

2.5

2.1

1.9

1.7

1.8

1.5

4.7

3.2

4.9

4.4

4.3

4.2

3.1

3.4

8.7

7.8

7.6

8.2

7.7

9.2

11.4

10.5

12.0

12.8

16.9

16.0

13.9

17.6

27.3

31.5

I

SAT

(3)

Amperes

2.1

2.2

2.7

2.4

2.3

2.2

1.9

2.4

2.1

4.5

3.2

4.9

4.3

4.0

4.2

3.3

3.4

11.1

9.3

9.4

7.5

8.1

13.5

14.5

10.2

9.1

10.5

20.9

16.0

12.7

13.0

29.3

29.5

Volt-µSec

(4)

VµS

5.4

7.8

16.3

27.5

35.7

47.8

77.9

114.3

131.9

6.6

9.4

21.3

35.0

47.6

66.0

104.0

147.3

9.4

16.0

29.3

45.7

66.0

102.4

11.0

19.1

33.5

54.2

79.3

13.2

21.3

38.9

64.0

16.9

28.1

Ener gy

(5)

µJ

15

36

130

197

283

421

645

1530

68

69

420

643

829

1540

1890

2960

417

643

1530

1890

2960

5860

640

1540

1900

2960

5900

1530

1900

2960

5880

2970

5860

DCR (

Ω

)

(6)

max

0.0481

0.0829

0.0715

0.1060

0.1620

0.2210

0.3610

0.4340

0.6380

0.0183

0.0392

0.0326

0.0534

0.0719

0.0833

0.1830

0.2080

0.0104

0.0260

0.0248

0.0267

0.0401

0.0400

0.0080

0.0110

0.0163

0.0167

0.0204

0.0051

0.0070

0.0124

0.0109

0.0032

0.0034

(1) Open circuit inductance test parameters: 100kHz, 0.250Vrms, 0 Adc.

(2) DC current for an approximate

∆T

of 30°C at 75°C Ambient with no core loss. See Chart 2 for derating of I

DC

with core loss.

(3) Peak current for an approximate 30% roll-off in OCL. For other current levels see Chart 1.

(4) Applied Volt-Time product (VµS) across the inductor. This value represents the VµS at 100kHz necessary to generate a core loss equal to 10% of the total

losses for 30°C rise. For other frequencies and operating levels see Chart 2. (Note: skin effect losses not included.)

(5) Energy storage (µJ) at I

SAT

. For other current levels see Chart 1.

(6) Maximum D.C. resistance at 20°C.

LOW COST POWER INDUCTORS

Toroidal Inductors

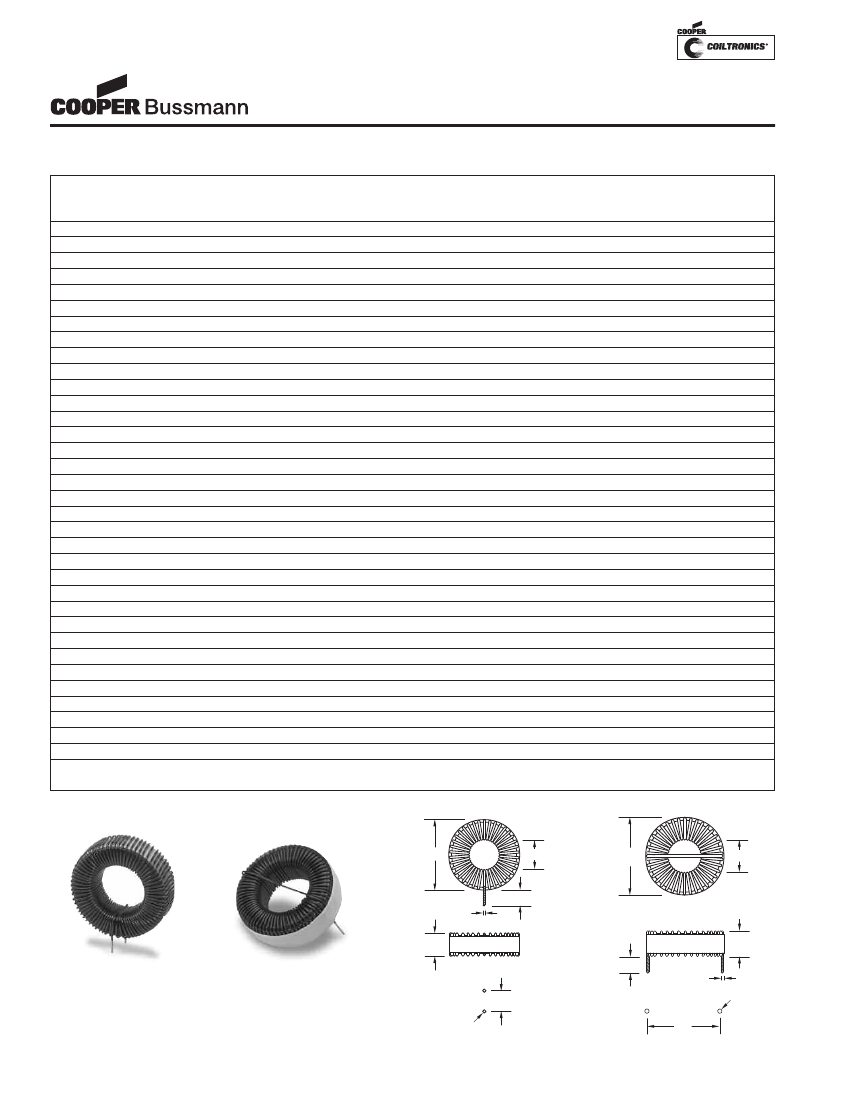

Mechanical Diagrams

Vertical and Horizontal Self Leaded Mounting Options

Ver tical P/N

See Figur e 1

CTX10-1-52-R

CTX20-1-52-R

CTX50-1-52-R

CTX100-1-52-R

CTX150-1-52-R

CTX250-1-52-R

CTX500-1-52-R

CTX750-1-52-R

CTX1000-1-52-R

CTX10-2-52-R

CTX20-2-52-R

CTX50-2-52-R

CTX100-2-52-R

CTX150-2-52-R

CTX250-2-52-R

CTX500-2-52-R

CTX750-2-52-R

CTX10-5-52-R

CTX20-5-52-R

CTX50-5-52-R

CTX100-5-52-R

CTX150-5-52-R

CTX250-5-52-R

CTX10-7-52-R

CTX20-7-52-R

CTX50-7-52-R

CTX100-7-52-R

CTX150-7-52-R

CTX10-10-52-R

CTX20-10-52-R

CTX50-10-52-R

CTX100-10-52-R

CTX10-16-52-R

CTX20-16-52-R

Horizontal P/N

See Figur e 2

CTX10-1-52LP-R

CTX20-1-52LP-R

CTX50-1-52LP-R

CTX100-1-52LP-R

CTX150-1-52LP-R

CTX250-1-52LP-R

CTX500-1-52LP-R

CTX750-1-52LP-R

CTX1000-1-52LP-R

CTX10-2-52LP-R

CTX20-2-52LP-R

CTX50-2-52LP-R

CTX100-2-52LP-R

CTX150-2-52LP-R

CTX250-2-52LP-R

CTX500-2-52LP-R

CTX750-2-52LP-R

CTX10-5-52LP-R

CTX20-5-52LP-R

CTX50-5-52LP-R

CTX100-5-52LP-R

CTX150-5-52LP-R

CTX250-5-52LP-R

CTX10-7-52LP-R

CTX20-7-52LP-R

CTX50-7-52LP-R

CTX100-7-52LP-R

CTX150-7-52LP-R

CTX10-10-52LP-R

CTX20-10-52LP-R

CTX50-10-52LP-R

CTX100-10-52LP-R

CTX10-16-52LP-R

CTX20-16-52LP-R

OD

(max)

8.6

9.1

16.2

15.5

20.7

20.9

24.0

29.8

12.7

12.5

21.6

24.0

30.6

31.2

36.7

43.3

22.2

24.5

32.3

37.8

46.4

53.7

25.7

32.4

39.0

48.5

54.5

34.0

40.5

47.5

57.0

50.3

59.0

ID

(typ)

0.0

4.2

6.6

6.0

9.0

11.7

0.0

6.1

8.8

11.2

9.1

11.7

19.9

5.4

8.8

10.1

11.2

18.8

6.5

8.5

10.8

17.1

7.0

9.0

17.1

15.0

13.0

Ht

(max)

4.7

6.7

9.0

12.4

9.4

13.0

15.3

17.4

17.1

7.8

7.5

13.6

16.6

11.4

19.0

14.8

18.2

13.9

16.6

18.9

16.8

19.8

24.3

18.0

19.8

16.8

21.8

25.4

21.4

18.0

21.3

27.5

24.0

28.0

X

(typ)

3.8

5.6

7.5

10.7

7.8

11.0

14.0

15.6

15.5

6.3

11.0

13.9

9.3

15.7

12.5

15.8

11.5

14.5

16.5

13.6

16.8

20.1

16.0

16.8

13.9

17.2

21.2

17.0

14.3

17.5

21.3

18.6

23.0

Y

(typ)

7.3

7.4

13.7

18.8

21.2

28.2

28.0

11.0

19.5

21.8

28.5

34.5

41.5

19.9

22.0

28.8

35.5

43.4

49.4

22.4

29.2

35.7

43.4

50.9

29.6

35.2

42.8

50.6

43.0

50.7

T

(typ)

0.42

0.37

0.58

0.52

0.46

0.71

0.58

0.89

0.80

0.89

0.71

0.80

1.11

0.89

1.11

1.24

1.38

1.73

2.15

2.41

2.69

H

(typ)

0.67

0.62

0.83

0.77

0.71

0.96

0.83

1.14

1.05

1.14

0.96

1.05

1.36

1.14

1.36

1.49

1.63

1.98

2.45

2.70

2.99

Note: All dimensions are in millimeters.

FIGURE 1

OD

ID

FIGURE 2

OD

ID

10.0 +/- 3

T dia.

Ht

10.0 +/- 3

Ht

VERTICAL

SELF LEADED

MOUNT

HORIZONTAL

SELF LEADED

MOUNT

T dia.

(typ.)

X

H dia.

(typ.)

Y

H dia

(typ.)

Drawings are not to scale.

LOW COST POWER INDUCTORS

Toroidal Inductors

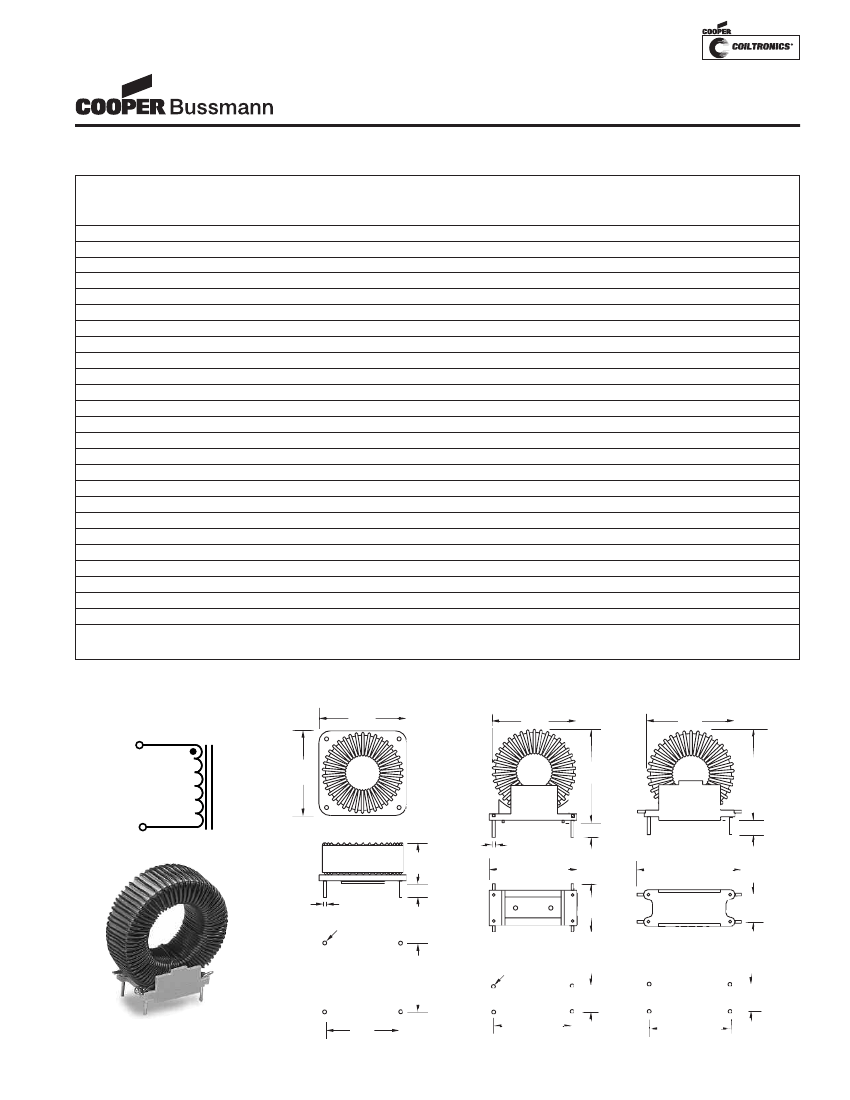

Header Mounted Option

Header Mounted

Par t Number

CTX10-1-52M-R

CTX20-1-52M-R

CTX50-1-52M-R

CTX100-1-52M-R

CTX150-1-52M-R

CTX250-1-52M-R

CTX500-1-52M-R

CTX750-1-52M-R

CTX1000-1-52M-R

CTX10-2-52M-R

CTX20-2-52M-R

CTX50-2-52M-R

CTX100-2-52M-R

CTX150-2-52M-R

CTX250-2-52M-R

CTX500-2-52M-R

CTX750-2-52M-R

CTX10-5-52M-R

CTX20-5-52M-R

CTX50-5-52M-R

CTX100-5-52M-R

CTX150-5-52M-R

CTX10-7-52M-R

CTX20-7-52M-R

CTX50-7-52M-R

See

Figur e #

3

4

5

3

5

OD

(max)

8.6

9.1

16.2

15.5

20.7

20.9

24.0

29.8

12.7

12.5

21.6

24.0

30.6

31.2

36.7

43.3

22.2

24.5

32.3

37.8

46.4

25.7

32.4

39.0

A

(max)

9.4

19.6

31.0

35.4

13.6

31.0

35.4

31.0

35.4

31.0

35.4

31.0

35.4

B

(max)

9.4

16.1

16.0

21.7

11.4

16.0

21.7

16.0

21.7

16.0

21.7

16.0

21.7

C

(max)

6.9

9.0

20.0

19.7

24.2

22.5

25.0

31.6

31.2

11.7

11.4

23.5

26.0

32.5

33.4

38.4

45.4

22.7

25.5

33.7

40.2

47.0

26.7

34.2

40.3

X

(typ)

6.5

15.3

20.3

23.0

10.8

20.3

23.0

20.3

23.0

20.3

23.0

20.3

23.0

Y

(typ)

6.5

6.4

10.2

15.4

7.5

10.2

15.4

10.2

15.4

10.2

15.4

10.2

15.4

T

(typ)

—

1.20

—

1.20

1.11

1.24

1.38

H

(typ)

—

1.45

—

1.45

1.36

1.49

1.63

Note: All dimensions are in millimeters.

CONNECTION

DIAGRAM

2

FIGURE 3

A

3

FIGURE 4

OD

FIGURE 5

OD

1

B

C

1

4

4.0 +/- 1

0 +/-

-

1.00 dia.

0 dia.

(typ.)

C

3.8 +/-

3.8 +/- 1

A

1

2

3

4

B

0.70dia. (typ.)

3

2

A

4.25+/- 1.5

3

0.50 dia.

(typ.)

(typ. )

2

1

4

3

Pins

Pins 1 & 3: T dia.

3: dia.

Pins

Pins 2 & 4: 1.20 dia.

4: 1.20 dia.

Holes

Holes 1 & 3: H dia.

3:

Holes

Holes 2 & 4: 1.45 dia. 3

4: 1.45

B

1.25dia. (typ.)

Y

2

1

X

3

Y

1

4

X

4

1

2

Y

4

X

HEADER MOUNT

Drawings are not to scale.

Figure3

Figure4

Figure5

LOW COST POWER INDUCTORS

Toroidal Inductors

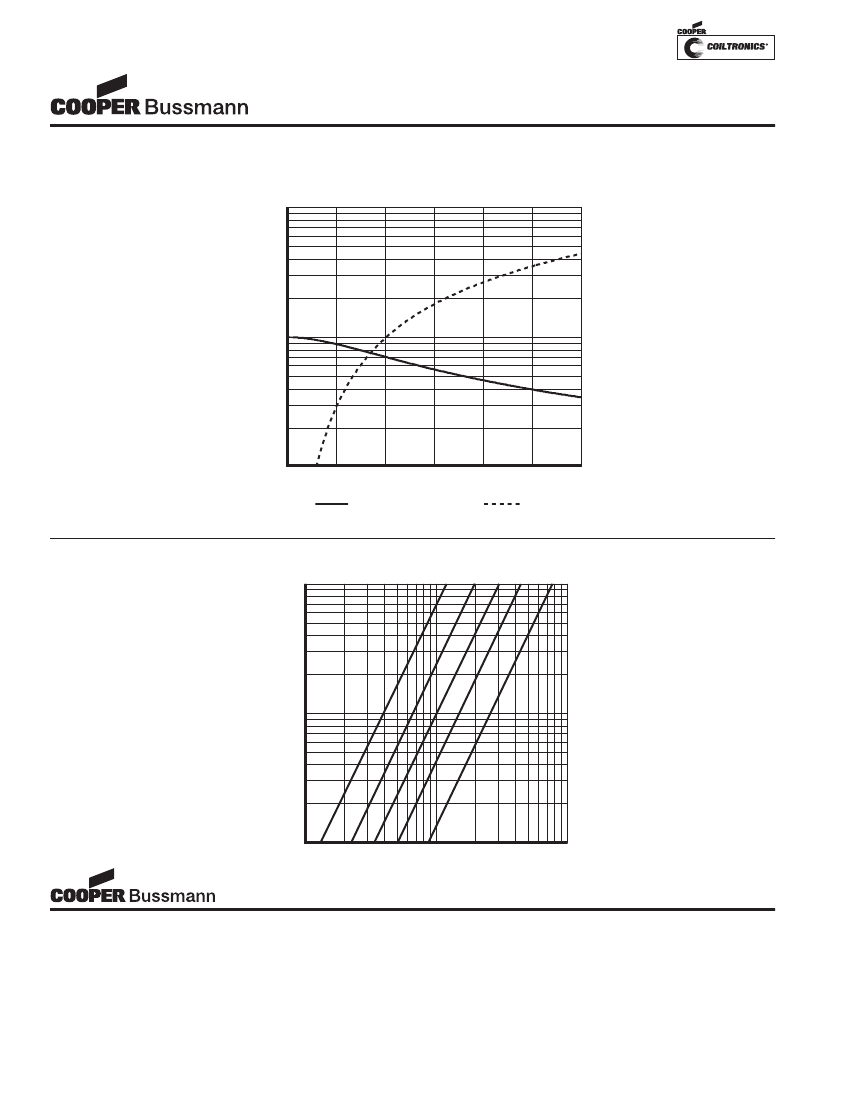

Inductance Characteristics

1000

800

600

500

0

20

40

50

60

70

80

z

kH

200

z

300

200

% of Losses from Irms (maximum)

400

% of OCL or % of Energy

500

100

80

60

50

40

30

20

90

92

94

95

96

97

98

0

50

100

150

200

250

Energy

300

% OF

I

SAT

Inductance

% of applied V

Core Loss

0

20

40

50

60

70

80

z

kH

z

kH

z

kH

z

kH

20

kH

z

% of Losses from Irms (maximum)

500

200

100

90

92

94

95

96

97

98

99

150

200

250

Energy

300

50

% OF

I

SAT

% of applied Volt-µ Seconds

PM-4304 3/07

Technologies 2007

Visit us on the Web at www.cooperbussmann.com

1225 Broken Sound Pkwy. Suite F Boca Raton, FL 33487

Tel: +1-561-998-4100 Toll Free: +1-888-414-2645 Fax: +1-561-241-6640

This bulletin is intended to present product design solutions and technical information that will help the end user with design applications. Cooper Electronic

Technologies reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Cooper

Electronic Technologies also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been

selected, it should be tested by the user in all possible applications.

Life Support Policy: Cooper Electronic Technologies does not authorize the use of any of its products for use in life support devices or systems without the

express written approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when

properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.

1000

100

200

300

400

500

600

800

40

50

60

20

30

10

80

100

10

99

40

50

60

20

30

10

80

100

k

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Fixed Inductors
RoHS	Yes
Inductance	150 uH
Tolerance	20 %
Maximum DC Curre	2.3 A
Maximum DC Resistance	162 mOhms
Operating Temperature Range	- 40 C to + 75 C
Shielding	Unshielded
Termination Style	Radial
Case Heigh	9.4 mm
Case Diamete	20.7 mm
Core Material	Powdered I
Lead Spacing	7.8 mm
Packaging	Bulk
Produc	Power Inductors
Factory Pack Quantity	120
Test Frequency	100 kHz
Type	Vertical Mounted Power Induc
Unit Weigh	10.433 g

	CTX150-1-52-R	CTX10-2-52-R
Description	fixed inductors 150uh 2.4A 0.106ohms vertical mount	fixed inductors 10uh 4.5A 0.0183ohms vertical mount
Manufacture	Cooper Bussm	Cooper Bussm
Product Category	Fixed Inductors	Fixed Inductors
RoHS	Yes	Yes
Inductance	150 uH	10 uH
Tolerance	20 %	20 %
Maximum DC Curre	2.3 A	4.5 A
Maximum DC Resistance	162 mOhms	18.3 mOhms
Operating Temperature Range	- 40 C to + 75 C	- 40 C to + 75 C
Shielding	Unshielded	Unshielded
Termination Style	Radial	Radial
Case Heigh	9.4 mm	7.8 mm
Case Diamete	20.7 mm	12.7 mm
Core Material	Powdered I	Powdered I
Lead Spacing	7.8 mm	6.3 mm
Packaging	Bulk	Bulk
Produc	Power Inductors	Power Inductors
Factory Pack Quantity	120	240
Test Frequency	100 kHz	100 kHz
Type	Vertical Mounted Power Induc	Vertical Mounted Power Induc
Unit Weigh	10.433 g	3.175 g

CTX150-1-52-R

CTX150-1-52-R Online Shopping

CTX150-1-52-R Overview

CTX150-1-52-R Parametric

Preview

CTX150-1-52-R Related Products

Recommended Resources
