PM43-560K-RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> PM43-560K-RC

PM43-560K-RC: Descriptionfixed inductors 56uh 10%; CategoryPassive components; File Size211KB，2 Pages; ManufacturerJ.W. Miller ( Bourns ); Environmental Compliance

Download Datasheet Parametric View All

PM43-560K-RC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM43-560K-RC	-	-	View	Buy Now

PM43-560K-RC Overview

fixed inductors 56uh 10%

PM43-560K-RC Parametric

Parameter Name	Attribute value
Manufacture	Bourns
Product Category	Fixed Inductors
RoHS	Yes
Inductance	56 uH
Tolerance	10 %
Maximum DC Curre	420 mA
Maximum DC Resistance	937 mOhms
Self Resonant Frequency	14 MHz
Termination Style	SMD/SMT
Case Length	4.5 mm
Case Width	4 mm
Case Heigh	3.2 mm
Factory Pack Quantity	1500
Type	SMD Power Induc

Preview

Download Datasheet

View All

Features

■

Formerly

■

Available in E12 series

■

Low proﬁle of only 3.2 mm

■

Low inductance values

■

RoHS compliant*

Applications

model

■

Input/output of DC/DC converters

■

Power supplies for:

•

Portable communication equipment

Camcorders

LCD TVs

Car radios

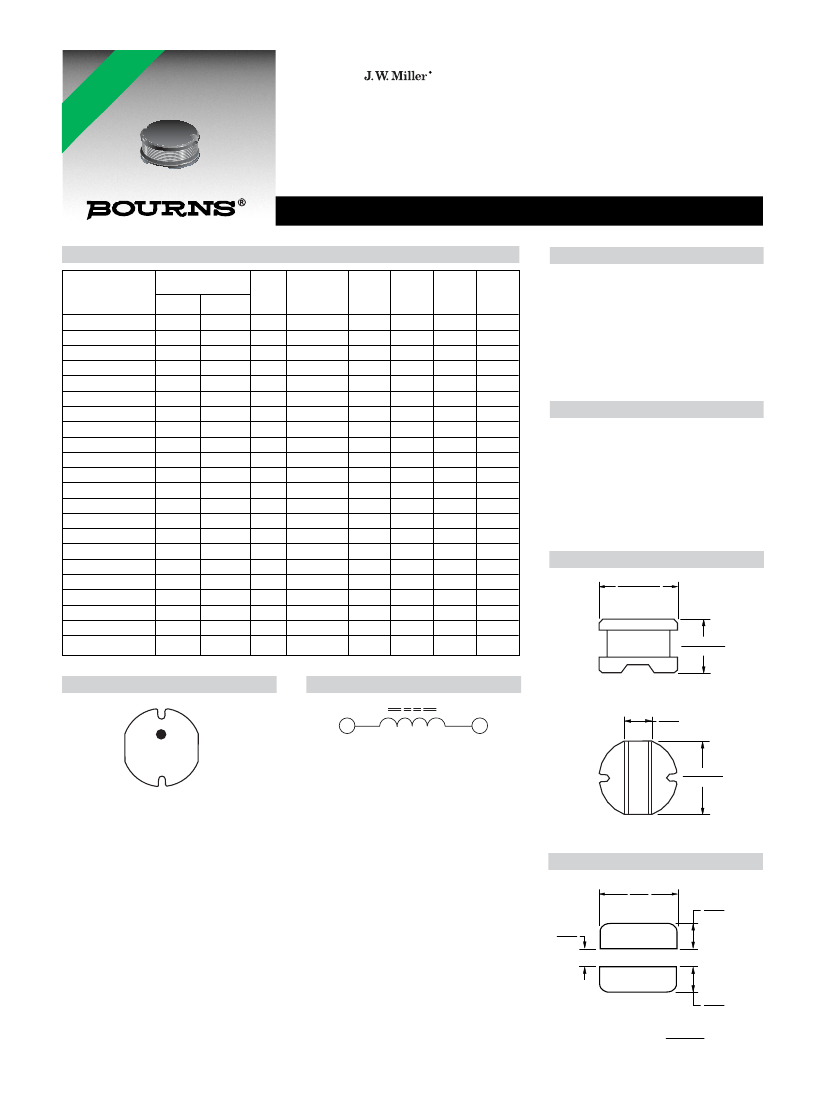

PM43 Series - SMD Power Inductor

Electrical Speciﬁcations

Inductance 1 kHz

Bourns Part No.

PM43-1R0M-RC

PM43-1R4M-RC

PM43-1R8M-RC

PM43-2R2M-RC

PM43-2R7M-RC

PM43-3R3M-RC

PM43-3R9M-RC

PM43-4R7M-RC

PM43-5R6M-RC

PM43-6R8M-RC

PM43-8R2M-RC

PM43-100M-RC

PM43-120M-RC

PM43-150M-RC

PM43-180M-RC

PM43-220M-RC

PM43-270K-RC

PM43-330K-RC

PM43-390K-RC

PM43-470K-RC

PM43-560K-RC

PM43-680K-RC

(µH)

1.0

1.4

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

Tol. %

± 20

± 10

Ref.

Test

Frequency

(MHz)

7.96

2.52

SRF

Min.

(MHz)

150

110

I rms

Max.

(A)

3.80

3.30

2.91

2.60

2.43

2.15

1.98

1.70

1.60

1.41

1.26

1.15

1.05

0.92

0.84

0.76

0.71

0.64

0.59

0.54

0.50

0.46

I sat

Typ.

(A)

5.50

5.10

4.40

3.90

3.50

3.00

2.70

2.60

2.40

2.10

1.90

1.70

1.60

1.40

1.30

1.20

1.00

0.99

0.92

0.78

0.74

0.68

General Speciﬁcations

Test Voltage .......................................1 V

Reﬂow Soldering .. 230 °C, 50 sec. max.

Operating Temperature

................................-40 °C to +125 °C

(Temperature rise included)

Storage Temperature

................................-40 °C to +125 °C

Resistance to Soldering Heat

................................. 260 °C for 5 sec.

Materials

Core ...................................... Ferrite DR

Wire ............ Enameled copper wire 130

Terminal ....................................Ag/Ni/Sn

Rated Current

...................Ind. drop 10 % typ. at Isat

Temperature Rise ................. 40 °C max.

at rated Irms

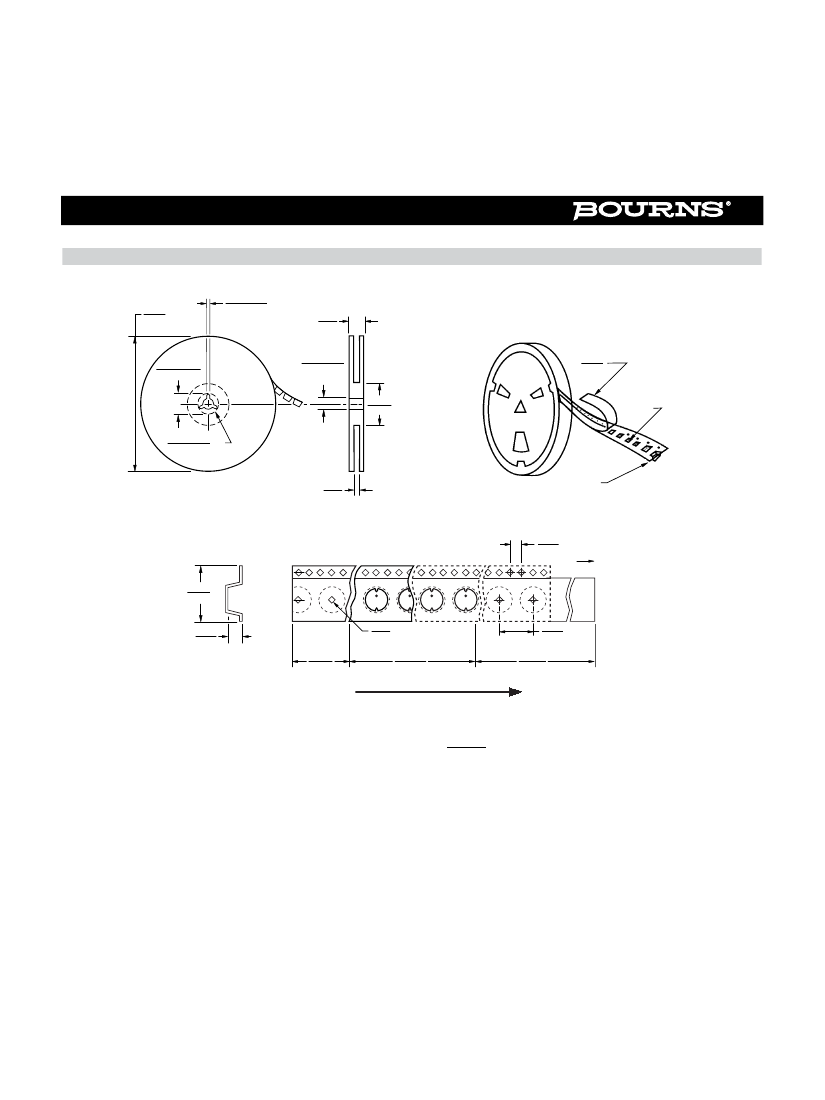

Packaging .................. 1500 pcs. per reel

Product Dimensions

4.5

0.3

(.177

.012)

MAX.

RDC

(Ω)

0.033

0.038

0.042

0.047

0.052

0.058

0.076

0.094

0.10

0.12

0.13

0.18

0.21

0.24

0.34

0.38

0.52

0.54

0.59

0.84

0.94

1.12

3.2

0.3

MAX.

(.126

.012)

Typical Part Marking

Electrical Schematic

1.5

TYP.

(.059)

100

4.0

0.3

MAX.

(.157

.012)

Recommended Layout

4.5

(.177)

1.8

(.071)

1.5

(.059)

1.8

(.071)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.

DIMENSIONS:

(INCHES)
