T2SDT-05-24-L-98.43-D-NUX datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> T2SDT-05-24-L-98.43-D-NUX

T2SDT-05-24-L-98.43-D-NUX: DescriptionCable Assembly, 24AWG,; CategoryThe connector Connector bracket; File Size800KB，4 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

T2SDT-05-24-L-98.43-D-NUX Overview

Cable Assembly, 24AWG,

T2SDT-05-24-L-98.43-D-NUX Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Factory Lead Time	3 weeks
conductor material	TINNED COPPER
Connector bracket type	CABLE ASSEMBLY
insulator material	TEFLON
length	2.47 mm
shield	NO
Wire gauge	24 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

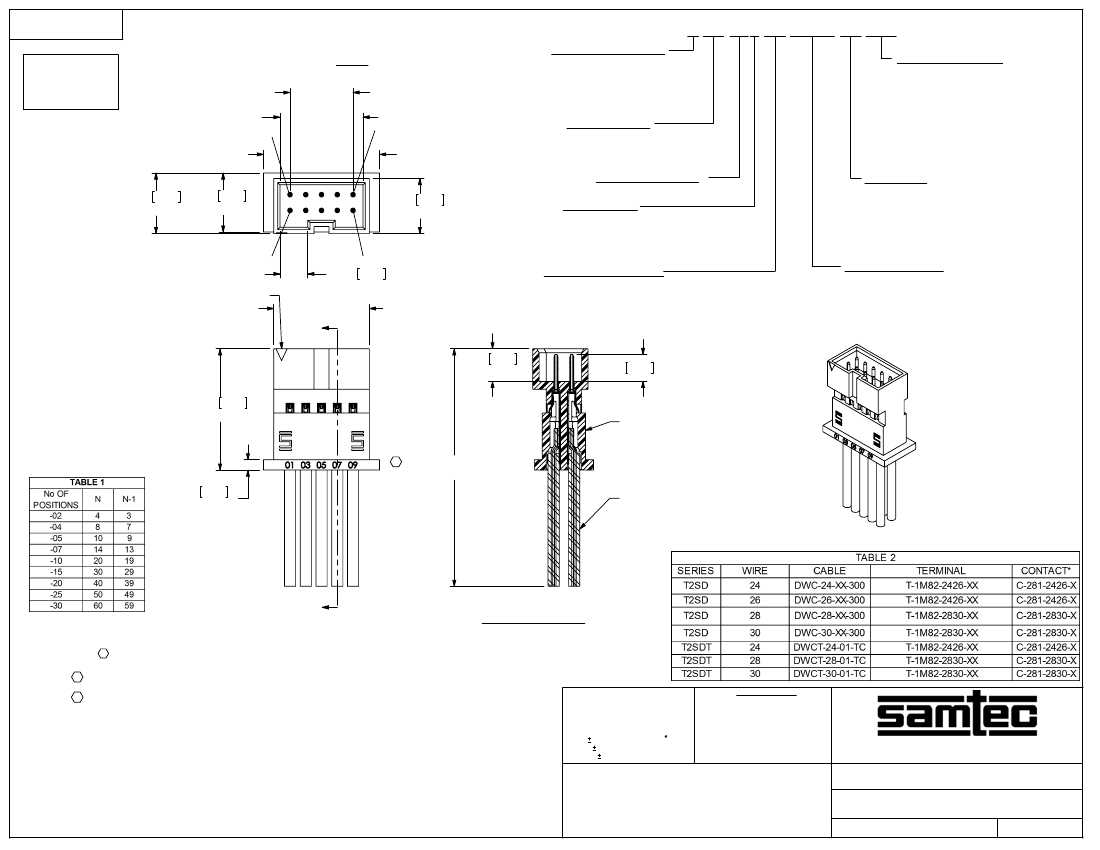

REVISION M

DO NOT

SCALE FROM

THIS PRINT

(No OF POS X 2.00[.079])

+ 0.55[.022]) REF

DESIGNED & DIMENSIONED

IN MILLIMETERS[INCHES]

T2SDX-05-24-X-XX.XX-S SHOWN

(No OF POS - 1) X 2.00[.079]

T2SDX-XX-XXX-XX-XX.XX-XX-XXX

TEFLON CABLE OPTION

-T: TEFLON (AVAILABLE WITH

24, 28, 30 AWG ONLY)

(LEAVE BLANK FOR STANDARD

PVC INSULATION)

(SEE NOTE 10)

No OF POSITONS

-02, -04, -05, -07, -10, -15, -20,

-25, & -30 (PER ROW)

AVAILABLE AS STANDARD

-05 THRU -50 AVAILABLE AS ASO

WIRE GAUGE (AWG)

-24, -26, -28,& -30

COLOR CODE:

(LEAVE BLANK FOR ALL BLACK WIRE)

**-C: COLOR CODED WIRE, SEE TABLE 3,

SHEET 3 FOR COLOR SEQUENCE

(AVAILABLE WITH 24 AWG ONLY

AND NOT AVAILABLE WITH TEFLON)

PLATING SPECIFICATION

-L: 10µ" LIGHT SELECTIVE GOLD IN CONTACT

AREA, BRIGHT ACID TIN ON TAIL

-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,

BRIGHT ACID TIN ON TAIL

-F: 3µ" FLASH GOLD IN CONTACT AREA,

BRIGHT ACID TIN ON TAIL

3.42 .135 (TYP)

-NXX OPTION (END 2)

(ONLY AVAILABLE WITH -D, -T, & -TR)

-NUS: NOTCH UP, STRAIGHT

(PIN 1 TO N-1)

-NDS: NOTCH DOWN, STRAIGHT

(PIN 1 TO 2)

-NUX: NOTCH UP, CROSSED

(PIN 1 TO N)

-NDX: NOTCH DOWN, CROSSED

(PIN 1 TO 1)

END OPTION

-S: SINGLE ENDED (SEE FIG 1)

-D: DOUBLE ENDED (SEE FIG'S 2, 3, 4, & 5)

-T: TRANSFER ENDED (SEE FIG'S 6, 7, 8, & 9)

-TR: TRANSFER ENDED WITH RETENTION

LATCH (SEE FIG'S 10, 11, 12, & 13)

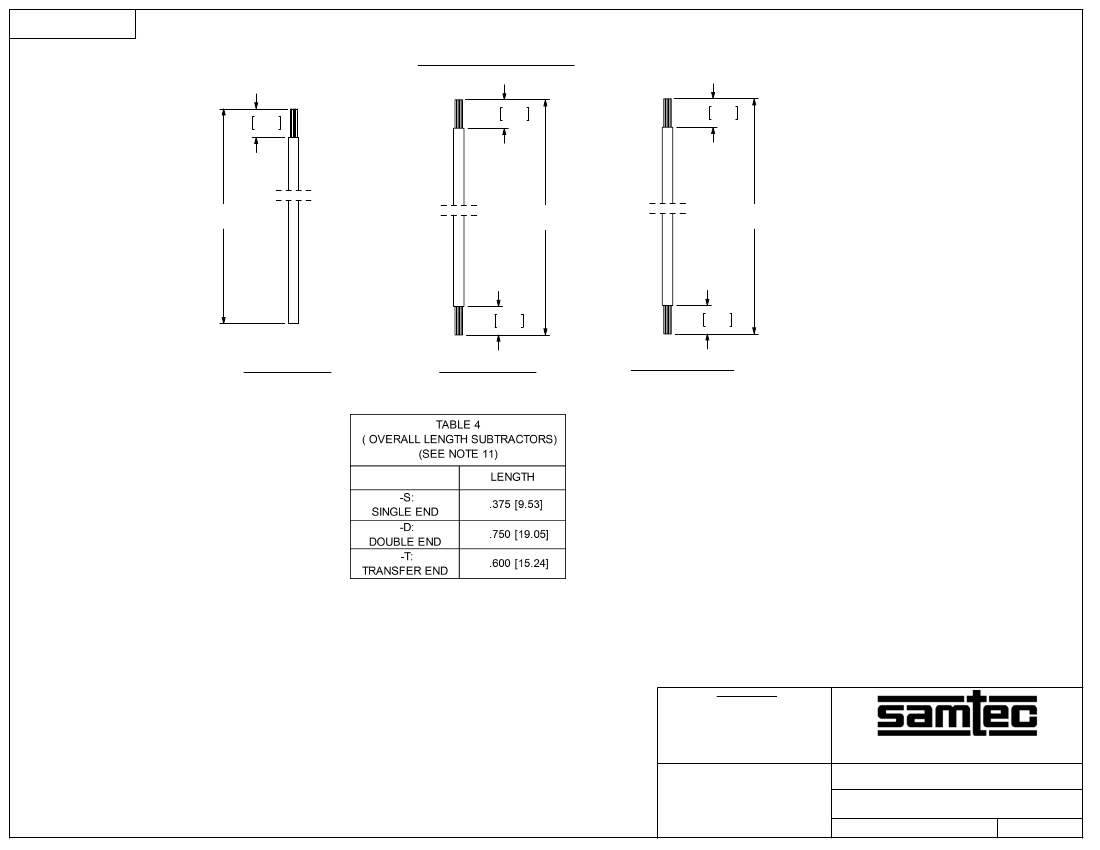

ASSEMBLED LENGTH

SPECIFY IN INCHES

SINGLE ENDED: 03.00 INCH MINIMUM

DOUBLE ENDED: 03.25 INCH MINIMUM

FIG 1

N (SEE TABLE 1)

(No OF POS X 2.00[.079])

+ 4.75[.187] REF

7.70 .303

REF

7.50 .295

REF

7.00 .276

REF

N-1 (SEE TABLE 1)

3.53 .139 REF (TYP)

POS 01 INDICATOR

"A"

(No OF POS X 2.00[.079])

+ 2.15[.085] REF

4.14 .163

REF

15.40 .606

REF

ITD2-XX-D

ASSEMBLED LENGTH

(SEE NOTE 8 & 11)

DWC-XX-XX-300

OR DWCT-XX-01

1.30 .051

REF (TYP)

"A"

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. MINIMUM PULLOUT FORCE: 2.5 LBS [11.1 N].

3. CONTACTS MUST BE INSERTED UNTIL RETENTION

FEATURES LOCK INTO PLACE.

4. ALL FINISHED GOODS ARE TO BE ELECTRICALLY

TESTED INCLUDING HI-POT TEST AT 1000 VOLTS DC.

AFTER FINAL ELECTRICAL TEST, LABEL EACH ASSEMBLY WITH

(1) LABEL-ET STAMP ON THE BODY.

5. TINNED COPPER WIRE IS RoHS COMPLIANT.

6. PARTS TO BE LAYER PACKAGED.

7. END OF DISCRETE WIRE MUST FALL WITHIN THIS RANGE AFTER CRIMP.

8. FOR LENGTHS OF 12.00 INCHES AND LESS, TOLERANCE TO BE ± 3.18[.125],

FOR LENGTHS GREATER THAN 12.00 INCHES, TOLERANCE TO BE ± 2%

9. REFER TO CRIMP SPECIFICATIONS PRINT FOR CRIMP AND STRIP DIMENSIONS,

TOLERANCES, AND TOOLING.

10. ASSEMBLIES USING THE FEP OPTION ARE FOR CRIMP APPLICATIONS ONLY.

11.

CUT LENGTH IS ASSEMBLY LENGTH MINUS OVERALL LENGTH SUBTRACTOR.

F:\DWG\MISC\MKTG\T2SDX-XX-XXX-XX-XX.XX-XX-XXX-MKT.SLDDRW

SECTION "A"-"A"

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN MILLIMETERS.

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS CONFIDENTIAL AND

PROPRIETARY INFORMATION AND ALL DESIGN,

MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS

AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,

INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE

OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR

REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY

OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS

WRITTEN CONSENT OF SAMTEC, INC.

TOLERANCES ARE:

DECIMALS

X.X: 0.3 [.01]

X.XX: 0.13 [.005]

X.XXX: 0.051 [.0020]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

DO NOT SCALE DRAWING

MATERIAL:

SHEET SCALE: 2:1

INSULATOR: LCP, COLOR: BLACK

TERMINAL: PHOS BRONZE

CABLE INSULATION: SEE CALLOUT

WIRE: TINNED COPPER

2.00mm TERMINAL DISCRETE CABLE ASSM.

T2SDX-XX-XXX-XX-XX.XX-XX-XXX

BY:

J. BORGELT

5/18/09

SHEET
