257-003-6-10SL-5SWN04 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 257-003-6-10SL-5SWN04

257-003-6-10SL-5SWN04: DescriptionMIL Series Connector, 5 Contact(s), Female, Plug; CategoryThe connector The connector; File Size436KB，3 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

257-003-6-10SL-5SWN04 Overview

MIL Series Connector, 5 Contact(s), Female, Plug

257-003-6-10SL-5SWN04 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	257-003
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Housing size	10SL
Total number of contacts	5
Base Number Matches	1

Preview

Download Datasheet

View All

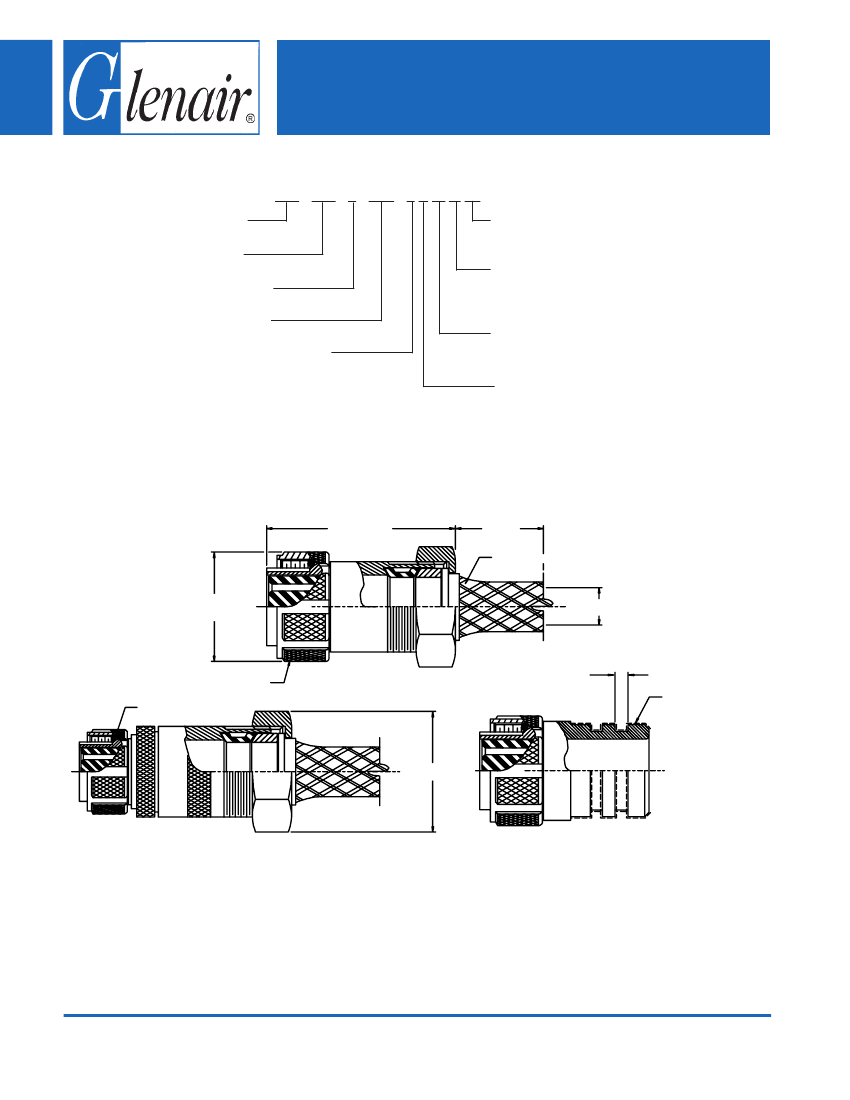

257-003

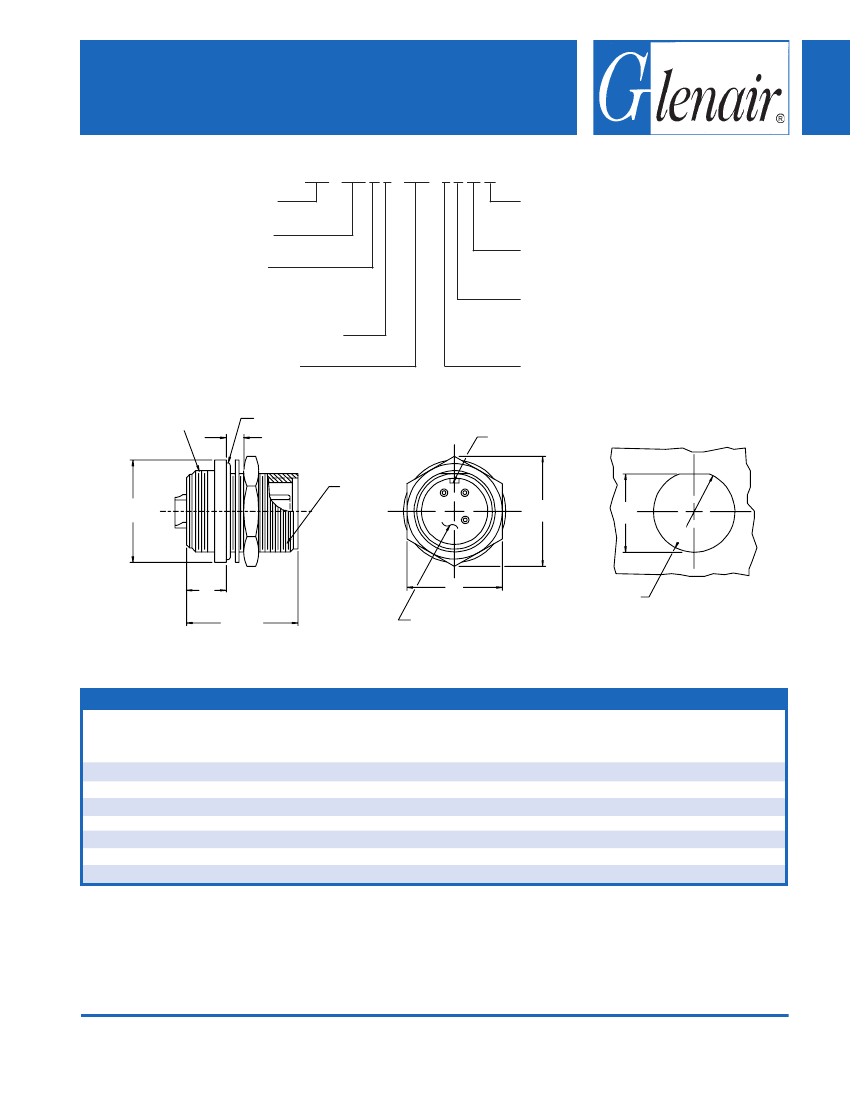

Connector Receptacle Assembly

Stainless Steel Harsh Environment

257 - 003 H 2 - 14S - 5 P W M

Product Series

Basic Number

H = Hermetic

(Omit for Standard,

substitute dash)

2 = Receptacle Assembly

Shell Size (Table I)

Alternate Insert Position, See Page 28,

(Omit for Normal)

Contact Style;

P = Pin

S = Socket (Non-Hermetic)

Insert Arrangement Dash No.

M = Molding Adapter,

(Omit for None)

B Thread

O-Ring

.156 (4.0) Max Panel

.030 (0.8) Min Panel

A Thread

Polarizing Key

RECOMMENDED

PANEL CUT-OUT

C Dia

.540

(13.7)

1.620

(41.1)

Max

Insert Arrangement with Solder

Pot Contacts (Page 28)

TABLE I

Shell

Size

10SL

14S

A Thread

B Thread

Class 2A

5/8 - 24 UNEF 5/8 - 24 UNEF

3/4 - 20 UNEF 3/4 - 20 UNEF

7/8 - 20 UNEF 7/8 - 20 UNEF

1 1/8 - 18 UNEF 1 1/8 - 16 UN

1 1/4 - 18 UNEF 1 1/4 - 16 UN

1 1/2 - 18 UNEF 1 1/2 - 16 UN

1 3/4 - 18 UNEF 1 3/4 - 16 UN

Max

1.030 (26.2)

1.160 (29.5)

1.280 (32.5)

1.660 (42.2)

1.780 (45.2)

2.030 (51.6)

2.280 (57.9)

+ .010 (0.3) + .010 (0.3)

-.000 (0)

.653 (16.6)

.585 (14.9)

.760 (19.3)

.710 (18.0)

.885 (22.5)

.835 (21.2)

1.135 (28.8) 1.085 (27.6)

1.260 (32.0) 1.210 (30.7)

1.510 (38.4) 1.460 (37.1)

1.760 (44.7) 1.710 (43.4)

Max

.812 (20.6)

.938 (23.8)

1.125 (28.6)

1.500 (31.8)

1.625 (41.3)

1.875 (47.6)

2.125 (54.0)

Max

.940 (23.9)

1.090 (27.7)

1.250 (31.8)

1.690 (42.9)

1.820 (46.2)

2.120 (53.8)

2.420 (61.5)

1. Metric dimensions (mm) are indicated in parentheses.

2. Electrical safety limits must be established by the user. Peak

voltages, switching surges, etc., should be used to determine the

safety of the application.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

5015 Type

Connectors

Recommended Resources
