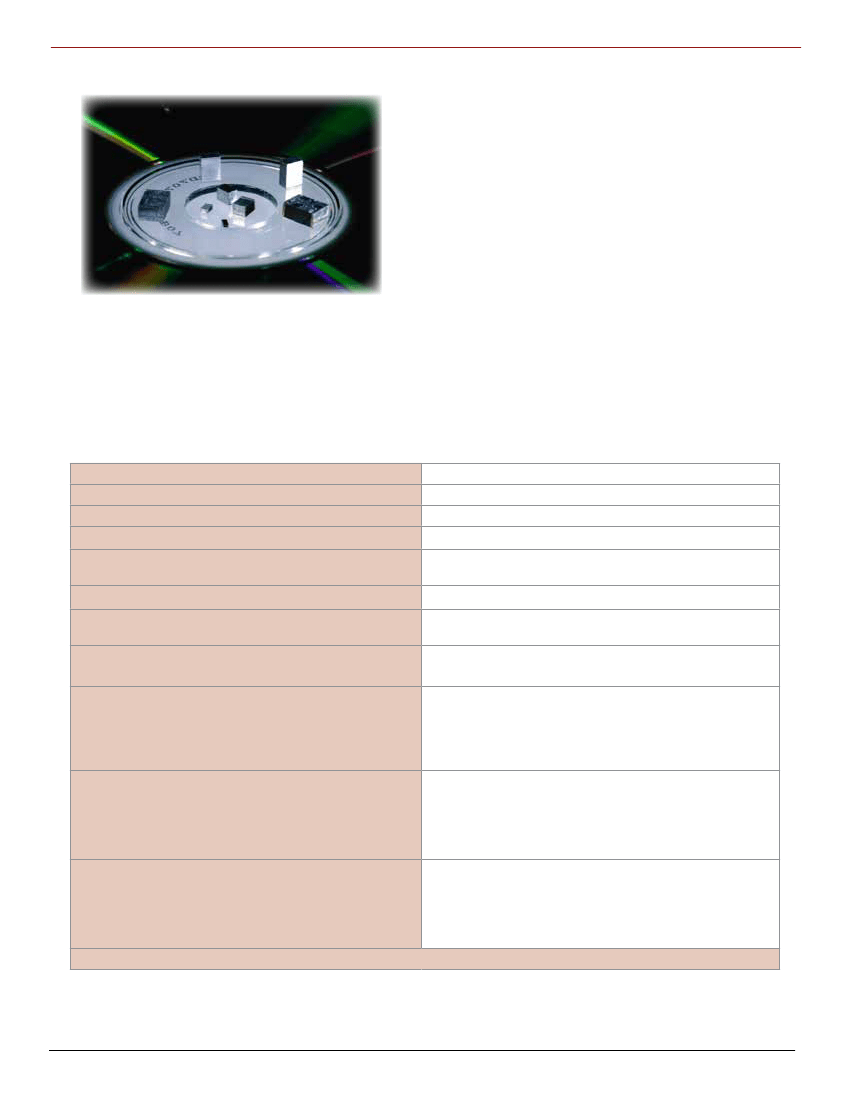

Type FCP Surface Mount Film Capacitors
Stable Stacked Metallized Film (PPS) Chips for Reflow Soldering
The Type FCP’s combination of high capacitance density and
excellent high frequency response makes it a great choice for
wireless and instrumentation applications.
Type FCP stacked metallized polyphenelene sulfide (PPS)
film capacitors offer high capacitance per unit volume, stable
capacitance and DF over a wide temperature range, and
excellent high frequency performance. Type FCP capacitors

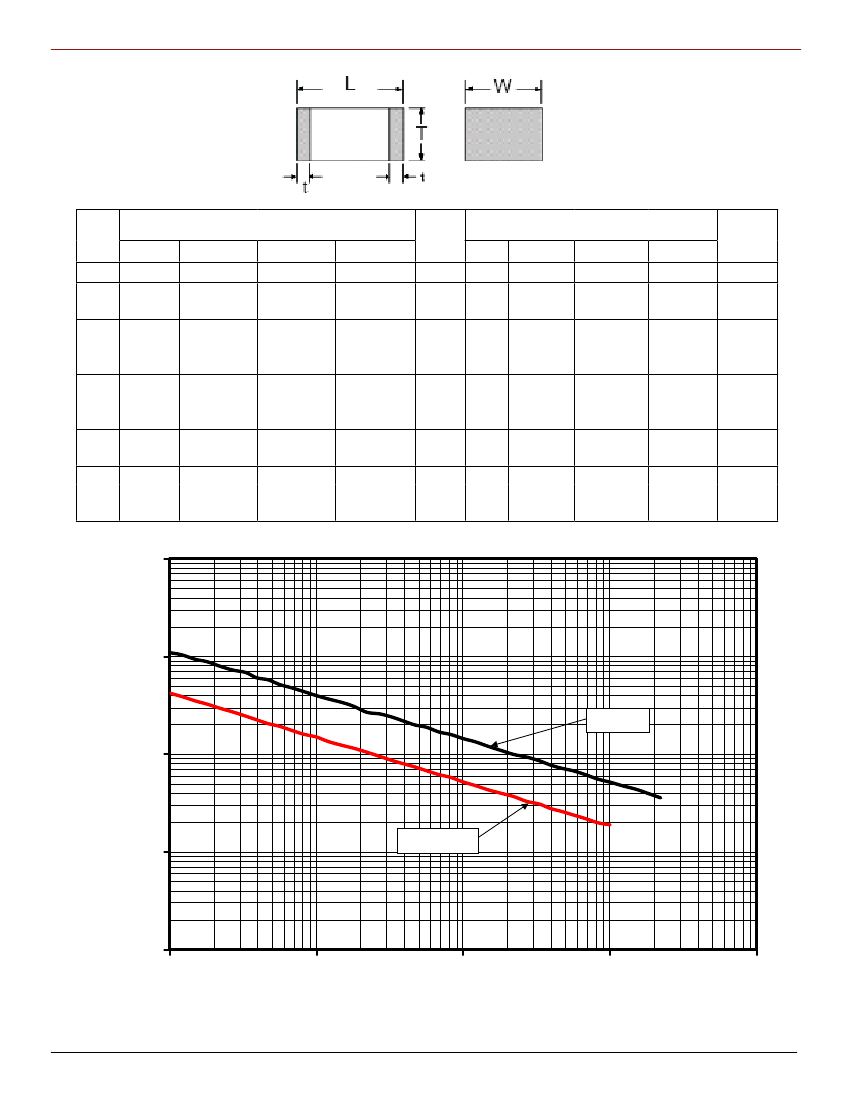

conform to standard EIA 0603, 0805, 1206, 1210, 1913 & 2416
surface mount case sizes and are packaged on tape and reel.
Highlights
-
-
-
-
-
-
Stacked metallized polyphenylene sulfide (PPS) film.
High operating temperature to +125 ºC
High capacitance per unit volume
Excellent high frequency performance
Typical ΔC from –55 ºC to 105 ºC ≤ ±1.5%

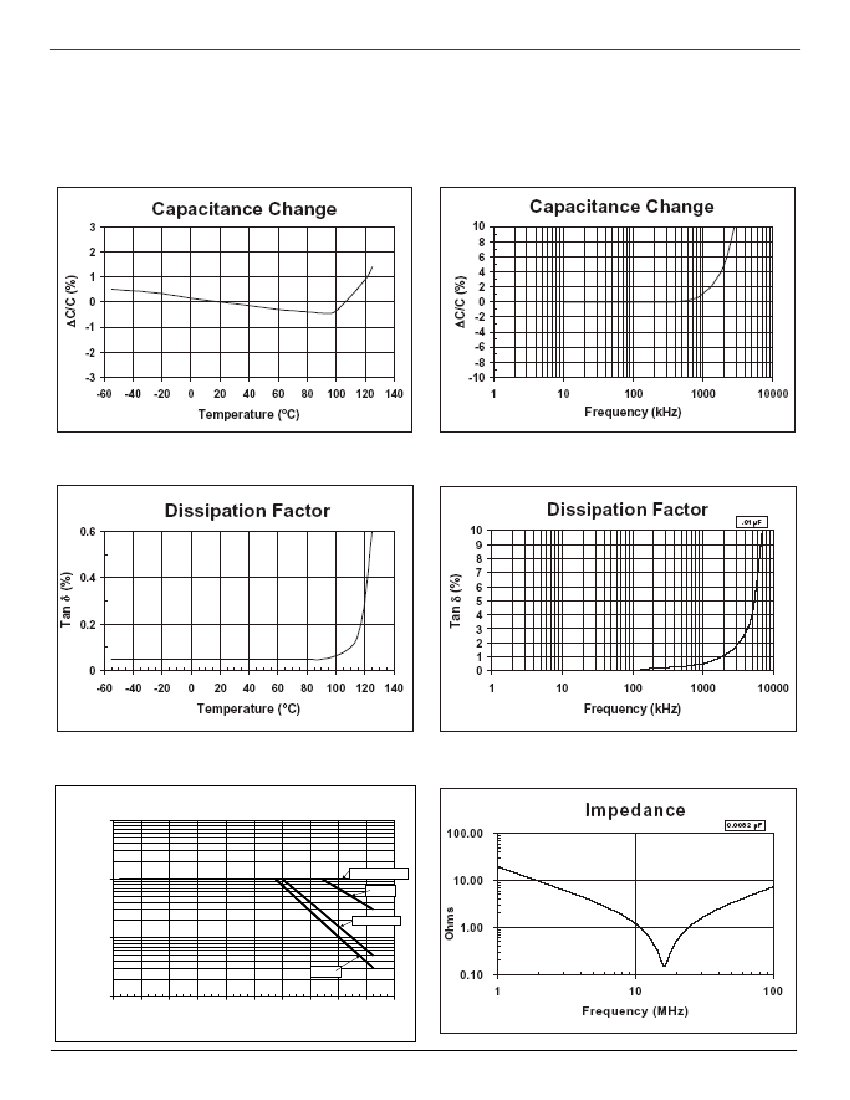

Stable cap and DF over wide temperature range
Specifications
Capacitance Range
Capacitance Tolerance
Rated Voltage
Dissipation Factor (Tan δ)
Operating Temperature Range
Dielectric Strength
Insulation Resistance
Construction
Life Test
100 pF to 0.22 µF (1kHz at ≤5 Vrms)
±5% (J) Standard, ±2% (G) Optional
16 Vdc and 50 Vdc
0.6% Max. (1 kHz at ≤5 Vrms)

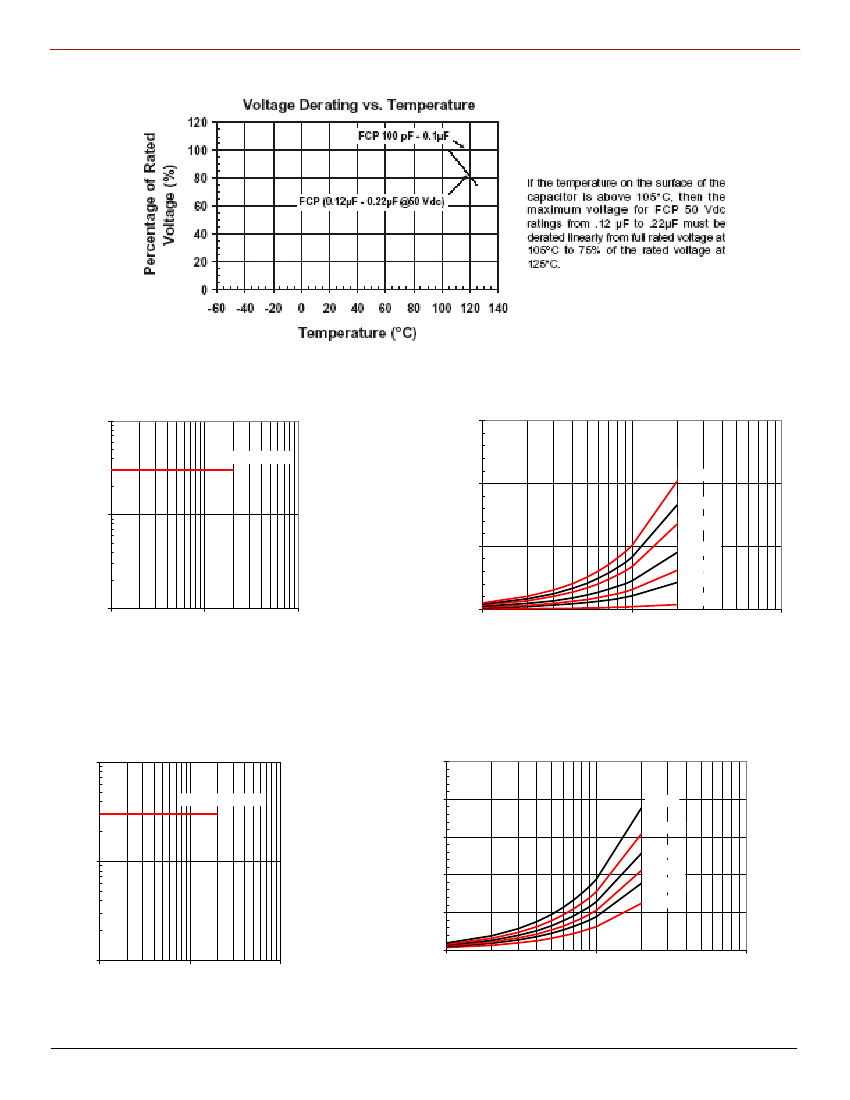

–55 ºC to +125 ºC (See Voltage derating chart for 0.12 - 0.22 µF
above 105 ºC)
150% of rated Vdc for 60 s
3000 MΩ Min. at 20 ºC, after 60 s (16 Vdc rated, test 10 Vdc; 50 Vdc
rated, test 50 Vdc)
Stacked metallized polyphenylene sulfide (PPS) film. Terminations
are lead free with a Sn-Ag-Cu solder finish.
Capacitors subjected to 1000 hours of maximum rated tempera-
ture and 125% of the rated voltage will not have any significant
visual damage, thecapacitance will be within ±2% of the initial
measured value, DF will be a maximum of 0.66%, and IR will be a
minimum of 1000 Megohms.
Capacitors subjected to a maximum of 260 °C reflow soldering
process will not have any significant visual damage, the dielectric
strength will be as specified, the capacitance will be within ±3% of
the initial measured value, DF will be a maximum of .66%, and IR
will be a minimum of 1000 Megohms.
Capacitors subjected to 1000 h at 40 °C and 90% to 95% RH and
rated voltage will not have any significant visual damage, will
withstand 1.3 times the rated voltage for one minute, the capaci-
tance will be within ±2% of the initial measured value, DF will be a
maximum of 0.9%, and IR will be a minimum of 1000 Megohms.
RoHS Compliant
Resistance to Soldering Heat
Moisture Resistance
Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8564
•
Fax: (508)996-3830
•
www.cde.com
