294648: DescriptionCombination Line Connector, 2 Contact(s), Male, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size67KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric Compare View All

294648 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	294648	-	-	View	Buy Now

294648 Overview

Combination Line Connector, 2 Contact(s), Male, Surface Mount Terminal, Receptacle

294648 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	TAPE AND REEL PACKAGING
Board mount options	PEG
body width	0.283 inch
subject depth	0.37 inch
body length	0.454 inch
Body/casing type	RECEPTACLE
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	10000000000 Ω
Insulator color	RED
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	17 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

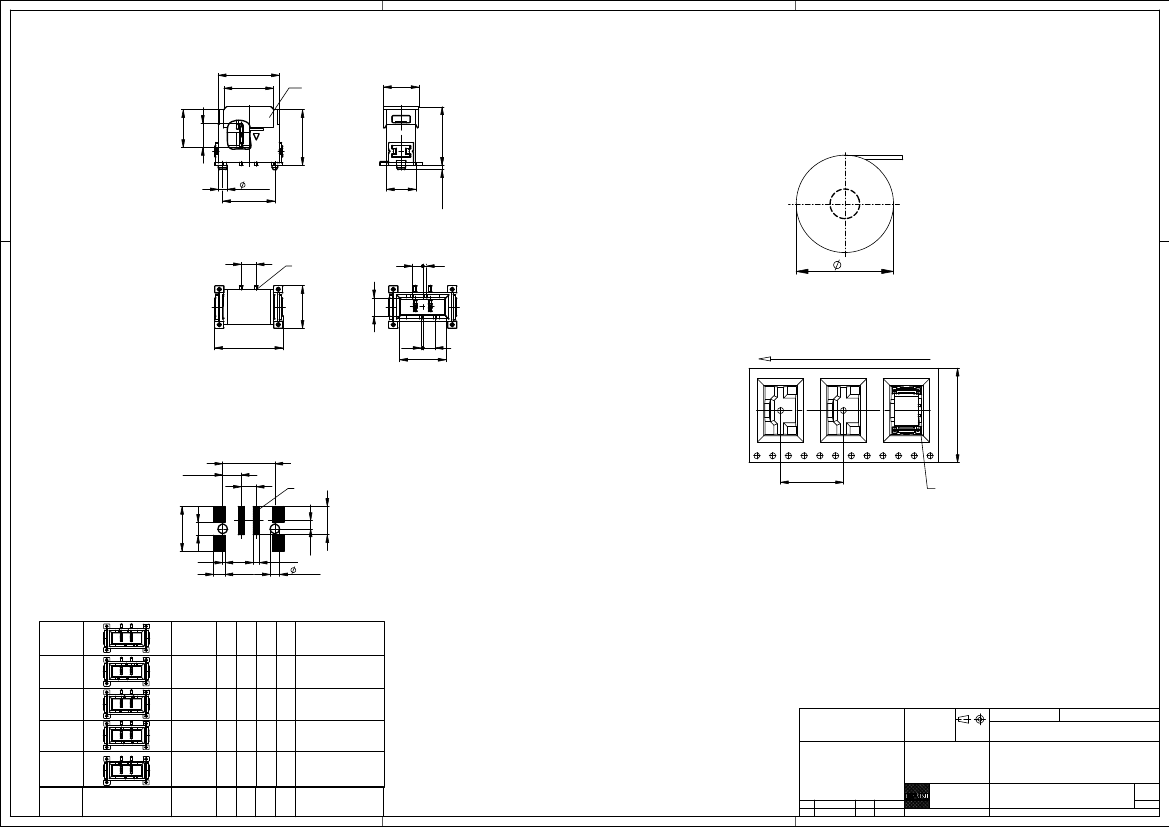

10,34

8,4

Ansaughaube

hood

Verpackt in Gurtverpackung

Tape on Reel Packaging

6,4

+0,2

4,1

-0,1

9,4

9,9

Verpackungseinheit: 320 Stück

Packaging unit: 320 pcs

8,84

±0,05

ohne Ansaughaube

without hood

2,54

0,75

-0,1

1,5

-0,06

330

7,2

11,54

3,1

7,84

Abspulrichtung -

Reel off Direction

Leiterplatten-Layout Vorschlag für SMT

Anforderungsstufe 1

PCB-Layout Proposal for SMT

8,84

±0,05

3,15

±0,03

2,54

Performance Level 1

Kontaktbereich vergoldet

Mating Area gold plating

Anschlussbereich verzinnt 4-6 µm

Terminal Area 4-6 µm tin plating

Koplanarität der Anschlüsse

≤

0,1 mm

4,8

Coplanarity Area of Termination

≤

0,1 mm

7,6

2,2

0,4

1,95

1,02

1,6

-0,03

454199

294648

294647

294646

294645

Ident-Nr.

white

red

green

blue

schwarz

blau

grün

rot

weiß

0,3

2,1

0,6

1,8

Codierung wie Variante schwarz

2,1

0,3

2,4

1,5

0,9

1,8

0,6

Proprietary notice pursuant to ISO 16016 to be observed.

1,4

Encoding such variant black

Information:

Tolerances

All Dimensions

in mm

Scale

3:1

0,9

1,5

1,2

black

color

0,3

2,1

0,6

1,8

part-no.

Codierung

coding

Farbe

Bemerkung

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

24.04.2013

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

M 2,54 SRC-P, 2-polig

www.ERNI.com

Class

note

224993

SRCP

294648 Related Products

	294648	294646
Description	Combination Line Connector, 2 Contact(s), Male, Surface Mount Terminal, Receptacle	Combination Line Connector, 2 Contact(s), Male, Surface Mount Terminal
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	compli	compli
body width	0.283 inch	0.283 inch
subject depth	0.37 inch	0.37 inch
body length	0.454 inch	0.454 inch
Connector type	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR
Contact to complete cooperation	GOLD	GOLD
Contact completed and terminated	Tin (Sn)	TIN (236)
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e3	e3
MIL compliance	NO	NO
Mixed contacts	NO	NO
Installation type	BOARD	BOARD
Number of rows loaded	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE
Rated current (signal)	17 A	17 A
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	2	2
Base Number Matches	1	1
