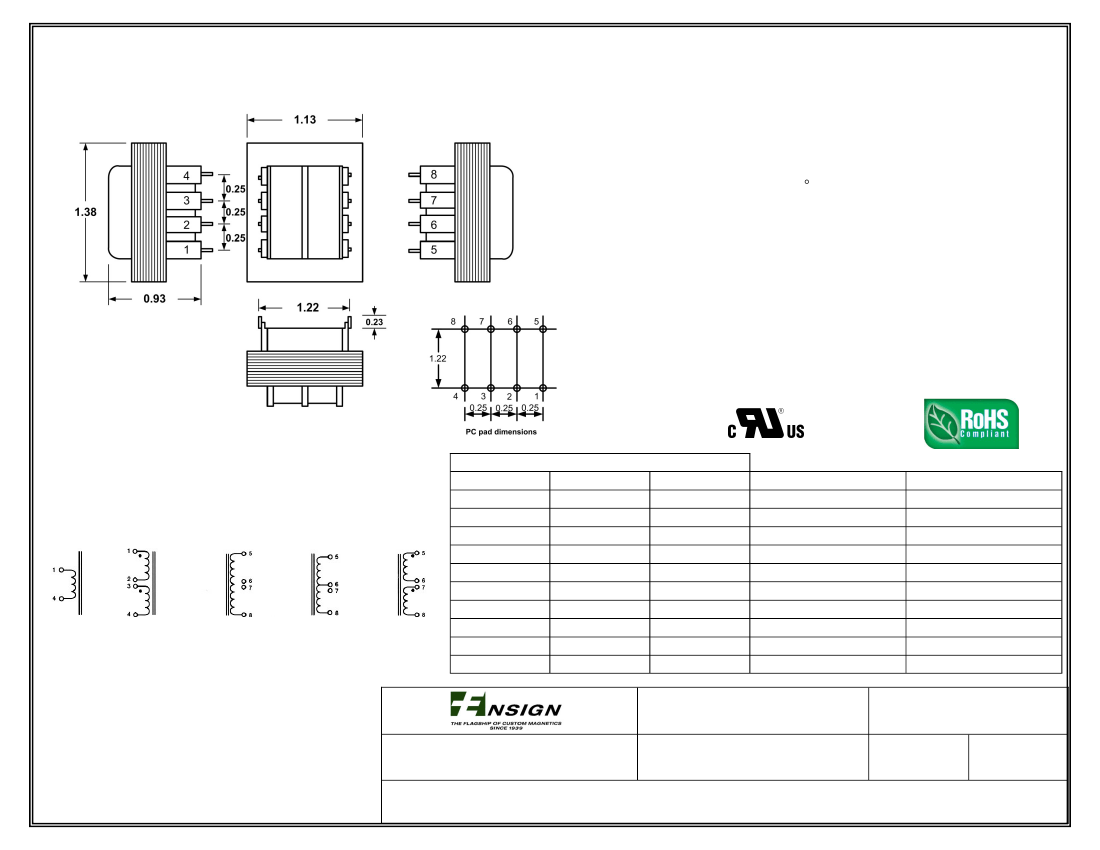

CAPTAIN CLASS

- PRINTED CIRCUIT MOUNT, STANDARD PROFILE POWER TRANSFORMER

Electrical Specifications

A. Maximum Power: 1.1VA

B. Input Voltage and Frequency: 115V, 115/230V, 230V @ 50/60Hz

C. Voltage Regulation: 25% TYP @ Full Load to No Load

Temperature Rise: 20 C TYP

Insulation Resistance: > 1 MEG ohm

Hi-Pot: 2500Vrms 1 minute @ Pri to Sec

2500Vrms 1 minute @ Pri to Core

1500Vrms 1 minute @ Sec to Core

Marking: Ensign Corp, part number (see table), date code,

terminal numbers

Safety:

UL/cUL 5085-2 Recognized (File 47299)

UL 1446 Recognized Insulation System (File 95662)

UL/cUL 5085-3 Class 2 Recognized (File E43609), models marked (*)

Part Number

115V

P001-1-010X*

P001-1-012X*

Primary Schematics

Secondary Schematics

115/230V

P001-2-010X*

P001-2-012X*

P001-2-016X*

P001-2-020X*

P001-2-024X

P001-2-028X

P001-2-036X

P001-2-048X

P001-2-056X

P001-2-120X

230V

P001-3-010X*

P001-3-012X*

P001-3-016X*

P001-3-020X*

P001-3-024X

P001-3-028X

P001-3-036X

P001-3-048X

P001-3-056X

P001-3-120X

Series Connection

10VCT @ 0.11A

12.6VCT @ 0.09A

16VCT @ 0.07A

20VCT @ 0.055A

24VCT @ 0.045A

28VCT @ 0.04A

36VCT @ 0.03A

48VCT @ 0.023A

56VCT @ 0.02A

120VCT @ 0.01A

Parallel Connection

5V @ 0.22A

6.3V @ 018A

8V @ 0.14A

10V @ 0.11A

12V @ 0.09A

14V @ 0.08A

18V @ 0.06A

24V @ 0.046A

28V @ 0.04A

60V @ 0.02A

P001-1-XXXX

P001-2-XXXX

P001-3-XXXX

P001-1-016X*

P001-1-020X*

P001-1-024X

P001-1-028X

P001-1-036X

Single Input

(Specify 115V,

120V, 230V or

240V)

Dual Input

(Specify

115/230V or

120/240V)

Single

Output

Center-Tapped

Output

Dual

Output

P001-1-048X

P001-1-056X

P001-1-120X

POWER TRANSFORMER

CAPTAIN CLASS

CONTENTS OF THIS DRAWING ARE SUBJECT TO

CHANGE WITHOUT PRIOR NOTICE

Ensign Corporation

201 ENSIGN RD., BELLEVUE, IA 52031

Dim: Inches

Sheet 1 of 1

PROPRIETARY NOTICE: THIS DRAWING PRINT OR DOCUMENT AND SUBJECT MATTER DISCLOSED HEREIN ARE PROPRIETARY ITEMS TO WHICH ENSIGN RETAINS

THE EXCLUSIVE RIGHT OF DISSEMINATION, MANUFACTURE AND SALE. THIS DRAWING, PRINT OR DOCUMENT IS SUBMITTED IN CONFIDENCE FOR CONSIDERATION

BY THE RECIPIENT ALONE UNLESS PERMISSION FOR FURTHER DISCLOSURE IS EXPRESSLY GRANTED IN WRITING
