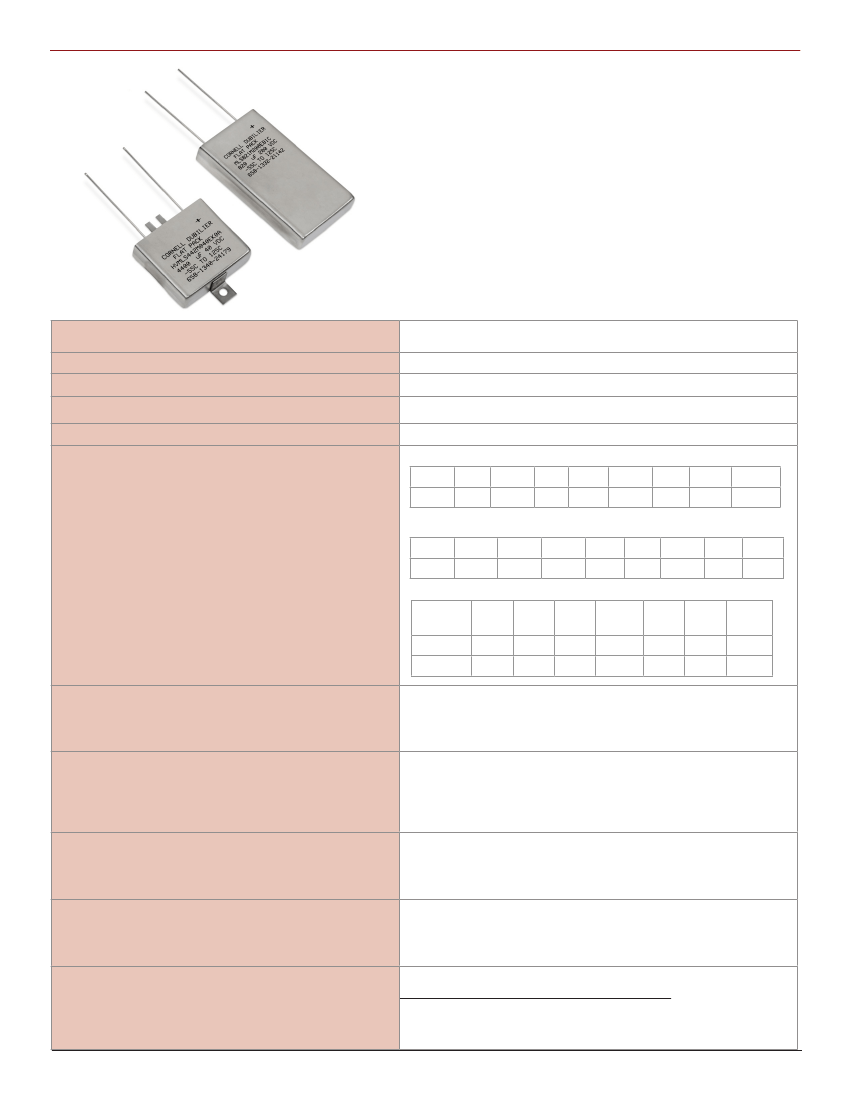

Type MLS 125 °C Flatpack, Ultra Long Life, Aluminum Electrolytic
Now Available with High Vibration and High Reliability Options
Encased in rugged stainless steel, the MLS is perfect for high reliability
military systems and applications operating above 85 °C. For our
highest performing 125 °C Flatpacks, choose type HVMLS available in
a special stainless steel case for high vibration applications up to 50g.
Specify type HRMLS for high reliability Flatpacks which are subjected
to MIL level burn-in processes to ensure established reliability.
Highlights
- Near-hermetic welded seal
- Stainless-steel case
- 100 years expected operating life
- Withstands more than 80,000 feet altitude
- Type HV up to 50g
- Type HR, High Reliability
–55 °C to +125 °C
5.0 Vdc to 250 Vdc
220 µF to 47,000 µF
±20%
≤ 0.002 CV µA, @ 25 °C and 5 mins.
Case Temperature
45 °C 55 °C 65 °C 75 °C 85 °C
1.41
1.32
1.22
1.12
1.00
95 °C 105 °C 115 °C 125 °C
0.87
0.71
0.50
0.00
Specifications
Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
Ripple Current Multipliers
Ambient Temperature, No Heatsink
45 °C
55 °C
65 °C
0.54
75 °C
0.49
85 °C 95 °C 105 °C 115 °C 125 °C
0.44
0.38
0.31
0.22
0.00
0.63
0.58
Frequency
50 Hz
5 to 40 V
60 to 250 V
Low Temperature Characteristics
0.95
0.80
60 Hz 120 Hz 360 Hz
0.96
0.84
1.00
1.00
1.03
1.18
1 kHz
1.04
1.25
10 kHz &
5 kHz
up
1.04
1.30
1.04
1.30
Impedance ratio: Z
–55 ⁰C
∕ Z
+25 ⁰C
≤ 10 (5 - 20 Vdc)
≤ 2 (25 - 250 Vdc)
10,000 h @ full load at 85 °C
∆ Capacitance ±10%
ESR 200% of limit
DCL 100% of limit
2000 h at rated voltage &125 °C
∆ Capacitance ±10%
ESR 200% of limit
DCL 100% of limit
500 h at 125 °C
Capacitance 100% of limit
ESR 100% of limit
DCL 100% of limit
Standard MLS Flatpack: 10g
10 Hz to 2 kHz Sine Swept, 0.06” pp max and 10g.
Type HVMLS Flatpack 1.5” and 2.0” case length, 50g
Type HVMLS Flatpack 2.5” and 3.0” case length, 30g
MIL-STD-202, Meth. 204, Sine Swept, IEC 60068-2-6
Endurance Life Test
DC Life Test
Shelf Life Test
Vibration
Mounting: Vibration capability is dependent upon mounting restraint. The
optional welded mounting tabs, alone, are not capable of sustaining the high
vibration levels.
To achieve the high vibration levels as published on right, additional mounting
restraint is required.
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
Type MLS 125 °C Flatpack, Ultra Long Life, Aluminum Electrolytic
Available with High Vibration and High Reliability Options
Vibration Test
Level
The specimens, while deenergized or operating under the load conditions
specified, shall be subjected to the vibration amplitude, frequency range,
and duration specified for each case size.
Amplitude
The specimens shall be subjected to a simple harmonic motion having
an amplitude of either 0.06-inch double amplitude (maximum total
excursion) or peak level specified above (XXg peak), whichever is less. The
tolerance on vibration amplitude shall be ±10 percent.
Frequency Range
The vibration frequency shall be varied logarithmically between the
approximate limits of 10 to 2,000 Hz.
Sweep Time and Duration
The entire frequency range of 10 to 2,000 Hz and return to 10 Hz shall be
traversed in 20 minutes. This cycle shall be performed 12 times in each
of three mutually perpendicular directions (total of 36 times), so that
the motion shall be applied for a total period of approximately 12 hours.
Interruptions are permitted provided the requirements for rate of change
and test duration are met.
Established Reliability capacitors shall be subjected to a minimum of 100
percent of the dc rated voltage at 85 ºC for 48 hours minimum but not to
exceed 96 hours. During this test, capacitors shall be adequately protected
against temporary voltage surges of 10 percent or more of the test
voltage. After burn-in, the capacitors shall be returned to room ambient
conditions and the dc leakage, capacitance, and ESR shall be measured
with respect to specified limits.
Large Sides
Heatsinked
one
both
Case Length
Insulation
None
Polyester
None
Polyester
1.5"
ºC/W
3.3
4.5
2.8
4.0
2.0"
ºC/W
1.8
2.6
2.2
3.2
3.0"
ºC/W
1.3
1.6
1.1
1.6
High Reliability Test/Burn-in
Thermal Resistance
ESL
Weight
≤30 nH measured 1/4” from case at 1 MHz
Case EK 43 g typical
Case EA 76 g typical
Case EB 92 g typical
18 AWG copper wire with 60/40 tin-lead electroplate, 20 amps max
The ripple current capability is set by the maximum permissible internal
core temperature, 125 ºC.
The ripple currents in the ratings tables are for 85 ºC case temperatures.
For air temperatures without a heatsink use the multipliers Ambient
Temperature, No Heatsink.
Temperature rise from the internal hottest spot, the core, to ambient air is
∆T = I
2
(ESR)(θcc + θca)
where θcc is the thermal resistance from core to case and θca from case to
ambient. To calculate maximum ripple capability with the MLS attached to
a heatsink use the maximum core temperature and the values for θcc.
Terminals
Ripple Current Capability
Air Cooled
Heatsink Cooled
Example
As an illustration, suppose you operate an insulated MLS332M060EB1C
in 65 ºC air and attach it to a commercial heatsink with a free-air thermal
resistance of 2.7 ºC/W. Use a good thermal grease between the MLS and
the heatsink, and the total thermal resistance is 2.7 +1.8 or 4.5 ºC/W. The
power which would heat the core to 125 °C is (125 - 65)/4.5 or 13.3 W. For
an ESR of 31 mΩ, 13.3 W equates to a ripple current of 20.7 A, however, the
wire leads are rated for only 20 A.
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
Type MLS 125 °C Flatpack, Ultra Long Life, Aluminum Electrolytic
Available with High Vibration and High Reliability Options
Part Numbering System
HV
HR
MLS
821
M
200
EB
0
A
Optional
Optional
Type
Capacitance
Tolerance Rated Voltage
Case Code
EK,
L=1.5 in.
EA,
L=2.0 in
EB,
L=3.0 in.
* other sizes
available
0.188
±0.01
0.156 Dia
±0.01
Insulation
0
= bare can
1
= polyester
L +0.375
±0.03
Mounting Style
High
High
MLS
821=820
µF
M=±20%
Vdc
Vibration Reliability
102
= 1000 µF
Examples:
L +0.375
Standard MLS:
MLS821M200EB0C
0.156
±0.01
SLOT
±0.03
High Reliability:
HRMLS821M200EB0C
0.040 DIA, 18 AWG LEADS
(TYP)
0.188
±0.01
High Vibration:
HVMLS821M200EB0C
High Reliability, High Vibration: HVHRMLS821M200EB0C
0.156 Dia
•
A =
mounting tabs
C
= two leads/no tabs
D
= hook leads/tabs
* other mounting
0.156
±0.01
SLOT
tab
options available
0.040 DIA, 18 AWG L
(TYP)
•
±0.01
Outline Drawings
0.375
±0.01
.030
.036
1.00
±0.01
1.75
±0.01
•
1.00
±0.01
1.75
±0.01
•
+
Standard Type MLS
1.5 MIN
L
±0.02
0.50 MAX
0.375
±0.01
Type HV, Rilled Construction
L
±0.02
1.5 MIN
0.50 MAX
+
.030
.036
Style A: Mounting Tabs
L +.375
±0.03
Style C: No Tabs
0.040 DIA, 18 AWG LEADS
(TYP)
.188±.01
.156
0.01
1.00
0.01
1.750
0.01
1.00±.01
1.75±.01
.375
0.01
L ±0.02
1.5 MIN
L ±.02
1.5 MIN
.036
.030
0.50 MAX
0.50 MAX
Style D: Hook Leads
L +.375
±.03
.156 ±0.01 SLOT
.188±.010
.156 Dia
0.01
1.75±.01
1.00±.01
.375±.010
L ±0.02
0.040 DIA, 18 AWG LEADS
(TYP)
.175 ±0.01 DIA
0.50 MAX
.26±.01
Case
Code
EK
EA
EB
Length
L (in)
1.5
2.0
3.0
Weight
(g)
43
76
92
.036
.030
Mounting tabs are welded to the case.
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
Type MLS 125 °C Flatpack, Ultra Long Life, Aluminum Electrolytic
Available with High Vibration and High Reliability Options
Ratings
ESR max
Cap
(µF)
19,000
28,000
47,000
17,000
26,000
43,000
13,000
23,000
38,000
6,800
10,000
17,000
4,400
6,600
11,000
1,500
Catalog Part Number
MLS193M5R0EK0C
MLS283M5R0EA0c
MLS473M5R0EB0C
MLS173M7R5EK0C
MLS263M7R5EA0c
MLS433M7R5EB0C
MLS133M010EK0C
MLS233M010EA0C
MLS383M010EB0C
MLS682M020EK0C
MLS103M020EA0C
MLS173M020EB0C
MLS442M040EK0C
MLS662M040EA0C
MLS113M040EB0C
MLS152M060EK0C
25 °C (mΩ)
Ripple (A)
Case @ 85°C
Length
Cap
(µF)
2,100
13.6
21.4
34.4
13.5
21.1
33.8
13.3
21.1
33.8
12.2
15.0
19.5
12.1
15.0
19.5
11.5
1.5
2.0
3.0
1.5
2.0
3.0
1.5
2.0
3.0
1.5
2.0
3.0
1.5
2.0
3.0
1.5
220
330
560
330
490
820
400
600
1,000
500
770
1,300
1,100
1,600
2,700
3,300
MLS212M060EA0C
MLS332M060EB0C
MLS112M075EK0C
MLS162M075EA0C
MLS272M075EB0C
MLS501M100EK0C
MLS771M100EA0C
MLS132M100EB0C
MLS401M150EK0C
MLS601M150EA0C
MLS102M150EB0C
MLS331M200EK0C
MLS491M200EA0C
MLS821M200EB0C
MLS221M250EK0C
MLS331M250EA0C
MLS561M250EB0C
20 kHz (inches)
ESR max
25 °C (mΩ)
72
44
112
76
46
355
238
143
388
261
158
426
285
172
597
399
240
52
31
78
54
33
248
166
100
253
168
100
258
172
103
393
262
157
Ripple (A)
Case @ 85°C
11.9
15.3
9.6
11.6
14.9
5.4
6.6
8.5
5.1
6.3
8.1
4.9
6.0
7.7
4.1
5.0
6.5
14.1
18.2
11.5
13.8
17.6
6.4
7.8
10.1
6.4
7.8
10.1
6.2
7.7
10.0
5.1
6.3
8.1
Length
2.0
3.0
1.5
2.0
3.0
1.5
2.0
3.0
1.5
2.0
3.0
1.5
2.0
3.0
1.5
2.0
3.0
120 Hz 20 kHz 120 Hz
76
50
30
77
51
31
81
51
31
84
56
33
97
62
36
106
66
44
26
67
45
27
69
45
27
69
46
27
70
46
27
77
12.6
19.9
32.0
12.5
19.8
31.5
12.2
19.8
31.5
11.0
13.6
17.6
10.3
12.9
16.9
9.8
Catalog Part Number 120 Hz 20 kHz 120 Hz 20 kHz (inches)
125 °C: 5 Vdc, 105 °C: 7.5 Vdc, 25 °C Surge: 10 Vdc
125 °C: 75 Vdc, 105 °C: 100 V, 25 °C Surge: 125 Vdc
125 °C: 7.5 Vdc, 105 °C: 10 V, 25 °C Surge: 13 Vdc
125 °C: 100 Vdc, 105 °C: 150 V, 25 °C Surge: 180 Vdc
125 °C: 10 Vdc, 105 °C: 16 V, 25 °C Surge: 20 Vdc
125 °C: 150 Vdc, 105 °C: 200 V, 25 °C Surge: 250 Vdc
125 °C: 20 Vdc, 105 °C: 30 V, 25 °C Surge: 40 Vdc]
125 °C: 200 Vdc, 105 °C: 250 Vdc, 25 °C Surge: 300 Vdc
125 °C: 40 Vdc, 105 °C: 50 V, 25 °C Surge: 63 Vdc
125 °C: 250 Vdc, 105 °C: 250 Vdc, 25 °C Surge: 300 Vdc
125 °C: 60 Vdc, 105 °C: 80 V, 25 °C Surge: 100 Vdc

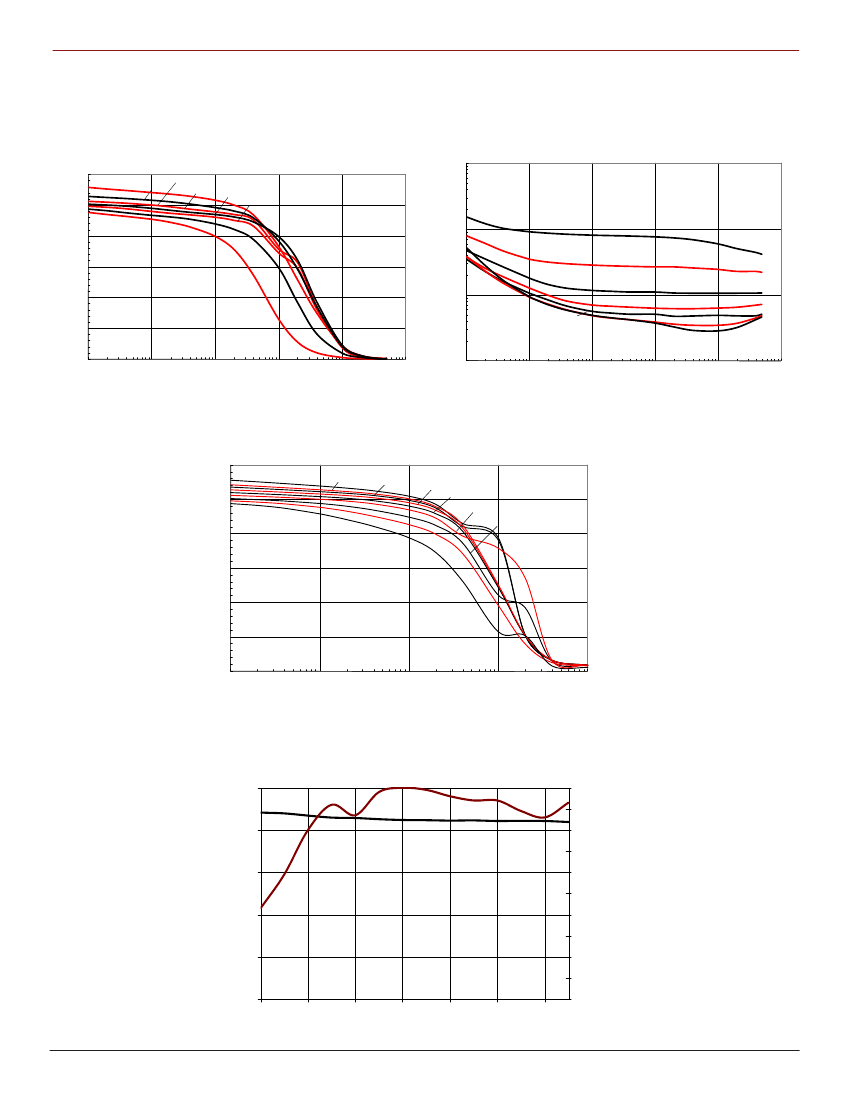

Typical Performance Curves
1000
Type MLS Operating Life in Kilohours vs Ripple Current (90% V)
Expected Operating Life, kh
45 ⁰C
100
55 ⁰C
65 ⁰C
75 ⁰C
85 ⁰C
10
1
0
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9
1
1.1 1.2 1.3 1.4 1.5
Rated Ripple-Current Multiple
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
Type MLS 125 °C Flatpack, Ultra Long Life, Aluminum Electrolytic
Available with High Vibration and High Reliability Options
Typical Performance Curves
MLS ESR vs Temperature and Frequency, 1100 µF, 75 V
MLS Capacitance vs Temperature & Frequency, 1100 µF 75 V
1.2
1.12
Ratio to 25 ºC, 120 Hz Value
1
125 ºC
65 ºC
•
1102 µF
25 ºC
100
–20 ºC
Ratio ESR to 25 ºC, 120 Hz Value
0 ºC
0.8
970 µF –40 ºC
881µF
–55 ºC
15.3
10
0.47 Ω
–55 ºC
–40 ºC
–20 ºC
0.033 Ω
0 ºC
25 ºC
65 ºC
125 ºC
0.1
10
100
1000
10000
Frequency (Hz)
100000
1000000
0.6
0.4
1
•
0.028 Ω
0.2
|
500000
0
10
100
1000
10000
Frequency (Hz)
100000
1000000
Capacitance vs Temperature & Frequency, 820 µF, 200 V
1.2
125 ºC
Ratio to 25 ºC, 120 Hz Value
1
100 ºC
85 ºC
65 ºC
45 ºC
25 ºC
0.8
–20 ºC
–40 ºC
0 ºC
0.6
0.4
0.2
0
10
100
1000
Frequency (Hz)
10000
100000
MLS103M150EB0D Life Test at 125
°C,
150 V
1000
100
Capacitance
800
90
80
Capacitance (µF)
600
60
50
400
40
30
200
20
10
0
0
0
2000
4000
Test Hours
6000
8000
10000
12000
13000
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
ESR (mΩ)
ESR
70
/hvmls442m040ek1a_pdf/pg_0001.png)
京公网安备 11010802033920号
EEWORLD/hvmls442m040ek1a_pdf/1.png)
/hvmls442m040ek1a_pdf/2.png)
/hvmls442m040ek1a_pdf/3.png)
/hvmls442m040ek1a_pdf/4.png)
/hvmls442m040ek1a_pdf/5.png)
/hvmls442m040ek1a_pdf/pg_0002.png)
/hvmls442m040ek1a_pdf/pg_0003.png)
/hvmls442m040ek1a_pdf/pg_0004.png)
/hvmls442m040ek1a_pdf/pg_0005.png)
