ATC 400 Z Series
Precision Tolerance NPO
RF Microwave Capacitors
• EIA Case Size 0201
• Capacitance Range 0.1 pF to 22 pF
• Tolerances to ±0.02 pF
• Ultra Stable Performance
• RoHS Compliant / Lead-Free

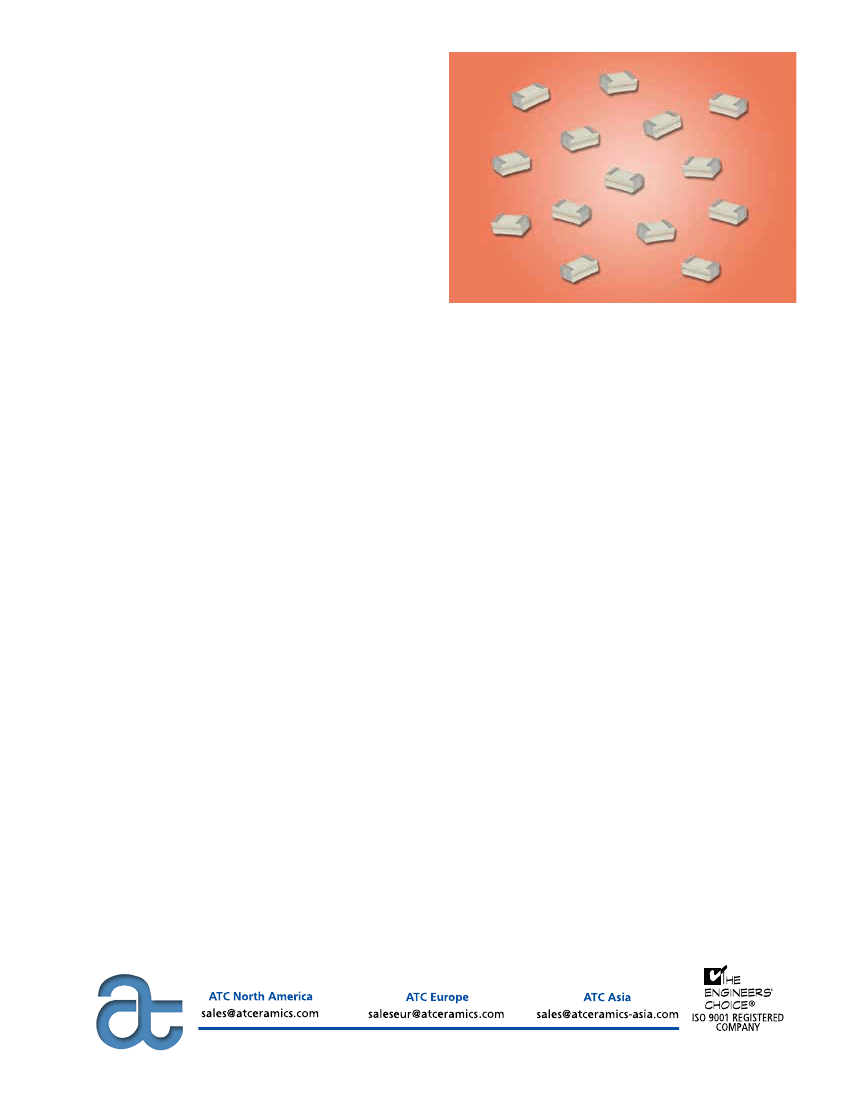

ATC’s new 400Z Series Precision Tolerance, Thin Film, NPO RF
Microwave Capacitor is manufactured with the highest quality materials to
provide reliable and repeatable performance. The 400Z is constructed with
a low loss silicon dioxide and silicon oxynitride dielectric along with high
quality sputtered electrode materials to ensure superior performance.
High electrical and thermal conductivity and high stability over temperature
make this device suitable for a variety of critical small and large signal
RF and microwave applications. This Series offers the tightest tolerances
available over a wide range of capacitance values.
The 400Z is built in an 0201 SMT package and is fully compatible with high
speed automated pick-and-place manufacturing. It is designed to meet the
most stringent RF and Microwave requirements.
Typical applications: Filter Networks, Matching Networks, High Q
Frequency Sources, Tuning, Coupling, Bypass and DC Blocking.
ELECTRICAL AND MECHANICAL
SPECIFICATIONS
TEmpErATUrE cOEFFIcIENT OF cApAcITANcE (Tcc):
0 ±30 PPM/°C (-55°C to +125°C) 0.1 to 3.9 pF
0 ±60 PPM/°C (-55°C to +125°C) 4.0 to 22 pF
INsULATION rEsIsTANcE (Ir):
10
4
Megohms min. @ +25°C at rated WVDC
WOrkING VOLTAGE (WVdc):
See Capacitance Values Table, page 2
dIELEcTrIc WITHsTANdING VOLTAGE (dWV):
250% of rated WVDC for 5 secs
AGING EFFEcTs:
None
dIELEcTrIc ABsOrpTION:
0.01%
sOLdErABILITy, IEc-68-2-58:
Components completely immersed in a
solder bath at 235°C for 2 secs.
LEAcH rEsIsTANcE, IEc-68-2-58:
Components completely immersed
in a solder bath at 260 ±5°C for 60 secs.
AdHEsION, mIL-sTd-202F, mETHOd 211A:
a force of 1.1 lbs. applied
for 10 secs.
OpErATING TEmpErATUrE rANGE:
From -55°C to +125°C (No derating of working voltage)
TErmINAL sTrENGTH IEc-68-2-21, AmENd. 2:
a force of 1.1 lbs.
applied for 10 secs.
sTOrAGE:
12 months minimum with components stored in “as
received” packaging
ENVIRONMENTAL TESTS
LIFE TEsT:
MIL-STD-202F,Method 108A, for 1000 hours, at 125°C.
200% WVDC applied.
AccELErATEd dAmp HEAT sTEAdy sTATE
mIL-sTd-202, method 106:
85°C, 85% RH, at rated WVDC, 1000 hours
TEmpErATUrE cycLING
mIL-sTd-202F mETHOd 107E:
-55°C to +125°C, 15 cycles
rEsIsTANcE TO sOLdEr HEAT IEc-68-2-58:
260°C ±5°C for 10 secs.
American
Technical
Ceramics
THE ENGINEERS’ CHOICE
TM
w w w. a t cer ami c s. co m
ATC # 001-1124 Rev. E, 5/15
ATC 400 Z Capacitance Values
cAp
cOdE
0R1
0R2
0R3
0R4
0R5
0R6
0R7
0R8
0R9
1R0
1R1
1R2
1R3
1R4
1R5
1R6
1R7
1R8
1R9
2R0
2R1
2R2
cAp
(pF)
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
TOL.
rATEd
WVdc
cAp
cOdE
2R3
2R4
2R5
2R6
2R7
2R8
2R9
3R0
3R1
3R2
3R3
3R4
3R5
3R6
3R7
3R8
3R9
4R0
4R1
4R2
4R3
4R4
cAp
(pF)
2.3
2.4
2.5
2.6
2.7
2.8
2.9
3.0
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
4.0
4.1
4.2
4.3
4.4
TOL.
rATEd
WVdc
cAp
cOdE
4R5
4R6
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
120
130
140
150
160
170
180
190
200
210
220
cAp
(pF)
4.5
4.6
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
14
15
16
17
18
19
20
21
22
TOL.
A, B, C
25
rATEd
WVdc
100
Q, A, B, C
B, C
P, Q, A, B
50
25
16
A, B, C
F, G, J
Q, A, B, C
25
10
vrms = 0.707 x WvDC
ATC PArT NUmBEr CODE
ATC400 Z 1R 0 P T
Series
Case Size
Capacitance Code:
First 2 significant digits for capacitance.
R=Decimal Point
Indicates number of zeros following digits
of capacitance in picofarads except for decimal values.
50
T
Packaging
T - Tape & Reel: 7’’ reel, 5000 pc. qty. std.*
*
500 pc. prototype reel available.
WVDC
T = Tin Plate over Ni (SN100)
Capacitance Tolerance
CAPACiTANCE TOlErANCE
Code
P
Q
A
B
C
F
G
J
Tol.
±0.02 pF ±0.03 pF ±0.05 pF ±0.1 pF ±0.25 pF ±1% ±2% ±5%
The above part number refers to a 400 Z Series (0201) 1 pF capacitor,
P tolerance (±0.02 pF), 50 WVDC, with T termination (Tin Plated over Nickel Barrier Termination), RoHS Compliant), and tape and reel packaging.
ATC accepts orders for our parts using designations
with
or
without
the
“ATC” prefix. Both methods of defining the part number are equivalent, i.e.,
part numbers referenced with the “ATC” prefix are interchangeable to parts
referenced without the “ATC” prefix. Customers are free to use either in
specifying or procuring parts from American Technical Ceramics.
For additional information and catalogs contact your ATC
representative or call direct at (+1-631) 622-4700.
Consult factory for additional performance data.
A M E R I C A N
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
2
w w w.a tc e r a m ics .c o m
Mechanical Dimensions
B
1
Outline Dimensions
0.0128 ± 0.002
(0.325 ± 0.050)
0.023 ± 0.002
(0.60 ± 0.05)
W
L
T
0.009 ± 0.002
(0.225 ± 0.050)
B
2
Inches (mm)
L:
.023 ± .002 (.60 ± .050)
Z (0201)
W: .0128 ± .002 (.325 ± .050)
T: .009 ± 002 (.225 ± .050)
B
1
: .0.004 ±.004 (.10 ±.10)
B
2
: .0.006 ±.002 (.15 ±.05)
Inches (mm)
Suggested Mounting Pad Dimensions
L
W
T
Horizontal Mount
Case Size
B
A
C
D
B
A Min.
0.013
(0.33)
B Min.
0.010
(0.25)
C Min.
0.010
(0.25)
D Min.
0.030
(0.76)
Inches (mm)
Z 0201
