MLP193M7R5EK1A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> MLP193M7R5EK1A

MLP193M7R5EK1A: Descriptionaluminum electrolytic capacitors - leaded 19000uf 7.5volts; CategoryPassive components; File Size488KB，6 Pages; ManufacturerAll Sensors

Download Datasheet Parametric View All

MLP193M7R5EK1A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MLP193M7R5EK1A	-	-	View	Buy Now

MLP193M7R5EK1A Overview

aluminum electrolytic capacitors - leaded 19000uf 7.5volts

MLP193M7R5EK1A Parametric

Parameter Name	Attribute value
Manufacture	Cornell Dubilie
Product Category	Aluminum Electrolytic Capacitors - Leaded
Capacitance	0.019 Farad
Voltage Rating DC	7.5 V
Tolerance	20 %
Ripple Curre	4.5 A
Maximum Operating Temperature	+ 85 C
Load Life	2000 h
Termination Style	Radial
Case Length	1.5 i
Lead Spacing	1 i
Produc	Flat Pack Electrolytic Capacitors
Case Width	1.75 i
Dimensions	1.5 in L x 0.5 in H
ESR	66 mOhms
Lead Style	Straigh
Leakage Curre	0.002 uA

Preview

Download Datasheet

View All

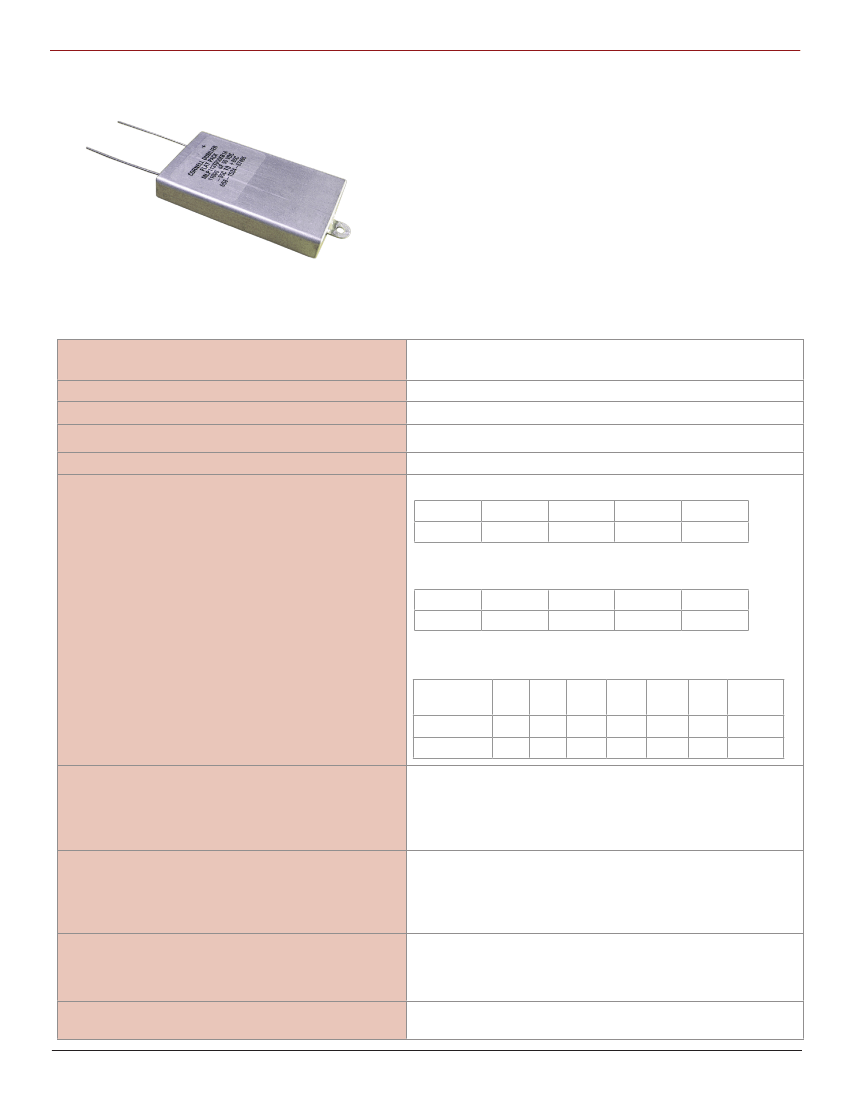

Type MLP 85 °C Flatpack, Ultra Long Life, Aluminum Electrolytic

Very Low Profile

The MLP’s high-energy storage and box-shape make it perfect for

voltage holdup or filtering in military SEM-E modules, telecom

circuit packs and computer cards. The MLP delivers up to 20 joules

of energy storage in a 1/2” height with 50 year’s life at +45 ºC. You

can readily heatsink it to double the ripple-current capability. The MLP

is the square-peg component that fits the square-holes in electronic

assemblies.

Highlights

- Low-profile replacement for snap-ins

- Double the ripple capability with a heatsink

- Nearly hermetic welded seal assures 50-year life

- Withstands more than 80,000 feet altitude

Specifications

Temperature Range

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

Leakage Current

Ripple Current Multipliers

–55°C to +85°C ≤250 Vdc

–40°C to +85°C ≥300 Vdc

7.5 Vdc to 450 Vdc

110 µF to 47,000 µF

±20%

≤ 0.002 CV µA, @ 25 °C and 5 min.

Ambient Temperature, No Heatsink

45 °C

1.00

55 °C

0.90

65 °C

0.75

75 °C

0.56

85 °C

0.27

Case Temperature

45 °C

3.79

Frequency

50 Hz 60 Hz 120 Hz 360 Hz 1 kHz 5 kHz

7.5 to 63 V

80 to 450 V

Low Temperature Characteristics

0.94

0.80

0.95

0.85

1.00

1.04

1.17

1.05

1.24

1.06

1.28

10 kHz

& up

1.06

1.29

55 °C

3.32

65 °C

2.77

75 °C

2.08

85 °C

1.00

Impedance ratio: Z

–55⁰C

∕ Z

+25⁰C

≤ 10 (7.5 - 20 Vdc)

≤ 2 (25 – 250 Vdc)

Impedance ratio: Z

–20⁰C

∕ Z

+25⁰C

≤ 4 (300–450Vdc)

2000 h @ full load at +85 °C

∆ Capacitance ±10%

ESR 200% of limit

DCL 100% of limit

500 h at 85 °C

Capacitance 100% of limit

ESR 100% of limit

DCL 100% of limit

All case sizes: 10g.

MIL-STD-202, Meth. 204,Sine Swept, EIEC 60068-2-6

Endurance Life Test

Shelf Life Test

Vibration

CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
