ATC 700 E Series NPO
Porcelain High RF Power
Multilayer Capacitors
• Case E Size
(.380" x .380")
• High Q
• Low ESR/ESL
• High RF Power
• Extended WVDC
up to 7200 VDC
• Capacitance Range
1 pF to 2200 pF
• Ultra-Stable NPO Performance
• High RF Current/Voltage
• High Reliability
• Available with
Encapsulation Option*
ELECTRICAL AND MECHANICAL
SPECIFICATIONS
QUALITY FACTOR (Q):
Greater than 10,000 (1 pF to 1000 pF) @ 1 MHz.
Greater than 10,000 (1100 pF to 2200 pF) @ 1 KHz.
ATC, the industry leader, offers new improved ESR/ESL performance
for the 700 E Series RF Capacitors. This high Q multilayer capacitor
is ultra-stable under high RF current and voltage applications with
NPO performance. High density porcelain construction provides a
rugged, hermetic package.
ATC offers an encapsulation option for applications requiring ex-
tended protection agains arc-over and corona.
Typical functional applications: Bypass, Coupling, Tuning, Imped-
ance Matching and DC Blocking.
Typical circuit applications: HF/RF Power Amplifiers, Transmitters,
Antenna Tuning, Plasma Chambers and Medical (MRI coils).
*For leaded styles only
TEMPERATURE COEFFICIENT OF CAPACITANCE (TCC):
0 ±30 PPM/°C (-55°C to +125°C)
INSULATION RESISTANCE (IR):
1 pF to 2200 pF:
10
5
Megohms min. @ +25°C at 500 VDC.
10
4
Megohms min. @ +125°C at 500 VDC.
WORKING VOLTAGE (WVDC):
See Capacitance Values Table, page 2.
DIELECTRIC WITHSTANDING VOLTAGE (DWV):
ENVIRONMENTAL TESTS
ATC 700 E Series Capacitors are designed and manufactured to
meet and exceed the requirements of EIA-198, MIL-PRF-55681
and MIL-PRF-123.
150% of WVDC for capacitors rated at 1250 volts DC or less for 5 seconds.
120% of WVDC forÏ capacitors rated above 1250 volts DC for 5 seconds.
RETRACE:
Less than ±(0.02% or 0.02 pF), whichever is greater.
AGING EFFECTS:
None
PIEZOELECTRIC EFFECTS:
None
(No capacitance variation with voltage or pressure).
THERMAL SHOCK:
MIL-STD-202, Method 107, Condition A.
MOISTURE RESISTANCE:
MIL-STD-202, Method 106.
CAPACITANCE DRIFT:
±(0.02% or 0.02 pF), whichever is greater.
OPERATING TEMPERATURE RANGE:
From -55°C to +125°C (No derating of working voltage).
LOW VOLTAGE HUMIDITY:
MIL-STD-202, Method 103, Condition A, with 1.5 Volts DC applied
while subjected to an environment of 85°C with 85% relative hu-
midity for 240 hours min.
TERMINATION STYLES:
Available in various surface mount and leaded styles.
See Mechanical Configurations, page 3.
LIFE TEST:
MIL-STD-202, Method 108, for 2000 hours, at 125°C.
Voltage applied.
120% of WVDC for capacitors rated at 1250 volts DC or less.
100% of WVDC for capacitors rated above 1250 volts DC.
TERMINAL STRENGTH:
Terminations for chips and pellets
withstand a pull of 10 lbs. min., 25 lbs. typical, for 5 seconds in
direction perpendicular to the termination surface of the capac-
itor. Test per MIL-STD-202, method 211.
ATC # 001-943 Rev. K 6/13
ATC 700 E Capacitance Values
RATED WVDC
CAP. CAP.
TOL.
CODE (pF)
STD. EXT.
1R0 1.0
1R1 1.1
1R2 1.2
1R3 1.3
1R4 1.4
1R5 1.5
1R6 1.6
1R7 1.7
1R8 1.8
1R9 1.9
2R0 2.0 B, C, D 3600 7200
2R1 2.1
2R2 2.2
2R4 2.4
2R7 2.7
3R0 3.0
3R3 3.3
3R6 3.6
3R9 3.9
4R3 4.3
4R7 4.7
EXTENDED VOLTAGE
EXTENDED VOLTAGE
RATED WVDC
CAP. CAP.
TOL.
CODE (pF)
STD. EXT.
5R1 5.1
5R6 5.6
6R2 6.2
6R8 6.8 B, C, D
7R5 7.5
8R2 8.2
9R1 9.1
100
10
110
11
120
12
130
13
3600 7200
150
15
160
16
180
18
G, J
200
20 K, M
220
22
240
24
270
27
300
30
330
33
360
36
EXTENDED VOLTAGE
EXTENDED VOLTAGE
RATED WVDC
CAP. CAP.
TOL.
CODE (pF)
STD. EXT.
390
39
430
43
470
47
510
51
560
56
620
62
7200
680
68
750
75
820
82
910
91 G, J,
101 100 K, M 3600
111 110
121 120
131 130
5000
151 150
161 160
181 180
201 200
221 220
N/A
241 240
EXT.
VOLT.
EXTENDED
VOLTAGE
RATED WVDC
CAP. CAP.
TOL.
CODE (pF)
STD. EXT.
271 270
301 300
331 330
3600
361 360
391 390
431 430
471 470
511 510
561 560
2500
621 620 G, J,
681 680 K, M
N/A
751 750
821 820
911 910
102 1000
112 1100
1000
122 1200
152 1500
182 1800
222 2200
VRMS = 0.707 x WVDC
•
•
•
•
SPECIAL VALUES, TOLERANCES, MATCHING, AND CAPACITOR ASSEMBLIES ARE AVAILABLE.
ATC’S CUSTOM POWER CAPACITOR ASSEMBLY CATALOG, ATC # 001-900 LISTS ASSEMBLY OPTIONS.
EXTENDED WORKING VOLTAGES ARE AVAILABLE FOR COMMERCIAL ORDERS ONLY.
ENCAPSULATION OPTION AVAILABLE. PLEASE CONSULT FACTORY.
CAPACITANCE TOLERANCE
Code
B
C
D
G
J
K
M
Tol.
±0.1 pF ±0.25 pF ±0.5 pF ±2% ±5% ±10% ±20%
ATC PART NUMBER CODE
ATC700 E 39 1
Series
Case Size
Capacitance Code:
First 2 significant digits for capacitance.
R=Decimal Point
Indicates number of zeros following digits
of capacitance in picofarads except for decimal values.
Capacitance Tolerance
K
W 3600 X
C
Packaging
C - ATC Matrix Tray (Standard)
T - Tape and Reel, 250 pc. qty.
I - Special Packaging. Consult Factory
Laser Marking
WVDC
Termination Code
The above part number refers to a 700 E Series (case size E) 390 pF capacitor,
K tolerance (±10%), 3600 WVDC, with W termination (Tin /Lead, Solder Plated over Nickel Barrier), laser marking and Waffle-packaging.
ATC accepts orders for our parts using designations
with
or
without
the
“ATC” prefix. Both methods of defining the part number are equivalent,
i.e., part numbers referenced with the “ATC” prefix are interchangeable to
parts referenced without the “ATC” prefix. Customers are free to use either
in specifying or procuring parts from American Technical Ceramics.
For additional information and catalogs contact your ATC
representative or call direct at (+1-631) 622-4700.
Consult factory for additional performance data.
A M E R I C A N
2
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
w w w.a t c er a m ic s .co m

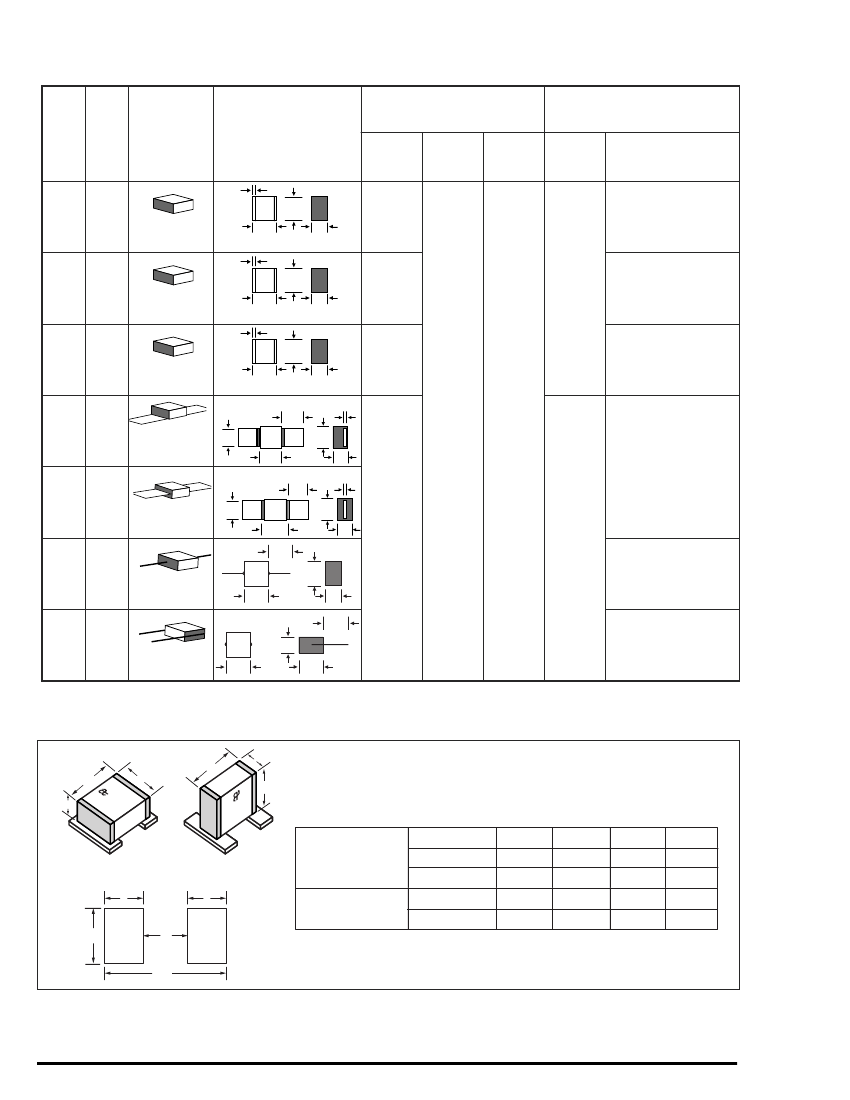

ATC 700 E Capacitors: Mechanical Configurations
ATC
SERIES
& CASE
SIZE
ATC
TERM.
CODE
CASE SIZE
& TYPECASE SIZE
& TYPE
OUTLINES
W/T IS A
TERMINATION SURFACE
Y
BODY DIMENSIONS
INCHES (mm)
LENGTH
(L)
.380
+.015 -.010
(9.65
+0.38
-0.25)
.380
+.040 -.010
(9.65
+1.02
-0.25)
.380
+.015 -.010
(9.65
+0.38
-0.25)
.380
+.015 -.010
(9.65
+0.38
-0.25)
TL
W
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
WIDTH
(W)
THICKNESS
(T)
MATERIALS
700E
W
E
Solder Plate
E
Y
L
W
T
Tin /Lead, Solder Plated over
Nickel Barrier Termination
700E
P
Pellet
Y
L
W
T
Heavy Tin/ Lead Coated,
over Nickel Barrier
Termination
.040 (1.02)
max.
700E
T
E
Solderable Nickel
Barrier
Y
L
W
T
RoHS Compliant
Tin Plated over
Nickel Barrier Termination
700E
CA
E
Gold Chip
E
L
W
RoHS Compliant
Gold Plated over
Nickel Barrier Termination
.380 ±.010 .170 (4.32)
(9.65 ±0.25)
max.
T
700E
MS
Microstrip
E
WL
LL
High Purity
Silver Leads
LL = .750 (19.05) min.
WL = .350 ±.010
(8.89 ±0.25)
TL = .010 ±.005
(0.25 ±0.13)
Leads are Attached with
High Temperature Solder.
N/A
Silver-plated Copper Leads
Dia. = .032 ±.002
(.813 ±.051)
LL = 2.25 (57.2) min.
Silver-plated Copper Leads
Dia. = .032 ±.002
(.813 ±.051)
LL = 1.0 (25.4) min.
L
LL
T
TL
700E
AR
Axial Ribbon
E
WL
L
W
T
LL
W
700E
AW
Axial Wire
E
L
•
T
.380
+.035 -.010
(9.65
+0.89
-0.25)
LL
T
700E
RW
Radial Wire
L
W
Custom lead styles and lengths are available; consult factory. All leads are high purity silver attached with high temperature solder and are
RoHS
compliant.
A M E R I C A N
3
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
w ww.a tc e r a mic s .c o m
ATC 700 E Capacitors: Non-Magnetic Mechanical Configurations
ATC
SERIES
& CASE
SIZE
ATC
TERM.
CODE
OUTLINES
CASE SIZE
& TYPE
W/T IS A
TERMINATION SURFACE
Y
BODY DIMENSIONS
INCHES (mm)
LENGTH
(L)
.380
+.015 -.010
(9.65
+0.38
-0.25)
.380
+.040 -.010
(9.65
+1.02
-0.25)
.380
+.015 -.010
(9.65
+0.38
-0.25)
TL
W
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
WIDTH
(W)
THICKNESS
(T)
MATERIALS
700E
WN
E
Non-Mag
Solder Plate
Y
L
W
T
Tin/ Lead, Solder Plated over
Non-Magnetic Barrier
Termination
700E
PN
E
Non-Mag
Pellet
Y
L
W
T
.040 (1.02)
max.
Heavy Tin/ Lead Coated, over
Non-Magnetic Barrier
Termination
700E
TN
E
Non-Mag
Solderable Barrier
E
E
L
W
RoHS Compliant
Tin Plated over
Non-Magnetic Barrier
Termination
.380
+.015 -.010
(9.65
+0.38
-0.25)
T
700E
MN
Non-Mag
Microstrip
E
WL
LL
.170 (4.32)
max.
High Purity
Silver Leads
LL = .750 (19.05) min.
WL = .350 ±.010
(8.89 ±0.25)
TL = .010 ±.005
(0.25 ±0.13)
Leads are Attached with
High Temperature Solder.
N/A
Silver-plated Copper Leads
Dia. = .032 ±.002
(.813 ±.051)
LL = 2.25 (57.2) min.
Silver-plated Copper Leads
Dia. = .032 ±.002
(.813 ±.051)
LL = 1.0 (25.4) min
L
LL
T
TL
700E
AN
Non-Mag
Axial Ribbon
E
WL
L
W
T
LL
W
700E
BN
Non-Mag
Axial Wire
L
•
T
LL
.380
+.035 -.010
(9.65
+0.89
-0.25
700E
RN
E
Non-Mag
Radial Wire
L
T
W
Custom lead styles and lengths are available; consult factory. All leads are high purity silver attached with high temperature solder and are
RoHS
compliant.
Suggested Mounting Pad Dimensions
L
K
1
9
3
W
L
T
W
T
391K
Case E
Vertical Mount
Horizontal Mount
Pad Size
Normal
High Density
Normal
High Density
A Min.
.185
.165
.405
.385
B Min.
.050
.030
.050
.030
C Min.
.325
.325
.325
.325
D Min.
.425
.385
.425
.385
Horizontal
Electrode Orientation
B
C
D
Vertical
Electrode Orientation
B
A
Dimensions are in inches.
A M E R I C A N
4
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
w w w.a t c e r a mic s .c o m
/700e820gar7200xc_pdf/pg_0001.png)
京公网安备 11010802033920号
EEWORLD/700e820gar7200xc_pdf/1.png)
/700e820gar7200xc_pdf/2.png)
/700e820gar7200xc_pdf/3.png)
/700e820gar7200xc_pdf/4.png)
/700e820gar7200xc_pdf/5.png)
/700e820gar7200xc_pdf/pg_0002.png)
/700e820gar7200xc_pdf/pg_0003.png)
/700e820gar7200xc_pdf/pg_0004.png)
/700e820gar7200xc_pdf/pg_0005.png)
