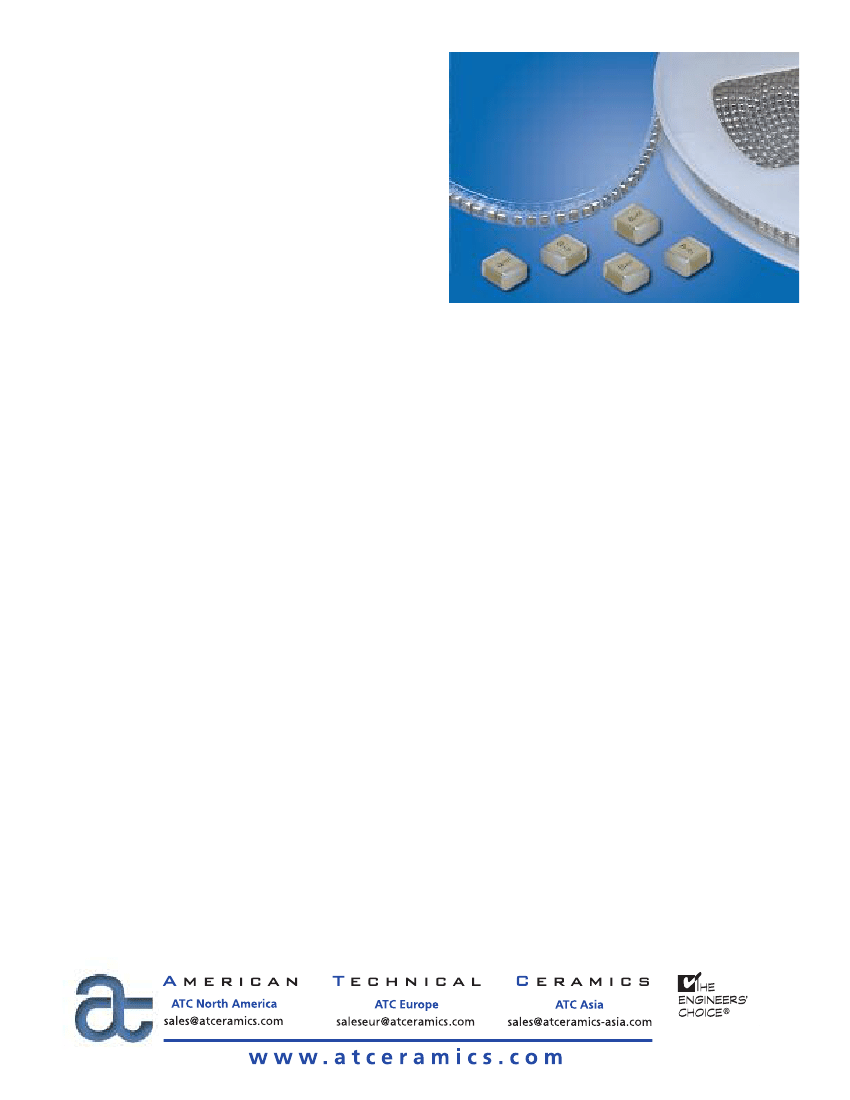

less Communications, Public Safety Radio, Avionics, Telecom, WiMAX,
Microwave Communication Systems and Satellite Systems.
Typical circuit applications: High RF Power Filter Networks, Combiners,
Couplers, Matching Networks, Output Coupling, Antenna Coupling, and
DC Blocking and Bypassing.
ELECTRICAL AND MECHANICAL
SPECIFICATIONS
QUALITY FACTOR (Q):
2000 @ 1 MHz
TEMPERATURE COEFFICIENT OF CAPACITANCE (TCC):
0 ±30 PPM/°C (-55°C to +125°C)
INSULATION RESISTANCE (IR):
0.1 pF to 1000 pF:
10
5
Megohms min. @ +25°C at rated WVDC
10
4
Megohms min. @ +125°C at rated WVDC
WORKING VOLTAGE (WVDC):
See Capacitance Values Table, page 2
DIELECTRIC WITHSTANDING VOLTAGE (DWV):
Case B: 250% of rated WVDC for 5 secs
RETRACE:
Less than ±(0.02% or 0.02 pF), whichever is greater
AGING EFFECTS:
None
PIEZOELECTRIC EFFECTS:
None
(No capacitance variation with voltage or pressure)
CAPACITANCE DRIFT:
±(0.02% or 0.02 pF), whichever is greater
OPERATING TEMPERATURE RANGE:
From -55°C to +125°C (No derating of working voltage)
TERMINATION STYLES:
RoHS Compliant and Solder Plate
See Mechanical Configurations, page 3
TERMINAL STRENGTH:
Terminations for chips withstand a pull of
5 lbs. min., 15 lbs. typical, for 5 seconds in direction perpendicular
to the termination surface of the capacitor. Test per MIL-STD-202,
method 211.
ENVIRONMENTAL TESTS
ATC 800 B Series Capacitors are designed and manufactured to meet and
exceed the requirements of EIA-198, MIL-PRF-55681 and MIL-PRF-123.
THERMAL SHOCK:
MIL-STD-202, Method 107, Condition A
MOISTURE RESISTANCE:
MIL-STD-202, Method 106
LOW VOLTAGE HUMIDITY:
MIL-STD-202, Method 103, Condition A, with 1.5 Volts DC applied
while subjected to an environment of 85°C with 85% relative
humidity for 240 hours min.
LIFE TEST:
MIL-STD-202, Method 108, for 2000 hours, at 125°C
200% WVDC applied
ISO 9001
REGISTERED
COMPANY
ATC # 001-1033 Rev. I, 6/13
ATC 800 B Capacitance Values
CAP.
CODE
0R1
0R2
0R3
0R4
0R5
0R6
0R7
0R8
0R9
1R0
1R1
1R2
1R3
1R4
1R5
1R6
1R7
1R8
1R9
2R0
2R1
2R2
CAP.
(pF) TOL.
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
B
B, C
RATED
WVDC
CAP.
CODE
2R4
2R7
3R0
3R3
3R6
3R9
4R3
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
120
130
150
160
180
CAP.
(pF)
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
TOL.
RATED
WVDC
CAP.
CODE
200
220
240
270
300
330
360
390
430
470
510
560
620
680
750
820
910
101
111
121
131
CAP.
(pF)
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
TOL.
RATED
WVDC
CAP.
CODE
151
161
181
201
221
241
271
301
331
361
391
431
471
511
561
621
681
751
821
911
102
CAP.
(pF)
150
160
180
200
220
240
270
300
330
360
390
430
470
510
560
620
680
750
820
910
1000
TOL.
RATED
WVDC
300
B, C,
D
500
F, G,
J, K,
M
200
F, G,
J, K,
M
500
B, C,
D
500
B, C,
J, K,
M
100
F, G, J,
K, M
50
300
VRMS = 0.707 X WVDC
• SPECIAL VALUES, TOLERANCES, HIGHER WVDC AND MATCHING AVAILABLE. PLEASE CONSULT FACTORY.
ATC PART NUMBER CODE
ATC800 B 91 0
Series
Case Size
Capacitance Code:
First 2 significant digits for capacitance.
R=Decimal Point
Indicates number of zeros following digits
of capacitance in picofarads except for decimal values.
Capacitance Tolerance
J T
500 X
T
Packaging
T - Tape & Reel: 500 and 1000 pc. qty. std.*
TV - Vertical Orientation of Product,
Tape & Reel: 500 and 1000 pc. qty. std.*
I - Special Packaging. Consult Factory.
*
Consult ATC for other quantities
CAPACITANCE TOLERANCE
Code
Tol.
B
C
D
F
G
J
K
M
±0.1 pF ±0.25 pF ±0.5 pF ±1% ±2% ±5% ±10% ±20%
Laser Marking
WVDC
Termination Code
The above part number refers to a 800 B Series (case size B) 91 pF capacitor,
J tolerance (±5%), 500 WVDC, with T termination (Tin Plated over Nickel Barrier Termination, RoHS Compliant), laser marking and tape and reel packaging.
ATC accepts orders for our parts using designations
with
or
without
the
“ATC” prefix. Both methods of defining the part number are equivalent,
i.e., part numbers referenced with the “ATC” prefix are interchangeable to
parts referenced without the “ATC” prefix. Customers are free to use either
in specifying or procuring parts from American Technical Ceramics.
For additional information and catalogs contact your ATC
representative or call direct at (+1-631) 622-4700.
Consult factory for additional performance data.
A M E R I C A N
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
2
w w w.a t c er a m ic s .co m
ATC 800 B Capacitors: Mechanical Configurations
ATC
ATC
SERIES
TERM.
& CASE
CODE
SIZE
OUTLINES
CASE SIZE
& TYPE
W/T IS A
TERMINATION SURFACE
Y
BODY DIMENSIONS
Inches (mm)
LENGTH
(L)
.110
+.020 -.010
(2.79
+0.51 -0.25)
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
MATERIAL
WIDTH
(W)
THICKNESS
(T)
800B
T
B
W
L
T
Solderable
Nickel Barrier
Y
.110 ±.015 .070 (1.78)
(2.79 ±0.38)
max.
.015 (0.38)
±.010 (0.25)
RoHS Compliant
Tin Plated over
Nickel Barrier Termination
800B
W
B
Solder Plate
W
L
T
.110
+.020 -.010 .110 ±.015 .070 (1.78)
(2.79
(2.79 ±0.38)
max.
+0.51 -0.25)
.015 (0.38)
±.010 (0.25)
Tin/ Lead Solder Plated over
Nickel Barrier Termination
ATC 800 B Capacitors: Non-Magnetic Mechanical Configurations
ATC
ATC
SERIES
TERM.
& CASE
CODE
SIZE
OUTLINES
CASE SIZE
& TYPE
W/T IS A
TERMINATION SURFACE
Y
BODY DIMENSIONS
Inches (mm)
LENGTH
(L)
.110
+.020 -.010
(2.79
+0.51 -0.25)
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
MATERIAL
WIDTH
(W)
THICKNESS
(T)
B
800B
TN
Non-Mag
Solderable
Barrier
W
L
T
.110 ±.015 .070 (1.78)
(2.79 ±0.38)
max.
.015 (0.38)
±.010 (0.25)
RoHS Compliant
Tin Plated over
Non-Magnetic Barrier Termination
Suggested Mounting Pad Dimensions
Case B Vertical Mount
Cap Value Pad Size
All
Values
Normal
High
Density
A Min
B Min
C Min
D Min
.175
(4.45)
.135
(3.43)
.090
.050 (1.27) .075 (1.91)
(2.29)
.070
(1.78)
.030
(.762)
.075 (1.91)
Case B Horizontal Mount
Cap Value Pad Size
All
Values
Normal
High
Density
A Min
B Min
C Min
D Min
.175
(4.45)
.135
(3.43)
inches (mm)
.130
.050 (1.27) .075 (1.91)
(3.30)
.110
(2.79)
.030
(.762)
.075 (1.91)
A M E R I C A N
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
w w w.a t c er a m ic s .co m
3
ATC 800 B Performance Data
800 B ESR vs. Frequency
1.00
1.0 pF
ESR (Ohms)
3.3 pF
10 pF
0.10
39 pF
100 pF
200 pF
1000 pF
(Typical)
0.01
100
1000
10000
Frequency (MHz)
800 B FSR & FPR vs. Capacitance
100.0
10.0
Fpr
Frequency (GHz)
Fsr
1.0
0.1
1
10
100
1000
Capacitance (pF)
ATC 800 B Series Data Sheet Test Condition Description
Capacitors vertically mounted in series microstrip configuration on 23.3-mil thick Rogers RO4350
®
softboard, 52-mils wide 1/2 oz. Cu traces.
FSR
= lowest frequency at which S11 response, referenced at capacitor edge, crosses real axis on Smith Chart.
FPR
= lowest frequency at which there is a notch in S21 magnitude response.
A M E R I C A N
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
4
w w w.a t c er a m ic s .co m
ATC 800 B Performance Data
800B Capacitance Change vs. Temperature
1
TCC= 0 ±30 PPM/C
0.8
0.6
0.4
% Change in Capacitance
0.2
0
-0.2
-0.4
-0.6
-0.8
-1
-55
-35
-15
5
25
45
65
85
105
125
Temperature (Degrees C)
Sales of ATC products are subject to the terms and conditions contained in American Technical Ceramics Corp. Terms and Conditions of Sale (ATC document #001-992 Rev. B; 12/05). Copies
of these terms and conditions will be provided upon request. They may also be viewed on ATC's website at www.atceramics.com/productfinder/default.asp. Click on the link for Terms and
Conditions of Sale.
ATC has made every effort to have this information as accurate as possible. However, no responsibility is assumed by ATC for its use, nor for any infringements of rights of third parties which
may result from its use. ATC reserves the right to revise the content or modify its product without prior notice.
