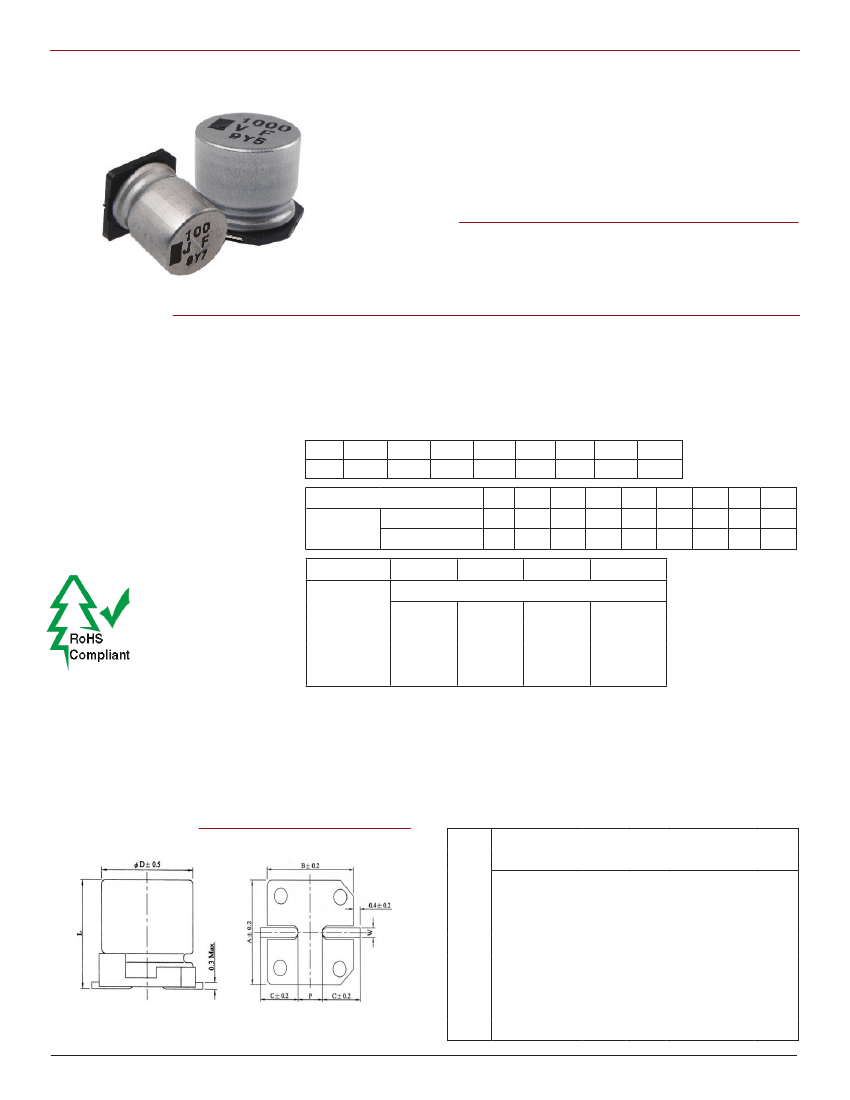

Type AVE
–40 °C to 85 °C General Purpose SMT Capacitors
Aluminum Electrolytic Capacitors for Filtering and Bypass
Type AVE capacitors are a great value for filter and bypass
applications not requiring wide temperature performance or high
ripple current. Their vertical cylindrical cases facilitate automatic
mounting and reflow soldering and offer a significant savings over
tantalum capacitors.
Highlights
•
+85
°C,
Up to 2000 Hour Load Life
•
Low Impedance
•
Voltage Range: 4 Vdc to 100 Vdc
Specifications
Operating Temperature:
Rated Voltage:
Capacitance:
Capacitance Tolerance:
Leakage Current:
Dissipation Factor:
Low Temperature
Characteristics @ 120 Hz:
Ripple Curent Multipliers
:
Complies with the EU Directive
2002/95/EC requirement restrict-
ing the use of Lead (Pb), Mercury
(Hg), Cadmium (Cd), Hexavalent
chromium (Cr(VI)), PolyBrominat-
ed Biphenyls (PBB) and PolyBro-
minated Diphenyl Ethers (PBDE).
–40 °C to +85 °C
4, 6.3, 10, 16, 25, 35, 50, 63 & 100 Vdc
0.1
µF
to 1500
µF
±20% @ 120 Hz and +20 °C
0.01 CV or 3
µA
@ +20 °C, after two minutes (whichever is greater)
4V
0.42
6.3V
0.28
10 V
0.24
16 V
0.20
25 V
0.14
35 V
0.12
50 V
0.10
63 V
0.10
100 V
0.10
Rated Voltage (Vdc)
Impedance
Z(-25ºC)/Z(+20ºC)
Ratio
4
7
6.3
4
8
10
3
5
16
2
4
25
2
3
35
2
3
50
2
3
63
2
3
100
2
3
Z(-40ºC)/Z(+20ºC) 15
Frequency
Vdc (V)
≤ 16
25 - 35
50 - 63
100
50 Hz
0.80
0.80
0.80
0.70
120 Hz
1.00
1.00
1.00
1.00
1 kHz
1.15
1.25
1.35
1.35
10 kHz up
1.25
1.40
1.50
1.50
Multiplier
Life Test:
2000 h @ 85 °C
∆ Capacitance ±20% (4 WV: ±30%)
DF: ≤ 200% of limit (4 WV: ±30%)
DCL: ≤ 100% of limit
Shelf Test:
1000 h @ 85 °C
∆ Capacitance ±20% (4 WV: ±30%)
DF: ≤ 200% of limit (4 WV: ±30%)
Outline Drawing
Case
Code
A
B
C
D
X
E
F
G
∅
D
3
4
5
6.3
6.3
8
8
10
Dimensions in millimeters (mm)
L
5.3±0.2
5.3±0.2
5.3±0.2
5.3±0.2
7.7±0.3
6.5±0.3
10±0.5
10±0.5
A
3.3
4.3
5.3
6.6
6.6
8.4
8.4
10.4
B
3.3
4.3
5.3
6.6
6.6
8.4
8.4
10.4
C
W
P±0.2
0.8
1.0
1.5
2.0
2.0
2.3
3.1
4.7
1.5 .45 ~ 0.75
2.0 0.5 to 0.8
2.3 0.5 to 0.8
2.7 0.5 to 0.8
2.7 0.5 to 0.8
3.4 0.5 to 0.8
3.0 0.7 to 1.1
3.3 0.7 to 1.1
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 • www.cde.com
Type AVE
–40 °C to 85 °C General Purpose SMT Capacitors
Aluminum Electrolytic Capacitors for Filtering and Bypass
Ratings
Max.
Catalog
Cap
(µF)
10
10
22
33
47
68
100
100
220
220
330
470
4.7
10
22
33
47
47
68
68
100
100
220
330
3.3
4.7
10
22
33
33
47
47
68
68
100
220
AVE106M16A12T-F
AVE106M16B12T-F
AVE226M16C12T-F
AVE336M16D16T-F
AVE476M16D16T-F
AVE686M16D16T-F
AVE107M16X16T-F
AVE107M16E16T-F
AVE227M16X16T-F
AVE227M16F24T-F
AVE337M16F24T-F
AVE477M16G24T-F
AVE475M25B12T-F
AVE106M25C12T-F
AVE226M25D16T-F
AVE336M25D16T-F
AVE476M25X16T-F
AVE476M25E16T-F
AVE686M25X16T-F
AVE686M25E16T-F
AVE107M25X16T-F
AVE107M25E16T-F
AVE227M25F24T-F
AVE337M25G24T-F
AVE335M35A12T-F
AVE475M35B12T-F
AVE106M35C12T-F
AVE226M35D16T-F
AVE336M35X16T-F
AVE336M35E16T-F
AVE476M35X16T-F
AVE476M35E16T-F
AVE686M35X16T-F
AVE686M35E16T-F
AVE107M35F24T-F
AVE227M35G24T-F
Part Number
Max. DCL
2 min.
(µA)
3.0
3.0
3.5
5.3
7.5
10.9
16.0
16.0
35.2
35.2
52.8
75.2
3.0
3.0
5.5
8.3
11.8
11.8
17.0
17.0
25.0
25.0
55.0
82.5
3.0
3.0
3.5
7.7
11.6
11.6
16.5
16.5
23.8
23.8
35.0
77.0
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.14
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
Max. DF
Max. E.S.R. Ripple Current Case
(Ω)
16 Vdc ( 20 Vdc Surge )
33.16
33.16
15.07
10.05
7.05
4.88
3.32
3.32
1.51
1.51
1.00
0.71
49.38
23.21
10.55
7.03
4.94
4.94
3.41
3.41
2.32
2.32
1.06
0.70
60.28
42.33
19.89
9.04
6.03
6.03
4.23
4.23
2.93
2.93
1.99
0.90
14
26
44
63
75
103
108
155
124
252
252
458
19
32
55
67
98
155
109
155
124
155
252
458
8
20
34
59
85
155
98
155
109
155
252
458
A
B
C
D
D
D
X
E
X
F
F
G
B
C
D
D
X
E
X
E
X
E
F
G
A
B
C
D
X
E
X
E
X
E
F
G
3x5.3
4x5.3
5x5.3
6.3x5.3
6.3x5.3
6.3x5.3
6.3x7.7
8x6.5
6.3x7.7
8x10
8x10
10x10
4x5.3
5x5.3
6.3x5.3
6.3x5.3
6.3x7.7
8x6.5
6.3x7.7
8x6.5
6.3x7.7
8x6.5
8x10
10x10
3x5.3
4x5.3
5x5.3
6.3x5.3
6.3x7.7
8x6.5
6.3x7.7
8x6.5
6.3x7.7
8x6.5
8x10
10x10
2000
2000
1000
1000
1000
1000
1000
1000
1000
500
500
500
2000
1000
1000
1000
1000
1000
1000
1000
1000
1000
500
500
2000
2000
1000
1000
1000
1000
1000
1000
1000
1000
500
500
(mA)
Size
DxL
(mm)
Qty.
Per Reel
(Each)
@120Hz/20ºC @120Hz/20ºC @120Hz/85ºC Code
25 Vdc ( 31 Vdc Surge )
35 Vdc ( 44 Vdc Surge )
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 • www.cde.com
Type AVE
–40 °C to 85 °C General Purpose SMT Capacitors
Aluminum Electrolytic Capacitors for Filtering and Bypass
Max.
Catalog
Cap
(µF)
.10
.22
.33
.47
1
2.2
3.3
4.7
10
22
22
33
33
47
47
68
100
220
10
22
33
47
68
100
10
22
33
AVE104M50B12T-F*
AVE224M50B12T-F*
AVE334M50B12T-F*
AVE474M50B12T-F*
AVE105M50B12T-F
AVE225M50B12T-F
AVE335M50B12T-F
AVE475M50C12T-F
AVE106M50D16T-F
AVE226M50X16T-F
AVE226M50E16T-F
AVE336M50X16T-F
AVE336M50E16T-F
AVE476M50X16T-F
AVE476M50F24T-F
AVE686M50F24T-F
AVE107M50F24T-F
AVE227M50G24T-F
AVE106M63E16T-F
AVE226M63F24T-F
AVE336M63F24T-F
AVE476M63G24T-F
AVE686M63G24T-F
AVE107M63G24T-F
AVE106M2AF24T-F
AVE226M2AG24T-F
AVE336M2AG24T-F
Part Number
Max. DCL
2 min.
(µA)
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
5.0
11.0
11.0
16.5
16.5
23.5
23.5
34.0
50.0
110.0
6.3
13.9
20.8
29.6
42.8
63.0
10
22
33
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
Max. DF
Max. E.S.R. Ripple Current Case Size
(Ω)
50 Vdc ( 63 Vdc Surge )
1657.83
753.56
502.37
352.73
165.78
75.36
50.24
35.27
16.58
7.54
7.54
5.02
5.02
3.53
3.53
2.44
1.66
0.75
16.58
7.54
5.02
3.53
2.44
1.66
16.58
7.54
5.02
3
5
6
7
10
15
19
26
44
65
155
82
155
98
252
252
252
458
75
139
139
226
226
226
94
189
189
B
B
B
B
B
B
B
C
D
X
E
X
E
X
F
F
F
G
E
F
F
G
G
G
F
G
G
4x5.3
4x5.3
4x5.3
4x5.3
4x5.3
4x5.3
4x5.3
5x5.3
6.3x5.3
6.3x7.7
8x6.5
6.3x7.7
8x6.5
6.3x7.7
8x10
8x10
8x10
10x10
8x6.5
8x10
8x10
10x10
10x10
10x10
8x10
10x10
10x10
2000
2000
2000
2000
2000
2000
2000
1000
1000
1000
1000
1000
1000
1000
500
500
500
500
1000
500
500
500
500
500
500
500
500
(mA)
(mm)
Qty.
(Each)
@120Hz/20ºC @120Hz/20ºC @120Hz/85ºC Code D x L Per Reel
63 Vdc ( 75 Vdc Surge )
100 Vdc ( 125 Vdc Surge )
*denotes discontinued part
Recommended Land Patterns by case size for AVE series
B
C
A
B
Case
Code
A
B
C
D
X
E
F
G
Case
Size
3x5.3
4x5.3
5x5.3
6.3x5.3
6.3x7.7
8x6.5
8x10
10x10
Land Dimensions (mm)
C
1.6
1.6
1.6
1.6
1.6
1.6
2.5
2.5
B
2.2
2.6
3.0
3.5
3.5
4.0
3.5
4.0
A
0.8
1.0
1.4
1.9
1.9
2.1
3.0
4.0
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8564
•
Fax: (508)996-3830
•
www.cde.com
Type AVE
–40 °C to 85 °C General Purpose SMT Capacitors
Aluminum Electrolytic Capacitors for Filtering and Bypass
Recommended Soldering Methods

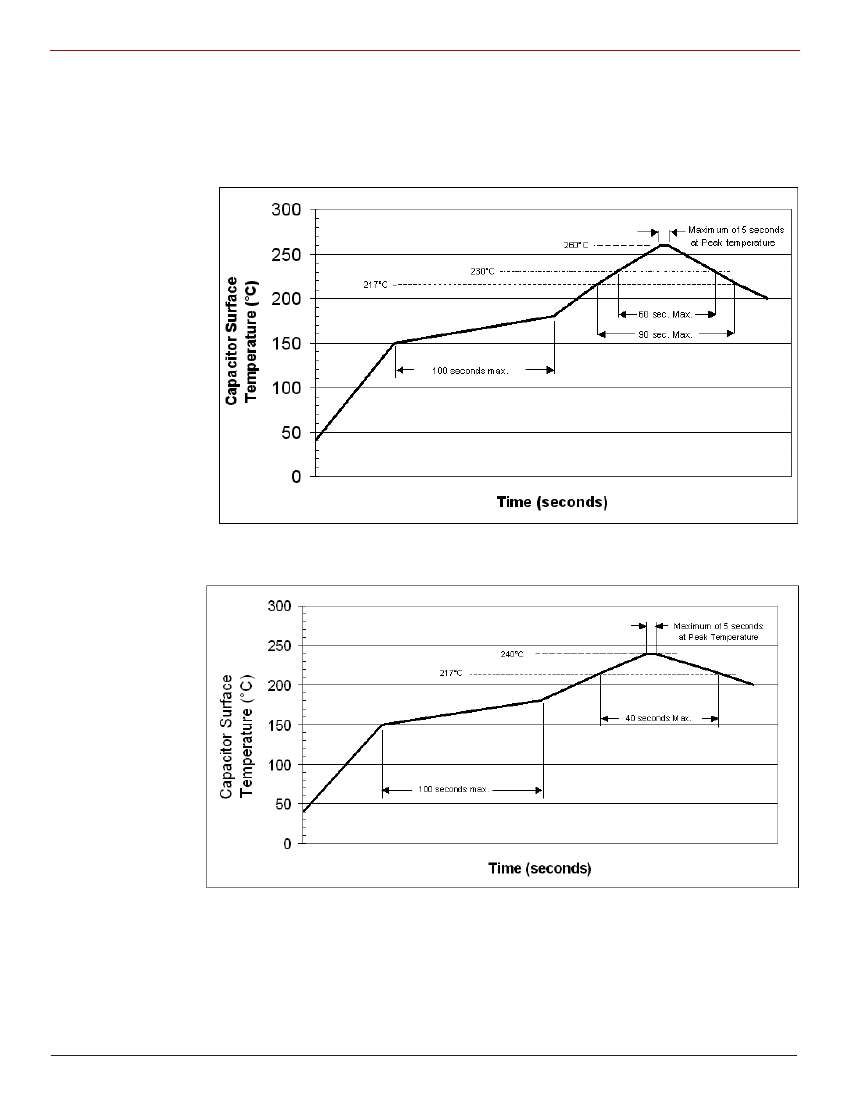

Recommended Reflow Soldering Profile:
For case diameters
3 thru 6.3 mm
For case diameters
8 and 10 mm
Case sizes 4 thur 6.3 mm dia. should be subjected to just one reflow soldering process.
The 8 and 10 mm dia. case sizes should be subjected to a maximum of two reflow soldering processes.
Soldering with a solder iron should be performed with a maximum soldering iron tip
temperature of 350±5°C for 3 to 4 seconds.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 • www.cde.com
