CGA2B2C0G1H121J050BA: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00012uF, Surface Mount, 0402, CHIP, HALOGEN FREE, ROHS AND REACH COMPLIANT; CategoryPassive components capacitor; File Size123KB，1 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric View All

CGA2B2C0G1H121J050BA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CGA2B2C0G1H121J050BA	-	-	View	Buy Now

CGA2B2C0G1H121J050BA Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00012uF, Surface Mount, 0402, CHIP, HALOGEN FREE, ROHS AND REACH COMPLIANT

CGA2B2C0G1H121J050BA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1274826083
package instruction	CHIP
Reach Compliance Code	compliant
Country Of Origin	Japan
ECCN code	EAR99
Factory Lead Time	36 weeks
Samacsys Description	Multilayer Ceramic Chip Capacitors, Capacitance=120pF, LxWxT:1x0.5x0.5mm
Samacsys Manufacturer	TDK
Samacsys Modified On	2023-03-07 10:45:45
YTEOL	8.5
capacitance	0.00012 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.5 mm
JESD-609 code	e3
length	1 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, 7 INCH
positive tolerance	5%
Rated (DC) voltage (URdc)	50 V
Guideline	AEC-Q200
size code	0402
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	MATTE TIN OVER NICKEL
Terminal shape	WRAPAROUND
width	0.5 mm

Preview

Download Datasheet

View All

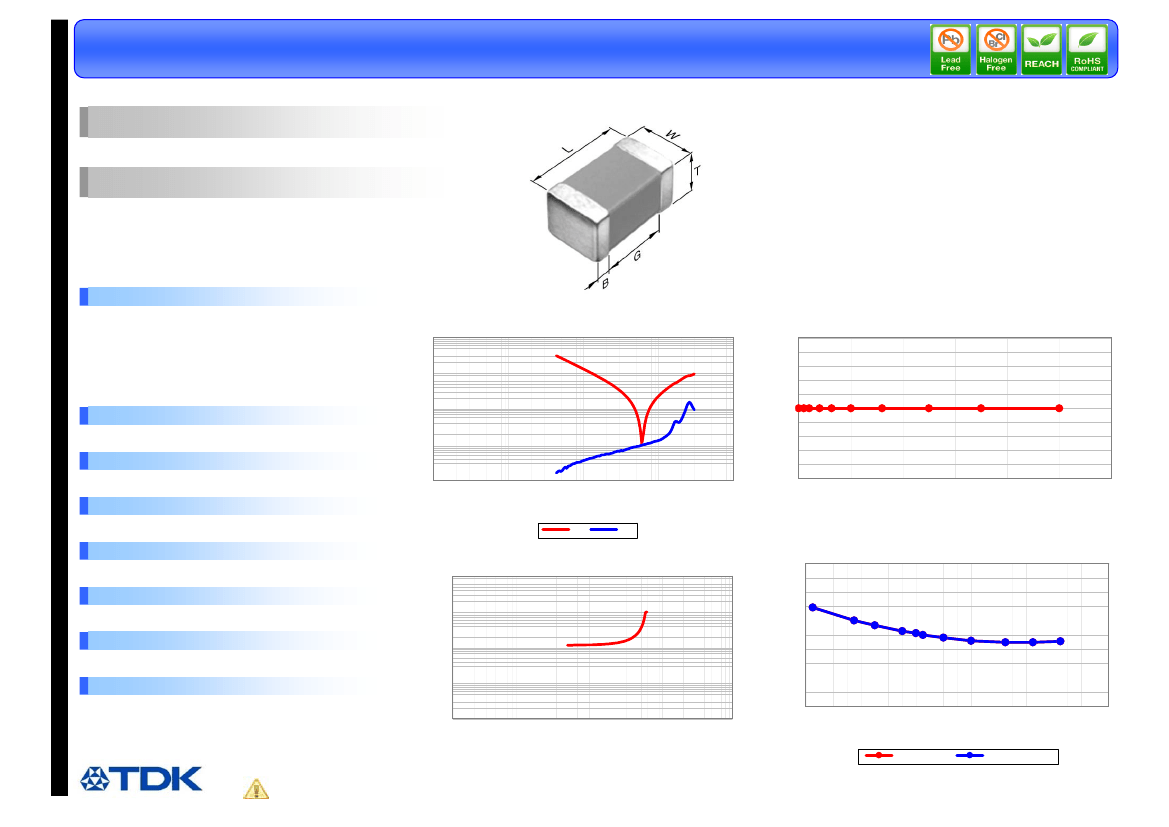

CGA2B2C0G1H121J050BA

TDK Item Description : CGA2B2C0G1H121JT****

Equivalent C1005C0G1H121J for Automotive

Application & Main Feature

Automotive Grade ( General (Up to 50V) )

Series

CGA2(1005) [EIA CC0402]

Dimensions

L

W

T

B

G

|Z|, ESR/ohm

10

Cap. Change/%

1.00mm

0.50mm

0.10mm

0.30mm

+/-0.05mm

Min.

|Z|, ESR vs. Freq. Characteristics

100

5

4

3

2

1

0

-1

-2

-3

-4

-5

DC Bias Characteristic

Temperature Characteristic

Characterization Sheet ( Multilayer Ceramic Chip Capacitors )

1

C0G (-55 to 125 degC 0+/-30ppm/degC)

1H (50Vdc)

120pF

0.1

Rated Voltage

Capacitance

0.01

1

10

100

1000

10000

0

10

20

30

40

50

60

Frequency/MHz

|Z|

ESR

DC Bias/V

Capacitance Tolerance

J (+/-5%)

1000 Min.

Cap./pF

10000

Cap. vs. Freq. Characteristic

Cap. Change/%

Temperature Characteristic

0.5

0.4

0.3

0.2

0.1

0

-0.1

-0.2

-0.3

-0.4

-0.5

-60

-40

-20

0

20

40

60

80

100

120

140

160

Q Factor

1000

Insulation Resitance

10Gohm Min.

Yes

100

AEC-Q200

10

1

10

100

1000

10000

Frequency/MHz

Temperature/degC

Temp.Chara.

TCBias(1/2Rated)

All specifications are subject to change without notice.

February 3, 2014
