PSN2710A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> PSN2710A

PSN2710A: DescriptionLOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP; CategoryAnalog mixed-signal IC The signal circuit; File Size82KB，2 Pages; ManufacturerZ-Communications, Inc.; Websitehttps://www.zcomm.com/

Download Datasheet Parametric View All

PSN2710A Overview

LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP

PSN2710A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Z-Communications, Inc.
package instruction	,
Reach Compliance Code	compli
Humidity sensitivity level	1

Preview

Download Datasheet

View All

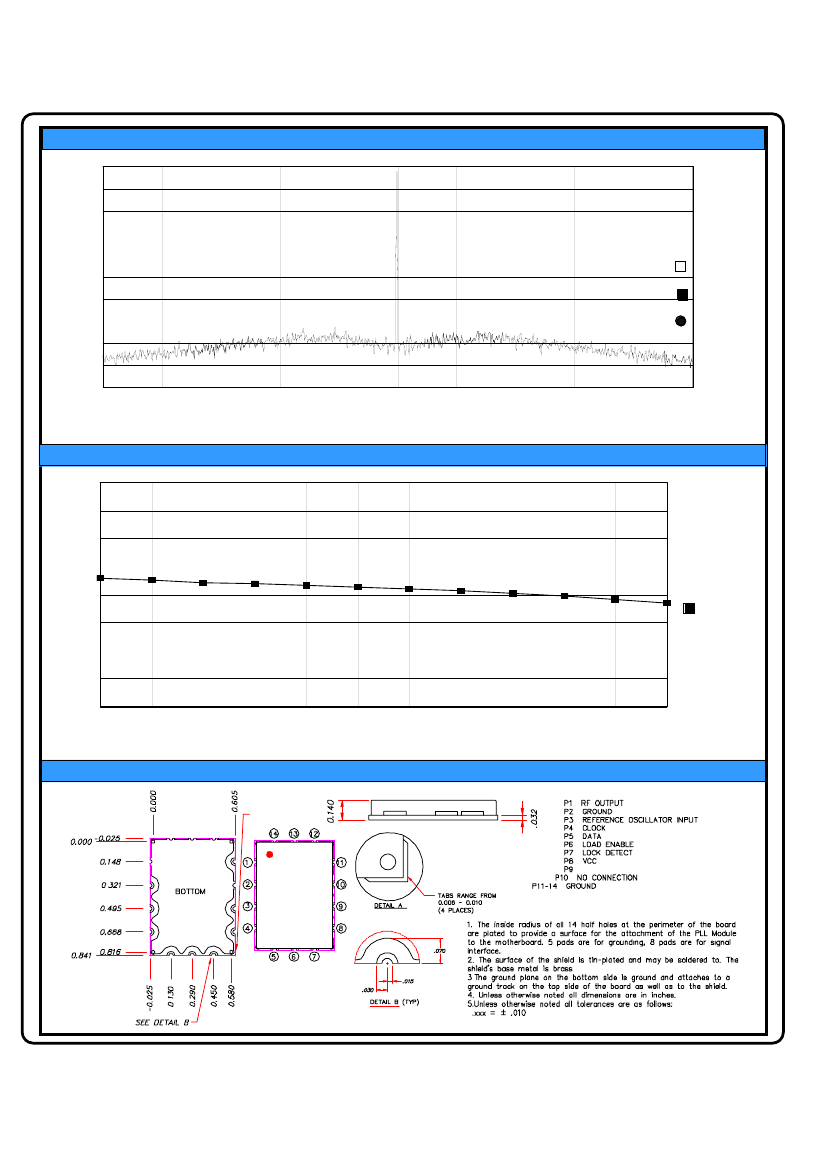

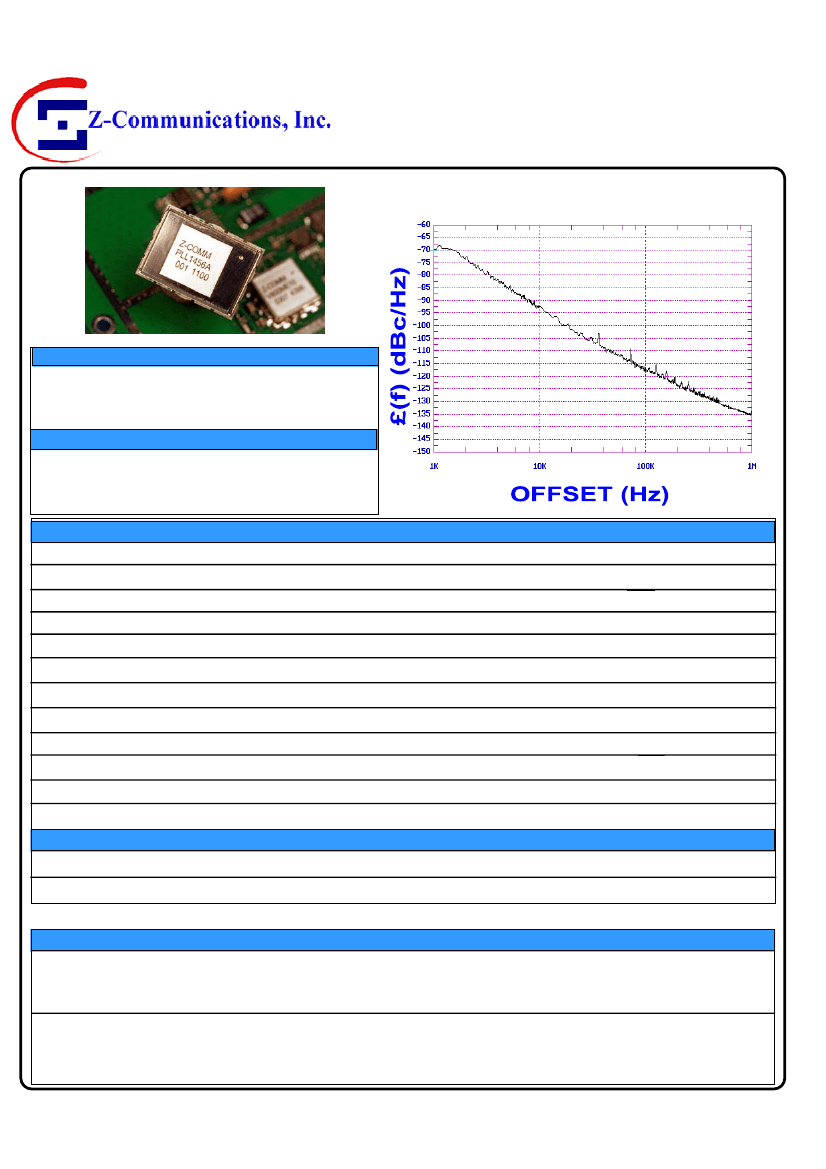

PSN2710A

9939 Via Pasar • San Diego, CA 92126

TEL (858) 621-2700 FAX (858) 621-2722

PHASE LOCKED LOOP

Rev B2

PHASE NOISE (1 Hz BW, typical)

FEATURES

• Frequency Range: 2670 - 2740 MHz

• Step Size:

1000 KHz

• PLL - Style Package

APPLICATIONS

• Telecommunications

• Satellite

• Telemetry

PERFORMANCE SPECIFICATIONS

Frequency Range

VALUE

2670

2740

-93

-20

-65

1±4

1000

250

-40 to 85

PLL

APPLICATION NOTES

Phase Noise @ 10 kHz offset (1 Hz BW, typ.)

Harmonic Suppression (2nd, typ.)

Sideband Spurs (typ.)

Power Output

Load Impedance

Step Size

Charge Pump Output Current

Switching Speed (typ., adjacent channel)

Startup Lock Time (typ.)

Operating Temperature Range

Package Style

UNITS

MHz

dBc/Hz

dBc

dBm

Ω

KHz

µΑ

mSec

°C

POWER SUPPLY REQUIREMENTS

Supply Voltage (Vcc, nom.)

Supply Current (Icc, typ.)

Vdc

All specifications are typical unless otherwise noted and subject to change without notice.

•

AN-107

•

AN-200

•

AN-201

: How to Solder Z-COMM VCOs / PLLs

: Mounting and Grounding of Z-COMM PLLs

: PLL Fundamentals

AN-202 : PLL Functional Description

NOTES:

Reference Oscillator Signal: 5 MHz<

o s c

<40 MHz

Frequency Synthesizer: National Semiconductor - LMX2326

Page 1
