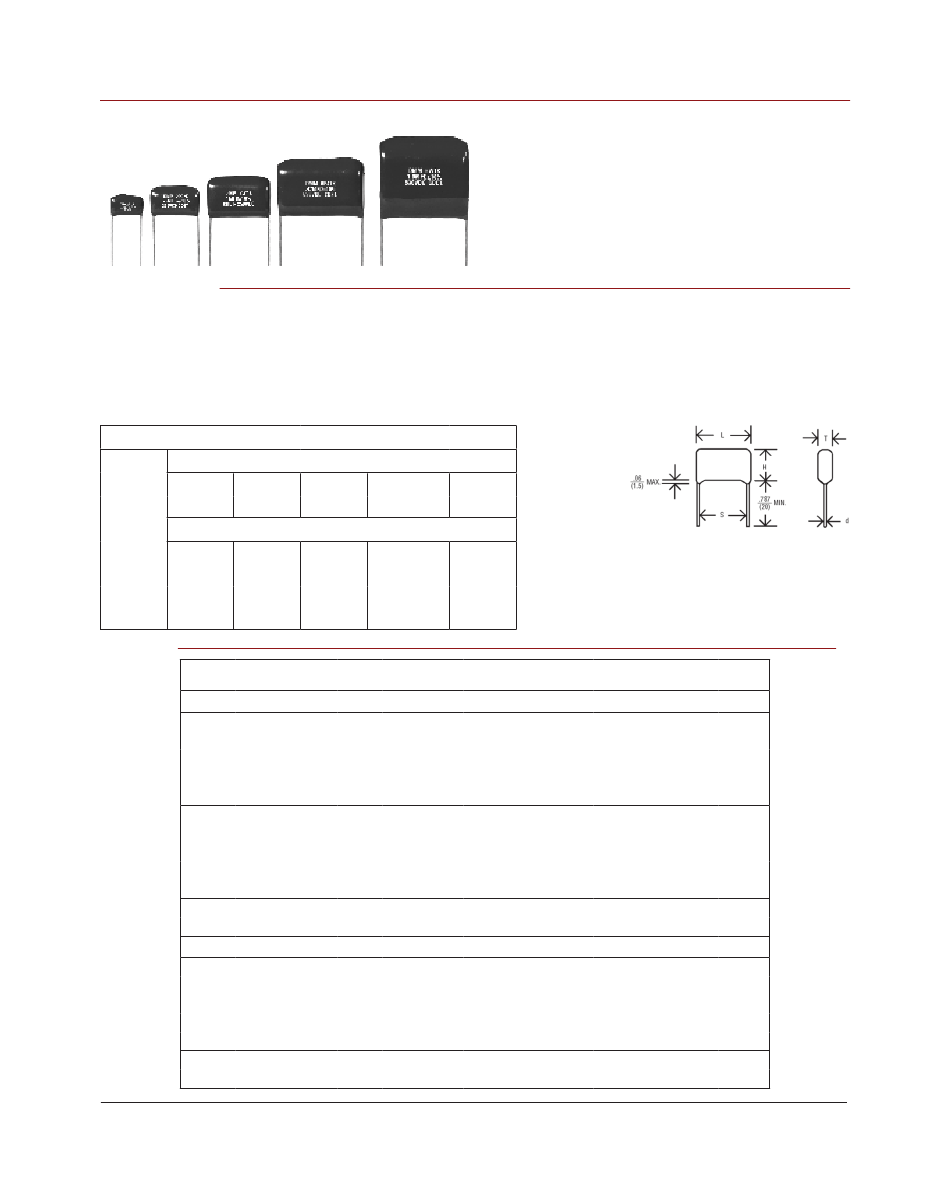

Type DMM
Polyester Film Capacitors
Metallized
Radial Leads
DC Applications
Self Healing
Type DMM
radial-leaded, metallized polyester capacitors
have non-inductive windings and multi-layered epoxy
resin enhancing performace characteristics and humidity
resistance. Self healing characteristics prevent permanent
shorting due to high-voltage transients. When long life
and performance stability are critical
Type DMM
is the
ideal solution.
Specifications
Voltage Range:
100-630 Vdc
Capacitance Range:
.01-10 µF
Capacitance Tolerance:
±10% (K) standard
±5% (J) optional
Operating Temperature Range:
-55 °C to 125 °C*
Pulse Capability
Body Length
Rated
Volts
100
250
400
630
0.55
20
28
46
72
0.71
12
17
28
43
0.94
8
12
15
28
1.024-1.220
6
8
14
21
7
12
17
*Full-rated voltage at 85 °C–Derate linearly to 50%-rated voltage at 125 °C
Dielectric Strength:
150% (1 minute)
Dissipation Factor:
1% Max. (25 °C, 1 kHz)
Insulation Resistance:
5,000 M
Ω
x µF
10,000 M
Ω
Min.
Life Test:
1,000 Hours at 85 °C at
125% Rated Voltage
NOTE:
Other capacitance values,
sizes and performance specifications
are available. Contact us.
1.38
dV/dt—volts per microsecond, maximum
Ratings
Cap.
(µF)
0.15
0.22
0.33
0.47
0.68
1.00
1.50
2.20
3.30
4.70
6.80
10.00
0.068
0.10
0.15
0.22
0.33
0.47
0.68
Catalog
Part Number
DMM1P15K–F
DMM1P22K–F
DMM1P33K–F
DMM1P47K–F
DMM1P68K–F
DMM1W1K–F
DMM1W1P5K–F
DMM1W2P2K–F
DMM1W3P3K–F
DMM1W4P7K–F
DMM1W6P8K–F
DMM1W10K–F
DMM2S68K–F
DMM2P1K–F
DMM2P15K–F
DMM2P22K–F
DMM2P33K–F
DMM2P47K–F
DMM2P68K–F
RoHS Compliant
d
Inches (mm)
0.024
0.024
0.024
0.024
0.024
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.024
0.024
0.024
0.024
0.024
0.032
0.032
(0.6)
(0.6)
(0.6)
(0.6)
(0.6)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.8)
(0.6)
(0.6)
(0.6)
(0.6)
(0.6)
(0.8)
(0.8)
T Max.
H Max.
L Max.
S ±.06 (±1.5)
Inches (mm) Inches (mm) Inches (mm) Inches (mm)
100 Vdc
0.236 (6.0) 0.394 (10.0) 0.551 (14.0) 0.394 (10.0)
0.236 (6.0) 0.414 (10.5) 0.551 (14.0) 0.394 (10.0)
0.236 (6.0) 0.414 (10.5) 0.709 (18.0) 0.591 (15.0)
0.236 (6.0) 0.473 (12.0) 0.709 (18.0) 0.591 (15.0)
0.276 (7.0) 0.551 (14.0) 0.709 (18.0) 0.591 (15.0)
0.354 (9.0) 0.591 (15.0) 0.709 (18.0) 0.591 (15.0)
0.354 (9.0) 0.670 (17.0) 1.024 (26.0) 0.886 (22.5)
0.433 (11.0) 0.788 (20.0) 1.024 (26.0) 0.886 (22.5)
0.453 (11.5) 0.788 (20.0) 1.024 (26.0) 0.886 (22.5)
0.512 (13.0) 0.906 (23.0) 1.221 (31.0) 1.083 (27.5)
0.630 (16.0) 1.024 (26.0) 1.221 (31.0) 1.083 (27.5)
0.709 (18.0) 1.221 (31.0) 1.221 (31.0) 1.083 (27.5)
250 Vdc
0.236 (6.0) 0.394 (10.0) 0.551 (14.0) 0.390 (10.0)
0.276 (7.0) 0.394 (10.0) 0.551 (14.0) 0.390 (10.0)
0.276 (7.0) 0.433 (11.0) 0.709 (18.0) 0.590 (15.0)
0.276 (7.0) 0.473 (12.0) 0.709 (18.0) 0.590 (15.0)
0.276 (7.0) 0.512 (13.0) 0.709 (18.0) 0.590 (15.0)
0.315 (8.0) 0.591 (15.0) 1.024 (26.0) 0.886 (22.5)
0.354 (9.0) 0.610 (15.5) 1.024 (26.0) 0.886 (22.5)
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02740
•
Phone: (508)996-8561
•
Fax: (508)996-3830 www.cde.com
Type DMM
Polyester Film Capacitors
