C901U102MVVDCAWL20

Description
ceramic disc capacitors 400volts 1000pf 20% y5v
CategoryPassive components
File Size2MB,15 Pages
ManufacturerKEMET
Websitehttp://www.kemet.com
Environmental Compliance
Download Datasheet Parametric View All

C901U102MVVDCAWL20 Overview

ceramic disc capacitors 400volts 1000pf 20% y5v

C901U102MVVDCAWL20 Parametric

Parameter NameAttribute value
ManufactureKeme
Product CategoryCeramic Disc Capacitors
Capacitance1000 pF
Voltage Rating400 V
Tolerance20 %
Temperature Coefficient / CodeY5V
Lead Spacing10 mm
Case Diamete7 mm
PackagingBulk
ProducAC Line Rated Class X1/Y2 Capacitors
Factory Pack Quantity500
Termination StyleRadial
Radial Leaded Ceramic Disc Capacitors
Safety Standard Recognized, C900, Encapsulated,
AH Type, X1 400 VAC/Y1 400 VAC (Industrial Grade)
Overview
KEMET’s 900 series encapsulated radial leaded ceramic
disc capacitors are specifically designed for interference-
suppression AC line filtering applications. Having
internationally recognized safety certifications, these
capacitors are well-suited for applications that require
keeping potentially disruptive or damaging line transients
and EMI out of susceptible equipment. They are also an
ideal solution when needing to suppress line disturbances
at the source.
Safety Certified Capacitors are classified as either X and/
or Y capacitors. Class X capacitors are primarily used in
line-to line (across-the-line) applications. In this application
there is no danger of electric shock to humans should the
capacitor fail, but could result in a risk of fire. The class Y
capacitor is primarily used in line-to-ground (line by-pass)
applications. In this application, failure of the capacitor
could lead to danger of electric shock.
With a working voltage of 400 VAC in line-to-line (Class X)and
400 VAC in line-to-ground (Class Y) applications, these safety
capacitors meet the impulse test criteria outlined in IEC
Standard 60384. Meeting subclass X1 and Y1 requirements,
these devices are certified to withstand impulses up to 4
KV (X1) and 8 KV (Y1) respectively. These encapsulated
devices also meet the flame test requirements outlined in UL
Standard 94V–0.

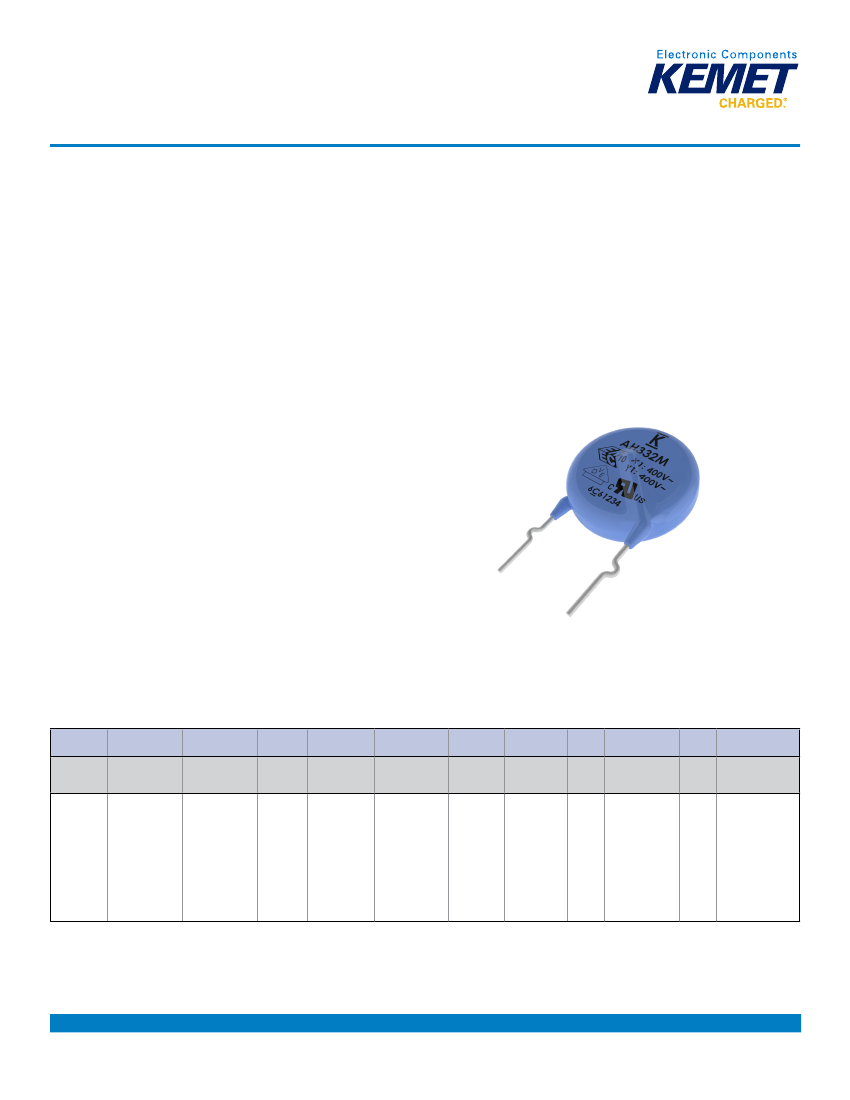

Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Ordering Information
C9
Ceramic
Series
C9 =
Ceramic
900
Series
3
Body
Diameter
0 = 7.0 mm
1 = 8.0 mm
2 = 9.0 mm
3 = 10.0 mm
4 = 11.0 mm
5 = 12.0 mm
6 = 13.0 mm
7 = 14.0 mm
1
Lead
Spacing
1
1=
10.0 mm
U
Spec.
U=
Safety
101
J
V
S
D
A
A
7317
Packaging
(C-Spec)
See
"Packaging
C-Spec
Ordering
Options
Table"
below
Capacitance Capacitance
Code (pF)
Tolerance
Two
significant
digits and
number of
zeroes
J = ±5%
K = ±10%
M = ±20%
Failure
Rated
Dielectric/

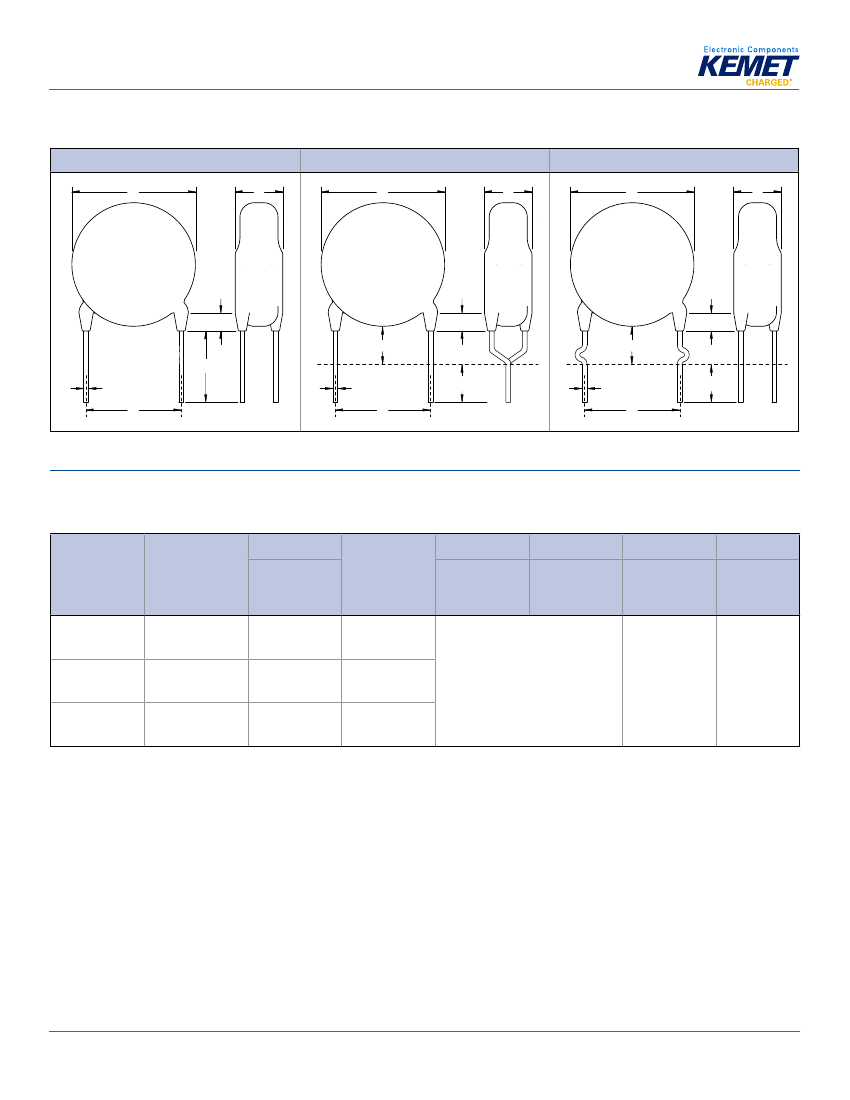

Design Lead Config.
2
Voltage Temp. Char.
Rate
V = X1
400 VAC
/Y1 400
VAC
S = SL
Y = Y5P
W = Y5U
V = Y5V
D=
Disc
A = Straight
B = Vertical
Kink
C = Outside
Kink
A=
N/A
"Vertical Kink" and "Outside Kink" lead configurations cannot be combined with the bulk/20 mm lead length option (WL20). 20 mm lead length is
only available on capacitors ordered with straight leads (lead configuration ordering code "A"). For nonstandard lead length inquiries, please contact
KEMET.
2
Bulk packaging lead length availability is dependent upon "Lead Configuration." See "Dimensions" section of this document to verify availability of a
specific lead length option. For nonstandard lead length inquiries, please contact KEMET.
1
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1068_X1_400 VAC_Y1_400 VAC • 6/9/2017
1
