SCD205K102D3-28: Descriptionfilm capacitors 2.0uf; CategoryPassive components; File Size98KB，4 Pages; ManufacturerAll Sensors

Download Datasheet Parametric View All

SCD205K102D3-28 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SCD205K102D3-28	-	-	View	Buy Now

SCD205K102D3-28 Overview

film capacitors 2.0uf

SCD205K102D3-28 Parametric

Parameter Name	Attribute value
Manufacture	Cornell Dubilie
Product Category	Film Capacitors
RoHS	N
Produc	Snubber Film Capacitors
Dielectric	Polypropylene (PP)
Capacitance	2 uF
Voltage Rating AC	500 V
Voltage Rating DC	1 kV
Tolerance	10 %
Termination Style	Lug
Lead Spacing	28 mm
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 85 C
Case Heigh	38.1 mm
Case Length	52.1 mm
Case Width	38.1 mm
Current Rating	800 A
ESR	5 mOhms
Type	High dV/dt Direct Mount IGBT Snubbe

Preview

Download Datasheet

View All

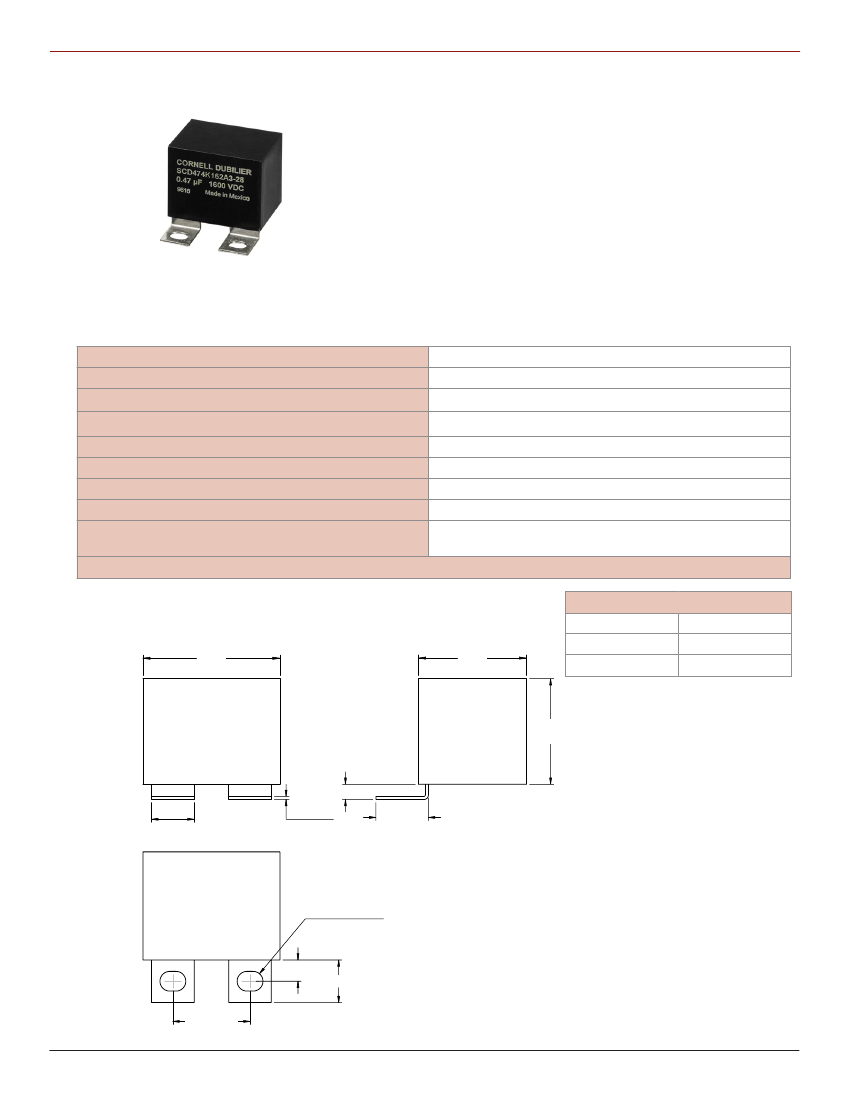

Type SCD IGBT Snubber Capacitor Modules

High dV/dt Direct Mount IGBT Snubber

Style SCD offers protection against voltage transients in low

to medium current IGBT applications where high dV/dt is

encountered. Connect these capacitors from C1 to E2 on a dual

IGBT module or from P to N on a six-pack module to eliminate

severe voltage transients. Parts ending with Z25 fit IGBTs with

23mm, 25mm and 28mm lead spacing. If you have a preferred

lead spacing, please specify.

Highlights

- High peak & RMS current capability

- Mount directly to the IGBT module

- Low inductance

- Low loss polypropylene dielectric

- Self healing

- Other terminal spacing and capacitance values available.

- We can build to your specs!

- 85 °C ambient temperature

0.22 to 4.7 µF

±10% (K) standard, ±5% (J) optional

600 to 2000 Vdc

-55 ºC to 85 ºC

Check tables for values

160% rated DC voltage for 60 s

3 kVac @ 50/60 Hz for 60 s

2000 h @ 85 ºC, 125% rated DC voltage

60,000 h @ rated Vdc, 70 ºC

30,000 h @ rated Vac, 70 ºC

RoHS Compliant

Specifications

Capacitance Range

Capacitance Tolerance

Rated Voltage

Operating Temperature Range

Maximum rms Current

Test Voltage between Terminals @ 25ºC

Test Voltage between Terminals & Case @ 25ºC

Life Test

Life Expectancy

Dimensions

Max

±1.0

Max

±1.0

Construction Details

Case Material

Resin Material

Terminal Material

Plastic UL94V-0

Dry Resin UL94V-0

Tin Plated Copper

±1.0

Max

5.0 mm

14.0 mm

±0.125

1.0 mm

±0.125

17.0 mm

17.3 mm

±0.125

6.5 x 8.5 mm

±0.125

Tolerances: ±0.5mm unless otherwise specified

7.0 mm

15.0

14.0

25.4 mm
