C961U222MWWDCAWL45 datasheet, PDF

Datasheet> All Categories > Passive components> C961U222MWWDCAWL45

C961U222MWWDCAWL45: Descriptionceramic disc capacitors 500volts 2200pf 20% y5u; CategoryPassive components; File Size2MB，15 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

C961U222MWWDCAWL45 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C961U222MWWDCAWL45	-	-	View	Buy Now

C961U222MWWDCAWL45 Overview

ceramic disc capacitors 500volts 2200pf 20% y5u

C961U222MWWDCAWL45 Parametric

Parameter Name	Attribute value
Manufacture	Keme
Product Category	Ceramic Disc Capacitors
Capacitance	2200 pF
Voltage Rating	500 V
Tolerance	20 %
Temperature Coefficient / Code	Y5U
Lead Spacing	10 mm
Case Diamete	13 mm
Packaging	Bulk
Produc	AC Line Rated Class X1/Y2 Capacitors
Factory Pack Quantity	500
Termination Style	Radial

Preview

Download Datasheet

View All

Radial Leaded Ceramic Disc Capacitors

Safety Standard Recognized, C900, Encapsulated,

AS Type, X1 760 VAC/Y1 500 VAC (Industrial Grade)

Overview

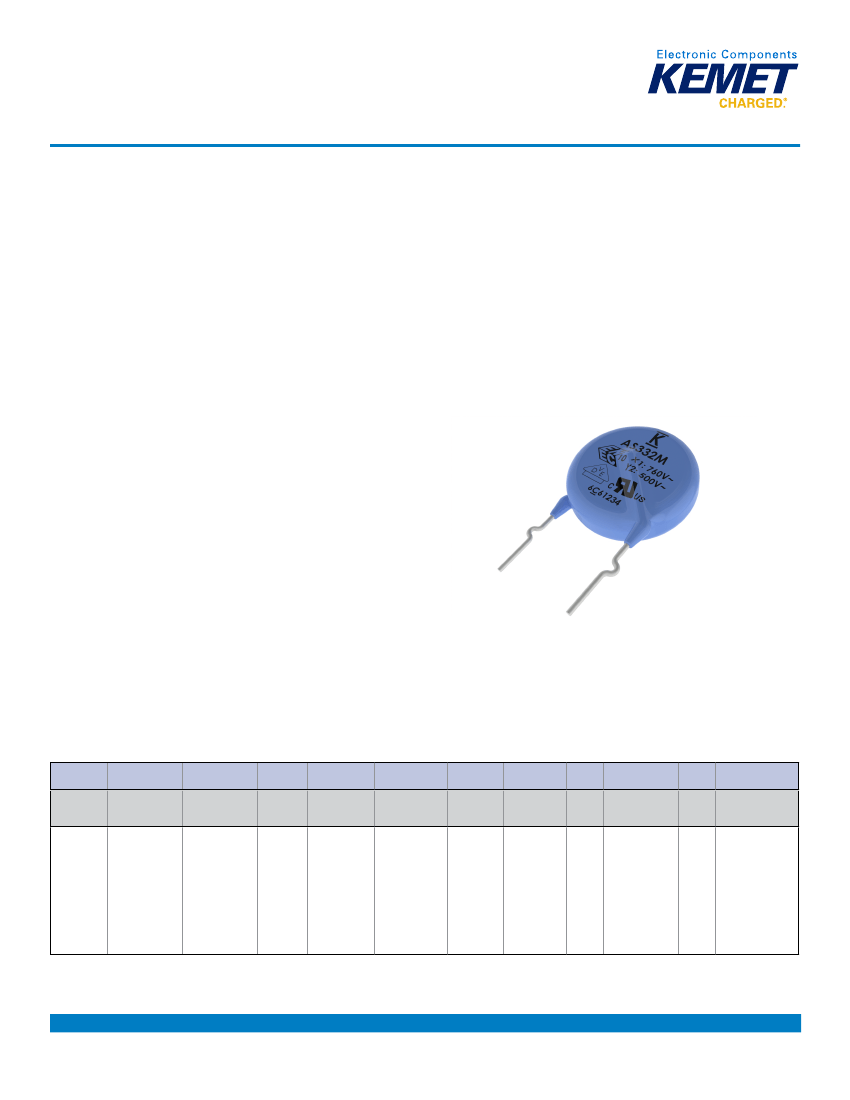

KEMET’s 900, encapsulated radial leaded ceramic disc

capacitors are specifically designed for interference-

suppression AC line filtering applications. Having

internationally recognized safety certifications, these

capacitors are well-suited for applications that require

keeping potentially disruptive or damaging line transients

and EMI out of susceptible equipment. They are also an

ideal solution when needing to suppress line disturbances

at the source.

Safety Certified Capacitors are classified as either X and/or

Y capacitors. Class X capacitors are primarily used in line-

to-line (across-the-line) applications. In this application,

there is no danger of electric shock to humans should the

capacitor fail, but could result in a risk of fire. The class Y

capacitor is primarily used in line-to-ground (line by-pass)

applications. In this application, failure of the capacitor

could lead to danger of electric shock.

With a working voltage of 760 VAC in line-to-line (Class

X) and 500 VAC in line-to-ground (Class Y) applications,

these safety capacitors meet the impulse test criteria

outlined in IEC Standard 60384. Meeting subclass X1 and

Y1 requirements, these devices are certified to withstand

impulses up to 4 KV (X1) and 8 KV (Y1) respectively. These

encapsulated devices also meet the flame test requirements

outlined in UL Standard 94V–0.

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Ordering Information

Ceramic

Series

C9 =

Ceramic

900

Body

Diameter

1 = 8.0 mm

2 = 9.0 mm

3 = 10.0 mm

5 = 12.0 mm

6 = 13.0 mm

7 = 14.0 mm

8 = 15.0 mm

Lead

Spacing

10.0 mm

Spec.

Safety

222

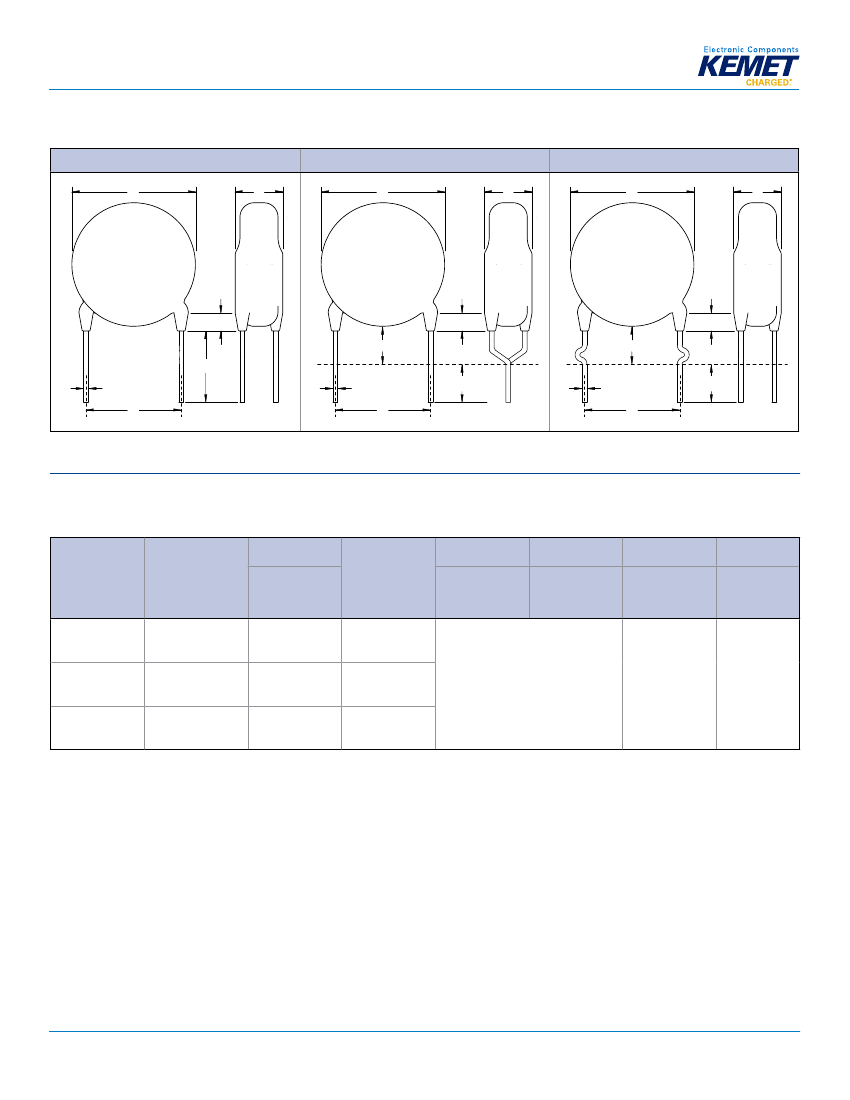

Lead

Config.

A = Straight

B = Vertical

Kink

C = Outside

Kink

Failure

Rate

N/A

7317

Packaging

(C-Spec)

See

"Packaging

C-Spec

Ordering

Options

Table"

below

Capacitance Capacitance

Code (pF)

Tolerance

Two

significant

digits and

number of

zeroes

K = ±10%

M = ±20%

Rated Dielectric/

Design

Voltage Temp. Char.

X1 760

VAC/

Y1 500

VAC

Y = Y5P

W = Y5U

Disc

"Vertical Kink" and "Outside Kink" lead configurations cannot be combined with the bulk/20 mm lead length option (WL20). 20 mm lead length is

only available on capacitors ordered with straight leads (lead configuration ordering code "A"). For nonstandard lead length inquiries, please contact

KEMET.

One world. One KEMET

C1066_X1_760 VAC_Y1_500 VAC • 6/6/2017
