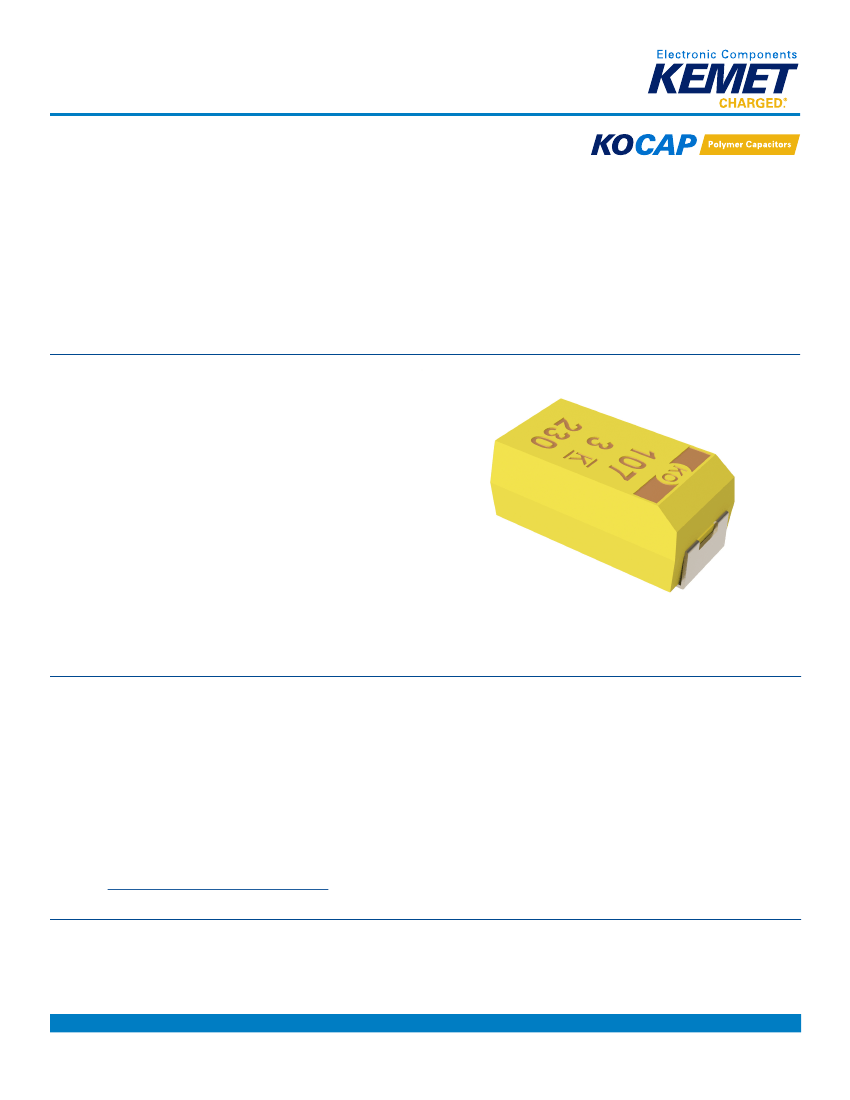

KEMET Organic Capacitor (KO-CAP
®
) – High Reliability
T543 COTS Polymer Electrolytic, 2.5 – 63 VDC
Overview
The KEMET Organic Capacitor (KO-CAP) is a solid electrolytic
capacitor with a conductive polymer cathode capable of
delivering very low ESR and improved capacitance retention at
high frequencies. KO-CAP combines the low ESR of multilayer
ceramic, the high capacitance of aluminum electrolytic and the
volumetric efficiency of tantalum into a single surface mount
package. Unlike liquid electrolyte-based capacitors, KO-CAP has
a very long operational life and high ripple current capabilities.
The T543 COTS Polymer Electrolytic capacitor is an upscreened
version of the industrial T520 KO-CAP. The T543's upscreeed
option includes surge current testing of 10 cycles at +25°C and 10
cycles at −55°C/+85°C. In addition to 100% Tin (Sn) terminations
a Tin-lead (SnPb) option is also available. The recommended
application derating for these capacitors is 10 – 20%, rendering
them suitable for application voltages from 2.25 to 50 VDC.
Benefits
•
•
•
•
•
•
•
•
•
Extremely low ESR
High frequency capacitance retention
100% accelerated steady state aging
100% surge current tested
Taped and reeled per EIA 481
Volumetrically efficienct
Surge options at 25ºC and -55ºC/+85ºC
EIA standard case sizes
Halogen-Free Epoxy/RoHS Compliant
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Applications
Typical applications include DC/DC converters, switch mode and point of load power supply, radar pulse capacitor and
telecommunications (mobile phone and base station). Other general applications include decoupling and filtering in applications
requiring low ESR or a benign failure mode.
When extreme temperatures and humidity are taken into account, polymer tantalum capacitors offer a number of advantages over
other types of capacitors. KEMET continues to investigate the behavior of polymer tantalum capacitors in extreme conditions. If you
have questions about using these capacitors in a specific environment or application, we suggest you contact your local KEMET
representative or Field Application Engineer. You may also refer to “Considerations for Polymer Capacitors in Extreme Environments”
located at
www.kemet.com/ExtremePolymerPaper.
Environmental Compliance
RoHS Compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn solder.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2061_T543 • 12/11/2015
1
KEMET Organic Capacitor (KO-CAP
®
) – High Reliability
T543 COTS Polymer Electrolytic, 2.5 – 63 VDC
SPICE
For a detailed analysis of specific part numbers, please visit www.kemet.com for a free download of KEMET's SPICE software.
The KEMET SPICE program is freeware intended to aid design engineers in analyzing the performance of these capacitors over
frequency, temperature, ripple, and DC bias conditions.
Ordering Information
T
Capacitor
Class
T=
Tantalum
543
Series
Polymer
Tantalum
COTS
D
Case
Size
156
K
035
A
H
Termination
Finish
H = Standard
Solder Coated
(SnPb 5% Pb
minimum)
T = 100% Tin
(Sn)
E
Surge
100
ESR
Packaging
(C-Spec)
Capacitance Code Capacitance Rated Voltage Failure Rate/
(pF)
Tolerance
(VDC)
Design
2R5 = 2.5
003 = 3
004 = 4
006 = 6.3
010 = 10
12R = 12.5
016 = 16
020 = 20
025 = 25
035 = 35
050 = 50
063 =63
A = N/A
A, B, C,
First two digits
K = ±10%
D, H, L,
represent significant
M = ±20%
M, T, U,
figures. Third digit
V, W,
specifies number of
X, Y
zeros.
E = None
ESR in Blank = 7" Reel
S = 10 cycles
mΩ
7280 = 13" Reel
25°C
W = 10
cycles -55°C
and 85°C
Performance Characteristics
Item
Operating Temperature
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
DF (120 Hz)
ESR (100 kHz)
Leakage Current
-55°C to 105°C
4.7 – 1,500 μF at 120 Hz/25°C
K Tolerance (10%), M Tolerance (20%)
2.5 – 63 V
Refer to Part Number Electrical Specification Table
Refer to Part Number Electrical Specification Table
≤ 0.1 CV (µA) at rated voltage after 5 minutes
Performance Characteristics
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2061_T543 • 12/11/2015
2
KEMET Organic Capacitor (KO-CAP
®
) – High Reliability
T543 COTS Polymer Electrolytic, 2.5 – 63 VDC
Qualification
Test
Endurance
Condition
Δ C/C
105°C at rated voltage, 2,000 hours
DF
DCL
ESR
Δ C/C
DF
DCL
ESR
Δ C/C
Humidity
60°C, 90% RH, 500 hours
DF
DCL
ESR
Extreme temperature exposure at a
succession of continuous steps at +25ºC,
-55ºC, +25ºC, +85ºC, +105ºC, +25º C
+25°C
Δ C/C
DF
DCL
IL*
IL
IL
Δ C/C
DF
DCL
ESR
Δ C/C
DF
DCL
Characteristics
Within -20/+10 of initial value
Within initial limits
Within 1.25 x initial limit
Within 2.0 x initial limit
Within -20/+10 of initial value
Within initial limits
Within 1.25 x initial limit
Within 2.0 x initial limit
Within -5%/+35% of initial value
Within initial limits
Within 5.0 x initial limit
Within 2.0 x initial limit
-55°C
+/-20%
IL
N/A
+85°C
+/-20%
1.2 x IL
10 x IL
+105°C
+/-30%
1.5 x IL
10 x IL
Storage Life
105°C at 0 volts, 2,000 hours
Temperature Stability
Within -20/+10 of initial value
Within initial limits
Within initial limits
Within initial limits
Within ±10 of initial value
Within initial limits
Within initial limits
Surge Voltage
105°C, 1.32 x rated voltage, 1,000 cycles
Mechanical Shock/Vibration
MIL–STD–202, Method 213, Condition I, 100 G peak
MIL–STD–202, Method 204, Condition D, 10 Hz to 2,000
Hz, 20 G peak
*IL = Initial limit
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2061_T543 • 12/11/2015
3
KEMET Organic Capacitor (KO-CAP
®
) – High Reliability
T543 COTS Polymer Electrolytic, 2.5 – 63 VDC
Electrical Characteristics

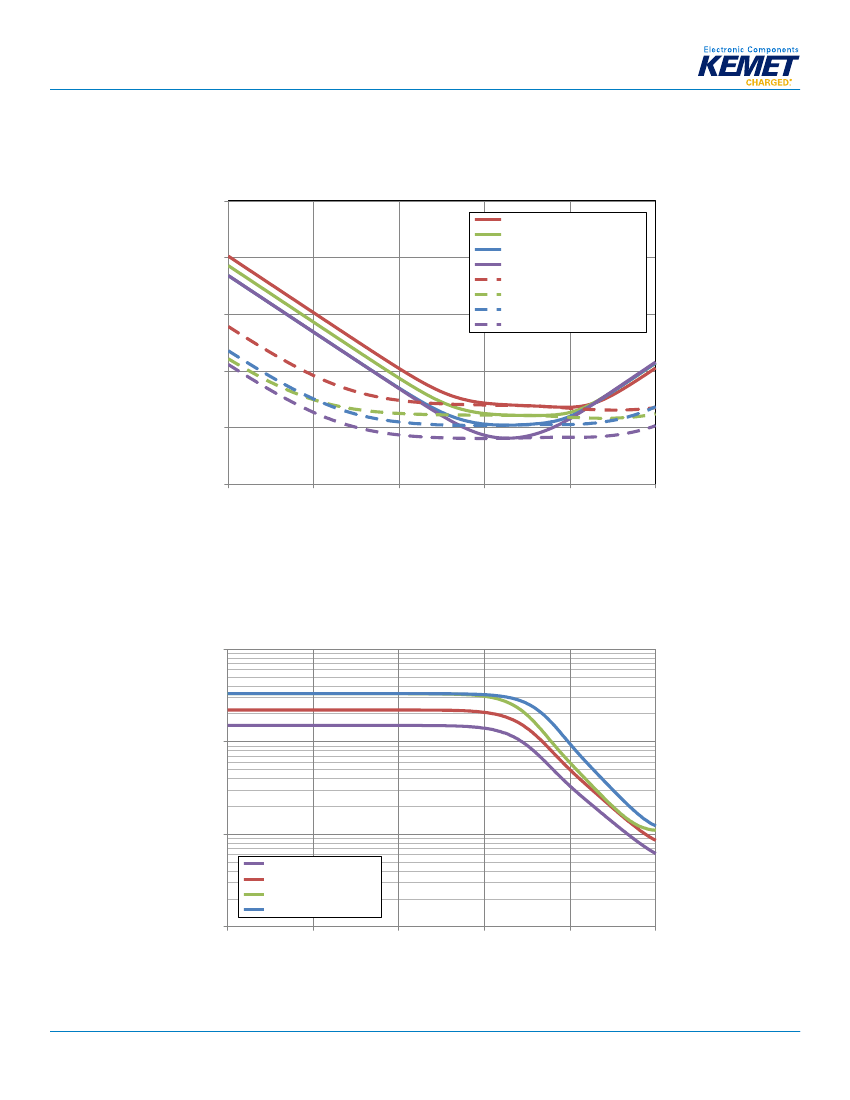

ESR vs. Frequency
100
T5430B157M006ATE035_Imp
T543C227M006ATE025_Imp
T543V337M006ATE015_Imp
T543D337M006ATE009_Imp
T543B157M006ATE035_ESR
T543C227M006ATE025_ESR
T543V337M006ATE015_ESR
T543D337M006ATE009_ESR
Impedance, ESR (Ohms)
10
1
0.1
0.01
0.001
100
1,000
10,000
Frequency (Hz)
100,000
1,000,000
10,000,000
Capacitance vs. Frequency
1,000
Capacitance (µF)
100
10
T543B157M006ATE035
T543C227M006ATE025
T543V337M006ATE015
T543D337M006ATE009
100
1,000
10,000
1
Frequency (Hz)
100,000
1,000,000
10,000,000
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2061_T543 • 12/11/2015
4
KEMET Organic Capacitor (KO-CAP
®
) – High Reliability
T543 COTS Polymer Electrolytic, 2.5 – 63 VDC
Dimensions – Millimeters
CATHODE (-) END VIEW
W
H
X
T
S
G
S
Termination cutout
at KEMET's option,
either end
SIDE VIEW
B
B
ANODE (+) END VIEW
BOTTOM VIEW
A
Glue pad
shape/design at
KEMET's option
E
P
R
F
L
Case Size
KEMET
A
B
C
D
H
L
M
T
U
V
W
X
Y
EIA
3216–18
Component Dimensions
L
W
H
F ±0.1 S ±0.3 B ±0.15
±(0.004) ±(0.012) (Ref) ±0.006
0.4 (0.016)
0.4 (0.016)
0.5 (0.020)
0.5 (0.020)
N/A
N/A
N/A
N/A
N/A
N/A
N/A
0.5 (0.020)
0.5 (0.020)
Weight
(mg)
53.17
98.30
193.46
352.36
366.62
No data
97.99
59.38
No data
262.90
222.94
588.16
481.55
X (Ref)
P (Ref) R (Ref) T (Ref) A (Min) G (Ref) E (Ref)
0.4
(0.016)
0.13
(0.005)
0.8 (.31) 1.1 (0.043) 1.3 (0.051)
3.2 ±0.2
1.6 ±0.2
1.6 ±0.2
1.2 (0.047) 0.8 (0.031)
(0.126 ±0.008) (0.063 ±0.008) (0.063 ±0.008)
0.10 ±0.10 0.4 (.016)
(0.004 ±0.004)
3.5 ±0.2
2.8 ±0.2
1.9 ±0.1
3528–21 (0.138 ±0.008) (0.110 ±0.008) (0.075 ±0.004) 2.2 (0.087) 0.8 (0.031)
6032–28
6.0 ±0.3 (0.236 3.2 ±0.3
2.5 ±0.3
±0.012)
(0.126 ±0.012) (0.098 ±0.012) 2.2 (0.087) 1.3 (0.051)
0.10 ±0.10
1.0
(0.004 ±0.004) 0.5 (.020) (0.039)
0.10 ±0.10
1.0
(0.004 ±0.004) 0.9 (.035) (0.039)
0.10 ±0.10
0.9
(0.004 ±0.004) (0.035)
0.10 ±0.10
(0.004 ±0.004)
0.05 (0.002)
0.05 (0.002)
0.05 (0.002)
0.05 (0.002)
0.05 (0.002)
0.05 (0.002)
N/A
N/A
N/A
N/A
N/A
N/A
N/A
1.0
(0.039)
N/A
N/A
N/A
N/A
N/A
N/A
N/A
1.0
(0.039)
1.0
(0.039)
0.13
2.2
(0.005) 1.1 (0.043) 1.8 (0.071) (0.087)
0.13
(0.005)
0.13
(0.005)
0.13
(0.005)
0.13
(0.005)
0.13
(0.005)
0.13
(0.005)
0.13
(0.005)
2.4
2.5(.098) 2.8 (0.110) (0.094)
3.8 (.150) 3.5 (0.138) 3.5 (0.138)
3.3 (.130) 3.5 (0.138) 3.5 (0.138)
2.4
2.5(.098) 2.8 (0.110) (0.094)
1.1 (.043) 1.8 (0.071)
1.1 (.043) 1.8 (0.071)
2.5(.098) 2.8 (0.110)
2.2
(0.087)
2.2
(0.087)
2.4
(0.094)
7.3 ±0.3
4.3 ±0.3
2.8 ±0.3
7343–31 (0.287 ±0.012) (0.169 ±0.012) (0.110 ±0.012) 2.4 (0.094) 1.3 (0.051)
7.3 ±0.3
6.0±0.3
1.9 ±0.1
7360–20 (0.287 ±0.012) (0.236 ±0.012) (0.075 ±0.004) 4.1 (0.161) 1.3 (0.051)
6032–19
3528–15
3528–12
6.0 ±0.3 (0.236 3.2 ±0.2
1.8 ±0.1
±0.012)
(0.110 ±0.008) (0.071 ±0.004) 2.2 (0.087) 1.3 (0.051)
3.5 ±0.2
2.8 ±0.2
1.4 ±0.1
2.2 (0.087) 0.8 (0.031)
(0.138 ±0.008) (0.110 ±0.008) (0.055 ±0.004)
3.5 ±0.2
2.8 ±0.2
1.1 ±0.1
2.2 (0.087) 0.8 (0.031)
(0.138 ±0.008) (0.110 ±0.008) (0.043 ±0.004)
1.4 ±0.1
6032–15 6.0 ±0.3 (0.236 3.2 ±0.2
2.2 (0.087) 1.3 (0.051)
±0.012)
(0.110 ±0.008) (0.055 ±0.004)
7343–20
7343–15
7343–43
7343–40
7.3 ±0.3
4.3 ±0.3
1.9 ±0.1
2.4 (0.094) 1.3 (0.051)
(0.287 ±0.012) (0.169 ±0.012) (0.075 ±0.004)
7.3 ±0.3
4.3 ±0.3
1.4 ±0.1
2.4 (0.094) 1.3 (0.051)
(0.287 ±0.012) (0.169 ±0.012) (0.055 ±0.004)
7.3 ±0.3
4.3 ±0.3
4.0 ±0.3
2.4 (0.094) 1.3 (0.051)
(0.287 ±0.012) (0.169 ±0.012) (0.157 ±0.012)
7.3 ±0.3
4.3 ±0.3
3.8 ±0.2
2.4 (0.094) 1.3 (0.051)
(0.287 ±0.012) (0.169 ±0.012) (0.150 ±0.008)
0.13 3.8 (0.150) 3.5 (0.138) 3.5 (0.138)
(0.005)
0.13 3.8 (0.150) 3.5 (0.138) 3.5 (0.138)
(0.005)
0.13 3.8 (0.150) 3.5 (0.138) 3.5 (0.138)
(0.005)
0.13 3.8 (0.150) 3.5 (0.138) 3.5 (0.138)
(0.005)
0.10 ±0.10
1.7
(0.004 ±0.004) (0.067)
0.10 ±0.10
1.7
(0.004 ±0.004) (0.067)
Notes: (Ref) – Dimensions provided for reference only. For low profile cases, no dimensions are provided for B, P or R because these cases do not have a bevel or a notch.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2061_T543 • 12/11/2015
5
