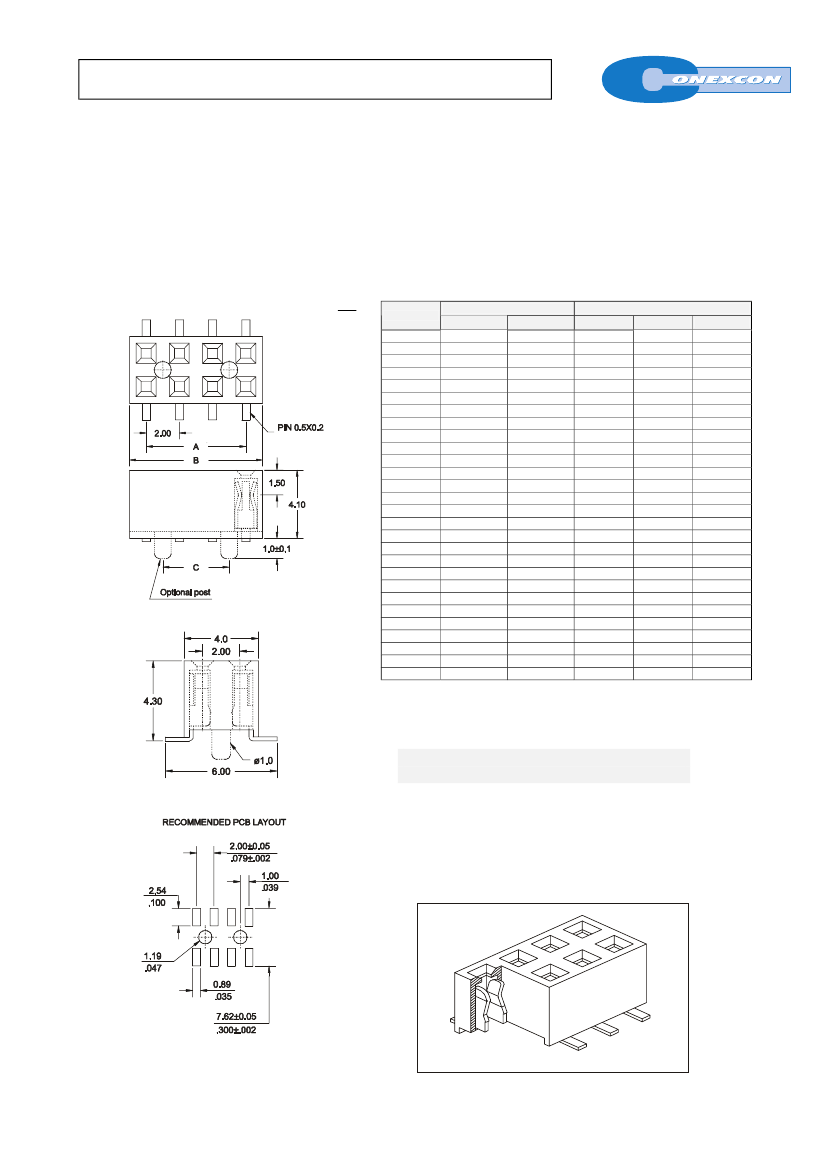

2.00mm DUAL ROW PCB SOCKET SMT

SERIES.

2105 SERIES

2.00mm(0.079”). For PCB Solder

Features

Available in 6 through 60 circuits

Material: Nylon 6-T UL 94V-0

Mates with 2.00mm pitch and 0.50mm pin headers

Low profile 4.30mm

Different plating options are available

High quality dual beam phosphor bronze contacts

Designed for board to board small spacing interconnection

Optional: PCB fixing post

For other options consult the Sales Office

Dimensional Information

Unit:

mm.

Inch.

Circuit Size

Ordering and Dimensional Information

Part Number

With post

2105-T061

2105-T081

2105-T101

2105-T121

2105-T141

2105-T161

2105-T181

2105-T201

2105-T221

2105-T241

2105-T261

2105-T281

2105-T301

2105-T321

2105-T341

2105-T361

2105-T381

2105-T401

2105-T421

2105-T441

2105-T461

2105-T481

2105-T501

2105-T521

2105-T541

2105-T561

2105-T581

2105-T601

Without post

2105-T062

2105-T082

2105-T102

2105-T122

2105-T142

2105-T162

2105-T182

2105-T202

2105-T222

2105-T242

2105-T262

2105-T282

2105-T302

2105-T322

2105-T342

2105-T362

2105-T382

2105-T402

2105-T422

2105-T442

2105-T462

2105-T482

2105-T502

2105-T522

2105-T542

2105-T562

2105-T582

2105-T602

4,00(0,157)

6,00(0,236)

8,00(0,315)

10,00(0,394)

12,00(0,472)

14,00(0,551)

16,00(0,630)

18,00(0,709)

20,00(0,787)

22,00(0,866)

24,00(0,945)

26,00(1,024)

28,00(1,102)

30,00(1,181)

32,00(1,260)

34,00(1,339)

36,00(1,417)

38,00(1,496)

40,00(1,575)

42,00(1,654)

44,00(1,732)

46,00(1,811)

48,00(1,890)

50,00(1,969)

52,00(2,047)

54,00(2,126)

56,00(2,205)

58,00(2,283)

Dimensions

6,00(0,236)

8,00(0,315)

10,00(0,394)

12,00(0,472)

14,00(0,551)

16,00(0,630)

18,00(0,709)

20,00(0,787)

22,00(0,866)

24,00(0,945)

26,00(1,024)

28,00(1,102)

30,00(1,181)

32,00(1,260)

34,00(1,339)

36,00(1,417)

38,00(1,496)

40,00(1,575)

42,00(1,654)

44,00(1,732)

46,00(1,811)

48,00(1,890)

50,00(1,969)

52,00(2,047)

54,00(2,126)

56,00(2,205)

58,00(2,283)

60,00(2,362)

2,00(0.079)

4,00(0,157)

6,00(0,236)

8,00(0,315)

10,00(0,394)

12,00(0,472)

14,00(0,551)

16,00(0,630)

18,00(0,709)

20,00(0,787)

22,00(0,866)

24,00(0,945)

26,00(1,024)

28,00(1,102)

30,00(1,181)

32,00(1,260)

34,00(1,339)

36,00(1,417)

38,00(1,496)

40,00(1,575)

42,00(1,654)

44,00(1,732)

46,00(1,811)

48,00(1,890)

50,00(1,969)

52,00(2,047)

54,00(2,126)

56,00(2,205)

T = Contact Plating

T =

Tinplated

T =

Gold flash over 50µ" nickel

Recommended Finish

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

Notice:

In case of connectors with cap (Automatic

mounting), add an

at the end of code.

CONEXCON

Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation
