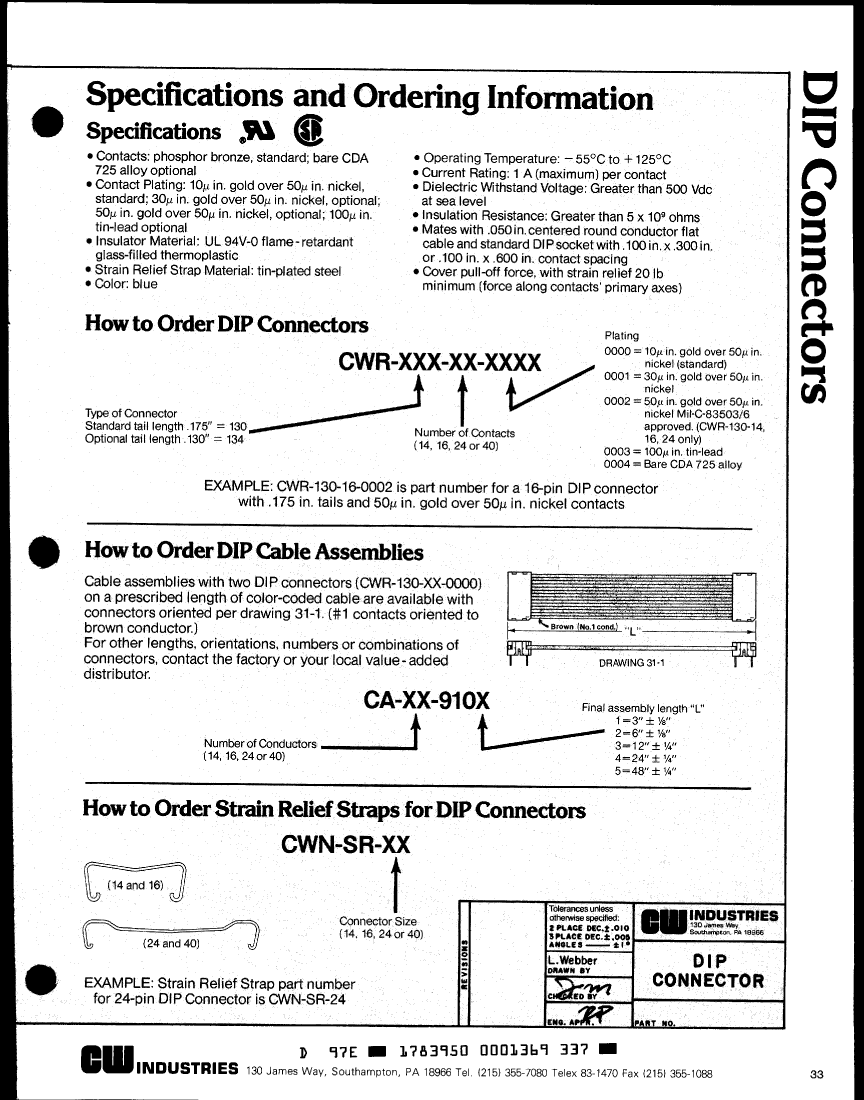

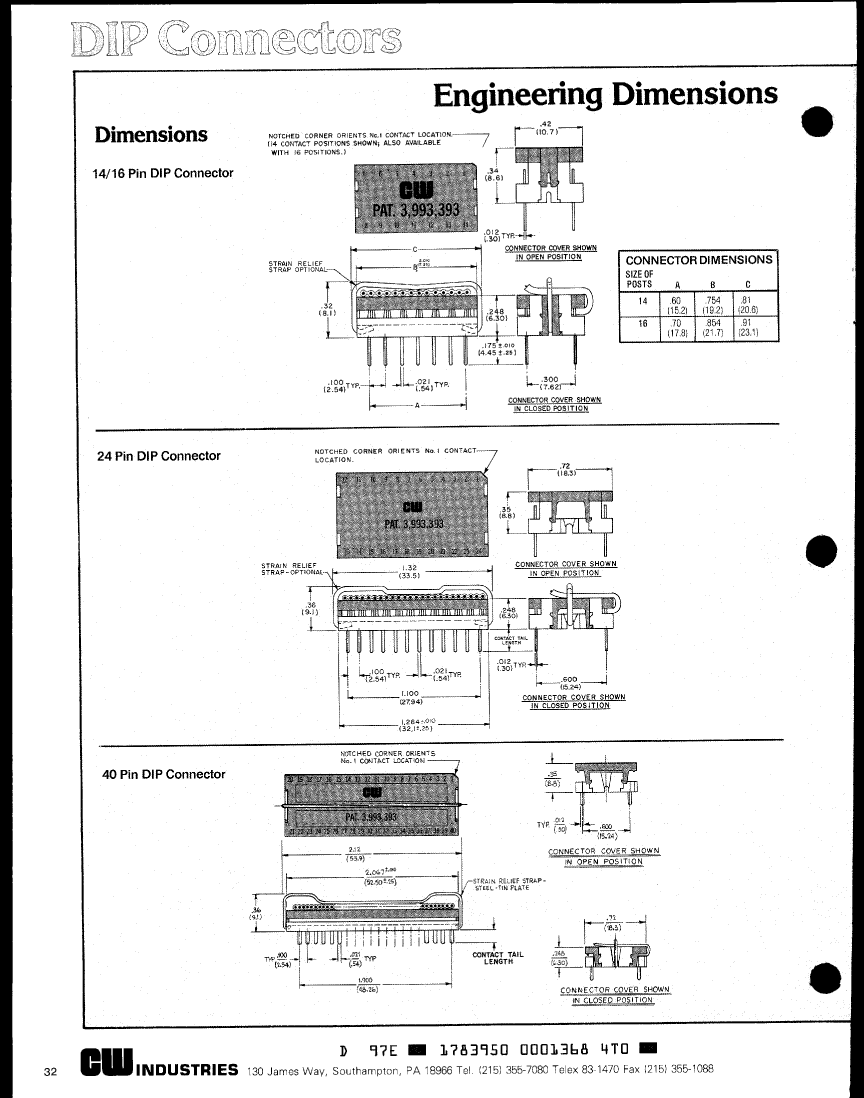

CWR-134-16-0002: DescriptionCard Edge Connector, 16 Contact(s), 2 Row(s), Right Angle, 0.1 inch Pitch, Solder Terminal, Fcc Retnn Dvc, Blue Insulator,; CategoryThe connector The connector; File Size304KB，2 Pages; ManufacturerCW Industries; Websitehttp://www.cwind.com; Environmental Compliance

Download Datasheet Parametric Compare View All

CWR-134-16-0002 Overview

Card Edge Connector, 16 Contact(s), 2 Row(s), Right Angle, 0.1 inch Pitch, Solder Terminal, Fcc Retnn Dvc, Blue Insulator,

CWR-134-16-0002 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	OPTIONAL STRAIN RELIEF
body width	0.42 inch
subject depth	0.248 inch
body length	0.854 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	IDC
Dielectric withstand voltage	500VDC V
Insulation resistance	5000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	YES
Plug contact pitch	0.1 inch
Installation option 1	FCC RETNN DVC
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.62 mm
Plating thickness	50u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	MIL-C-83503
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
Base Number Matches	1

Preview

Download Datasheet

View All

CWR-134-16-0002 Related Products

	CWR-134-16-0002	CWR-130-24-0001	CWR-130-40-0002	CWR-134-16-0004	TW-36-03-LM-S-467-SM-LC	CWR-134-40-0004
Description	Card Edge Connector, 16 Contact(s), 2 Row(s), Right Angle, 0.1 inch Pitch, Solder Terminal, Fcc Retnn Dvc, Blue Insulator,	Card Edge Connector, 24 Contact(s), 2 Row(s), Right Angle, 0.1 inch Pitch, Solder Terminal, Fcc Retnn Dvc, Blue Insulator,	Card Edge Connector, 40 Contact(s), 2 Row(s), Right Angle, 0.1 inch Pitch, Solder Terminal, Fcc Retnn Dvc, Blue Insulator,	Card Edge Connector, 16 Contact(s), 2 Row(s), Right Angle, 0.1 inch Pitch, Solder Terminal, Fcc Retnn Dvc, Blue Insulator,	Board Connector, 36 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator	Card Edge Connector, 40 Contact(s), 2 Row(s), Right Angle, 0.1 inch Pitch, Solder Terminal, Fcc Retnn Dvc, Blue Insulator,
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	compliant
Other features	OPTIONAL STRAIN RELIEF	OPTIONAL STRAIN RELIEF	OPTIONAL STRAIN RELIEF	OPTIONAL STRAIN RELIEF	STAGGERED CONFIGURATION	OPTIONAL STRAIN RELIEF
body width	0.42 inch	0.72 inch	0.72 inch	0.42 inch	0.078 inch	0.72 inch
subject depth	0.248 inch	0.248 inch	0.248 inch	0.248 inch	0.467 inch	0.248 inch
body length	0.854 inch	1.264 inch	2.067 inch	0.854 inch	2.835 inch	2.067 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	BOARD STACKING CONNECTOR	FFC/FPC CONNECTOR
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	COPPER ALLOY	PHOSPHOR BRONZE	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	IDC	IDC	IDC	IDC	SQ PIN-SKT	IDC
Insulator color	BLUE	BLUE	BLUE	BLUE	BLACK	BLUE
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	LIQUID CRYSTAL POLYMER	GLASS FILLED THERMOPLASTIC
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.079 inch	0.1 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	1	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	STAGGERED	RECTANGULAR
Rated current (signal)	1 A	1 A	1 A	1 A	4.9 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL	UL, CSA
reliability	MIL-C-83503	MIL-C-83503	MIL-C-83503	MIL-C-83503	COMMERCIAL	MIL-C-83503
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SURFACE MOUNT	SOLDER
Total number of contacts	16	24	40	16	36	40
Is it Rohs certified?	conform to	conform to	conform to	conform to	-	conform to
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	-	AU ON NI	-
Dielectric withstand voltage	500VDC V	500VDC V	500VDC V	500VDC V	-	500VDC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	-	5000000000 Ω
MIL compliance	YES	YES	YES	YES	-	YES
Installation option 1	FCC RETNN DVC	FCC RETNN DVC	FCC RETNN DVC	FCC RETNN DVC	-	FCC RETNN DVC
PCB contact row spacing	7.62 mm	15.24 mm	15.24 mm	7.62 mm	-	15.24 mm
Plating thickness	50u inch	30u inch	50u inch	-	10u inch	-
Terminal length	0.13 inch	0.175 inch	0.175 inch	0.13 inch	-	0.13 inch
Base Number Matches	1	1	1	1	-	1
