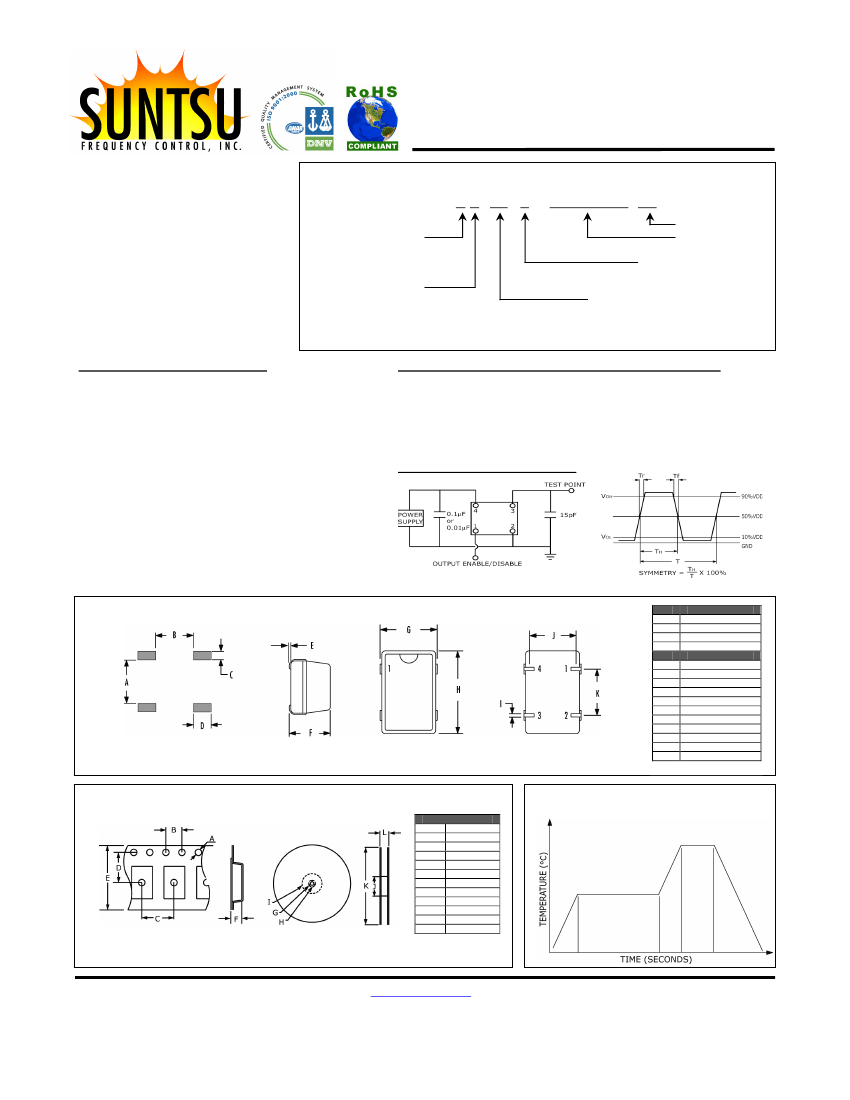

SOP SERIES
9.8x14 PLASTIC SMT CRYSTAL OSCILLATOR
RoHS COMPLIANT
SOP SERIES FEATURES
AVAILABLE TO ±25ppm
J-LEAD PACKAGE
HCMOS/TTL COMPATIBLE
TRI-STATE FUNCTION
TAPE AND REEL
RoHS COMPLAINT
3.3±0.165V OR 5±0.25V
PART NUMBERING GUIDE
SOP A 3 48 T - 25.000MHz TR
TAPE AND REEL
FREQUENCY STABILITY
A: ±100ppm
B: ±50ppm
C: ±25ppm
FREQUENCY
DUTY CYCLE
BLANK: 40%/60%
T: 45%/55%
OPERATING TEMPERATURE RANGE
BLANK: 0°C to + 70°C
27: -20°C to + 70°C
48: -40°C to + 85°C
SUPPLY VOLTAGE
3: 3.3±0.165 V
5: 5.0±0.25 V
*FOR CUSTOM PARAMETERS CONTACT YOUR SUNTSU REPRESENTATIVE.
ELECTRICAL SPECIFICATIONS
FREQUENCY RANGE:
5.0V:
3.3V:
STORAGE TEMPERATURE:
DUTY CYCLE:
HCMOS - 50% OF WAVEFORM
TTL – 1.4V
CURRENT CONSUMPTION:
5.0V:
3.3V:
LOAD:
HCMOS (5.0V):
HCMOS (3.3V):
TTL:
START-UP TIME:
RISE/FALL TIME:
1.000MHz-70.000MHz
1.000MHz-200.000MHz
-55°C TO 125°C
40%/60%, 45%/55%
40%/60%, 45%/55%
80mA MAX
60mA MAX
50pF MAX
30pF MAX
10 TTL GATES
10mS MAX
8nS MAX
ENVIRONMENTAL & MECHANICAL SPECIFICATIONS
DROP TEST:
MECHANICAL SHOCK:
VIBRATION:
SOLDERABILITY:
RESISTANCE TO
SOLERING HEAT:
30cm ONTO 2mm STEEL PLATE (3 TIMES)
MIL-STD-883 METHOD 2002, CONDITION B
10-50 Hz/CYCLE 1.5mm, 2 HOURS (XYZ AXIS)
230°C, 3S (±5ppm/±10Ω)
260°C, 10S (±5ppm/±10Ω)
TEST CIRCUIT & WAVEFORM
PRODUCT SCHEMATIC
PIN
1
2
3
4
A
B
C
D
E
F
G
H
I
J
K
NOTE: DIMENSIONS IN MILLIMETERS (mm); DRAWING NOT TO SCALE
FUNCTION
TRI-STATE
CASE GROUND
OUTPUT
SUPPLY VOLTAGE
DIMENSIONS
3.81
5.81
1.20
3.00
0.25 MIN
4.70 MAX
9.80 MAX
14.00 MAX
0.51±0.2
7.62±0.2
5.08±0.2
TAPE AND REEL DIMENSIONS
A
B
C
D
E
F
G
H
I
J
K
L
DIMENSIONS
Φ1.50
4.0
12.0
11.5
24.0
5.4
2.5
Φ13.5
21.6
80.0
330
25.5
REFLOW PROFILE
260°C
150°C
NOTE: DIMENSIONS IN MILLIMETERS (mm); DRAWING NOT TO SCALE
120 S
10 S
MAX
15791 ROCKFIELD BLVD., UNIT O
IRVINE, CA 92618
WWW.SUNTSUINC.COM
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
REV. 05/24/06
TELEPHONE • 949.305.0220
FACSIMILE • 949.305.0221
Page 1 of 1
