5962R9578101VXC datasheet, PDF

Datasheet> All Categories > logic> logic> 5962R9578101VXC

5962R9578101VXC: DescriptionOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDFP14, CERAMIC, DFP-14; Categorylogic logic; File Size210KB，8 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962R9578101VXC Overview

OR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDFP14, CERAMIC, DFP-14

5962R9578101VXC Parametric

Parameter Name	Attribute value
package instruction	DFP,
Reach Compliance Code	unknow
series	HC/UH
JESD-30 code	R-CDFP-F14
JESD-609 code	e4
Load capacitance (CL)	50 pF
Logic integrated circuit type	OR GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	20 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
Base Number Matches	1

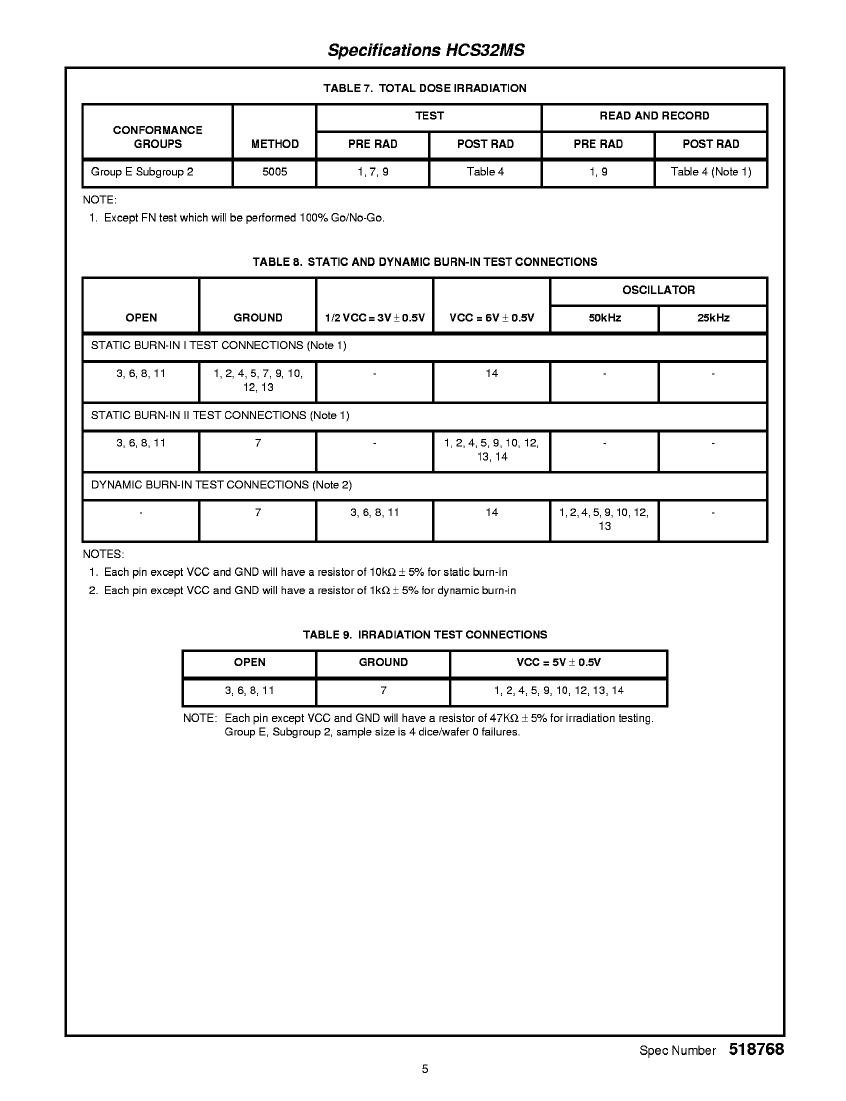

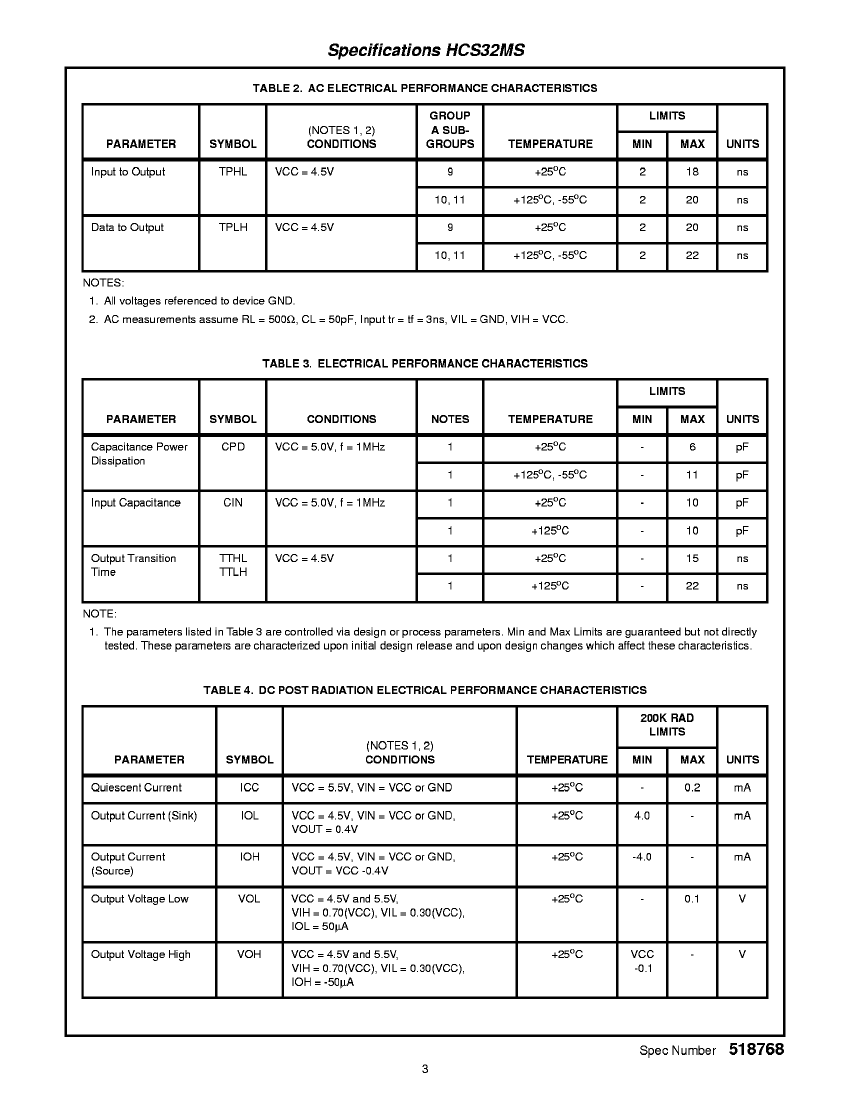

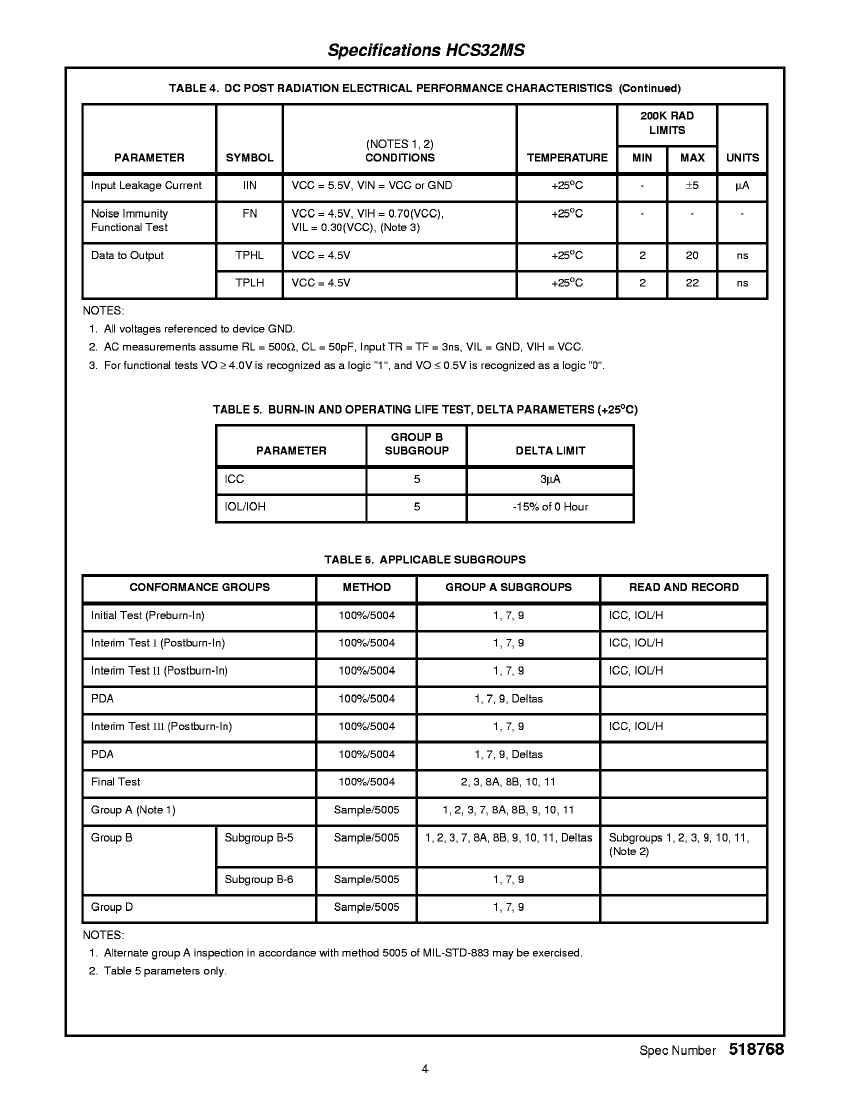

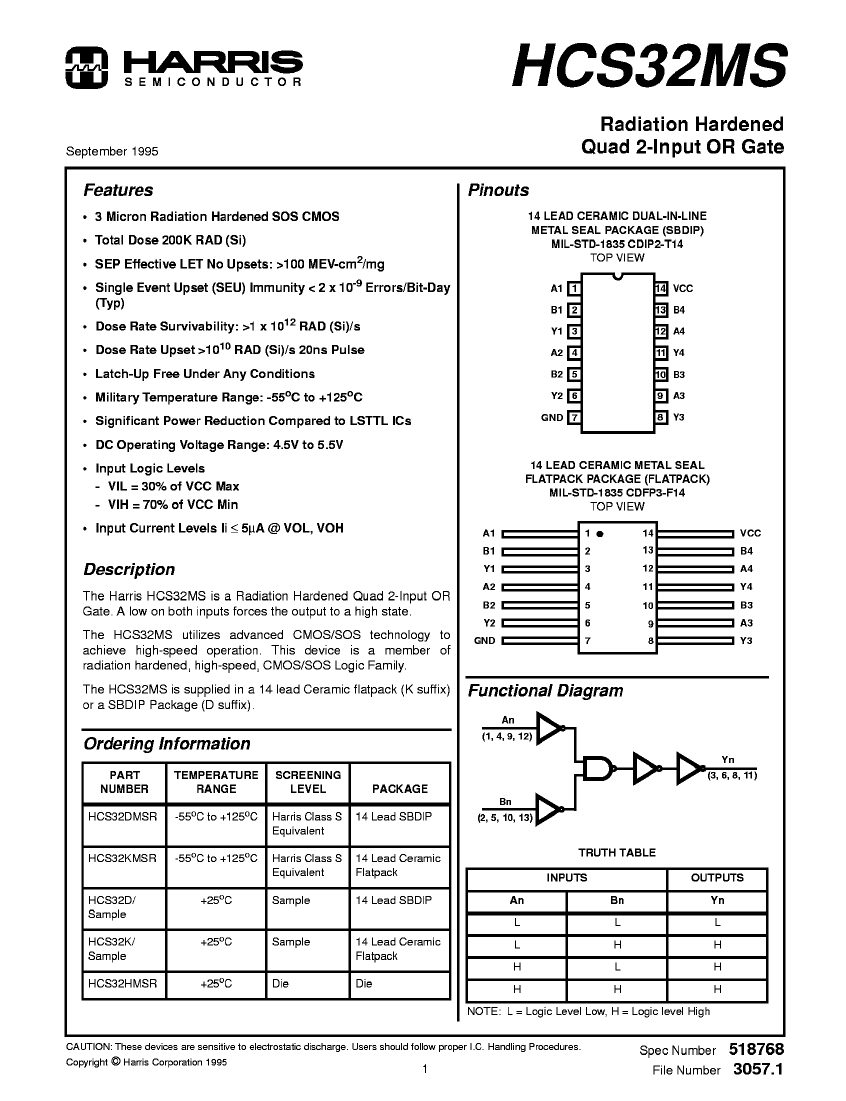

Preview

Download Datasheet

View All

5962R9578101VXC Related Products

	5962R9578101VXC	5962R9578101VCC	HCS32KMSR	HCS32HMSR	HCS32D/SAMPLE	HCS32DMSR	5962R9578101V9A
Description	OR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDFP14, CERAMIC, DFP-14	OR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDIP14	OR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDFP14	OR Gate, HC/UH Series, 4-Func, 2-Input, CMOS	OR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDIP14	OR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDIP14	OR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, DIE-14
package instruction	DFP,	,	DFP, FL14,.3	DIE,	,	DIP, DIP14,.3	DIE,
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown
series	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	R-CDFP-F14	R-CDIP-T14	R-CDFP-F14	X-XUUC-N14	R-CDIP-T14	R-CDIP-T14	X-XUUC-N14
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	OR GATE	OR GATE	OR GATE	OR GATE	OR GATE	OR GATE	OR GATE
Number of functions	4	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2	2
Number of terminals	14	14	14	14	14	14	14
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	UNSPECIFIED	RECTANGULAR	RECTANGULAR	UNSPECIFIED
Package form	FLATPACK	IN-LINE	FLATPACK	UNCASED CHIP	IN-LINE	IN-LINE	UNCASED CHIP
propagation delay (tpd)	20 ns	20 ns	20 ns	20 ns	20 ns	20 ns	20 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	FLAT	THROUGH-HOLE	FLAT	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	DUAL	DUAL	UPPER	DUAL	DUAL	UPPER
Base Number Matches	1	1	1	1	1	1	1
JESD-609 code	e4	e4	e0	-	-	e0	e0
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	-	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C
encapsulated code	DFP	-	DFP	DIE	-	DIP	DIE
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	-	MILITARY	MILITARY
Terminal surface	GOLD	GOLD	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)	TIN LEAD
total dose	100k Rad(Si) V	100k Rad(Si) V	200k Rad(Si) V	-	-	200k Rad(Si) V	100k Rad(Si) V
Maker	-	Harris	Harris	Harris	Harris	Harris	Harris
