4Mb: 256K x 18, 128K x 32/36
3.3V I/O PIPELINED, DCD SYNCBURST SRAM
4Mb SYNCBURST
SRAM
FEATURES
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
™
MT58L256L18D, MT58L128L32D,
MT58L128L36D
3.3V V
DD
, 3.3V I/O, Pipelined, Double-Cycle
Deselect
Fast clock and OE# access times
Single +3.3V +0.3V/-0.165V power supply (V
DD
)
Separate +3.3V isolated output buffer supply (V
DD
Q)
SNOOZE MODE for reduced-power standby
Common data inputs and data outputs
Individual BYTE WRITE control and GLOBAL WRITE
Three chip enables for simple depth expansion and
address pipelining
Clock-controlled and registered addresses, data I/Os
and control signals
Internally self-timed WRITE cycle
Burst control pin (interleaved or linear burst)
Automatic power-down for portable applications
100-lead TQFP package for high density, high speed
119-bump BGA package
Low capacitive bus loading
x18, x32 and x36 versions available
100-Pin TQFP*
119-Bump BGA
OPTIONS
• Timing (Access/Cycle/MHz)
3.5ns/6ns/166 MHz
4.0ns/7.5ns/133 MHz
5ns/10ns/100 MHz
• Configurations
256K x 18
128K x 32
128K x 36
• Packages
100-pin TQFP
119-bump, 14mm x 22mm BGA
• Operational Temperature Range
Commercial (0°C to +70°C)
Industrial (-40°C to +85°C)
MARKING
-6
-7.5
-10
MT58L256L18D
MT58L128L32D
MT58L128L36D
T
B
None
IT
*JEDEC-standard MS-026 BHA (LQFP).
• Part Number Example: MT58L256L18DT-6 IT
GENERAL DESCRIPTION
The Micron
®
SyncBurst
™
SRAM family employs high-
speed, low-power CMOS designs that are fabricated using
an advanced CMOS process.
Micron’s 4Mb SyncBurst SRAMs integrate a 256K x 18,
128K x 32, or 128K x 36 SRAM core with advanced
synchronous peripheral circuitry and a 2-bit burst counter.
All synchronous inputs pass through registers controlled
4Mb: 256K x 18, 128K x 32/36 3.3V I/O Pipelined, DCD SyncBurst SRAM
MT58L256L18D.p65 – Rev 9/99
by a positive-edge-triggered single clock input (CLK). The
synchronous inputs include all addresses, all data inputs,
active LOW chip enable (CE#), two additional chip enables
for easy depth expansion (CE2, CE2#), burst control inputs
(ADSC#, ADSP#, ADV#), byte write enables (BWx#) and
global write (GW#).
Asynchronous inputs include the output enable (OE#),
clock (CLK) and snooze enable (ZZ). There is also a burst
mode input (MODE) that selects between interleaved and
linear burst modes. The data-out (Q), enabled by OE#, is
also asynchronous. WRITE cycles can be from one to two
bytes wide (x18) or from one to four bytes wide (x32/x36),
as controlled by the write control inputs.
1
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©1999,
Micron Technology, Inc.
All registered and unregistered trademarks are the sole property of their respective companies.
4Mb: 256K x 18, 128K x 32/36
3.3V I/O PIPELINED, DCD SYNCBURST SRAM

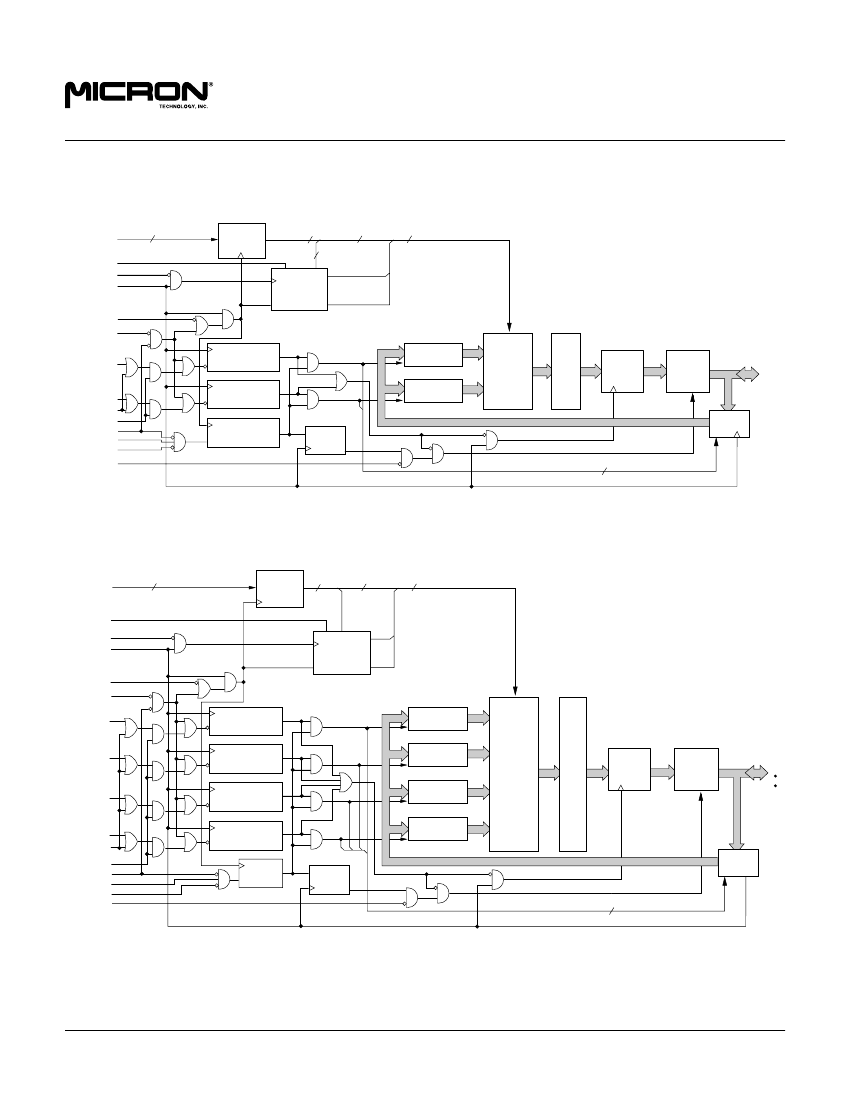

FUNCTIONAL BLOCK DIAGRAM
256K x 18
18
SA0, SA1, SA
MODE
ADDRESS
REGISTER
18
16
18
2
SA0-SA1
SA1'
ADV#
CLK
BINARY Q1
COUNTER AND
LOGIC
CLR
Q0
SA0'
ADSC#
ADSP#
BYTE “b”
WRITE REGISTER
9
BWb#
BYTE “b”
WRITE DRIVER
9
256K x 9 x 2
MEMORY
ARRAY
9
18
SENSE
18
AMPS
OUTPUT
18
REGISTERS
OUTPUT
BUFFERS
E
18
BWa#
BWE#
GW#
BYTE “a”
WRITE REGISTER
9
BYTE “a”
WRITE DRIVER
DQs
DQPa
DQPb
CE#
CE2
CE2#
OE#
ENABLE
REGISTER
18
PIPELINED
ENABLE
2
INPUT
REGISTERS
FUNCTIONAL BLOCK DIAGRAM
128K x 32/36
17
SA0, SA1, SA
ADDRESS
REGISTER
17
15
SA0-SA1
17
MODE
ADV#
CLK
Q1
SA1'
BINARY
COUNTER
SA0'
CLR
Q0
ADSC#
ADSP#
BWd#
BYTE “d”
WRITE REGISTER
BYTE “d”
WRITE DRIVER
BYTE “c”
WRITE DRIVER
BYTE “b”
WRITE DRIVER
BYTE “a”
WRITE DRIVER
INPUT
REGISTERS
128K x 8 x 4
(x32)
128K x 9 x 4
(x36)
SENSE
AMPS
BWc#
BYTE “c”
WRITE REGISTER
OUTPUT
REGISTERS
BWb#
BYTE “b”
WRITE REGISTER
MEMORY
ARRAY
OUTPUT
BUFFERS
E
DQs
DQPa
DQPd
BWa#
BWE#
GW#
CE#
CE2
CE2#
OE#
BYTE “a”
WRITE REGISTER
ENABLE
REGISTER
PIPELINED
ENABLE
4
NOTE:
Functional Block Diagrams illustrate simplified device operation. See Truth Table, Pin Descriptions and timing
diagrams for detailed information.
4Mb: 256K x 18, 128K x 32/36 3.3V I/O Pipelined, DCD SyncBurst SRAM
MT58L256L18D.p65 – Rev 9/99
2
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©1999,
Micron Technology, Inc.
4Mb: 256K x 18, 128K x 32/36
3.3V I/O PIPELINED, DCD SYNCBURST SRAM
GENERAL DESCRIPTION (continued)
Burst operation can be initiated with either address status
processor (ADSP#) or address status controller (ADSC#)
inputs. Subsequent burst addresses can be internally
generated as controlled by the burst advance input (ADV#).
Address and write control are registered on-chip to
simplify WRITE cycles. This allows self-timed WRITE cycles.
Individual byte enables allow individual bytes to be written.
During WRITE cycles on the x18 device, BWa# controls
DQa’s and DQPa; BWb# controls DQb’s and DQPb. During
WRITE cycles on the x32 and x36 devices, BWa# controls
DQa’s and DQPa; BWb# controls DQb’s and DQPb; BWc#
controls DQc’s and DQPc; BWd# controls DQd’s and DQPd.
GW# LOW causes all bytes to be written. Parity bits are only
available on the x18 and x36 versions.
This device incorporates an additional pipelined enable
register which delays turning off the output buffer an
additional cycle when a deselect is executed. This feature
allows depth expansion without penalizing system
performance.
Micron’s 4Mb SyncBurst SRAMs operate from a +3.3V
V
DD
power supply, and all inputs and outputs are TTL-
compatible. The device is ideally suited for Pentium
®
and
PowerPC pipelined systems and systems that benefit from
a very wide, high-speed data bus. The device is
also ideal in generic 16-, 18-, 32-, 36-, 64- and 72-bit-wide
applications.
Please refer to the Micron Web site (www.micron.com/
mti/msp/html/sramprod.html)
for the latest data sheet.
