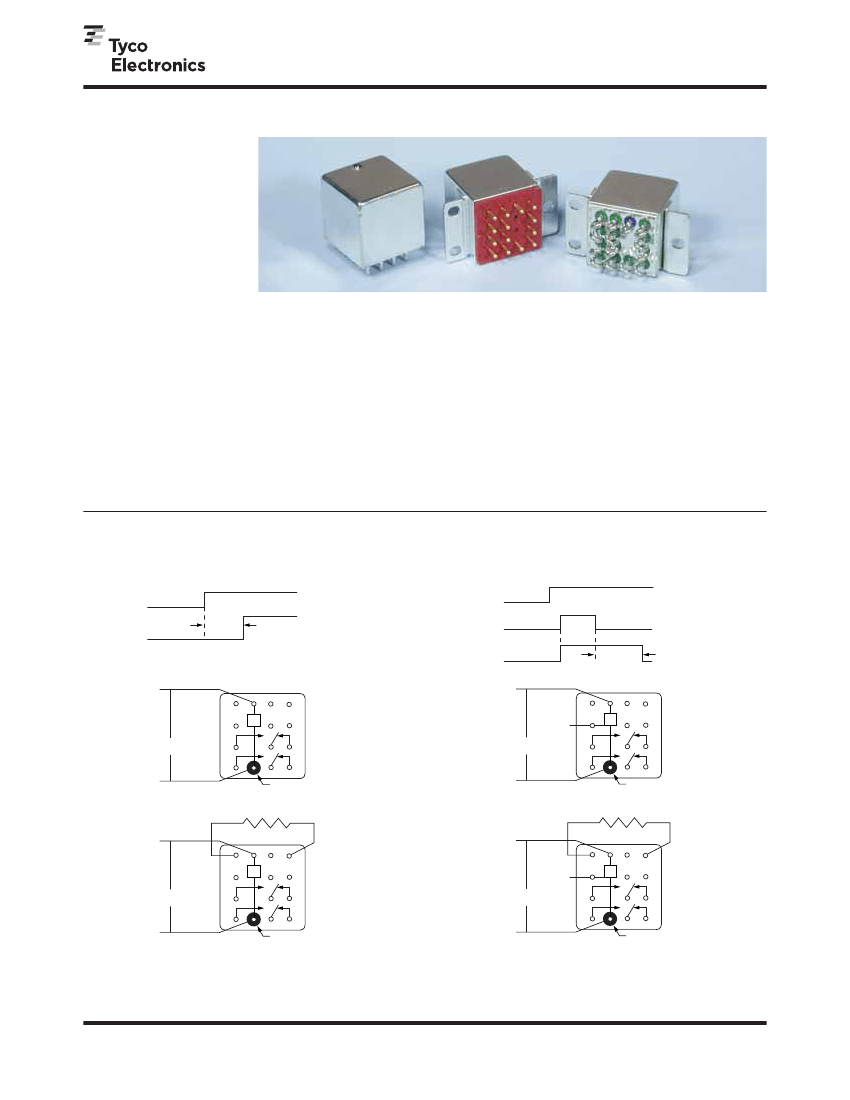

CII High Performance Electronic Products
TD2 Series Time Delay Relay
(Continued)
Specifications
Timing Data
Timing Action
Time Delay, Fixed – M83726/28, /29 and Commercial 28C, 29C
Time Delay, Adjustable – M83726/30, /31 and Commercial 30C, 31C
Timing Accuracy (note 1)
Recycle Time (note 2)
Power Interrupts
Input Data
Input Voltage
Duty Rating
Input Current
Control Voltage (applies only to Delay on Release type)
Control Current
Input Voltage Polarity Protection
Output Data
Contact Form
Contact Material
Contact Rating in Amps (Continuous Duty)
Type of
Load
Resistive
Inductive
Motor
Lamp
Overload Current
Rupture Current
Max. Contact Drop at 10A
Electrical Data
Electrostatic Discharge Withstand Voltage
Transients (note 3):
Positive Transients
Self-generated Transients
Spike Susceptability
Insulation Resistance (note 4)
Dielectric Strength (note 4)
Environmental Data
Ambient Temperature Range, Operating
Altitude
Shock Resistance
Vibration Resistance, Sinusoidal
Mechanical Data
Approximate Weight
NOTES
1. The accuracy requirement applies to any combination of operating temperature and voltage. Add ±10ms for timing less than one second.
2. Recycle time to assure that the next timing cycle will be completed. Units can be recycled during timing and after time-out:
Delay on operate models – Power must be OFF the input at least 10 ms.
Delay on release models – Power must be ON the control terminal at least 10 ms.
3. Transient specifications are based on a maximum duty cycle of 1/50.
4. All wired terminals must be connected together during this test. Dielectric withstanding voltage and insulation resistance are measured between all mutually
insulated wired terminals and between all these terminals and case.
2.5 oz. (71g) Max.
-55°C to +125°C
300,000 feet
100 G’s, 6 ms.
Z & Y Enclosure: 30 G’s, 33-3000Hz.; X & W Enclosure: 20 G’s, 33-3000Hz.
+80V
±50V, Max.
±600V, 10 µs, Max.
1,000 megohms at 500Vdc, between each pin and case
1,000Vrms at 60 Hz at sea level, between case and all pins connected together
16,000V
Life (Min.)
Cycles
100 x 103
20 x 103
100 x 103
100 x 103
28 Vdc
10
8
4
2
115 Vac
400Hz
10
8
4
2
115/200 Vac – 3 phase
400 Hz.
60 Hz.*
10
8
4
2
40 Adc; 60A, 400 Hz.
50 Adc; 80A, 400 Hz.
Initial 0.150V; After Life 0.175V
2.5
2.5
2.0
1.0
2 Form C (DPDT)
Silver Cadimum Oxide, Gold plated
28 Vdc nominal, range 20 - 32 Vdc
Continuous
110 mAdc Max @ 25°C
20 - 32 Vdc
15 mAdc Max (applies only to delay on release types)
The timer will be inoperative during, and undamaged by, reversal of the polarity of the input voltage.
Delay on Operate or Delay on Release
Select from 0.1 to 600 sec for Commercial Models
Select from 0.1 to 500 sec for Mil-Spec Models
Select one decade between 0.1 to 1.0 and 60 to 600 seconds
±10% of Nominal Value
50 ms, max., to next cycle.
Accuracy is not affected by power interruptions up to 1 ms spaced at least 10ms apart.
* 60 Hz. loads are rated at 10 x 103 cycles.
2
Catalog 9-1773447-6
Revised 03-2008
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-208-420-8341
CII High Performance Electronic Products
TD2 Series Time Delay Relay
(Continued)

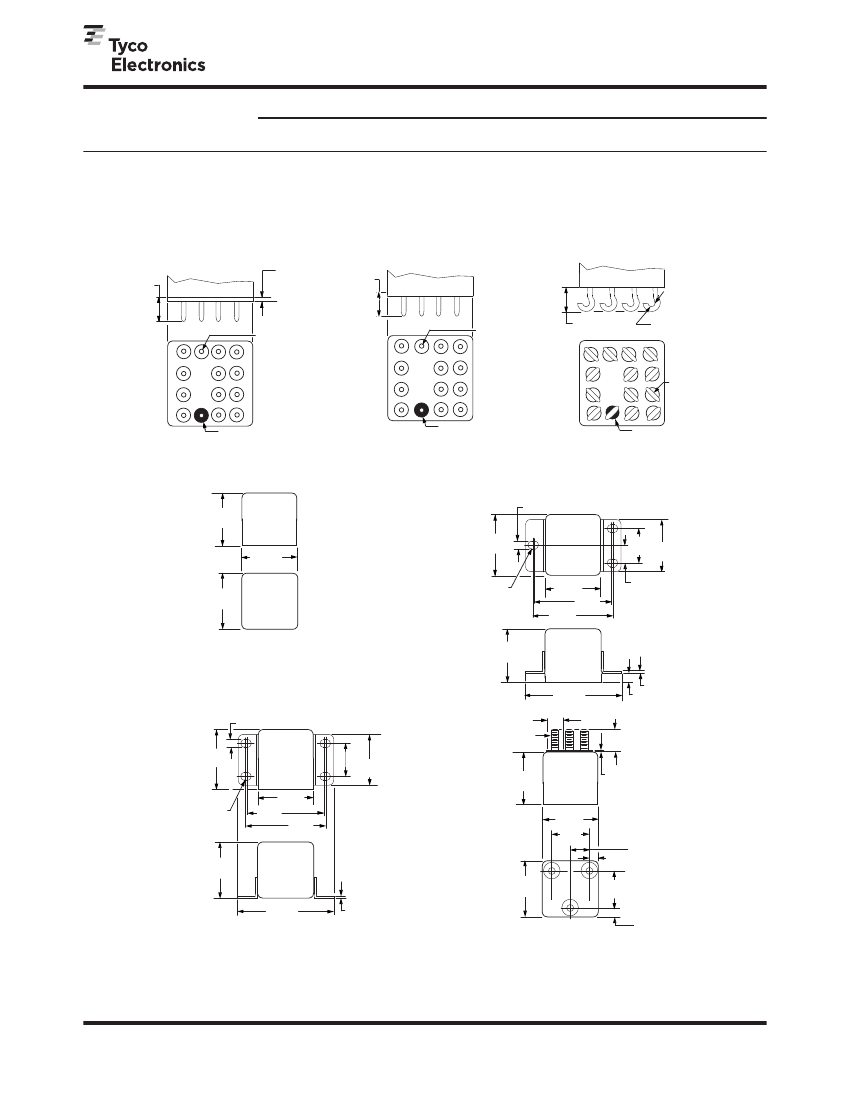

Outline Dimensions
The standard terminal types and enclosures are illustrated below with dimensions expressed as inches ± 0.010 and (millimeters ±0.25).
Terminals
All terminals on 0.200 (5.4) centers.
CODE "P"
Socket Pins – Gold Plated
.270
(6.86)
.050 ± .005
(1.27 ± (3)
Silicone
Rubber
Gasket
CODE "T"
Circuit Board Pins – Tin/Lead Plated
.270
(6.86)
CODE "S"
Solder Hooks
.062 ±.001 Pin
(1.57 ± .02)
14 places
-X 2
.062
- .001
Dia. Pin
(1.57
+ .05
) 14 Plcs .
- .02
+ .002
.300 ± .020
(7.26) ± .51
0.80 DIA
(2.03)
-X 2
-X 2
.062
- .001
Dia. Pin
(1.57
+ .05
) 14 Plcs.
- .02
+ .002
+X 1
+X 1
BLUE BEAD
BLUE BEAD
BLUE BEAD
Enclosures
All Enclosures have cupro-nickel cans bright acid tin/lead plated after assembly to terminal headers.
CODE
"Z"
CODE
"Y"
1.015
(25.79)
1.015
(25.79)
.150 typ.
(3.8)
1.015
(25.79)
.625
(15.88) .937
(23.80)
1.015
(25.79)
1.396
1.446 (35.46)
(36.73)
.312
(7.92)
1.015
(25.79)
FULL R
6 PLCS
1.00
(25.4)
.040
(1.02)
.156
(3.96)
1.718 Max.
(43.64)
CODE
"X"
1.00
(25.4)
.150 typ.
(3.8)
CODE
"W"
.625
(15.88) .937
(23.80)
.312
(7.92)
6-32 UNC-2A
3 Studs *
.375
(9.52)
.047
(1.20)
1.015
(25.78)
.687
(17.44)
.160
(4.06)
1.00
(25.4)
FULL R
6 PLCS
1.015
(25.79)
1.396
(35.46) 1.446
(36.73)
.343
(8.71)
1.051
(25.79)
1.051
(25.79)
1.718 Max.
(43.64)
.040
(1.02)
.687
(17.44)
.160
(4.06)
*Metric threads available. To specify use “M” in place of “W”
3
Catalog 9-1773447-6
Revised 03-2008
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-208-420-8341
CII High Performance Electronic Products
TD2 Series Time Delay Relay
(Continued)
Part Numbering System
Mil-Spec Types (Qualification Pending)
Commercial Types
Typical Mil-Spec Part Number
TD2
Series:
TD2 = Time delay relay with 2 pole, 10A output
Mil-Spec Model:
28 = M83726/28
29 = M83726/29
30 = M83726/30
31 = M83726/31
(Fixed, Delay on Operate)
(Fixed, Delay on Release)
(Adjustable, Delay on Operate)
(Adjustable, Delay on Release)
28-
5002
P
Typical Commercial Part Number
TD2
Series:
TD2 = Time delay relay with 2 pole, 10A output
Commercial Model:
28C- 1001
P
Y
28C = Fixed, Delay on Operate (COTS version of M83726/28)
29C = Fixed, Delay on Release (COTS version of M83726/29)
30C = Adjustable, Delay on Operate (COTS version of M83726/30)
31C = Adjustable, Delay on Release (COTS version of M83726/31)
Time Delay Range (Within 0.1 to 500 seconds):
For /28 and /29 types (fixed types), the delay is expressed in
milliseconds in a four-digit code. The first three digits are significant.
The fourth is the number of zeros following the first three.
Example: 5002 is 50 seconds.
For /30 and /31 types (adjustable types), the delay decade range is
expressed in milliseconds in a four-digit code represesnting the upper
limit of the range. The first three digits are significant. The fourth is the
number of zeros following the first three.
Example: 1001 is 1 second, so the range is 0.1 to 1 second.
Terminals:
P= Socket Pin Terminals
S= Solder Hook Terminals
Note: Mil-spec models have “Y” type enclosure.
Time Delay Range (Within 0.1 to 600 seconds):
For fixed types, the delay is expressed in milliseconds in a four-
digit code. The first three digits are significant. The fourth is the
number of zeros following the first three.
Example: 5002 is 50 seconds.
For adjustable types, the delay decade range is expressed in
milliseconds in a four-digit code represesnting the upper limit of
the range. The first three digits are significant. The fourth is the
number of zeros following the first three.
Example: 1001 is 1 second, so the range is 0.1 to 1 second.
