Type T
High Voltage Paper-Film/Foil Capacitors

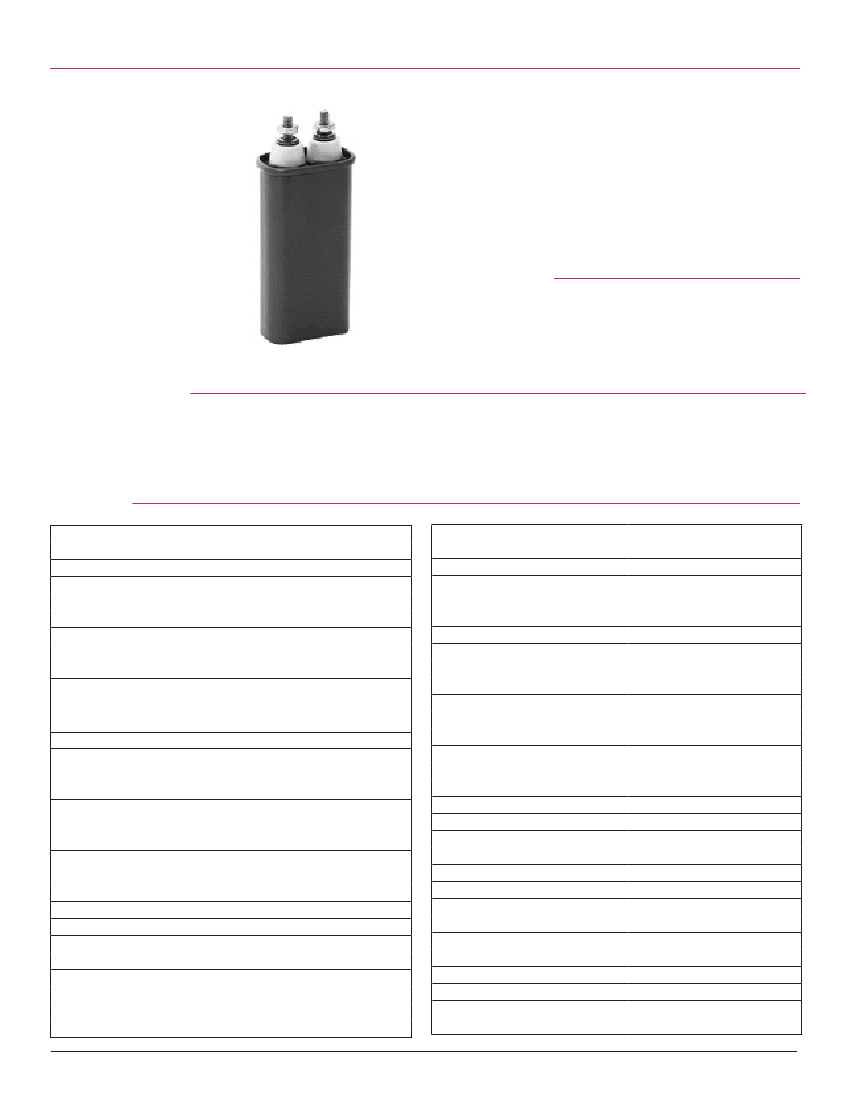

Paper-Film/Foil Capacitors for High Voltage Filter Applications
Type T capacitors are for high voltage filter applications
as well as being used for filtering, bypass and blocking
in radar amplifiers and power supplies. The Type T is
constructed with a rugged inserted tab to foil connection
to 10-32 screw terminals surrounded by thermoset plastic
bushings for high voltage performance in an oval, her-
metically seald metal case that will give long operating
life under harsh conditions.
Highlights
• Hermetically sealed
• High Voltage to 5 kVdc
• High Temperature, 105 ºC operation with derating
Specifications
RoHS Compliant
Ratings
Cap
(µF)
0.5
1.0
2.0
3.0
4.0
6.0
8.0
10.0
15.0
0.10
0.25
0.50
1.0
2.0
4.0
6.0
8.0
10.0
15.0
0.5
1.0
2.0
4.0
6.0
8.0
Catalog
Capacitance Range:
Voltage Range:
Capacitance Tolerance:
Temperature Range:
Case
Code
A
A
A
A
A
A
C
C
D
A
A
A
A
A
A
C
D
D
D
A
A
A
C
D
D
H
(Inches)
2.13
2.13
2.13
2.38
2.63
3.88
2.88
3.13
3.50
2.13
2.13
2.13
2.13
2.63
4.25
3.50
3.50
3.88
5.25
2.13
2.13
3.13
3.13
3.88
4.25
0.1 µF to 15.0 µF
600 Vdc to 5000 Vdc
±10%
–55 ºC to 105 ºC — Full rated voltage to 85 ºC.
Derate linearly to 50% rated voltage at max temp.
Cap
(µF)
10.0
12.0
15.0
0.10
0.25
0.50
1.0
2.0
4.0
5.0
8.0
10.0
15.0
1.0
2.0
4.0
.10
.50
1.0
6.0
.50
1.0
2.0
Catalog
Part Number
1500 Vdc
T15W10NR-F
T15W12NR-F
T15W15NR-F
2000 Vdc
T20P1NR-F
T20P25NR-F
T20P5NR-F
T20W1NR-F
T20W2NR-F
T20W4NR-F
T20W5NR-F
T20W8NR-F
T20W10NR-F
T20W15NR-F
2500 Vdc
T25W1NR-F
T25W2NR-F
T25W4NR-F
3000 Vdc
T30P1NR-F
T30P5NR-F
T30W1NR-F
T30W6NR-F
5000 Vdc
T50P5NR-F
T50W1NR-F
T50W2NR-F
C
D
D
3.50
4.25
7.25
A
A
C
D
2.13
3.13
3.13
8.00
C
C
D
2.88
3.13
4.25
A
A
A
A
C
D
D
D
D
D
2.13
2.13
2.13
2.63
2.88
3.50
4.25
5.75
6.75
9.88
D
D
D
4.75
5.25
6.25
Case
Code
H
(Inches)
Part Number
600 Vdc
T6P5NR-F
T6W1NR-F
T6W2NR-F
T6W3NR-F
T6W4NR-F
T6W6NR-F
T6W8NR-F
T6W10NR-F
T6W15NR-F
1000 Vdc
T10P1NR-F
T10P25NR-F
T10P5NR-F
T10W1NR-F
T10W2NR-F
T10W4NR-F
T10W6NR-F
T10W8NR-F
T10W10NR-F
T10W15NR-F
1500 Vdc
T15P5NR-F
T15W1NR-F
T15W2NR-F
T15W4NR-F
T15W6NR-F
T15W8NR-F
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.
cde.com
Type T
High Voltage Paper-Film/Foil Capacitors

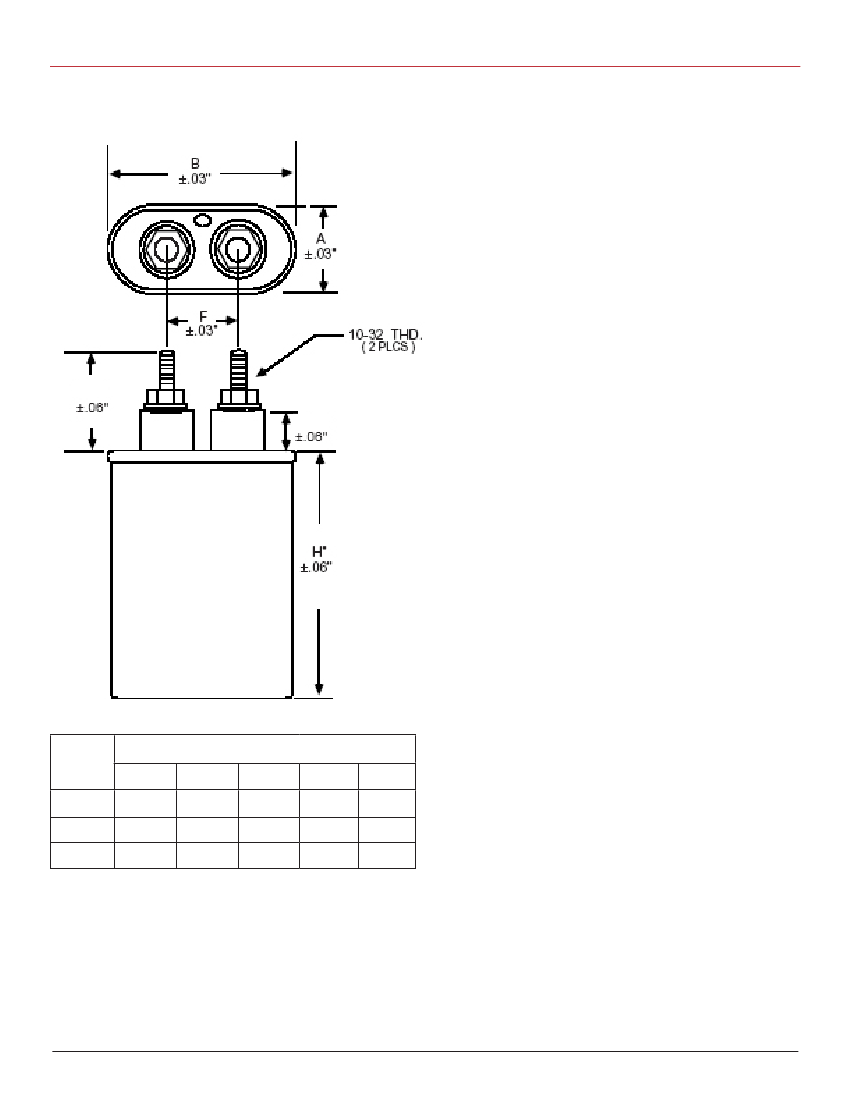

Outline Drawing
Notice and Disclaimer:
All product drawings, de-
scriptions, specifications, statements, information and
data (collectively, the “Information”) in this datasheet or
other publication are subject to change. The customer
is responsible for checking, confirming and verifying
the extent to which the Information contained in this
datasheet or other publication is applicable to an
order at the time the order is placed. All Information
given herein is believed to be accurate and reliable,
but it is presented without any guarantee, warranty,
representation or responsibility of any kind, expressed
or implied. Statements of suitability for certain appli-
cations are based on the knowledge that the Cornell
Dubilier company providing such statements (“Cornell
Dubilier”) has of operating conditions that such Cornell
Dubilier company regards as typical for such applica-
tions, but are not intended to constitute any guarantee,
warranty or representation regarding any such matter –
and Cornell Dubilier specifically and expressly disclaims
any guarantee, warranty or representation concerning
the suitability for a specific customer application, use,
storage, transportation, or operating environment.
The Information is intended for use only by customers
who have the requisite experience and capability to
determine the correct products for their application.
Any technical advice inferred from this Information or
otherwise provided by Cornell Dubilier with reference
to the use of any Cornell Dubilier products is given gra-
tis (unless otherwise specified by Cornell Dubilier), and
Cornell Dubilier assumes no obligation or liability for
the advice given or results obtained. Although Cornell
Dubilier strives to apply the most stringent quality and
safety standards regarding the design and manufac-
turing of its products, in light of the current state of the
art, isolated component failures may still occur. Ac-
cordingly, customer applications which require a high
degree of reliability or safety should employ suitable
designs or other safeguards (such as installation of
protective circuitry or redundancies or other appro-
priate protective measures) in order to ensure that the
failure of an electrical component does not result in a
risk of personal injury or property damage. Although
all product-related warnings, cautions and notes must
be observed, the customer should not assume that all
safety measures are indicated in such warnings, cau-
tions and notes, or that other safety measures may not
be required.
D
C
Case
Code
A
C
D
A
1.31
1.91
1.97
Dimensions (Inches)
B
2.16
2.91
3.66
C
0.56
0.50
0.50
D
1.06
1.00
1.00
F
0.81
1.38
1.38
