XB1117
Series
1A Low Dropout Positive Voltage Regulator
ETR0315_006
■GENERAL
DESCRIPTION
The XB1117 series is 1A Bi-polar transistor LDO voltage regulator. Output voltage of the XB1117P series is fixed to 1.8V, 2.5V,
3.3V, and 5.0V. The XB1117K series output voltage is adjustable by the external resistors. Please refer to the absolute
maximum ratings for the difference between the rated input voltage of the XB1117P50 (V
OUT
=5.0V) and XB1117P18, 25, 31,
K12B. With the dropout voltage 1.2V (TYP.), output current can be generated up to 1A. The built-in overcurrent circuit and
thermal protection circuit start to operate when either one of output put current reaches the current limit level or junction
temperature reaches the temperature limit. The XB1117 series provide stable line and load regulation by using an input
capacitor and an output capacitor (10μF, tantalum). Package is available in SOT-223.
■APPLICATIONS
●Highly
efficient linear regulators
●5V
~ 3.3V DC / DC converter
●Battery
charger
●Local
power supply inside equipment
●Battery
powered equipment
■FEATURES
Maximum Output Current
Output Voltages
Output Voltage Accuracy
Low Dropout Voltage
Line Regulation (TYP.)
Load Regulation (TYP.)
Adjust Pin Current
Protection Circuit
Package
Environmentally Friendly
: 1A
: 1.8V, 2.5V, 3.3V, 5.0V, ADJ
:
±1%
: 1.2V @ I
OUT
=1A
: 0.04% (ADJ)
: 0.1% (ADJ)
: Less than 120μA (ADJ)
: Over-current protection
Thermal protection
: SOT-223
: EU RoHS Compliant, Pb Free

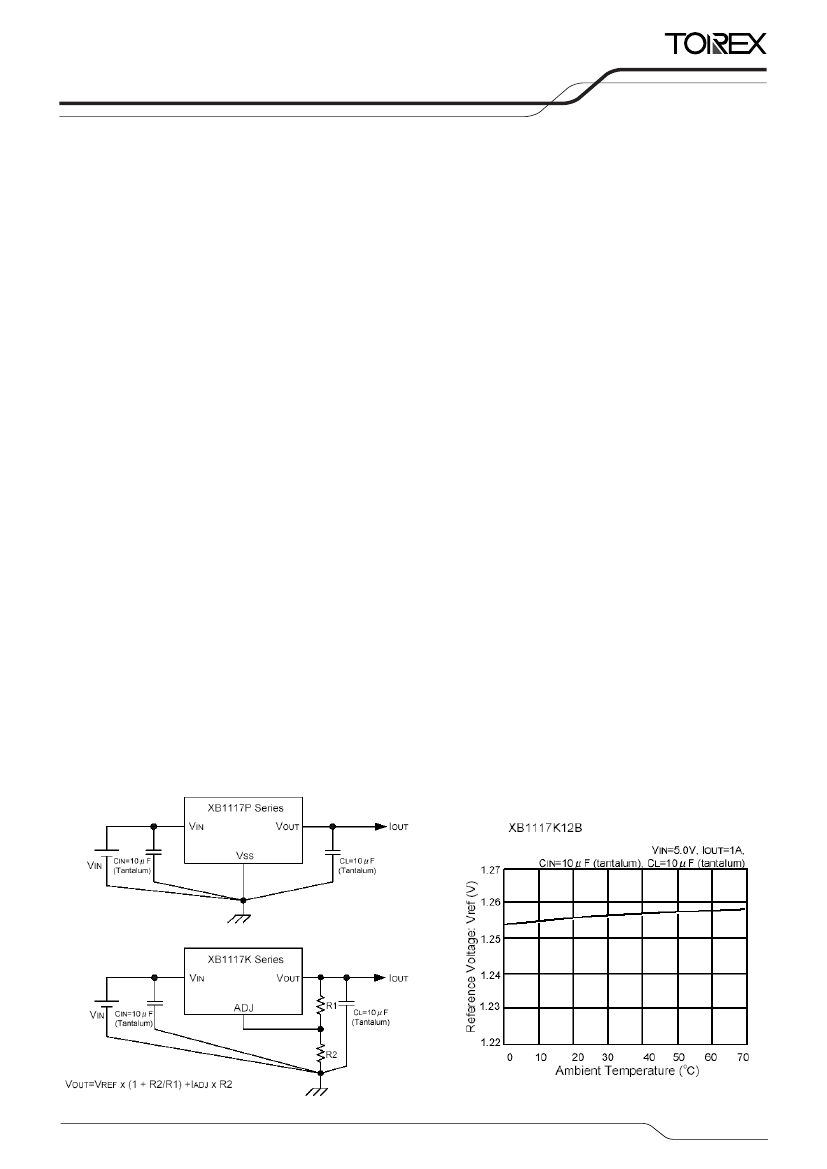

■TYPICAL
APPLICATION CIRCUIT
■
TYPICAL PERFORMANCE
CHARACTERISTICS
●Reference
Voltage vs. Ambient Temperature
1/12
XB1117
Series
■ABSOLUTE
MAXIMUM RATINGS
XB1117P501
PARAMETER
Input Voltage
Thermal Resistance
(Junction to Case)
Thermal Resistance
(Junction to Ambient)
Power Dissipation
(ΔT=100℃)
Operating Ambient Temperature
Operating Junction Temperature Range
Storage Temperature Range
Lead Temperature
SYMBOL
V
IN
θJ
C
θJ
A
P
D
Topr
T
j
Tstg
Tlead
RATINGS
10.0
15
℃/W
160
625
0 ~＋70
0 ~＋125
- 65 ~＋150
260
mW
UNITS
V
℃
*Stress above the listed absolute maximum rating may cause permanent damage to the device.
** The rated values of the XB1117P18 / 25 / 30 (V
OUT
=1.8V, 2.5V and 3.0V) and XB1117K type are different from that
of the XB1117P50 (V
OUT
=5.0V).
■ELECTRICAL
CHARACTERISTICS
XB1117P501
PARAMETER
Output Voltage
Line Regulation
Load Regulation
Dropout Voltage
Current Limit
Supply Current
Temperature
Coefficient
Temperature Stability
SYMBOL
V
OUT
ΔV
OUT1
ΔV
OUT2
V
dif
I
LIM
I
SS
T
C
T
S
V
IN
=7.0V
I
OUT
=0A
7.0V≦V
IN
≦9.0V
I
OUT
=0A
V
IN
=7.0V
0A≦I
OUT
≦1.0A
ΔV
OUT
=±1％
0A≦I
OUT
≦1.0A
7.0V≦V
IN
≦10.0V
V
IN
=7.0V
0A≦I
OUT
≦1.0A
7.0V≦V
IN
≦10.0V
0A≦I
OUT
≦1.0A
V
IN
=7.0V
I
OUT
=100mA
CONDITIONS
MIN.
4.950
4.900
-
-
-
-
-
1.0
-
-
*Over Temp.
-
TYP.
5.000
5.000
1
5.0
10.1
1.2
1.3
1.5
6
50
0.5
MAX.
5.050
5.100
6
15.2
20.2
1.4
-
-
13
-
-
mV
Ta=25℃
UNITS
V
*Over Temp.
*Over Temp.
*Over Temp.
*Over Temp.
*Over Temp.
*Over Temp.
V
A
mA
ppm/℃
％
*Over Temp. = Over Temperature（0½＋70℃）
4/12
XB1117
Series
■ABSOLUTE
MAXIMUM RATINGS
XB1117P181, P251, P331, K12B
PARAMETER
Input Voltage
Thermal Resistance
(Junction to Case)
Thermal Resistance
(Junction to Ambient)
Power Dissipation (ΔT=100℃)
Operating Ambient Temperature
Operating Temperature Range
Storage Temperature Range
Lead Temperature
SYMBOL
V
IN
θJ
C
θJ
A
P
D
T
OPR
T
J
T
STG
T
LEAD
RATINGS
7.0
15
160
625
0 ~ 70
0 ~ 125
-65 ~ 150
260
mW
UNITS
V
℃/W
℃
*Stress above the listed absolute maximum rating may cause permanent damage to the device.
■ELECTRICAL
CHARACTERISTICS
XB1117P181
PARAMETER
Output Voltage
Line Regulation
Load Regulation
Dropout Voltage
Current Limit
Supply Current
Temperature
Coefficient
Temperature Stability
SYMBOL
V
OUT
ΔV
OUT1
ΔV
OUT2
Vdif
I
LIM
I
SS
T
C
T
S
V
IN
=5.0V
I
OUT
=0A
4.75V≦V
IN
≦7.0V
I
OUT
= 0A
V
IN
=5.0V
0A≦I
OUT
≦1.0A
ΔV
OUT
=±1％
0A≦I
OUT
≦1.0A
4.75V≦V
IN
≦7.0V
V
IN
=5.0V
0A≦I
OUT
≦1.0A
4.75V≦V
IN
≦7.0V
0A≦I
OUT
≦1.0A
V
IN
=5.0V
I
OUT
=100mA
CONDITIONS
*Over Temp.
MIN.
1.782
-
-
-
-
-
1.0
-
TYP.
1.800
1.0
1.80
3.70
1.2
1.3
1.5
6
50
*Over Temp.
-
0.5
MAX.
1.818
5.5
18.2
22.0
1.4
-
-
13
-
-
T
J
=25℃
UNITS
V
mV
mV
V
A
mA
ppm/
℃
％
*Over Temp.
*Over Temp.
*Over Temp.
*Over Temp.
*Over Temp. = Over Temperature (0½＋70℃)
XB1117P251
PARAMETER
Output Voltage
Line Regulation
Load Regulation
Dropout Voltage
Current Limit
Supply Current
Temperature
Coefficient
Temperature Stability
SYMBOL
V
OUT
ΔV
OUT1
ΔV
OUT2
Vdif
I
LIM
I
SS
T
C
T
S
V
IN
=5.0V
I
OUT
=0A
4.75V≦V
IN
≦7.0V
I
OUT
=0A
V
IN
=5.0V
0A≦I
OUT
≦1.0A
ΔV
OUT
=±1％
0A≦I
OUT
≦1.0A
4.75V≦V
IN
≦7.0V
V
IN
=5.0V
0A≦I
OUT
≦1.0A
4.75V≦V
IN
≦7.0V
0A≦I
OUT
≦1.0A
V
IN
=5.0V
I
OUT
=100mA
CONDITIONS
STANDARD VALUE
MIN.
TYP.
MAX.
*Over Temp.
2.475
2.450
-
-
-
-
-
1.0
-
-
*Over Temp.
-
2.500
2.500
1.0
2.5
5.1
1.2
1.3
1.5
6
50
0.5
2.525
2.550
6.8
25.3
30.3
1.4
-
-
13
-
-
T
J
=25℃
UNITS
V
mV
mV
V
A
mA
ppm/
℃
％
*Over Temp.
*Over Temp.
*Over Temp.
*Over Temp.
*Over Temp. = Over Temperature (0½＋70℃)
