MONOLITHIC CRYSTAL FILTER
SPECIFICATION: S1
Frequency Range
Temperature Range
Operating
Storage
: 15.000 000 to 250.000 000 MHz
: [B] – 20°C to + 70
C
( [D] – 40°C to + 85
C,
[F] - 55°C to + 105
C
options ).
: - 40°C to + 85
C
( - 55°C to + 125
C
option ).
5:1 Shape Factor to 20dB S1 (2 pole)
Insertion Loss
3 dB Bandwidth
20 dB Bandwidth
Ultimate Attenuation
Passband VSWR (Return Loss)
Spurious Response
Impedance In/Out
3 dB Typical
±1kHz to ±20kHz (15MHz to 250MHz)
±20kHz to ±100kHz (45MHz to 250MHz)
5:1 Shape Factor 20 dB B.W. to 3dB B.W.
40 dB Min.
1.7:1 (12 dB Min.)
10 dB Min.
Customer Specified
3.5:1 Shape Factor to 60dB S1 (4 pole)
Insertion Loss
3 dB Bandwidth
60 dB Bandwidth
Ultimate Attenuation
Passband VSWR (Return Loss)
Spurious Response
Impedance In/Out
4 dB Typical
±1kHz to ±20kHz (15MHz to 250MHz)
±20kHz to ±100kHz (45MHz to 250MHz)
3.5:1 Shape Factor 60 dB B.W. to 3dB B.W.
65 dB Min.
1.7:1 (12 dB Min.)
35 dB Min.
Customer Specified
2.5:1 Shape Factor to 60dB S1 (6 pole)
Insertion Loss
3 dB Bandwidth
60 dB Bandwidth
Ultimate Attenuation
Passband VSWR (Return Loss)
Spurious Response
Impedance In/Out
4.5 dB Typical
±1kHz to ±20kHz (15MHz to 250MHz)
±20kHz to ±100kHz (45MHz to 250MHz)
2.5:1 Shape Factor 60 dB B.W. to 3 dB B.W.
65 dB Min.
1.7:1 (12 dB Min.)
65 dB Min.
Customer Specified
2.0:1 Shape Factor to 60dB S1 (8 pole)
Insertion Loss
3 dB Bandwidth
60 dB Bandwidth
Ultimate Attenuation
Passband VSWR (Return Loss)
Spurious Response
Impedance In/Out
5 dB Typical
±1kHz to ±20kHz (15MHz to 250MHz)
±20kHz to ±100kHz (45MHz to 250MHz)
2.0:1 Shape Factor 60 dB B.W. to 3 dB B.W.
65 dB Min.
1.7:1 (12 dB Min.)
65 dB Min.
Customer Specified
Page 1 of 3

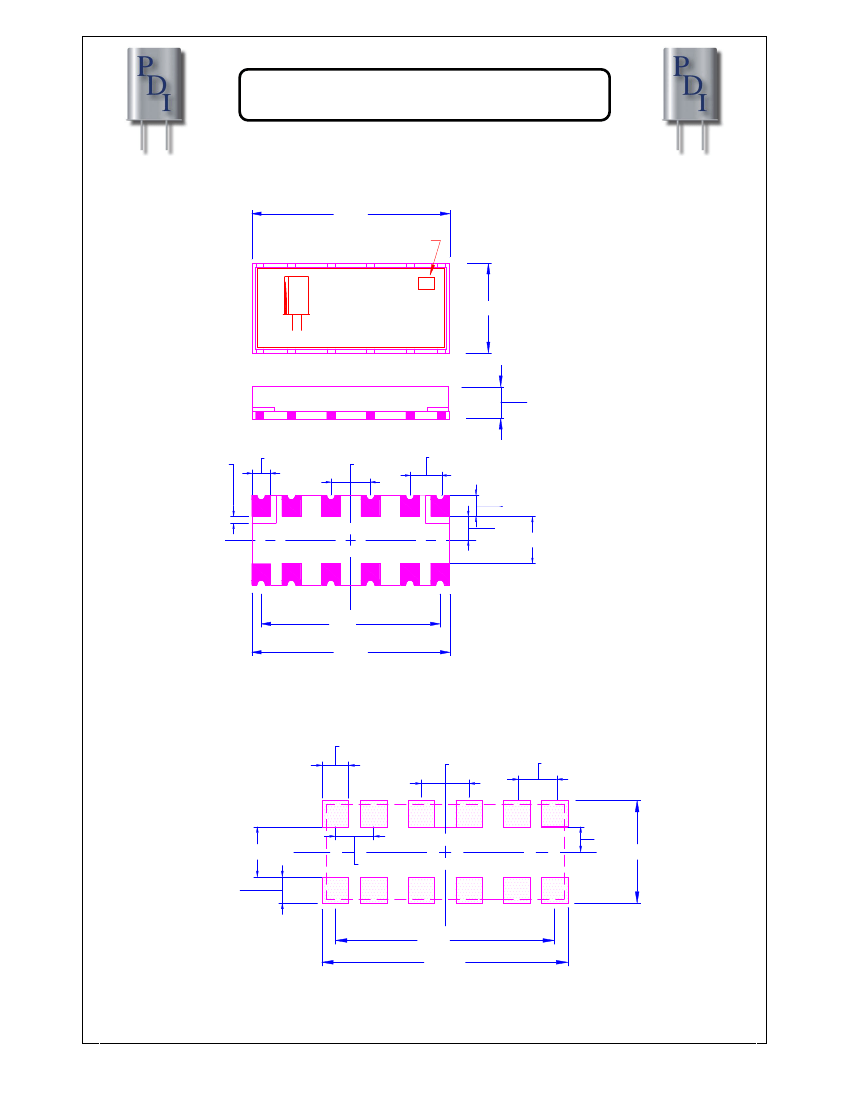

MONOLITHIC CRYSTAL FILTER
SPECIFICATION: S1
Monolithic Crystal Filter Part Numbering:
MCF – S1 - C - 1 0 0 0 0 - 2 - B - X - X
MCF – P roduct Family
MCF : Monolith ic Crystal Fi lte r
X - Che ck Digit
( PDI A ssigned )
XX -P ac kage Type
S1 – Su rface M ou nt ( 1.25 x 0.50)
S2 – C eramic ( 5mm x 7mm)
SP – Sp ecial “C ustome r Spec ified ”
S - Packaged or speci al de sign
X - St an dar d Packaging
R - Tape & R eel
S- Spe cial C ircu mst ance s
B - Ope rating Temp eratur e Range
10000- Fre quenc y
5 di git s for fre quen cy and 1 ch eck digit
will den ot e place h olde r move (i.e. 100.000000
MHz an d ab ove will get C bef ore t he fre quen cy
an yt hing 99.999999 MHz and be low w ill get X
af te r the freq uenc y) .
B:
D:
F:
S:
-20°C to +70°C
-40°C t o +85°C
-55°C t o +105°C
Spec ial
2- N umber of P oles
2:
4:
6:
8:
S:
2 Pole
4 Pole
6 Pole
8 Pole
S pecial
NOTE: A ll Def au lt Value s are X
