Spec Sheet
Multilayer Ceramic Capacitors (Temperature compensating type)
UMK063CG181JT-F
Features
Item Summary
180pF±5%, 50V,
C0G/CG, 0201/0603 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping paper 15000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
Q (min)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
Temperature Characteristic (JIS)
Operating Temp. Range (JIS)
Temperature Characteristic
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
10 GΩ
Yes
Yes
Yes
Reflow
180 pF ± 5 %
0201/0603
50 V
1000 at 1MHz
C0G
-55 to +125 ℃
CG
-55 to +125 ℃
0 ±30 ppm/℃
200 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
0.6 ±0.03 mm
0.3 ±0.03 mm
0.3 ±0.03 mm
0.15 ±0.05 mm
2018.11.24
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Multi Layer Ceramic Capacitor
○UMK063CG181JT
50V 0603 CG/C0G 180pF +/- 5% t=0.33mmMAX
50V 0201 CG/C0G 180pF +/- 5% t=0.013inchMAX

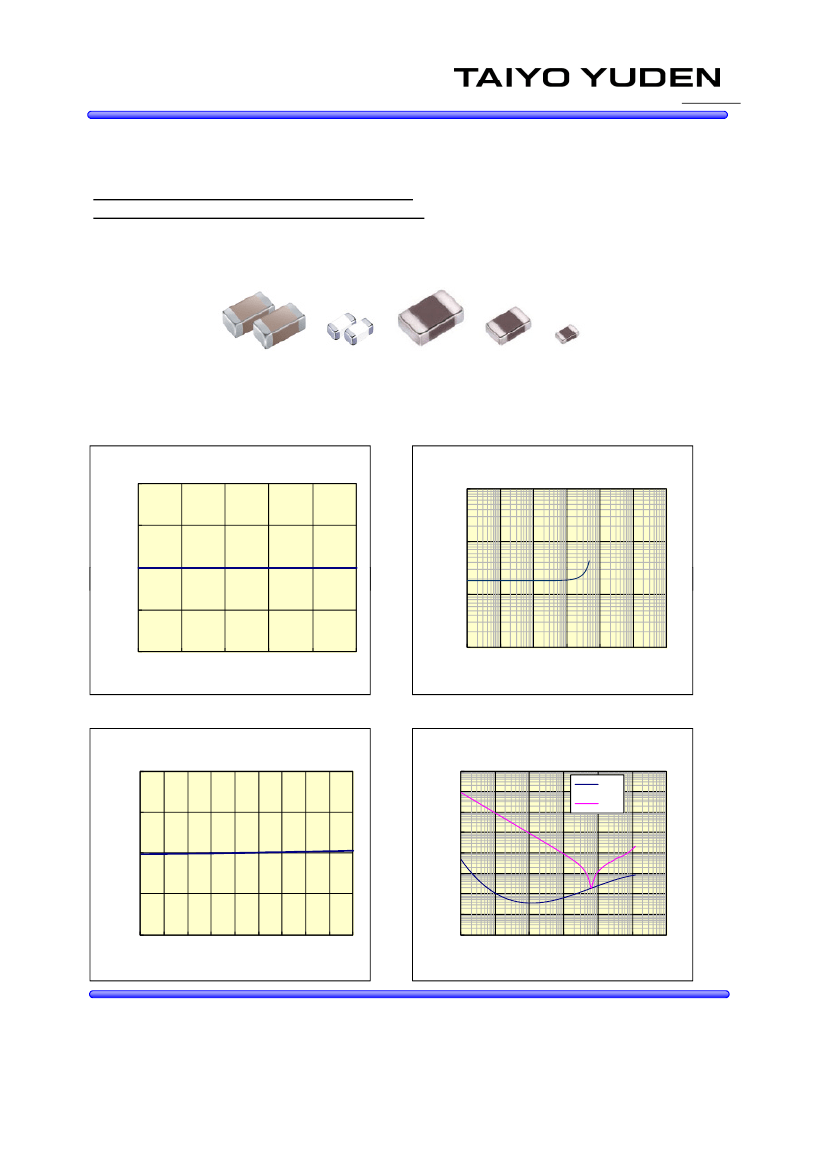

-Electrical Characteristics Data-
16CDD02
RoHS compliance product
10
UMK063CG181JT
DC Bias Char.
10000
UMK063CG181JT
Capacitance Freq.
5
Capa cita nce[pF]
apa
n
1000
dC/C
dC/C[%]
0
100
-5
-10
0
10
20
30
40
DC Bias Voltage[V]
50
10
0.1
1
10
100
1000 10000100000
Frequency[MHz]
UMK063CG181JT
Capa citance Temp.
10
100000
10000
5
1000
UMK063CG181JT
Impedance,ESR Freq.
ESR
Z
0
Z,ESR[OHM]
-55 -35 -15 5 25 45 65 85 105 125
Temperature[degreeC]
dC/C[%]
100
10
1
0.1
-5
0.01
-10
0.001
0.1
1
10
100 1000 10000100000
Frequency[MHz]
