A3009-348-010-91-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> A3009-348-010-91-Z

A3009-348-010-91-Z: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size255KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

A3009-348-010-91-Z Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle

A3009-348-010-91-Z Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK
body width	0.652 inch
subject depth	0.641 inch
body length	0.689 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	A3009
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating temperature	70 °C
Minimum operating temperature
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.108 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

ELECTRICAL:

VOLTAGE RATING: 125 VAC RMS MIN.

CURRENT RATING: 1.5 AMP MIN.

HOW TO ORDER:

CONTACT RESISTANCE: 30 MILLIOHMS MAX.

INSULATION RESISTANCE: 1000 MEGAOHMS

MIN @ 500 VDC

NUMBER OF POSITIONS

DIELECTIC STRENGTH: 1000 VAC RMS 60Hz. 1MIN

3 - 8 Pos

MATERIAL:

PLASTIC HOUSING: Thermoplastic (UL94-V0)

CONTACTS: Phosphor Bronze

CONTACT PLATING: Gold Plating over Nickel in contact

Tin Plating over Nickel In Solder Area

NUMBER OF CONTACTS:

4 - 8 CONTACTS

SHIELD OPTION:

8 - NON SHIELDED

CLOSED BOTTOM

RoHS

PLATING OVERALL:

COMPLIANT

0 - FULL Au FLASH

1 - 10u" Au

KEYING OPTION:

2 - 30u" Au

0 - NON KEYED

FLANGE OPTION:

3 - 50u" Au

1 - w/FLANGE

ENVIRONMENTAL:

STORAGE: -40

C TO +85

OPERATION: 0

C TO 70

Rev

0 Issued

Updated

B Revised for RoHS Compliance

Drawn

A.M.

D.H.

B.S.

Checked

S.M.

Approved

S.M.

Date

10/14/03

05/19/04

10/27/08

NUMBER OF PORTS:

01 - SINGLE PORT

SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

SMP TECHNOLOGY, INC.

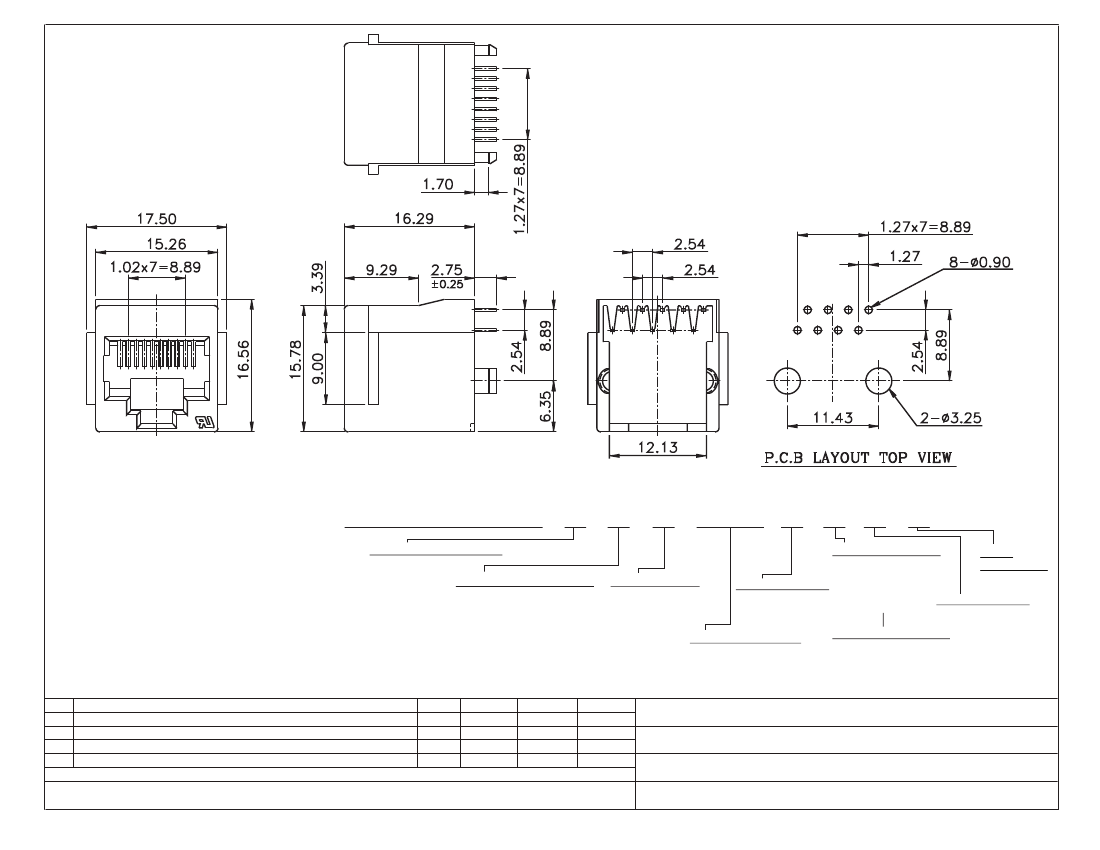

RJ45 Top Entry PCB Jack, Non-Shielded, Closed Bottom With Flange, CAT 5

TOL. DEC.

.X +/- 0.25

.XX +/- 0.13

.XXX +/- 0.05

ANGLE +/- 0°.30'

UNIT: mm

P/N: A3009-348-010-X1-Z

Pg: 1

A3009-348-010-91-Z Related Products

	A3009-348-010-91-Z	A3009-348-010-81-Z	A3009-348-010-61-Z
Description	Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle
Reach Compliance Code	unknow	unknown	unknown
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.652 inch	0.652 inch	0.652 inch
subject depth	0.641 inch	0.641 inch	0.641 inch
body length	0.689 inch	0.689 inch	0.689 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	30 mΩ	30 mΩ	30 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	A3009	A3009	A3009
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of ports	1	1	1
Maximum operating temperature	70 °C	70 °C	70 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED
Plating thickness	30u inch	15u inch	FLASH inch
Rated current (signal)	1.5 A	1.5 A	1.5 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.108 inch	0.108 inch	0.108 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	8	8	8
Base Number Matches	1	1	1
