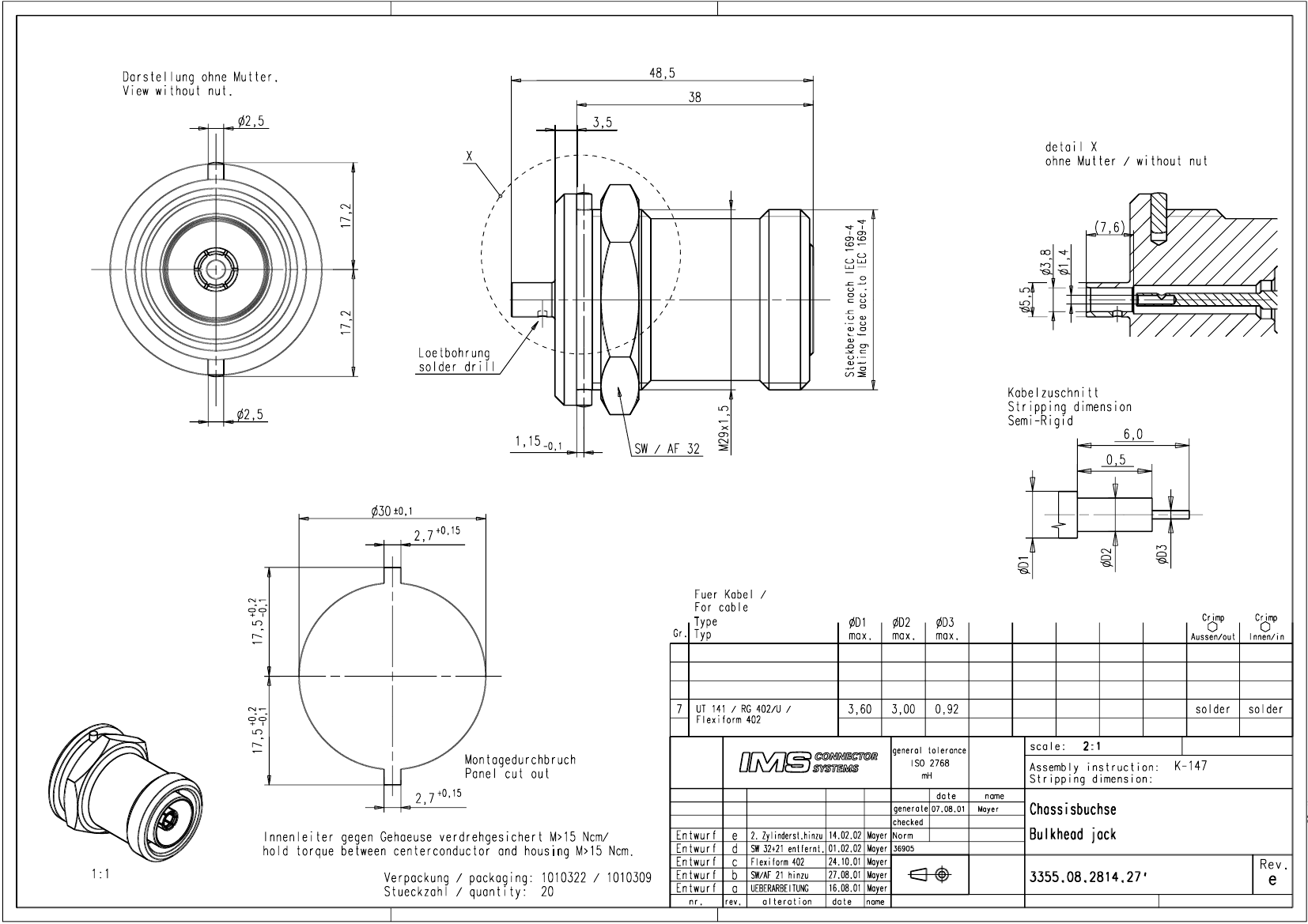

3355.08.2814.274

Description
RF 7/16 DIN Connector, 1 Contact(s), Female, Panel Mount, Panel Mount, Solder Lug Terminal, Jack
CategoryThe connector    The connector
File Size569KB,1 Pages
ManufacturerIMS Connector Systems Gmbh
Download Datasheet Parametric Compare View All

3355.08.2814.274 Overview

RF 7/16 DIN Connector, 1 Contact(s), Female, Panel Mount, Panel Mount, Solder Lug Terminal, Jack

3355.08.2814.274 Parametric

Parameter NameAttribute value
MakerIMS Connector Systems Gmbh
Reach Compliance Codecompliant
Other featuresROHS COMPLIANT
subject depth1.634 inch
Body/casing typeJACK
Cable typeRG-402/U
Characteristic impedance50 Ω
Connector typeRF 7/16 DIN CONNECTOR
Contact point genderFEMALE
Contact resistance1 mΩ
Contact styleCOAX
Durability500 Cycles
Insertion loss0.03 dB
Insulation resistance5000000000 Ω
insulator materialPOLYTETRAFLUOROETHYLENE
Manufacturer's serial number3355
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typePANEL
Number of ports1
Maximum operating frequency7.5 GHz
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Panel mountingYES
Rated current (signal)15 A
Terminal length0.276 inch
Termination typeSOLDER LUG
Total number of contacts1
Base Number Matches1

3355.08.2814.274 Related Products

3355.08.2814.274 3355.08.2814.275
Description RF 7/16 DIN Connector, 1 Contact(s), Female, Panel Mount, Panel Mount, Solder Lug Terminal, Jack RF 7/16 DIN Connector, 1 Contact(s), Female, Panel Mount, Panel Mount, Solder Lug Terminal, Locking, Jack
Maker IMS Connector Systems Gmbh IMS Connector Systems Gmbh
Reach Compliance Code compliant compliant
Other features ROHS COMPLIANT ROHS COMPLIANT
subject depth 1.634 inch 1.634 inch
Body/casing type JACK JACK
Cable type RG-402/U RG-402/U
Characteristic impedance 50 Ω 50 Ω
Connector type RF 7/16 DIN CONNECTOR RF 7/16 DIN CONNECTOR
Contact point gender FEMALE FEMALE
Contact resistance 1 mΩ 1 mΩ
Contact style COAX COAX
Durability 500 Cycles 500 Cycles
Insertion loss 0.03 dB 0.03 dB
Insulation resistance 5000000000 Ω 5000000000 Ω
insulator material POLYTETRAFLUOROETHYLENE POLYTETRAFLUOROETHYLENE
Installation option 1 LOCKING LOCKING
Installation method STRAIGHT STRAIGHT
Installation type PANEL PANEL
Number of ports 1 1
Maximum operating frequency 7.5 GHz 7.5 GHz
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
Panel mounting YES YES
Rated current (signal) 15 A 15 A
Terminal length 0.276 inch 0.276 inch
Termination type SOLDER LUG SOLDER LUG
Total number of contacts 1 1
Base Number Matches 1 1
