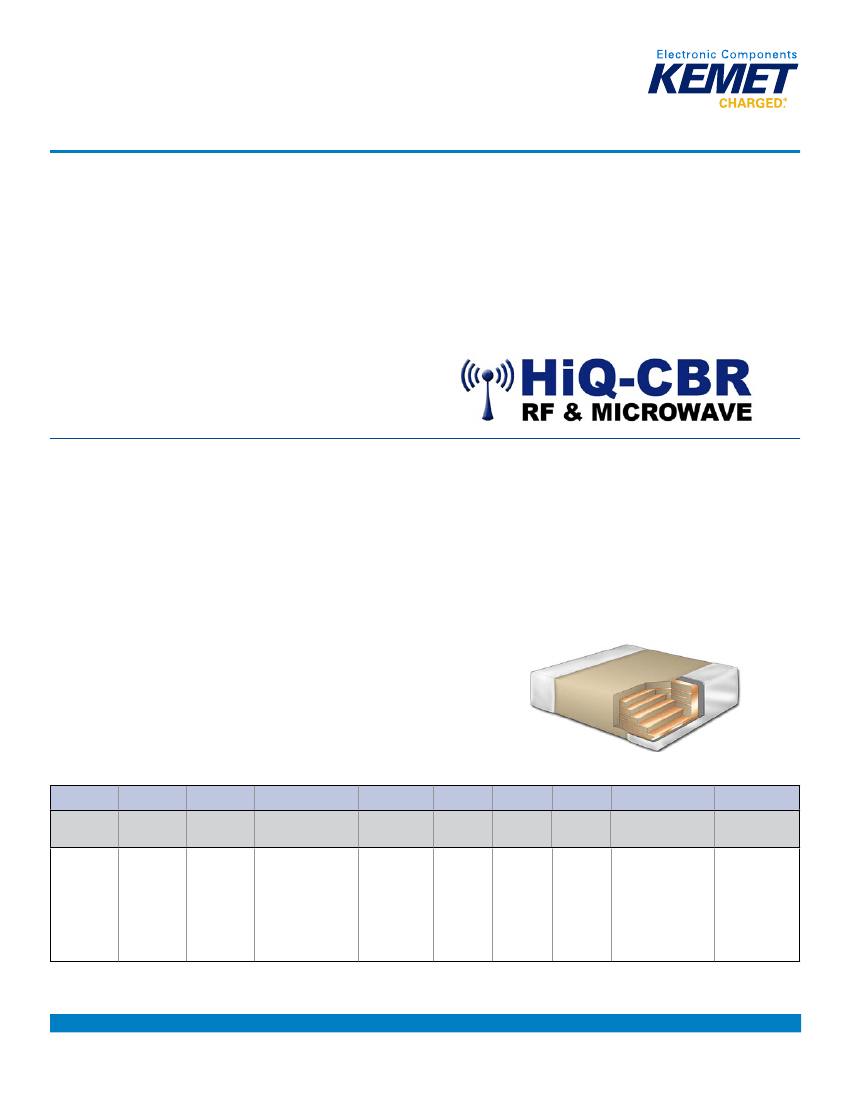

100% pure matte tin-plated termination finish allowing for
excellent solderability
Ordering Information
CBR
Series
CBR
02
Case Size
(L"x W")
02 = 0201
04 = 0402
06 = 0603
08 = 0805
C
Specification/
Series
C=
Standard
330
Capacitance
Code (pF)
2 significant digits +
number of zeros
Use 9 for 1.0 – 9.9
pF
Use 8 for 0.1 – .99
pF
e.g., 2.2 pF = 229
e.g., 0.5 pF = 508
F
Capacitance
Tolerance
A = ±0.05 pF
B = ±0.1 pF
C = ±0.25 pF
D = ±0.5 pF
F = ±1%
G = ±2%
J = ±5%
9
Voltage
9 = 6.3 V
8 = 10 V
3 = 25 V
5 = 50 V
1 = 100 V
A = 250 V
C = 500 V
G
Dielectric
G = C0G
A
C
Packaging/Grade
Termination
Termination Finish
Style
(C-Spec)
1
A = N/A
C = 100% Matte Sn
Blank = 7" Reel
Unmarked
When ordering CBR series devices, a "suffix" or "C-Spec" is not required to indicate a 7" reel packaging option. CBR devices are only available and shipped on 7"
reels (paper tape). Bulk bag and cassette packaging options are not available. Please contact KEMET if you have a specific, non-standard packaging requirement.
0 ±30 ppm/ºC (0 ±60 ppm/ºC for 0201 case size product ≥ 22 pF)
0%
See Dielectric Withstanding Voltage Table
(5 ±1 seconds and charge/discharge not exceeding 50 mA)
≥1,000 for capacitance values ≥30 pF
≥400 +20C for capacitance values < 30 pF
10GΩ minimum (rated voltage applied for 120 ±5 seconds)
Parameters/Characteristics
Capacitance and Quality Factor (Q) measured at 25ºC and 30 – 70% relative humidity under the following conditions:
1 MHz ±100 kHz and 1.0 ±0.2 Vrms if capacitance ≤ 1,000 pF
1 kHz ±100 Hz and 1.0 ±0.2 Vrms if capacitance > 1,000 pF
Note: When measuring capacitance it is important to ensure the set voltage level is held constant. The HP4284 & Agilent E4980 have a feature known as Automatic
Level Control (ALC). The ALC feature should be switched to "ON."
