AFC336M10C12B-F datasheet, PDF

Datasheet> All Categories > Passive components> AFC336M10C12B-F

AFC336M10C12B-F: Descriptionaluminum electrolytic capacitors - smd 33.0uf 10v 20%; CategoryPassive components; File Size505KB，5 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

AFC336M10C12B-F Overview

aluminum electrolytic capacitors - smd 33.0uf 10v 20%

AFC336M10C12B-F Parametric

Parameter Name	Attribute value
Manufacture	Cornell Dubilie
Product Category	Aluminum Electrolytic Capacitors - SMD
RoHS	Yes
Capacitance	33 uF
Voltage Rating DC	10 V
Tolerance	20 %
ESR	9.6 Ohms
Ripple Curre	95 mA
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 105 C
Load Life	1000 h
Case Length	5.4 mm
Case Heigh	6.5 mm
Case Diamete	5 mm
Produc	Aluminum Electrolytic Capacitors
Dissipation Factor DF	0.19
Leakage Curre	3.3 mA
Packaging	Bulk
Factory Pack Quantity	100
Termination Style	SMD/SMT

Preview

Download Datasheet

View All

Type AFC

–55 °C to 105 °C

SMT Aluminum Electrolytic Capacitors - Low Impedance, 105 °C

Low Impedance and Long-Life for Filtering, Bypassing and Power Supply Decoupling

ype AFC Capacitors are the choice for high-frequency filtering. At

100 kHz, most ratings can handle more than twice the ripple current of

type AHA. With solid performance at temperatures down to –55 ° C,

Type AFC has more than 90% capacitance retention at –20 ° C and

1 kHz. With low impedance to beyond 100 kHz, it is ideal for higher

power DC/DC converters. The vertical cylindrical cases make for easy

automatic mounting and reflow soldering, and offer big savings and

higher capacitance compared to tantalum capacitors.

Highlights

•

+105

°C,

Up to 1000 Hour Load Life

•

Capacitance Range: 1 µF to 1500 µF

•

Voltage Range: 6.3 Vdc to 50 Vdc

Specifications

Operating Temperature:

Rated Voltage:

Capacitance:

Capacitance Tolerance:

Leakage Current:

Dissipation Factor:

Ripple Current Multiplier:

–55 °C to +105 °C

6.3, 10, 16, 25 & 50 Vdc

1.0 µF to 1500 µF

±20% @ 120 Hz and +20 °C

0.01 CV or 3 µA @ +20 °C, after two minutes (whichever is greater)

See ratings table

50/60 Hz

120 Hz

1 kHz

10 kHz

100 kHz

Frequency

0.70

.0.75

0.90

0.95

1.00

Load Life:

1000 h @ +105 °C

∆ Capacitance ±20%

DF: ≤200% of limit

DCL: ≤100% of limit

Shelf Life:

1000 h @ +105 °C

∆ Capacitance ±20%

DF: ≤200% of limit

DCL: ≤100% of limit

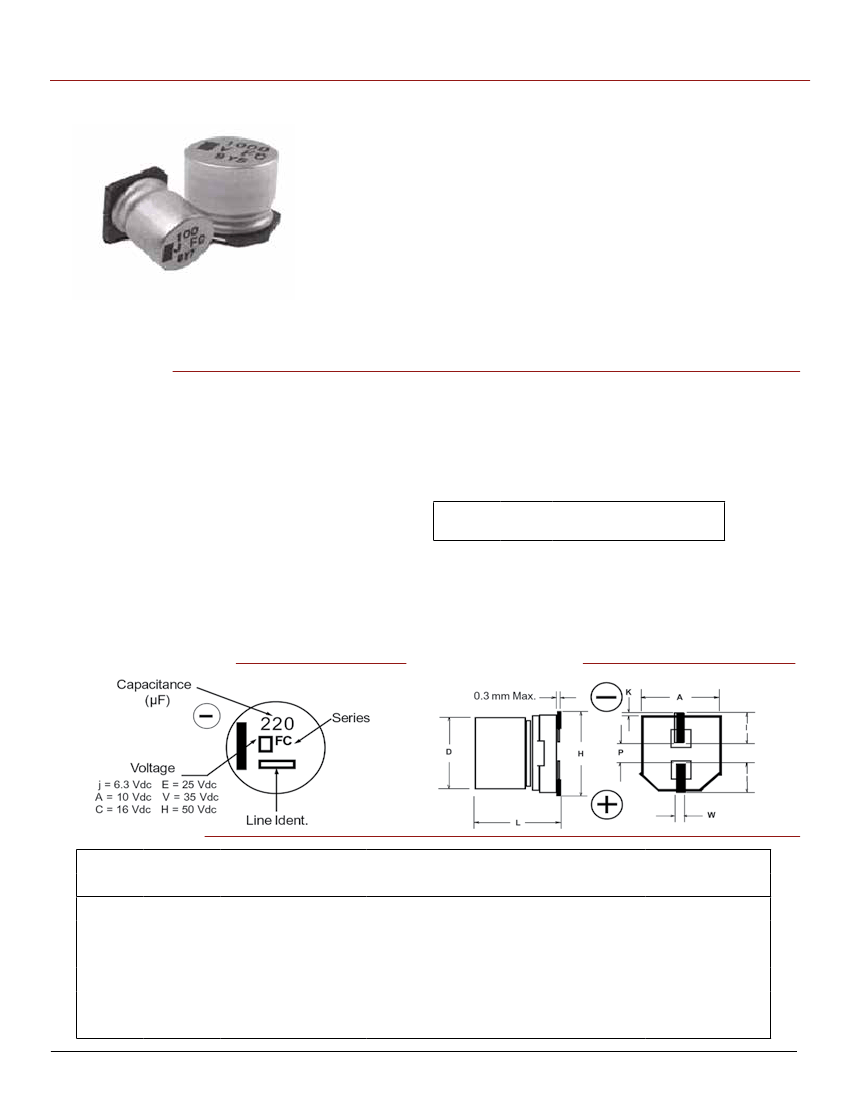

AFC Series Marking

Outline Drawing

Case Dimensions

Case

Code

Dimensions in (mm)

D ± 0.5

4.0

5.0

6.3

8.0

10.0

5.4 +.1,-.2

6.2 ±.3

10.2 ±.3

A ± 0.2

4.3

5.3

6.6

8.3

10.3

H (max)

5.5

6.5

7.8

9.5

10.0

12.0

I (ref)

1.8

2.2

2.4

3.4

3.5

0.65 ± 0.1

0.90 ± 0.2

P (ref)

1.0

1.5

1.8

2.2

3.2

4.6

0.35 + 0.15/-0.20

0.70 ± 0.20

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com

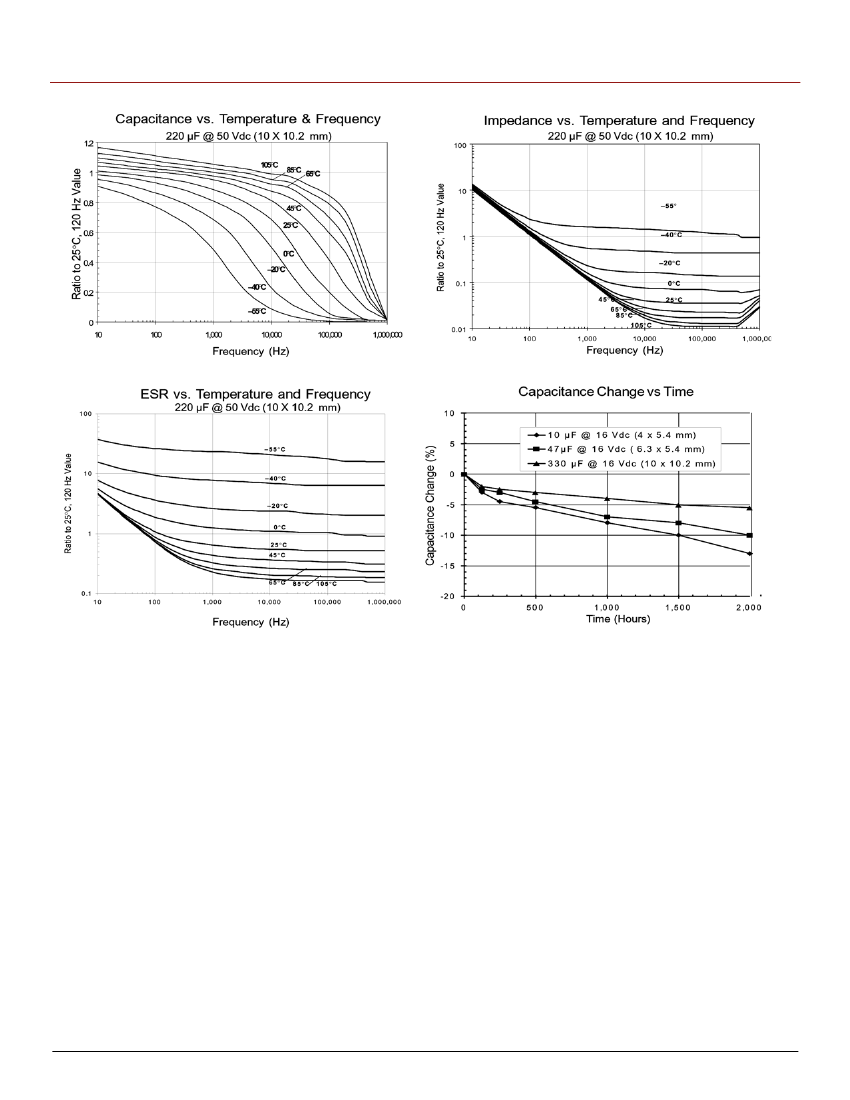

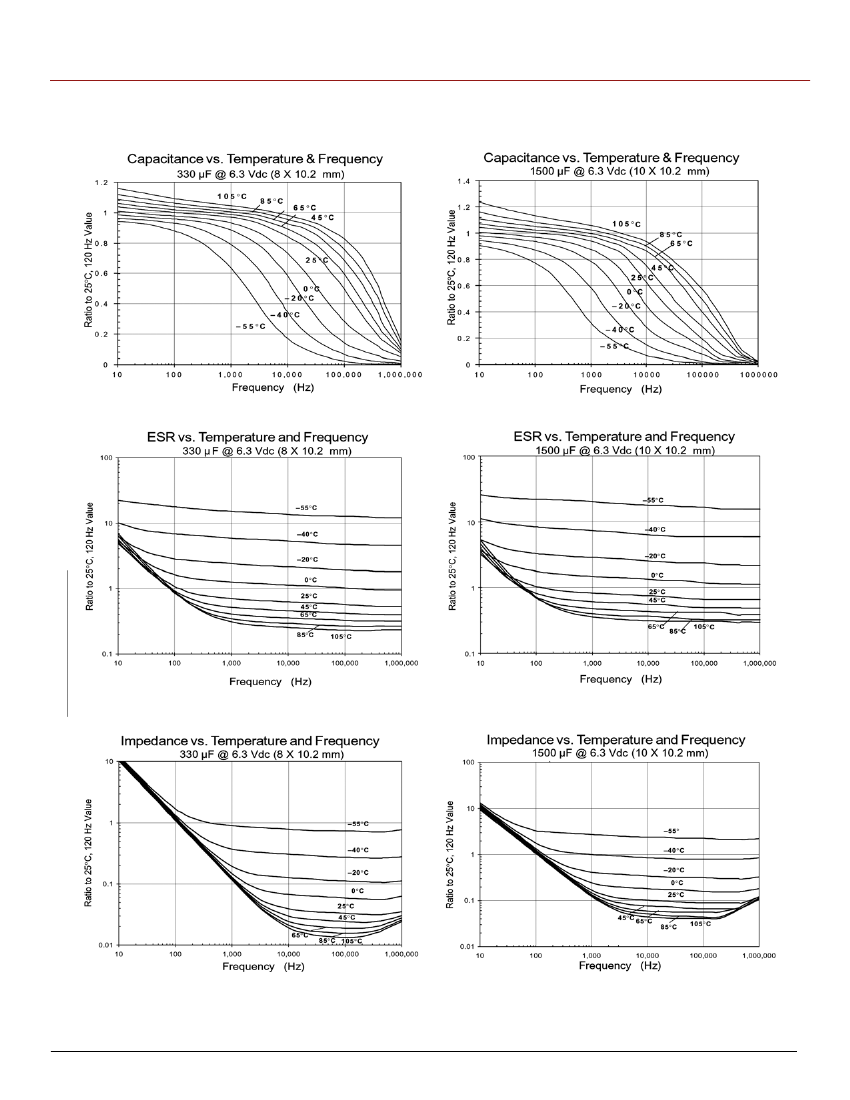

Type AFC

–55 °C to 105 °C

SMT Aluminum Electrolytic Capacitors - Low Impedance, 105 °C

Notice and Disclaimer:

All product drawings, descriptions, specifications, statements, information and data

(collectively, the “Information”) in this datasheet or other publication are subject to change. The customer is responsible

for checking, confirming and verifying the extent to which the Information contained in this datasheet or other

publication is applicable to an order at the time the order is placed. All Information given herein is believed to be

accurate and reliable, but it is presented without any guarantee, warranty, representation or responsibility of any kind,

expressed or implied. Statements of suitability for certain applications are based on the knowledge that the Cornell

Dubilier company providing such statements (“Cornell Dubilier”) has of operating conditions that such Cornell

Dubilier company regards as typical for such applications, but are not intended to constitute any guarantee, warranty

or representation regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee,

warranty or representation concerning the suitability for a specific customer application, use, storage, transportation, or

operating environment. The Information is intended for use only by customers who have the requisite experience and

capability to determine the correct products for their application. Any technical advice inferred from this Information or

otherwise provided by Cornell Dubilier with reference to the use of any Cornell Dubilier products is given gratis (unless

otherwise specified by Cornell Dubilier), and Cornell Dubilier assumes no obligation or liability for the advice given or

results obtained. Although Cornell Dubilier strives to apply the most stringent quality and safety standards regarding

the design and manufacturing of its products, in light of the current state of the art, isolated component failures may

still occur. Accordingly, customer applications which require a high degree of reliability or safety should employ suitable

designs or other safeguards (such as installation of protective circuitry or redundancies or other appropriate protective

measures) in order to ensure that the failure of an electrical component does not result in a risk of personal injury or

property damage. Although all product-related warnings, cautions and notes must be observed, the customer should

not assume that all safety measures are indicated in such warnings, cautions and notes, or that other safety measures

may not be required.

CDE Cornell Dubilier

•

1605 E. Rodney French Blvd.

•

New Bedford, MA 02744

•

Phone: (508)996-8561

•

Fax: (508)996-3830

•

www.cde.com
