DF 045120, DF 045155
www.vishay.com
Vishay Draloric

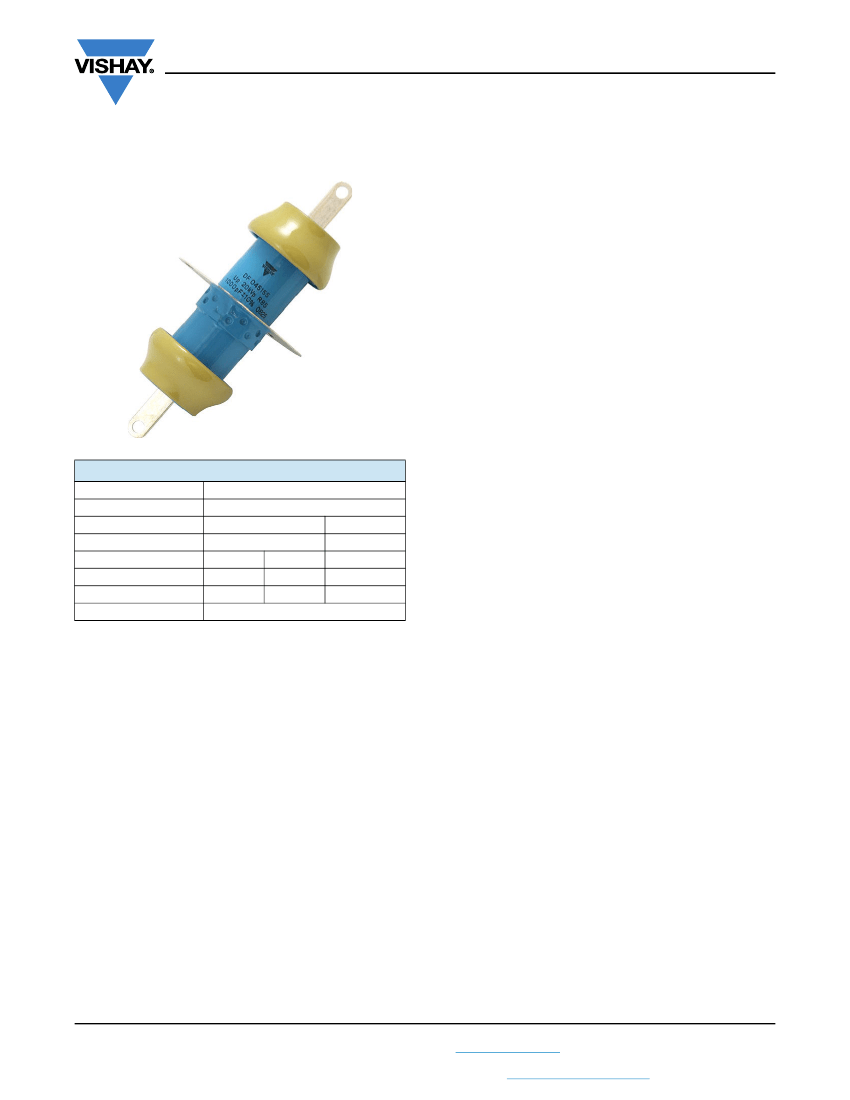

RF Power Feed-Through Capacitors
with Mounting Tags, Class 1 Ceramic
FEATURES
• Geometry minimizes inductance
• Wide range of capacitance values
• High voltage ratings
APPLICATIONS
Filtering purposes in industrial and medical RF power
equipment, where high voltages and high feed-through
currents are required.
CAPACITANCE RANGE
200 pF to 4.7 nF
CAPACITANCE TOLERANCE
± 20 %; ± 10 %; ± 5 %
CERAMIC DIELECTRICS
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Type
Voltage (V
p
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
DF 045120
10 000
800
4700
11 000
200
3000
Screw terminal
VALUE
1
R16, R42, R85, R230
R85, R230
DF 045155
14 000
1000
2700
• R16 (TCC + 100 ppm/K)
• R42 (TCC - 250 ppm/K)
• R85 (TCC - 750 ppm/K)
• R230 (TCC - 750 ppm/K)
RATED VOLTAGE
• 10 kV
p
• 11 kV
p
• 14 kV
p
MATERIAL
Capacitor elements made from class 1 ceramic dielectric
with noble metal electrodes.
Connection terminals:
made from copper / brass, silver plated.
For higher feed-through current, an additional feed-through
conductor must be provided.
DIELECTRIC STRENGTH TEST
200 % of rated AC voltage (50 Hz, 5 minutes)
DISSIPATION FACTOR
R16:
max. 0.04 %
R42, R85, R230: max. 0.05 %
Measuring frequencies:
1 MHz (< 1 nF); 300 kHz or 100 kHz ( 1 nF)
FINISH
Capacitor body completely protective lacquered.
The contoured insulating rims are additionally glazed.
INSULATION RESISTANCE
Min. 10 000 M (at 25 °C)
MARKING
Type designator, capacitance value and tolerance, rated
peak voltage, ceramic material code, production date code,
manufacturer logo
OPERATING TEMPERATURE RANGE
-55 °C to +100 °C
Revision: 24-Jul-2019
Document Number: 22145
1
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DF 045120, DF 045155
www.vishay.com
Vishay Draloric
CAP.
VALUES
(pF)
RATED
VOLTAGE
(kV
P
)
RATED
POWER
(1)
(kvar)
RATED
CURRENT
(A
RMS
)
FEED-THROUGH
CURRENT
(2)
(A)
SAP PART NUMBER AND ELECTRICAL DATA
PART NUMBER
TYPE DF 045120
DFZ45120WE201##BG1
DFZ45120WE251##BG1
DFZ45120WE301##BG1
DFZ45120WE401##BH1
DFZ45120WE501##BH1
DFZ45120WE601##BH1
DFZ45120BH801##BH1
DFZ45120WE102##BJ1
DFZ45120WE122##BJ1
DFZ45120BH152##BJ1
DFZ45120WE202##BK1
DFZ45120WE252##BK1
DFZ45120WE302##BK1
DFZ45120BH472##BK1
TYPE DF 045155
DFZ45155WJ102##BJ1
DFZ45155WJ272##BK1
R85
R230
1000
2700
14.0
56.0
25.0
10.0
R230
R85
R42
R16
200
250
300
400
500
600
800
1000
1200
1500
2000
2500
3000
4700
10.0
11.0
10.0
11.0
10.0
60.0
50.0
10.0
11.0
CERAMIC
Notes
• ## 14
th
to 15
th
digit: capacitance tolerance code ± 20 % = 38, ± 10 % = 36, ± 5 % = 33
(1)
The surface temperature during operation must not exceed +100 °C
(2)
DC or low frequency RMS current (< 20 kHz)
DIMENSIONS
in millimeters (inches)
Ø 5.2 ± 0.2
(0.205 ± 0.008 Dia.)
Ø 84.0 ± 0.5
(3.307 ± 0.020 Dia.)
0.8
(0.031)
Ø 73.0 ± 0.5
(2.874 ± 0.020 Dia.)
Ø 65 (2.65 Dia.)
=
Ø 45
(1.77 Dia.)
=
12.0 x 0.7
(0.472 x 0.028)
20 - 1
(0.79 - 0.04)
Ø 6.0 + 0.3
(0.236 + 0.012 Dia.)
60°
DF 045120: 120 (4.72)
DF 045155: 155 (6.10)
Revision: 24-Jul-2019
Document Number: 22145
2
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DF 045120, DF 045155
www.vishay.com
MOUNTING GUIDELINES
• The connection to one electrode must be flexible in order to prevent the generation of physical force which could damage the
capacitor elements. Such forces are often generated by the dimensional differences resulting from the normal physical
tolerances of these components.
• The capacitor elements must not be used as a mechanical support for other devices or components.
Vishay Draloric

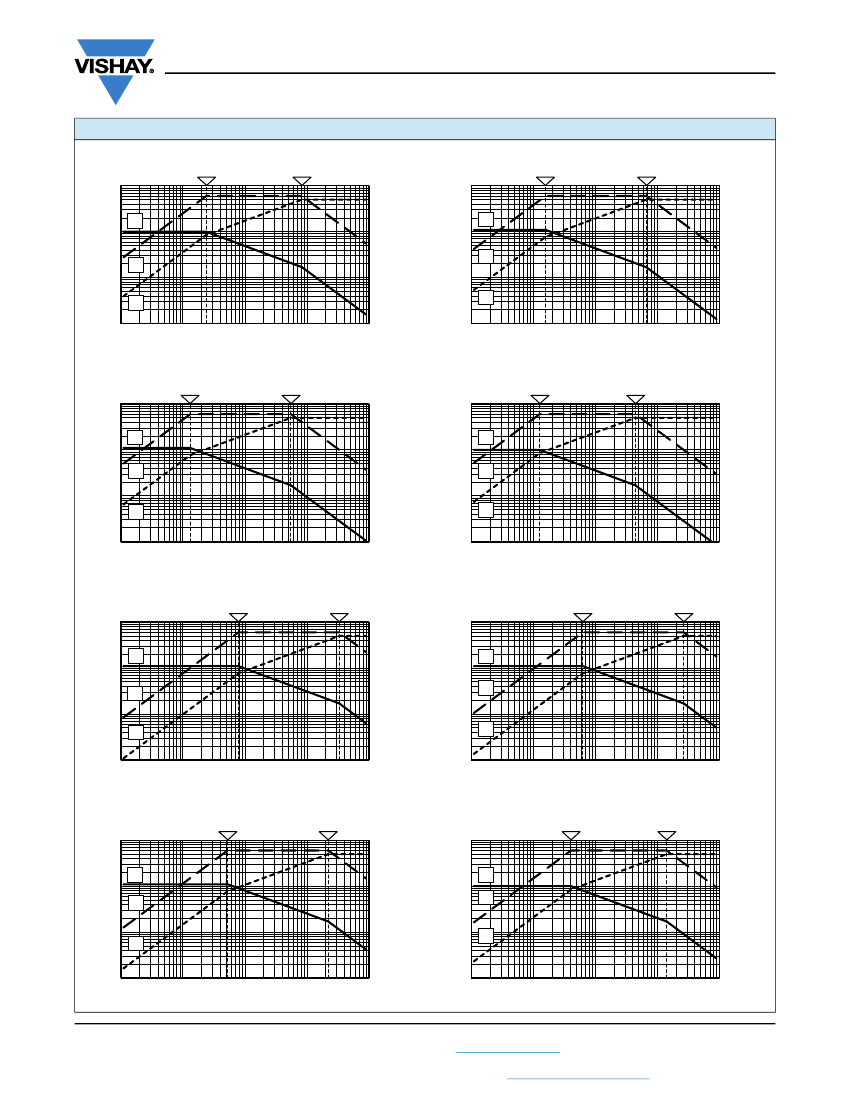

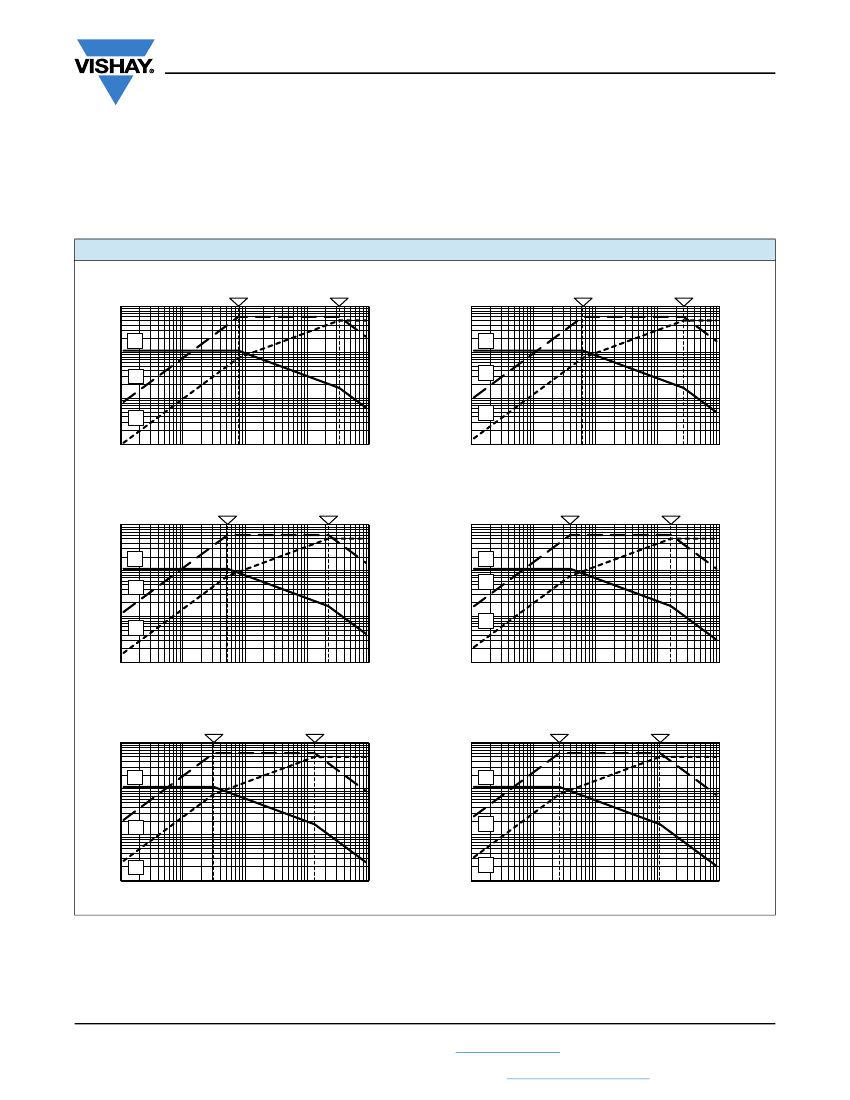

DERATING DIAGRAMS
DFZ45120WE201##BG1
U
g
(kV
p
)
100
0.79 MHz
I
g
(A
RMS
)
33.1 MHz Q (kvar)
g
100
U
g
(kV
p
)
100
DFZ45120WE251##BG1
0.63 MHz
26.5 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
U
g
10
Q
g
1
I
g
0.1
0.01
0.1
0.1
1
10
100
1
1
10
10
U
g
10
Q
g
1
I
g
0.1
0.01
0.1
0.1
1
10
100
Frequency (MHz)
DFZ45120WE301##BG1
U
g
(kV
p
)
100
0.53 MHz
22.1 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
U
g
(kV
p
)
100
Frequency (MHz)
DFZ45120WE401##BH1
0.39 MHz
16.6 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
U
g
10
Q
g
1
I
g
1
1
10
10
U
g
10
Q
g
I
g
1
0.1
0.01
0.1
0.1
1
10
100
0.1
0.01
0.1
0.1
1
10
100
Frequency (MHz)
DFZ45120WE501##BH1
U
g
(kV
p
)
100
0.32 MHz
13.3 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
U
g
(kV
p
)
100
Frequency (MHz)
DFZ45120WE601##BH1
0.26 MHz
11.0 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
U
g
10
10
10
U
g
10
1
Q
g
Q
g
1
1
I
g
0.1
0.1
1
10
100
0.1
0.01
0.1
0.1
1
10
100
1
I
g
0.1
0.01
Frequency (MHz)
Frequency (MHz)
Revision: 24-Jul-2019
Document Number: 22145
3
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
