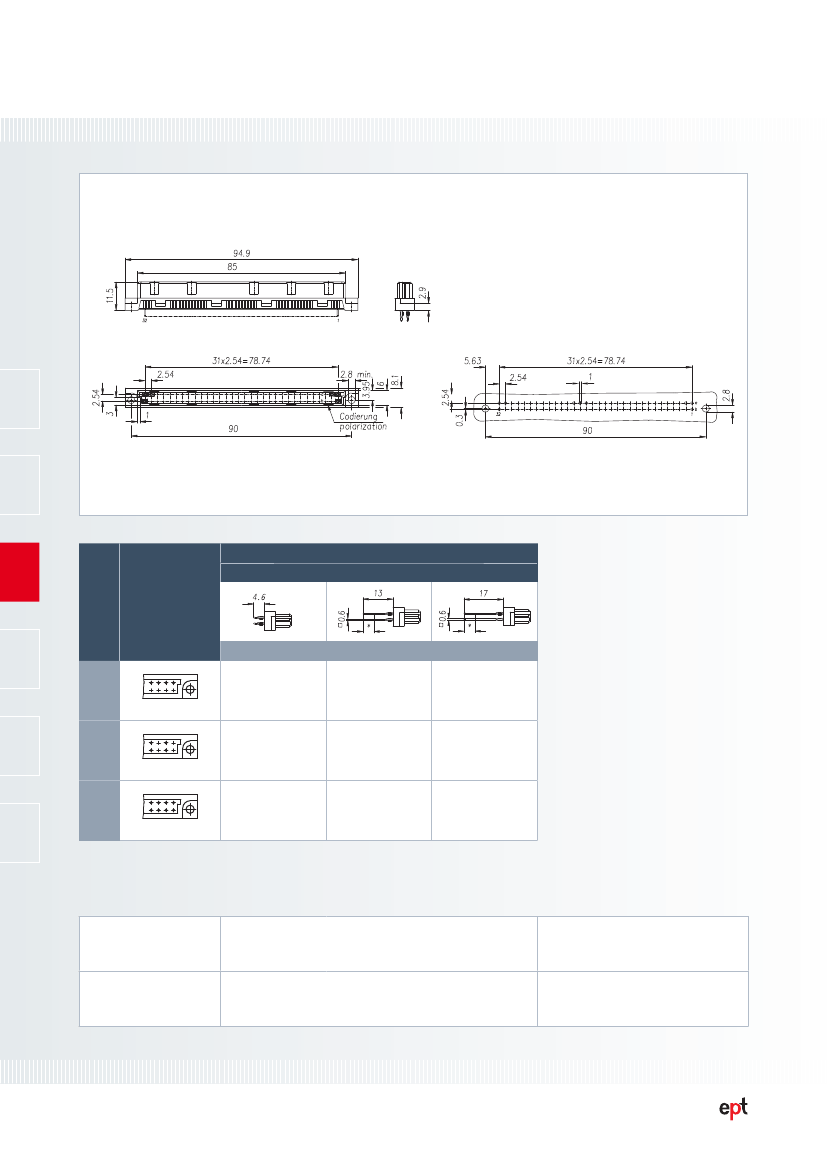

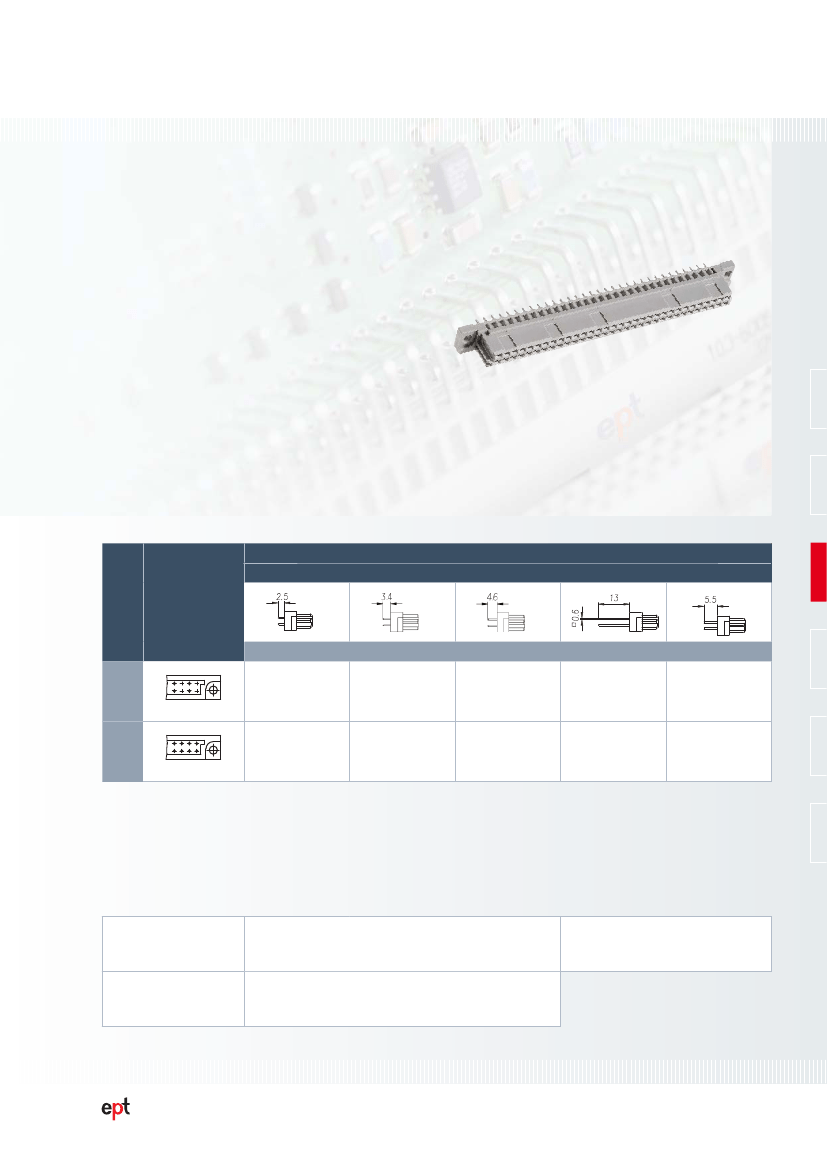

Connectors according to DIN 41612 / IEC 60603-2
Type B
Female connector
Dimensions in mm
Hole pattern
Press-fit technology –
Performance level II
Termination length
No. of
contacts
Contact
arrangement
Part number
302-63014-02
4
3 2 1
32
a
b
302-65015-03
302-65016-04
32
a
b
4
3 2 1
102-63024-xx
102-65025-xx
102-65026-xx
64
4
3 2 1
302-63064-02
302-65065-03
302-65066-04
Accessories
– Press-fit tool (see page 208)
– Support tool (see page 209)
– Coding accessories (see page 160)
Note
– * Rear mating zone
performance level II
On request
– Performance levels I + III or customer-specific
– Special contact length
– Alternative surface Sn, e. g. for WireWrap
Ordering note
Only for 102 – PCB 1.5 to 2.0 mm = xxx-xxxxx-01 with termination length = 3.2 mm
– PCB 2.0 to 2.8 mm = xxx-xxxxx-02 with termination length = 4.6 mm
– PCB > 2.8 mm
= xxx-xxxxx-03 with termination length = 4.6 mm
Options
– Without
fl
ange
– Contact arrangement (see page 162)
Cross reference
– Type B with IDC (see page 156)
86
ept GmbH
I
Phone +49 (0) 88 61 / 25 01 0
I
Fax +49 (0) 88 61 / 55 07
I
E-mail sales@ept.de
I
www.ept.de
Connectors according to DIN 41612 / IEC 60603-2
Type B
Female connector
Solder technology –
Performance level II
Termination length
Manual soldering with solder lug
No. of
contacts
Contact
arrangement
Part number
102-40024
–
–
102-40026
102-40044
32
a
b
4
3 2 1
302-40064-05
64
4
3 2 1
302-40064-01
302-40064-01TH
in THTR*
302-40064-02
302-40064-02TH
in THTR*
302-40064-05TH
in THTR*
302-40065-03
102-40074
Accessories
– Coding accessories (see page 160)
On request
– Performance levels I + III or customer-specific
– Special contact length
– Other termination lengths in THTR
Note
– * THTR (Through Hole Technology Reflow)
Options
– Board lock (see page 159)
– Contact arrangement (see page 162)
Cross reference
– Type B with IDC (see page 156)
ept GmbH
I
Phone +49 (0) 88 61 / 25 01 0
I
Fax +49 (0) 88 61 / 55 07
I
E-mail sales@ept.de
I
www.ept.de
87
