Type CD16 & CDV16
Snubber and RF Application, Mica Capacitors
Higher dV/dt Capability and Flatter Insertion Loss
H
Max.
0.078"
No Solder
Minuscule Pant Leg
1.0"
Min.
L
Max.
T
Max
Measured at
point where
phenolic cone
becomes a
cylinder
Standard, Miniature Dipped Mica and CMRs
S
±0.031
CD16, CDV16 and CD4
L
Max.
H
Max.
T
Max
0.06"
Measured at
point where
phenolic cone
becomes a
cylinder
No Solder
Minuscule Pant Leg
1.0"
Min.
S
±0.031
Highlights
Ideal for snubber and RF applications, CDV16 mica capacitors
now handle dV/dts up to 275,000 V/μs and they assure controlled,
resonance-free performance through 1 GHz. CDV16/CD16 mica
capacitors excel in both snubber applications and high-frequency
applications like RF and CATV. Type CDV16’s high pulse current
capability make them ideal for pulse and snubber applications.
CDV16 capacitors withstand an unlimited number of pulses with
a dV/dt of 275,000 V/μs. This is a 20% increase in dV/dt capability
when compared to our CDV19 mica capacitors and CDV16’s are
smaller too. CDV16 capacitors handle higher peak currents — up to
825 amps. They also handle high continuous RMS current at 5 MHz
and up to 30 MHz. For example, a 3000 pF CDV16 capacitor handles
6.2 A rms continuously at 13.56 MHz and it is 1/4 the cost of a
comparable porcelain ceramic capacitor. In addition to being great
for snubbers, CDV16 is a fit for your RF applications. Their compact
size and closer lead spacing improves insertion loss performance
— insertion loss data is flat within ±0.2 dB, typically to beyond a
gigahertz.
• Handles up to 9.0 amps rms continuous current
• Very low ESR from 10 to 100 MHz
• Low, notch-free impedance to 1GHz
• Stable: no capacitance change with (V), (t), and (f )
• Very high Q at UHF/VHF frequencies
• Tape and reeling available
• dV/dt capability up to 275,000 V/μs
• 1,500 amps peak current capability
Specifications
Capacitance Range:
Capacitance Tolerance:
Voltage:
Temperature Range:
100 pF to 7,500 pF
±5% (J) standard;
±1% (F) and ±2%
(G) available
500 Vdc & 1,000 Vdc
–55 °C to +150 °C
Part Numbering System
CD16 / CDV16
Series
F
Characteristic
Code
D/F
Voltage
(Vdc)
101
Capacitance
(pF)
J
Capacitance
Tolerance
O
Temperature
Range
3
Vibration
Grade
F
Blank =
Not Specified
F= RoHS
Compliant
D = 500 Vdc
F = 1000 Vdc
101 = 100 pF
102 = 1000 pF
O = –55 ºC to +125 ºC
P = –55 ºC to +150 ºC
Vibration Grade
Characteristics
Code
F
Temp. Coeff.
ppm/ ºC
0 to +70
Capacitance
Drift
±(0.05% +0.1 pF)
Standard Cap.
Range
91 pF and up
Capacitance Tolerance
Tol.
Code
F
G
J
Tolerance
±1 %
±2 %
±5 %
Vibration
No.
3
MIL-STD-202
Method 204
Condition D
Condition (Hz)
10 to 2,000
Standard vibration grade is 3
Standard tolerance is ±5%
For RoHS compliant add the letter F at the end of the part number.
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Ph: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
Type CD16 & CDV16
Snubber and RF Application, Mica Capacitors

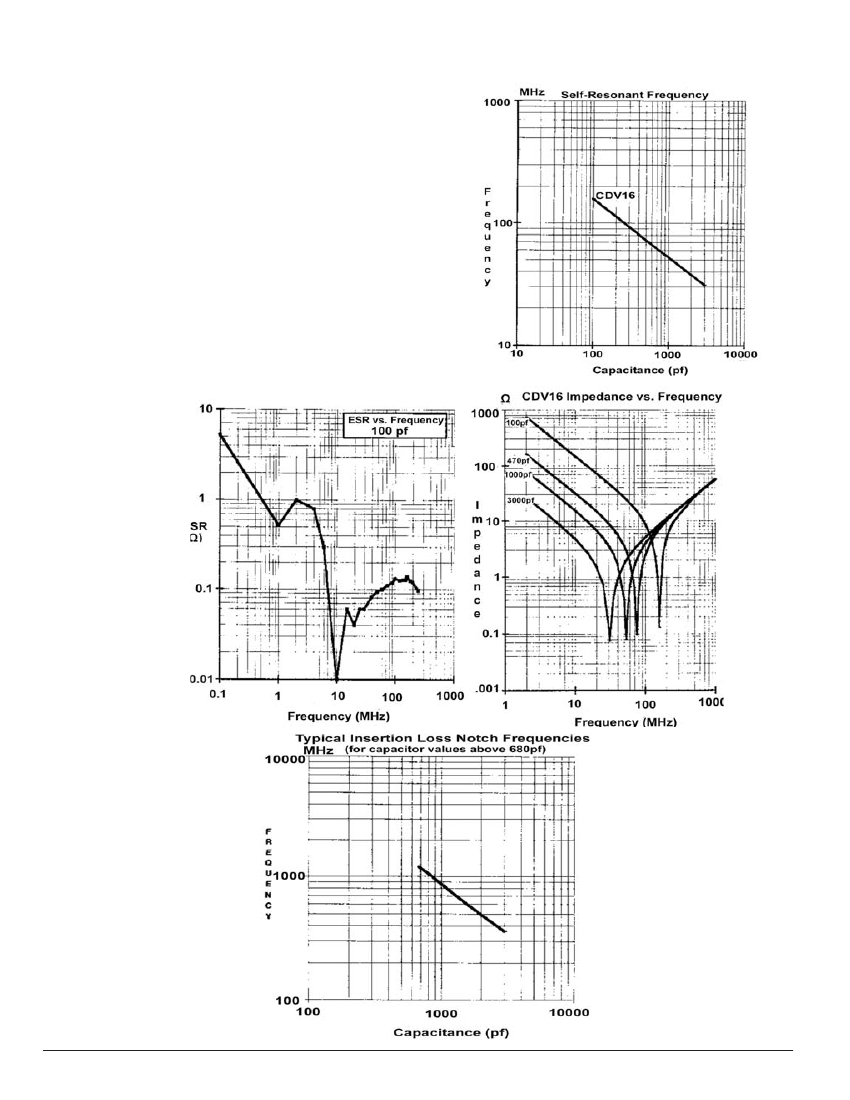

Typical Performance Curves
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Ph: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
Type CD16 & CDV16
Snubber and RF Application, Mica Capacitors
Ratings
Cap.
(pF)
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
*
2200
2700
3000
3300
3600
3900
4300
4700
5600
6800
7500
100
120
130
150
180
200
220
240
270
300
330
360
390
420
430
470
500
510
560
620
680
750
820
910
1000
1200
1300
1500
1800
*
2000
2200
2400
2700
3000
Catalog
Part Number
CD16FD101JO3
CD16FD121JO3
CD16FD151JO3
CD16FD181JO3
CD16FD221JO3
CD16FD271JO3
CD16FD331JO3
CD16FD391JO3
CD16FD471JO3
CD16FD561JO3
CD16FD681JO3
CD16FD821JO3
CD16FD102JO3
CD16FD122JO3
CD16FD152JO3
CD16FD182JO3
CD16FD222JO3
CD16FD272JO3
CD16FD302JO3
CD16FD332JO3
CD16FD362JO3
CD16FD392JO3
CD16FD432JO3
CD16FD472JO3
CD16FD562JO3
CD16FD682JO3
CD16FD752JO3
CDV16FF101JO3
CDV16FF121JO3
CDV16FF131JO3
CDV16FF151JO3
CDV16FF181JO3
CDV16FF201JO3
CDV16FF221JO3
CDV16FF241JO3
CDV16FF271JO3
CDV16FF301JO3
CDV16FF331JO3
CDV16FF361JO3
CDV16FF391JO3
CDV16FF421JO3
CDV16FF431JO3
CDV16FF471JO3
CDV16FF501JO3
CDV16FF511JO3
CDV16FF561JO3
CDV16FF621JO3
CDV16FF681JO3
CDV16FF751JO3
CDV16FF821JO3
CDV16FF911JO3
CDV16FF102JO3
CDV16FF122JO3
CDV16FF132JO3
CDV16FF152JO3
CDV16FF182JO3
CDV16FF202JO3
CDV16FF222JO3
CDV16FF242JO3
CDV16FF272JO3
CDV16FF302JO3
L
in (mm)
.43 (10.9)
.43 (10.9)
.43 (10.9)
.43 (10.9)
.43 (10.9)
.45 (11.4)
.45 (11.4)
.45 (11.4)
.45 (11.4)
.46 (11.7)
.46 (11.7)
.46 (11.7)
.46 (11.7)
.46 (11.7)
.46 (11.7)
.47 (11.9)
.47 (11.9)
.47 (11.9)
.47 (11.9)
.48 (12.2)
.48 (12.2)
.48 (12.2)
.48 (12.2)
.49 (12.5)
.49 (12.5)
.50 (12.7)
.50 (12.7)
.43 (10.9)
.43 (10.9)
.43 (10.9)
.43 (10.9)
.43 (10.9)
.43 (10.9)
.43 (10.9)
.43 (10.9)
.45 (11.4)
.45 (11.4)
.45 (11.4)
.45 (11.4)
.45 (11.4)
.45 (11.4)
.45 (11.4)
.45 (11.4)
.45 (11.4)
.45 (11.4)
.46 (11.7)
.46 (11.7)
.46 (11.7)
.46 (11.7)
.46 (11.7)
.46 (11.7)
.46 (11.7)
.46 (11.7)
.46 (11.7)
.46 (11.7)
.47 (11.9)
.47 (11.9)
.47 (11.9)
.47 (11.9)
.47 (11.9)
.47 (11.9)
H
T
Ipk
Max Continuous Current @ 85°C, Amps
in (mm)
in (mm) Amps 100kHz 250 kHz 500 kHz 1MHz 2.5MHz 5MHz
500 Vdc (300 Vac)
.46 (11.7) 0.15 (3.8)
20
0.019
0.047
0.09
0.19
0.47
0.78
.46 (11.7) 0.15 (3.8)
24
0.023
0.057
0.11
0.23
0.57
0.86
.46 (11.7) 0.15 (3.8)
30
0.028
0.071
0.14
0.28
0.71
0.96
.46 (11.7) 0.15 (3.8)
36
0.034
0.085
0.17
0.34
0.85
1.1
.46 (11.7) 0.15 (3.8)
44
0.041
0.10
0.21
0.41
1.0
1.2
.47 (11.9) 0.16 (4.1)
54
0.051
0.13
0.25
0.51
1.3
1.3
.47 (11.9) 0.16 (4.1)
66
0.062
0.16
0.31
0.62
1.5
1.5
.47 (11.9) 0.16 (4.1)
78
0.074
0.18
0.37
0.74
1.6
1.6
.47 (11.9) 0.16 (4.1)
94
0.089
0.22
0.44
0.89
1.8
1.8
.50 (12.7) 0.18 (4.6)
110
0.11
0.26
0.53
1.1
2.0
2.0
.50 (12.7) 0.18 (4.6)
160
0.15
0.39
0.77
1.5
2.5
2.5
.50 (12.7) 0.18 (4.6)
160
0.15
0.39
0.77
1.5
2.5
2.5
.50 (12.7) 0.18 (4.6)
200
0.19
0.47
0.94
1.9
2.7
2.7
.50 (12.7) 0.18 (4.6)
240
0.23
0.57
1.1
2.3
3.0
3.0
.50 (12.7) 0.18 (4.6)
300
0.28
0.71
1.4
2.7
3.3
3.3
.52 (13.2) 0.25 (6.4)
360
.52 (13.2) 0.25 (6.4)
440
.52 (13.2) 0.25 (6.4)
540
.52 (13.2) 0.25 (6.4)
600
.53 (13.7) 0.28 (7.1)
600
.53 (13.7) 0.28 (7.1)
720
.54 (13.7) 0.28 (7.1)
780
.54 (13.7) 0.28 (7.1)
860
.56 (14.2) 0.31 (7.9)
940
.56 (14.2) 0.33 (8.4) 1100
.57 (14.7) 0.38 (9.7) 1300
.58 (14.7) .40 (10.2) 1500
1,000 Vdc (350 Vac)
.46 (11.7)
.15 (3.8)
23
.46 (11.7)
.15 (3.8)
27
.46 (11.7)
.15 (3.8)
29
.46 (11.7)
.15 (3.8)
34
.46 (11.7)
.15 (3.8)
41
.46 (11.7)
.15 (3.8)
45
.46 (11.7)
.15 (3.8)
50
.46 (11.7)
.15 (3.8)
54
.47 (11.9)
.16 (4.1)
61
.47 (11.9)
.16 (4.1)
68
.47 (11.9)
.16 (4.1)
74
.47 (11.9)
.16 (4.1)
81
.47 (11.9)
.16 (4.1)
88
.47 (11.9)
.16 (4.1)
95
.47 (11.9)
.16 (4.1)
97
.47 (11.9)
.16 (4.1)
106
.47 (11.9)
.16 (4.1)
113
.47 (11.9)
.16 (4.1)
115
.50 (12.7)
.17 (4.4)
126
.50 (12.7)
.17 (4.4)
140
.50 (12.7)
.17 (4.4)
153
.50 (12.7)
.17 (4.4)
169
.50 (12.7)
.17 (4.4)
185
.50 (12.7)
.17 (4.4)
205
.50 (12.7)
.17 (4.4)
225
.50 (12.7)
.17 (4.4)
270
.50 (12.7)
.17 (4.4)
293
.50 (12.7)
.18 (4.6)
338
.52 (13.2)
.52 (13.2)
.52 (13.2)
.52 (13.2)
.52 (13.2)
.52 (13.2)
.25 (6.4)
.25 (6.4)
.25 (6.4)
.25 (6.4)
.25 (6.4)
.25 (6.4)
495
605
605
660
743
825
0.34
0.41
0.51
0.57
0.57
0.68
0.74
0.81
0.89
1.1
1.3
1.4
0.022
0.026
0.029
0.033
0.04
0.044
0.048
0.053
0.059
0.066
0.073
0.079
0.086
0.092
0.095
0.1
0.11
0.11
0.12
0.14
0.15
0.16
0.18
0.2
0.22
0.26
0.29
0.33
0.4
0.48
0.48
0.53
0.59
0.66
0.85
1.0
1.3
1.4
1.4
1.7
1.8
2.0
2.2
2.6
3.2
3.5
0.055
0.066
0.071
0.082
0.10
0.11
0.12
0.13
0.15
0.16
0.18
0.2
0.21
0.23
0.24
0.26
0.27
0.28
0.31
0.34
0.37
0.41
0.45
0.5
0.55
0.66
0.71
0.82
0.99
1.2
1.2
1.3
1.5
1.6
1.7
2.1
2.5
2.8
2.8
3.4
3.7
4.0
4.4
5.3
6.4
7.1
0.11
0.13
0.14
0.16
0.2
0.22
0.24
0.26
0.3
0.33
0.36
0.4
0.43
0.46
0.47
0.52
0.55
0.56
0.62
0.68
0.75
0.82
0.9
1
1.1
1.3
1.4
1.6
2
2.4
2.4
2.6
3
3.3
3.4
4.1
5.0
5.2
5.7
6.8
7.4
7.0
8.5
9.0
9.0
9.0
0.22
0.26
0.29
0.33
0.4
0.44
0.48
0.53
0.59
0.7
0.73
0.79
0.86
0.92
0.95
1
1.1
1.1
1.2
1.4
1.5
1.6
1.8
2
2.2
2.6
2.9
3.3
4
4.8
4.8
5.3
5.8
6.2
4.1
4.5
5.0
5.2
6.8
7.1
7.4
7.8
8.5
9.0
9.0
9.0
0.55
0.66
0.71
0.82
1.0
1.1
1.2
1.3
1.5
1.6
1.8
1.8
1.9
2
2.0
2.1
2.2
2.2
2.4
2.5
2.7
2.8
2.9
3.1
3.2
3.5
3.7
3.9
4.8
5.3
5.3
5.5
5.8
6.2
4.1
4.5
5.0
5.2
6.8
7.1
7.4
7.8
8.5
9.0
9.0
9.0
0.92
1
1.1
1.1
1.2
1.3
1.4
1.4
1.6
1.7
1.8
1.8
1.9
2.0
2.0
2.1
2.2
2.2
2.4
2.5
2.7
2.8
2.9
3.1
3.2
3.5
3.7
3.9
4.8
5.3
5.3
5.5
5.8
6.2
*
Best RF performances is = to or < this cap rating.
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Ph: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
Type CD16 & CDV16
Snubber and RF Application, Mica Capacitors
Notice and Disclaimer:
All product drawings, descriptions, specifications, statements, information and data
(collectively, the “Information”) in this datasheet or other publication are subject to change. The customer
is responsible for checking, confirming and verifying the extent to which the Information contained in this
datasheet or other publication is applicable to an order at the time the order is placed. All Information given
herein is believed to be accurate and reliable, but it is presented without any guarantee, warranty, representation
or responsibility of any kind, expressed or implied. Statements of suitability for certain applications are based
on the knowledge that the Cornell Dubilier company providing such statements (“Cornell Dubilier”) has
of operating conditions that such Cornell Dubilier company regards as typical for such applications, but
are not intended to constitute any guarantee, warranty or representation regarding any such matter – and
Cornell Dubilier specifically and expressly disclaims any guarantee, warranty or representation concerning
the suitability for a specific customer application, use, storage, transportation, or operating environment.
The Information is intended for use only by customers who have the requisite experience and capability to
determine the correct products for their application. Any technical advice inferred from this Information or
otherwise provided by Cornell Dubilier with reference to the use of any Cornell Dubilier products is given
gratis (unless otherwise specified by Cornell Dubilier), and Cornell Dubilier assumes no obligation or liability
for the advice given or results obtained. Although Cornell Dubilier strives to apply the most stringent quality
and safety standards regarding the design and manufacturing of its products, in light of the current state
of the art, isolated component failures may still occur. Accordingly, customer applications which require a
high degree of reliability or safety should employ suitable designs or other safeguards (such as installation
of protective circuitry or redundancies or other appropriate protective measures) in order to ensure that the
failure of an electrical component does not result in a risk of personal injury or property damage. Although
all product-related warnings, cautions and notes must be observed, the customer should not assume that all
safety measures are indicated in such warnings, cautions and notes, or that other safety measures may not be
required.
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Ph: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
/cdv16ff101jo3f_pdf/pg_0001.png)
京公网安备 11010802033920号
EEWORLD/cdv16ff101jo3f_pdf/1.png)
/cdv16ff101jo3f_pdf/2.png)
/cdv16ff101jo3f_pdf/3.png)
/cdv16ff101jo3f_pdf/4.png)
/cdv16ff101jo3f_pdf/pg_0002.png)
/cdv16ff101jo3f_pdf/pg_0003.png)
/cdv16ff101jo3f_pdf/pg_0004.png)
