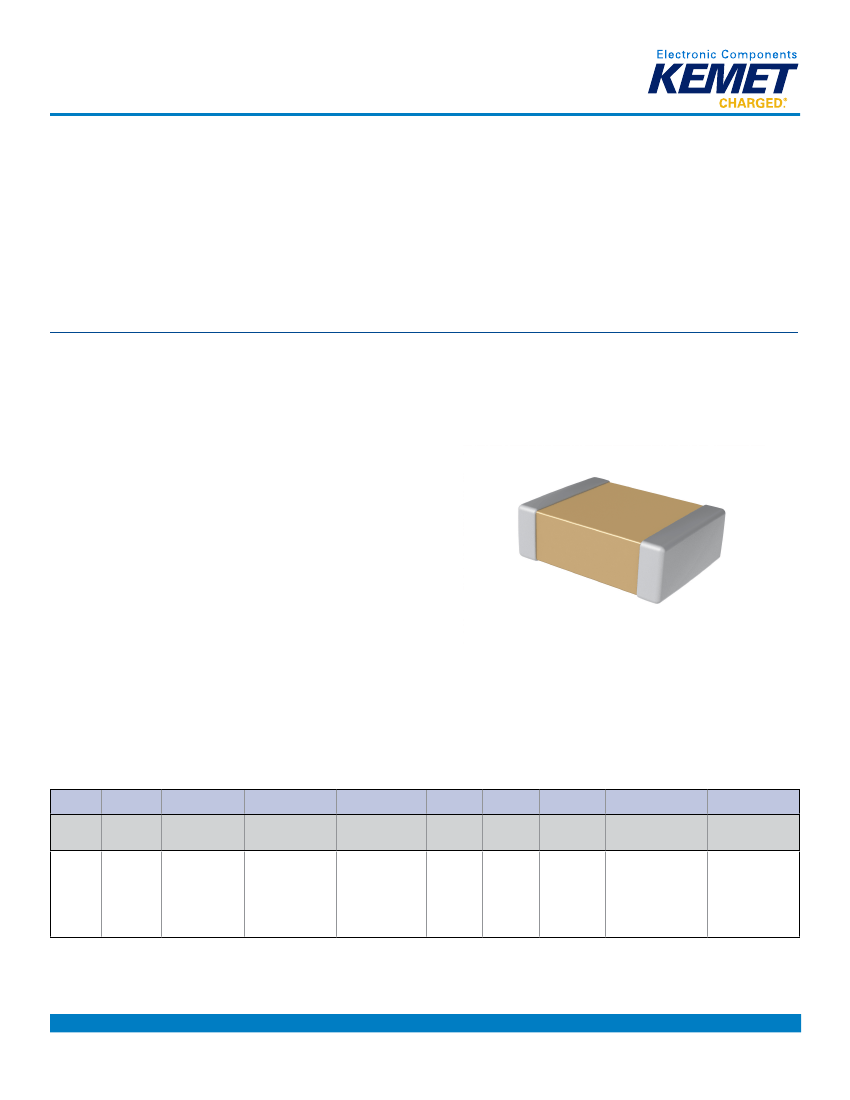

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
Y5V Dielectric, 6.3 – 50 VDC (Commercial Grade)
Overview
KEMET’s Y5V dielectric features an 85°C maximum
operating temperature and is considered “general-purpose.”
The Electronics Components, Assemblies & Materials
Association (EIA) characterizes Y5V dielectric as a Class III
material. Components of this classification are fixed, ceramic
dielectric capacitors suited for bypass and decoupling or other
applications in which dielectric losses, high insulation resistance
and capacitance stability are not of major importance. Y5V exhibits
a predictable change in capacitance with respect to time and
voltage and displays wide variations in capacitance with reference
to ambient temperature. Capacitance change is limited to +22%,
-82% from -30°C to +85°C.
Benefits
•
•
•
•
•
•
•
•
-30°C to +85°C operating temperature range
Lead (Pb)-Free, RoHS and REACH compliant
EIA 0402, 0603, 0805, 1206, and 1210 case sizes
DC voltage ratings of 6.3 V, 10 V, 16 V, 25 V, and 50 V
Capacitance offerings ranging from 0.022 μF to 22 μF
Available capacitance tolerance of +80%/ -20%
Non-polar device, minimizing installation concerns
100% pure matte tin-plated termination finish that allowing for
excellent solderability
Applications
Typical applications include limited temperature, decoupling and
bypass.
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Ordering Information
C
Ceramic
1210
Case Size
(L" x W")
0402
0603
0805
1206
1210
C
Specification/
Series
C = Standard
226
Capacitance
Code (pF)
Z
Capacitance
Tolerance
4
Voltage
9 = 6.3 V
8 = 10 V
4 = 16 V
3 = 25 V
5 = 50 V
V
Dielectric
V = Y5V
A
C
TU
Packaging/Grade
(C-Spec)
2
Failure Rate/
Termination Finish
1
Design
A = N/A
2 Significant Digits
Z = +80%/ -20%
+ Number of Zeros
C = 100% Matte Sn Blank = Bulk
TU = 7" Reel
Unmarked
1
2
Additional termination finish options may be available. Contact KEMET for details.
Additional reeling or packaging options may be available. Contact KEMET for details.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1005_Y5V_SMD • 7/24/2014
1
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) – Y5V Dielectric, 6.3 – 50 VDC (Commercial Grade)
Dimensions – Millimeters (Inches)
W
L
T
B
S
EIA
Size
Code
0402
0603
0805
1206
1210
Metric
Size
Code
1005
1608
2012
3216
3225
L
Length
W
Width
T
Thickness
B
Bandwidth
0.30 (.012) ± 0.10 (.004)
0.35 (.014) ± 0.15 (.006)
S
Separation
Minimum
0.30 (.012)
0.70 (.028)
0.75 (.030)
N/A
Mounting
Technique
Solder Reflow Only
Solder Wave or Solder
Reflow
Solder Reflow Only
1.00 (.040) ± 0.05 (.002) 0.50 (.020) ± 0.05 (.002)
1.60 (.063) ± 0.15 (.006) 0.80 (.032) ± 0.15 (.006)
2.00 (.079) ± 0.20 (.008) 1.25 (.049) ± 0.20 (.008)
See Table 2 for
0.50 (0.02) ± 0.25 (.010)
Thickness
3.20 (.126) ± 0.20 (.008) 1.60 (.063) ± 0.20 (.008)
0.50 (0.02) ± 0.25 (.010)
3.20 (.126) ± 0.20 (.008) 2.50 (.098) ± 0.20 (.008)
0.50 (0.02) ± 0.25 (.010)
Qualification/Certification
Commercial Grade products are subject to internal qualification. Details regarding test methods and conditions are referenced in
Table 4, Performance & Reliability.
Environmental Compliance
Lead (Pb)-Free, RoHS, and REACH compliant without exemptions (excluding SnPb termination finish option).
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1005_Y5V_SMD • 7/24/2014
2
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) – Y5V Dielectric, 6.3 – 50 VDC (Commercial Grade)
Electrical Parameters/Characteristics
Item
Operating Temperature Range
Capacitance Change with Reference to +25°C and 0 VDC Applied (TCC)
Aging Rate (Maximum % Capacitance Loss/Decade Hour)
Dielectric Withstanding Voltage (DWV)
Dissipation Factor (DF) Maximum Limit @ 25ºC
Insulation Resistance (IR) Limit @ 25°C
-30°C to +85°C
+22%, -82%
7.0%
250% of rated voltage
(5 ±1 seconds and charge/discharge not exceeding 50 mA)
10% (6.3 and 10 V), 7% (16 and 25 V) and 5% (50 V)
See Insulation Resistance Limit Table
(Rated voltage applied for 120 ±5 seconds @ 25°C)
Parameters/Characteristics
Regarding aging rate: Capacitance measurements (including tolerance) are indexed to a referee time of 1,000 hours.
To obtain IR limit, divide MΩ-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.
Capacitance and Dissipation Factor (DF) measured under the following conditions:
1 kHz ±50 Hz and 1.0 ±0.2 Vrms
120 Hz ±10 Hz and 0.5 ±0.1 Vrms if capacitance >10 µF
Note: When measuring capacitance it is important to ensure the set voltage level is held constant. The HP4284 and Agilent E4980 have a feature known as
Automatic Level Control (ALC). The ALC feature should be switched to "ON."
Post Environmental Limits
High Temperature Life, Biased Humidity, Moisture Resistance
Dielectric
Rated DC
Voltage
> 25
Y5V
16/25
< 16
All
Capacitance
Value
Dissipation Factor
(Maximum %)
7.5
10.0
15.0
±30%
10% of Initial Limit
Capacitance
Shift
Insulation
Resistance
Insulation Resistance Limit Table
EIA Case Size
All
100 Megohm
Microfarads or 10 GΩ
≥ 16 V
50 Megohm
Microfarads or 10 GΩ
≤ 10 V
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1005_Y5V_SMD • 7/24/2014
3
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) – Y5V Dielectric, 6.3 – 50 VDC (Commercial Grade)
Table 1 – Capacitance Range/Selection Waterfall (0402 – 1210 Case Sizes)
Case Size/
Series
Voltage Code
Rated Voltage (VDC)
Capacitance Tolerance
22,000 pF
27,000 pF
33,000 pF
39,000 pF
47,000 pF
56,000 pF
68,000 pF
82,000 pF
0.10 µF
0.12 µF
0.15 µF
0.18 µF
0.22 µF
0.27 µF
0.33 µF
0.39 µF
0.47 µF
0.56 µF
0.68 µF
0.82 µF
1.0 µF
1.2 µF
1.5 µF
1.8 µF
2.2 µF
3.3 µF
4.7 µF
5.6 µF
6.8 µF
10 µF
15 µF
22 µF
223
273
333
393
473
563
683
823
104
124
154
184
224
274
334
394
474
564
684
824
105
125
155
185
225
335
475
565
685
106
156
226
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
CF
CF
CF
CF
CF
CF
CF
CF
CG
CG
CG
CG
CG
CG
CG
CG
CG
CG
CG
CG
CG
CF
CF
CF
CF
CF
CF
CF
CF
CG
CG
CG
CG
CG
CG
CG
CG
CG
CG
CG
CG
CG
CF
CF
CF
CF
CF
CF
CF
CF
CG
CG
CG
CG
CG
CG
CG
CG
CG
C0402C
9
6.3
8
10
4
16
9
6.3
C0603C
8
10
4
16
3
25
9
6.3
C0805C
8
10
4
16
3
25
5
50
9
6.3
C1206C
8
10
4
16
3
25
5
50
9
6.3
C1210C
8
10
4
16
3
25
FD
FD
FD
FD
FD
FD
FD
FF
FH
FH
50
5
25
3
5
50
FD
FD
FD
FD
FD
FD
FD
FF
FH
Capacitance
Capacitance
Code
Product Availability and Chip Thickness Codes
See Table 2 for Chip Thickness Dimensions
DC
DC
DC
DD
DC
DD
DD
DD
DC
DC
DC
DC
DC
DC
DG
DC
DG
DD
DE
DG
CG CG DG
DC
DC
DD
DG
DL
DG
DF
DG
DG
CF
CF
CF
CF
CF
CF
CF
CF
CG
CG
CG
CG
CG
CG
CG
DC
DC
DC
DD
DC
DD
DD
DD
DC
DC
DC
DC
DC
DC
DG
DC
DG
DD
DE
DG
DG
DC
DC
DD
DG
DL
DG
DF
DG
DG
DC
DC
DC
DD
DC
DD
DD
DD
DC
DC
DC
DC
DC
DC
DG
DC
DG
DD
DE
DG
DG
DC
DC
DD
DG
DG
DG
DC
DC
DC
DD
DC
DD
DD
DD
DC
DC
DC
DC
DC
DC
DG
DC
DG
DD
DE
DG
DG
DC
DC
DC
DD
DC
DD
DD
DD
DC
BB
DG
BB
BB
BB
BB
BB
EC EC EC
EB EB EB
EB EB EB
EB EB EB
EC EC EC
EB EB EB
EB EB EB
EB EB EB
DG EF EF EF
EC EC EC
EC EC EC
ED ED ED
EH EH EH
EH EH EH
EM EM EM
EJ EJ EJ
EJ EJ
EH EH EH
EH
EH
EC
EB
EB
EB
EC
EB
EB
EB
EG
EH
FD
FD
FD
FD
FD
FD
FD
FF
FH
FD
FD
FD
FJ
FE
FT
FG
FH
FT
FH
FH
6.3
50
FD
FD
FD
FD
FD
FD
FD
FF
FH
FD
FD
FD
FJ
FE
FT
FG
FH
FT
FH
FH
10
8
FD
FD
FD
FD
FD
FD
FD
FF
FH
FD
FD
FD
FJ
FE
FT
FG
FH
FT
FH
FH
16
4
Rated Voltage (VDC)
6.3
6.3
6.3
6.3
50
25
25
Capacitance
Capacitance
Code
Voltage Code
9
8
4
9
8
4
3
9
8
4
3
5
9
8
4
25
3
10
10
16
10
16
10
16
16
5
9
Case Size/
Series
C0402C
C0603C
C0805C
C1206C
C1210C
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1005_Y5V_SMD • 7/24/2014
4
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) – Y5V Dielectric, 6.3 – 50 VDC (Commercial Grade)
Table 2 – Chip Thickness/Packaging Quantities
Thickness
Code
BB
CF
CG
DC
DD
DL
DE
DF
DG
EB
EC
EH
ED
EF
EM
EG
EJ
FD
FE
FF
FG
FH
FJ
FT
Thickness
Code
Case
Size
0402
0603
0603
0805
0805
0805
0805
0805
0805
1206
1206
1206
1206
1206
1206
1206
1206
1210
1210
1210
1210
1210
1210
1210
Case
Size
Thickness ±
Range (mm)
0.50 ± 0.05
0.80 ± 0.07
0.80 ± 0.10*
0.78 ± 0.10
0.90 ± 0.10
0.95 ± 0.10
1.00 ± 0.10
1.10 ± 0.10
1.25 ± 0.15
0.78 ± 0.10
0.90 ± 0.10
0.90 ± 0.10
1.00 ± 0.10
1.20 ± 0.15
1.25 ± 0.15
1.60 ± 0.15
1.70 ± 0.20
0.95 ± 0.10
1.00 ± 0.10
1.10 ± 0.10
1.25 ± 0.15
1.55 ± 0.15
1.85 ± 0.20
1.90 ± 0.20
Thickness ±
Range (mm)
Paper Quantity
7" Reel
10,000
4,000
4,000
4,000
4,000
0
0
0
0
4,000
0
0
0
0
0
0
0
0
0
0
0
0
0
0
7" Reel
Plastic Quantity
7" Reel
0
0
0
0
0
4,000
2,500
2,500
2,500
4,000
4,000
4,000
2,500
2,500
2,500
2,000
2,000
4,000
2,500
2,500
2,500
2,000
2,000
1,500
7" Reel
13" Reel
50,000
15,000
15,000
10,000
10,000
0
0
0
0
10,000
0
0
0
0
0
0
0
0
0
0
0
0
0
0
13" Reel
13" Reel
0
0
0
0
0
10,000
10,000
10,000
10,000
10,000
10,000
10,000
10,000
10,000
10,000
8,000
8,000
10,000
10,000
10,000
10,000
8,000
8,000
4,000
13" Reel
Paper Quantity
Plastic Quantity
Package quantity based on finished chip thickness specifications.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
C1005_Y5V_SMD • 7/24/2014
5
