3152-5-5 datasheet, PDF - EEWORLD Datasheet

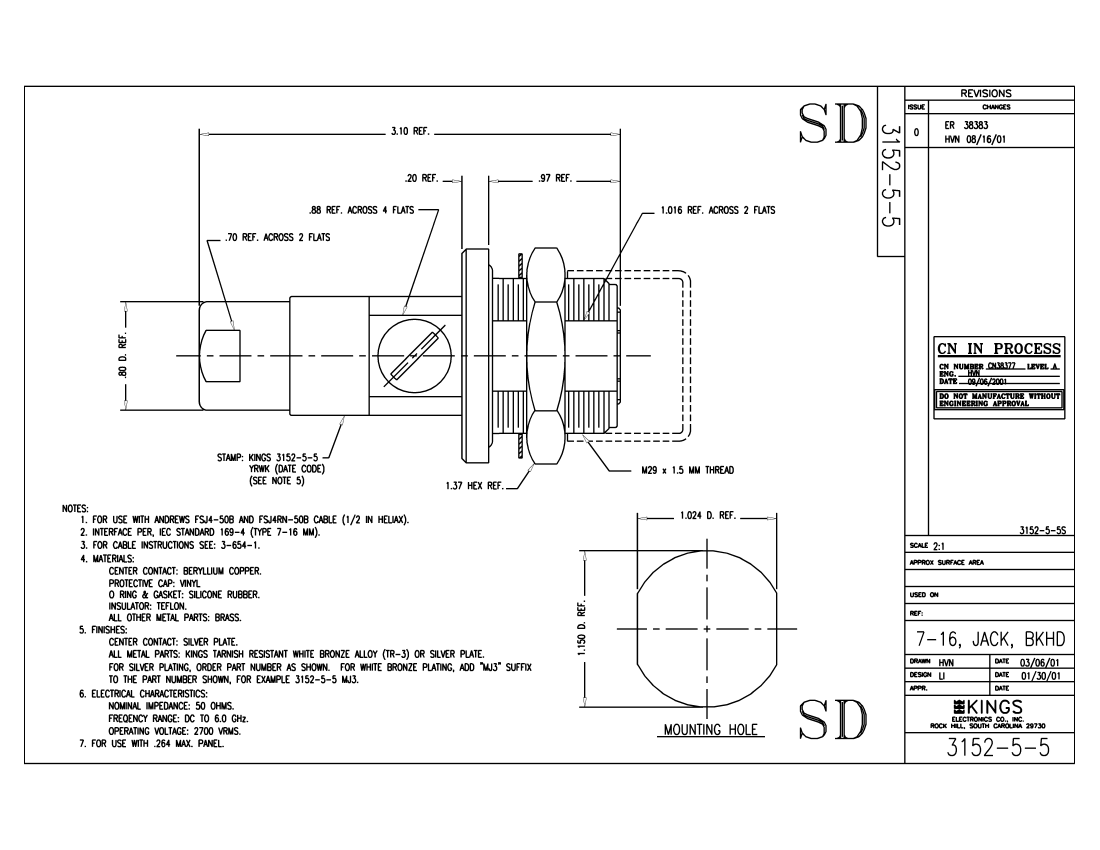

3152-5-5: DescriptionRF 7/16 DIN Connector, Female, Panel Mount, Cable Mount, Clamp Solder Terminal, Jack; CategoryThe connector The connector; File Size55KB，1 Pages; ManufacturerKings Electronics

Download Datasheet Parametric View All

3152-5-5 Overview

RF 7/16 DIN Connector, Female, Panel Mount, Cable Mount, Clamp Solder Terminal, Jack

Parameter Name	Attribute value
Maker	Kings Electronics
Reach Compliance Code	unknown
Other features	7-16 CONNECTOR
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF 7/16 DIN CONNECTOR
Contact to complete cooperation	SILVER
Contact completed and terminated	SILVER
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.12 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	3152
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CLAMP SOLDER
voltage standing wave ratio	1.12
Base Number Matches	1
