361-995-0630H datasheet, PDF - EEWORLD Datasheet

361-995-0630H: DescriptionBlindmate Connector, Female, Panel Mount, Cable Mount, Crimp Solder Terminal, Receptacle; CategoryThe connector The connector; File Size101KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric View All

361-995-0630H Overview

Blindmate Connector, Female, Panel Mount, Cable Mount, Crimp Solder Terminal, Receptacle

Parameter Name	Attribute value
Maker	Winchester Electronics
Reach Compliance Code	unknown
Other features	APPLICABLE CABLE: RG-316, CAPTIVE CENTER CONTACT
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	BLINDMATE CONNECTOR
Contact point gender	FEMALE
Coupling type	SLIDE ON
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.13 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	361-995-0630H
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP SOLDER
voltage standing wave ratio	1.03
Base Number Matches	1

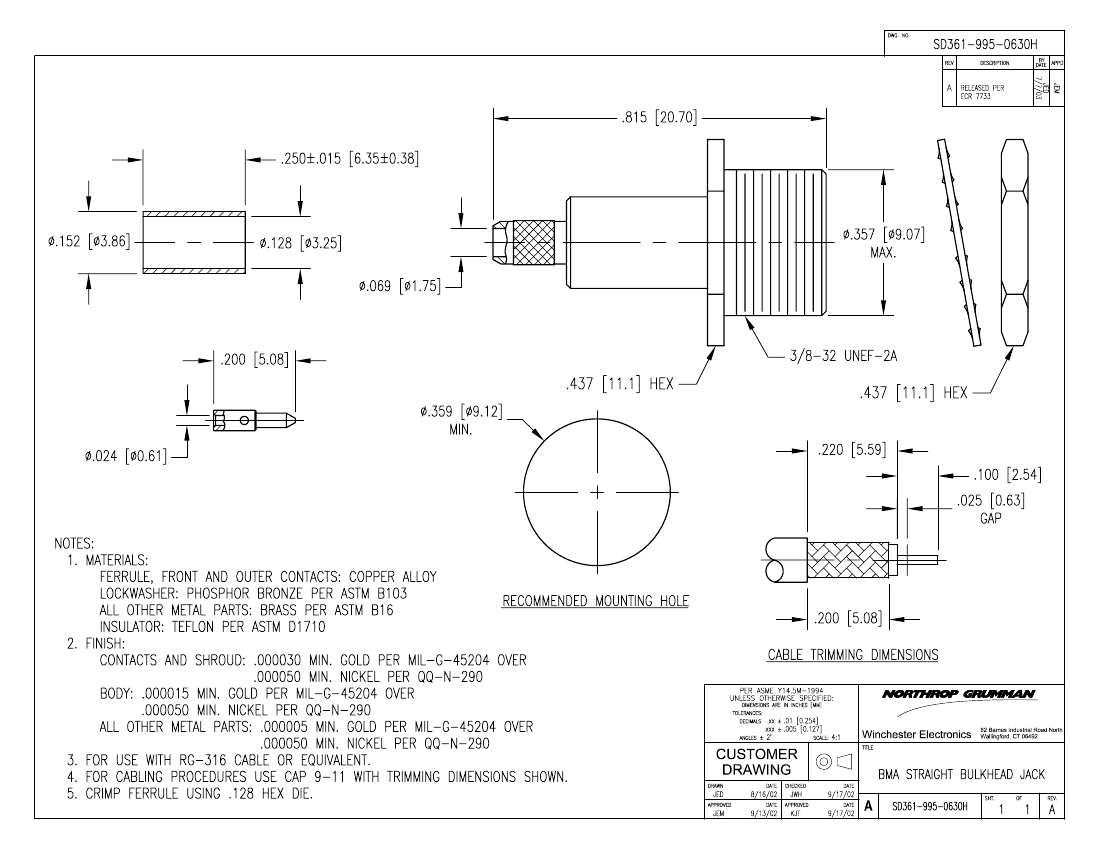

June 2006 - This drawing became the property of Winchester Electronics Corporation, Wallingford, CT.
