54LS125ADMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS125ADMQB

54LS125ADMQB: DescriptionBus Driver, LS Series, 4-Func, 1-Bit, True Output, TTL, CDIP14, CERAMIC, DIP-14; Categorylogic logic; File Size133KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54LS125ADMQB Overview

Bus Driver, LS Series, 4-Func, 1-Bit, True Output, TTL, CDIP14, CERAMIC, DIP-14

54LS125ADMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	unknow
Control type	ENABLE LOW
series	LS
JESD-30 code	R-GDIP-T14
JESD-609 code	e0
length	19.43 mm
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.012 A
Number of digits	1
Number of functions	4
Number of ports	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	20 mA
Prop。Delay @ Nom-Su	18 ns
propagation delay (tpd)	22 ns
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

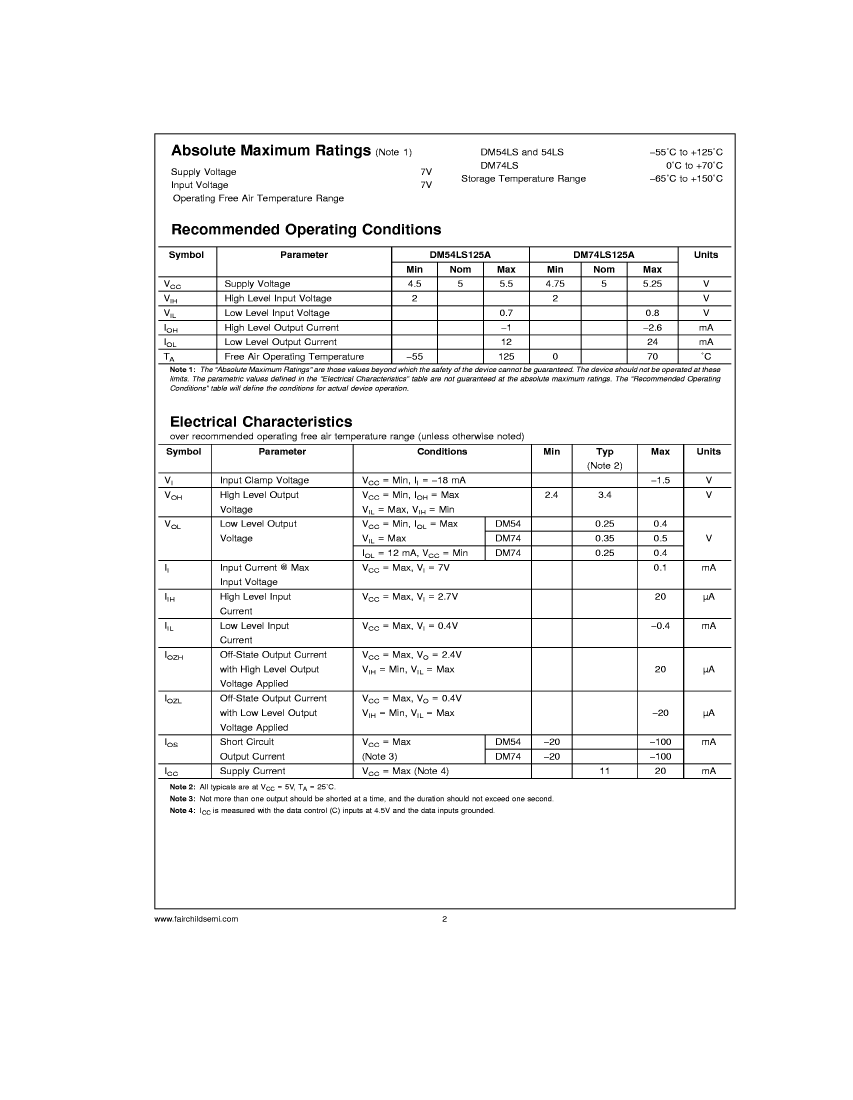

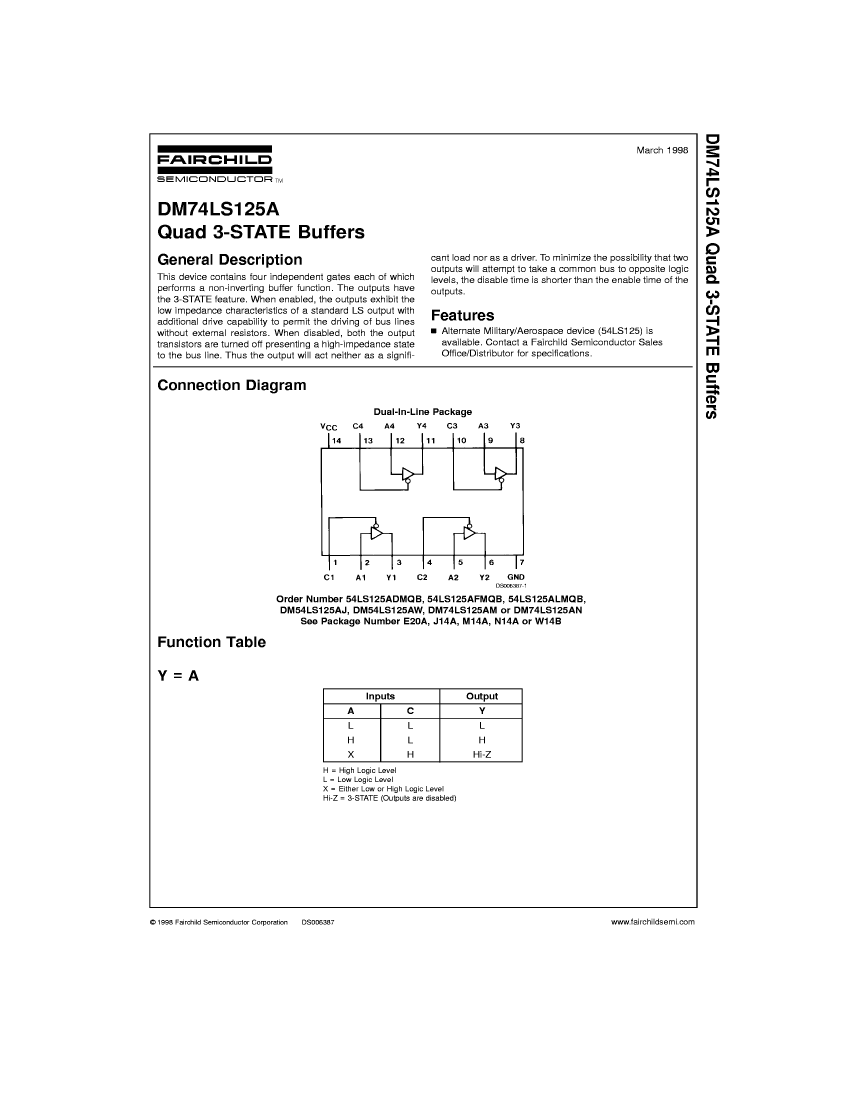

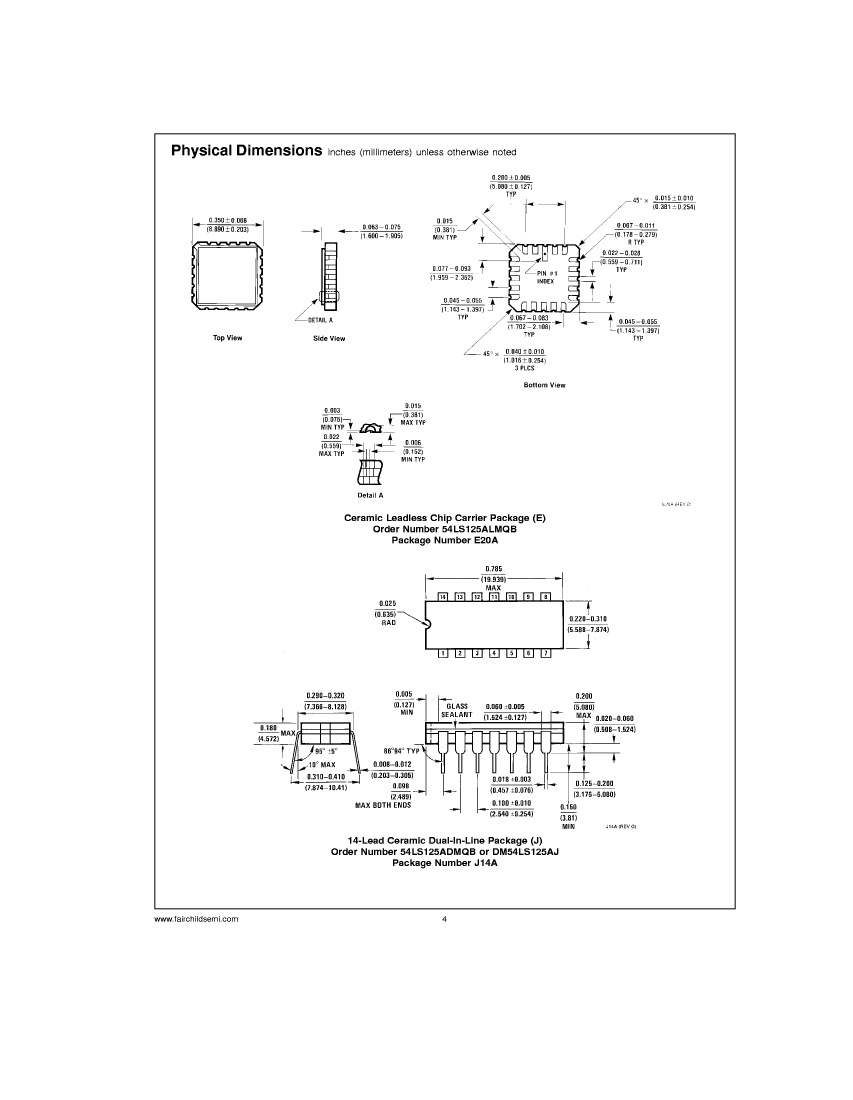

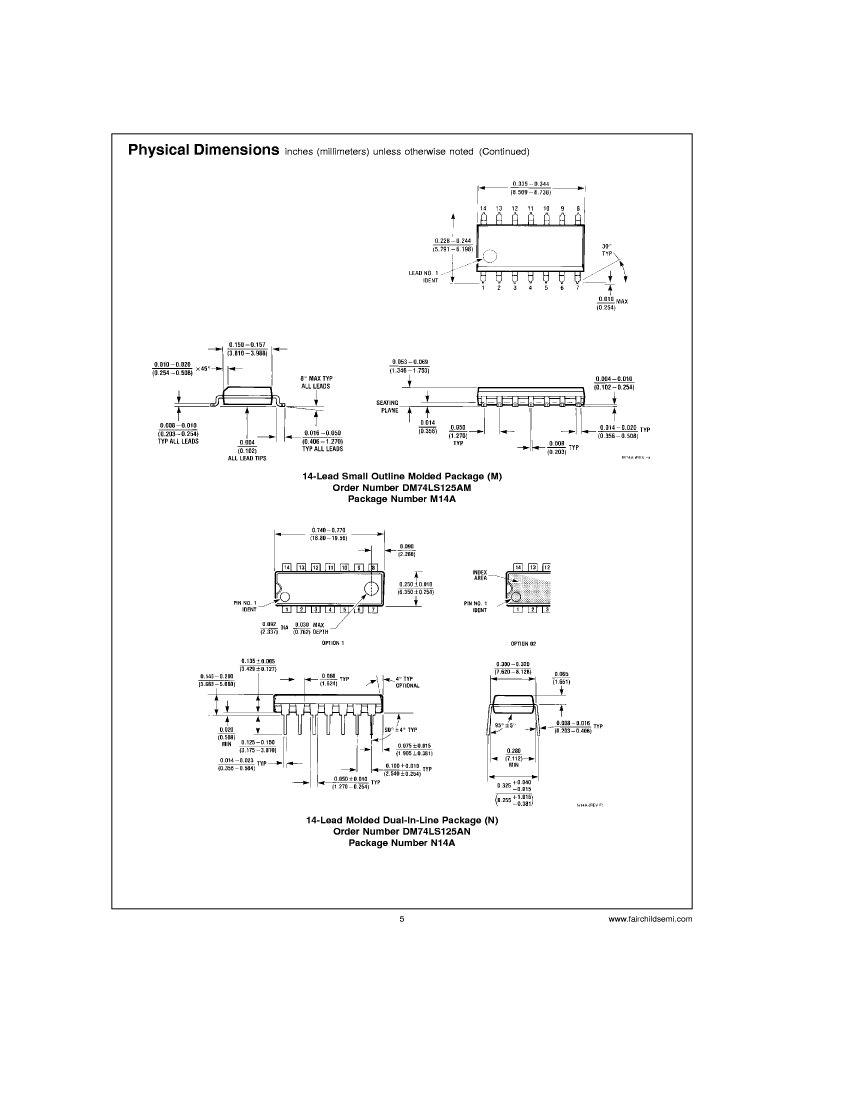

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

54LS125ADMQB Related Products

	54LS125ADMQB	54LS125AFMQB	54LS125ALMQB	DM54LS125AJ	DM54LS125AW
Description	Bus Driver, LS Series, 4-Func, 1-Bit, True Output, TTL, CDIP14, CERAMIC, DIP-14	Bus Driver, LS Series, 4-Func, 1-Bit, True Output, TTL, CDFP14, CERAMIC, FP-14	Bus Driver, LS Series, 4-Func, 1-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20	Bus Driver, 1-Func, 4-Bit, True Output, TTL, CDIP14,	Bus Driver, 1-Func, 4-Bit, True Output, TTL, CDFP14,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP14,.3	DFP, FL14,.3	QCCN, LCC20,.35SQ	DIP, DIP14,.3	DFP, FL14,.3
Reach Compliance Code	unknow	unknown	unknown	compliant	compliant
Control type	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW
JESD-30 code	R-GDIP-T14	R-GDFP-F14	S-CQCC-N20	R-XDIP-T14	R-XDFP-F14
JESD-609 code	e0	e0	e0	e0	e0
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.012 A	0.012 A	0.012 A	0.012 A	0.012 A
Number of digits	1	1	1	4	4
Number of functions	4	4	4	1	1
Number of terminals	14	14	20	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC	CERAMIC
encapsulated code	DIP	DFP	QCCN	DIP	DFP
Encapsulate equivalent code	DIP14,.3	FL14,.3	LCC20,.35SQ	DIP14,.3	FL14,.3
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	CHIP CARRIER	IN-LINE	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	250	250
power supply	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	20 mA	20 mA	20 mA	20 mA	20 mA
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	YES
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	NO LEAD	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	30	30
Parts packaging code	DIP	DFP	QLCC	-	-
Contacts	14	14	20	-	-
series	LS	LS	LS	-	-
Number of ports	2	2	2	-	-
propagation delay (tpd)	22 ns	22 ns	22 ns	-	-
Filter level	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B	-	-
Maximum seat height	5.08 mm	2.032 mm	1.905 mm	-	-
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	-	-
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	-	-
width	7.62 mm	6.2865 mm	8.89 mm	-	-
Base Number Matches	1	1	1	-	-
Prop。Delay @ Nom-Sup	-	18 ns	18 ns	18 ns	18 ns
Maker	-	-	Fairchild	Fairchild	Fairchild
