3EZ110D10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 3EZ110D10

3EZ110D10: DescriptionZener Diode, 110V V(Z), 10%, 1.25W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN; CategoryDiscrete semiconductor diode; File Size140KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

3EZ110D10 Overview

Zener Diode, 110V V(Z), 10%, 1.25W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN

3EZ110D10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DO-41
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	225 Ω
JEDEC-95 code	DO-204AL
JESD-30 code	O-PALF-W2
JESD-609 code	e0
Maximum knee impedance	4000 Ω
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	1.25 W
Certification status	Not Qualified
Nominal reference voltage	110 V
Maximum reverse current	0.5 µA
surface mount	NO
technology	ZENER
Terminal surface	TIN LEAD
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	10%
Working test current	6.8 mA
Base Number Matches	1

Preview

Download Datasheet

View All

3EZ3.9D5 thru 3EZ200D5, e3

Silicon 3 Watt Zener Diode

SCOTTSDALE DIVISION

DESCRIPTION

The 3EZ3.9D5 thru 3EZ200D5 series of axial-leaded 3.0 watt Zeners

provides voltage regulation selections with 5% tolerances from 3.9 to 200

volts in a DO-41 plastic package size. Other Zener voltage tolerances are

also available by changing the suffix number to the tolerance desired such

as 1, 2 3, or 4 for tighter tolerances or 10 for wider tolerance. These plastic

encapsulated Zeners are also available in various military equivalent

screening levels by adding a prefix identifier as also described in the

Features section. They may be operated at high maximum dc currents or

full power rating with adequate heat. Microsemi also offers numerous other

Zener products to meet higher and lower power applications.

APPEARANCE

WWW .

Microsemi

DO-41 or

DO-204AL

(Plastic)

IMPORTANT:

For the most current data, consult

MICROSEMI’s

website:

http://www.microsemi.com

FEATURES

•

Zener voltage available 3.9 V to 200 V

Standard voltage tolerances are plus/minus 5% with

a 5 suffix and 10 % with 10 suffix identification

Tight tolerances available in plus or minus 4%, 3%,

2% or 1% with 4, 3, 2, or 1 suffix respectively

Options for screening in accordance with MIL-PRF-

19500 for JAN, JANTX, JANTXV, and JANS are

available by adding MQ, MX, MV, or MSP prefixes

respectively to part numbers.

Surface mount equivalents available as

SMBJ3EZ3.9D5 to SMBJ3EZ200D5 in the DO-

214AA package, or SMBG3EZ3.9D5 to

SMBG3EZ200D5 in the DO-215AA package

RoHS compliant devices available by adding “e3” suffix

•

APPLICATIONS / BENEFITS

Regulates voltage over a broad operating current

and temperature range

3 W capability in relatively small DO-41 package

size when adequately heat sunk (see Figure 1)

Wide selection from 3.9 to 200 V

Flexible axial-lead mounting terminals

Nonsensitive to ESD per MIL-STD-750 Method

1020

Withstands surge stresses

High specified maximum current (I

) when

adequately heat sunk

•

MAXIMUM RATINGS

•

Power dissipation at 25

C: 3.0 watts (also see

derating in Figure 1).

Operating and Storage temperature: -65

C to +150

Thermal Resistance: 40

C/W junction to lead at 3/8

(10 mm) lead length from body, or 100

C/W junction

to ambient when mounted on FR4 PC board (1oz Cu)

with 4 mm

copper pads and track width 1 mm, length

25 mm

Steady-State Power: 3 watts at T

< 30 C 3/8 inch

(10 mm) from body, or 1.25 watts at T

= 25

C when

mounted on FR4 PC described for thermal resistance

(also see Figure 1)

Forward voltage @200 mA: 1.2 volts (maximum)

Solder Temperatures: 260

C for 10 s (max)

MECHANICAL AND PACKAGING

•

CASE: Void-free transfer molded thermosetting

epoxy body meeting UL94V-0

TERMINALS: Leads, tin-lead or RoHS compliant

annealed matte-Tin plating solderable per MIL-

STD-750, method 2026

POLARITY: Cathode indicated by band where

diode is to be operated with the banded end

positive with respect to the opposite end for Zener

regulation

MARKING: Part number

TAPE & REEL option: Standard per EIA-296 (add

“TR” suffix to part number)

WEIGHT: 0.4 grams

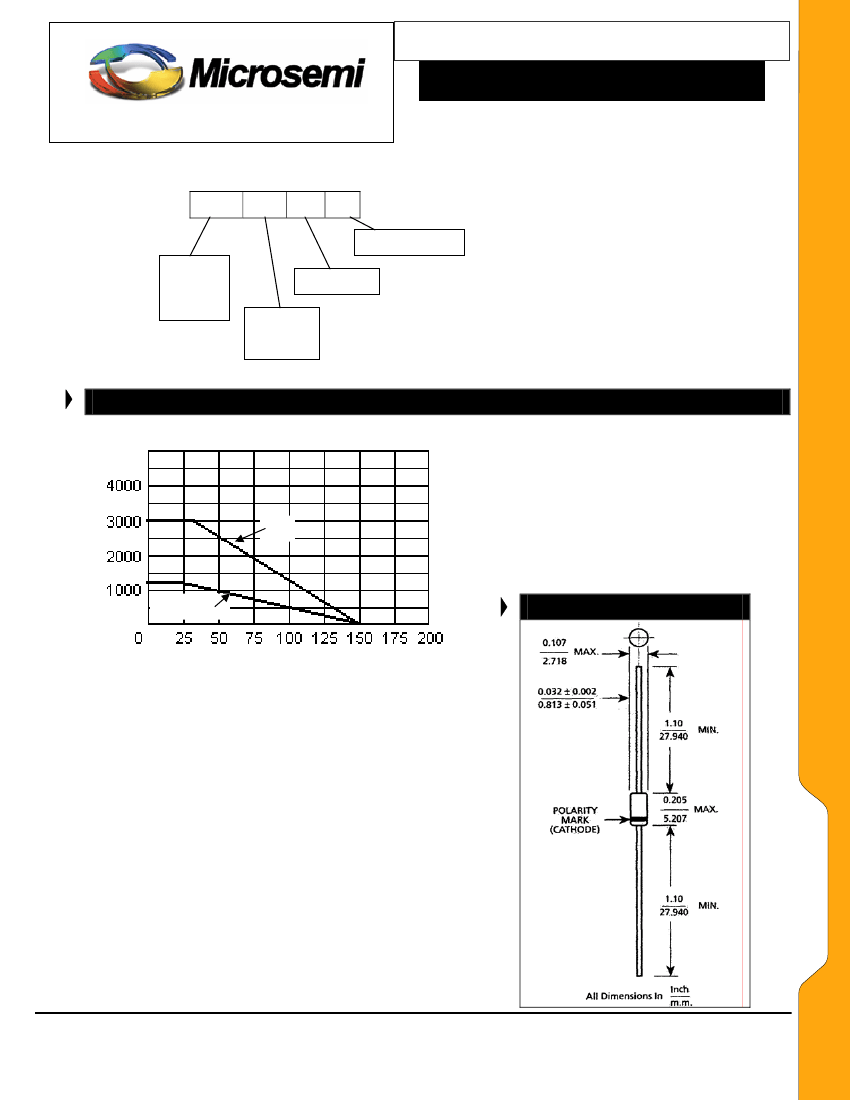

See package dimensions on last page

3EZ3.9D5

−

3EZ200D5, e3

•

2006

6-20-2006 REV B

Microsemi

Scottsdale Division

8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503

Page 1

3EZ110D10 Related Products

	3EZ110D10	3EZ100D1TR	3EZ100D10	3EZ110D10TR	3EZ100D3TR	3EZ100D4TR	3EZ100D2TR	3EZ110D3TR	3EZ100D10TR	3EZ110D1TR
Description	Zener Diode, 110V V(Z), 10%, 1.25W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN	Zener Diode, 100V V(Z), 1%, 1.25W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN	Zener Diode, 100V V(Z), 10%, 1.25W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN	Zener Diode, 110V V(Z), 10%, 1.25W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN	Zener Diode, 100V V(Z), 3%, 1.25W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN	Zener Diode, 100V V(Z), 4%, 1.25W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN	Zener Diode, 100V V(Z), 2%, 1.25W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN	Zener Diode, 110V V(Z), 3%, 1.25W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN	Zener Diode, 100V V(Z), 10%, 1.25W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN	Zener Diode, 110V V(Z), 1%, 1.25W, Silicon, Unidirectional, DO-204AL, PLASTIC, DO-41, 2 PIN
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DO-41	DO-41	DO-41	DO-41	DO-41	DO-41	DO-41	DO-41	DO-41	DO-41
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	PLASTIC, DO-41, 2 PIN	PLASTIC, DO-41, 2 PIN	PLASTIC, DO-41, 2 PIN	PLASTIC, DO-41, 2 PIN	PLASTIC, DO-41, 2 PIN	PLASTIC, DO-41, 2 PIN	O-PALF-W2
Contacts	2	2	2	2	2	2	2	2	2	2
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
JEDEC-95 code	DO-204AL	DO-204AL	DO-204AL	DO-204AL	DO-204AL	DO-204AL	DO-204AL	DO-204AL	DO-204AL	DO-204AL
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Humidity sensitivity level	1	1	1	1	1	1	1	1	1	1
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	1.25 W	1.25 W	1.25 W	1.25 W	1.25 W	1.25 W	1.25 W	1.25 W	1.25 W	1.25 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal reference voltage	110 V	100 V	100 V	110 V	100 V	100 V	100 V	110 V	100 V	110 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum voltage tolerance	10%	1%	10%	10%	3%	4%	2%	3%	10%	1%
Working test current	6.8 mA	7.5 mA	7.5 mA	6.8 mA	7.5 mA	7.5 mA	7.5 mA	6.8 mA	7.5 mA	6.8 mA
Base Number Matches	1	1	1	1	1	1	1	1	1	1
Maximum dynamic impedance	225 Ω	-	160 Ω	225 Ω	160 Ω	160 Ω	160 Ω	225 Ω	160 Ω	-
Maximum operating temperature	175 °C	-	175 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	-
