XC6504
Series
■
GENERAL DESCRIPTION
ETR0347-007
0.6μA Ultra Low Power Consumption Small Voltage Regulator (C
L
Capacitor-Less)
The XC6504 series is a highly accurate CMOS voltage regulator that achieves very low supply current operation of 0.6μ
A.
Even output current is 1μ (when light load), the XC6504 can provide high accurate outputs, which is ideally suited for the
A
applications to draw less output current. The usage of super small package USPN-4B02 (0.75 x 0.95mm) and the advantage
of capacitor-less stable operation can contribute the board space saving outstandingly. The IC consists of a reference voltage
source, an error amplifier, a driver transistor, over-current protection circuit, and a phase compensation circuit.
The device is compatible with a low ESR ceramic output capacitor C
L
. Moreover, the device can provide stable output even
without a C
L
output capacitor because of the excellent internal phase compensation.
Output voltage is fixed internally by laser trimming technology and can be selectable in 0.1V increments within the range of
1.1V to 5.0V. The CE function enables the device to be put into standby mode by inputting a low level signal to the CE pin
thereby reducing current consumption to less than 0.1μ In the standby mode, if a C
L
output capacitor is used, the electric
A.
charge stored at C
L
can be discharged via the internal switch and as a result, the V
OUT
pin quickly returns to the V
SS
level.
■
APPLICATIONS
●
Mobile devices / terminals
●
Wireless LAN
●
Modules (wireless, cameras, etc.)
■
FEATURES
Supply Current
Input Voltage Range
Output Voltage Range
Output Accuracy
Temperature Stability
Maximum Output Current
Low On Resistance
Standby Current
Protection Current
CE Function
Output Capacitor
Operating Ambient Temperature
Packages
:
:
:
:
:
:
:
:
:
:
:
:
:
0.6μ
A
1.4V½6.0V
1.1V½5.0V (0.1V increments)
±0.02V＠V
OUT
＜2.0V
±1%＠V
OUT
≧2.0V
±50ppm/℃
150mA
3.3Ω＠V
OUT
=3.0V
0.01μ
A
Current Limiter
Shot Circuit Protection
C
L
Auto Discharge
ON/OFF Logic=Enable High
Low ESR Ceramic Capacitor
(C
L
Capacitor-Less Compatible)
-40℃½+85℃
USPN-4B02
SSOT-24
SOT-25
USPQ-4B04
Environmentally Friendly
:
EU RoHS Compliant, Pb Free
■
TYPICAL APPLICATION CIRCUIT
■TYPICAL
PERFORMANCE
CHARACTERISTICS
V
XC6504x181xR
1.4
1.2
Supply Current: I
SS
[μA]
1.0
0.8
0.6
0.4
0.2
0.0
0
1
2
3
4
5
Ta=-40℃
Ta=25℃
Ta=85℃
CE
=V
IN
I
OUT
=0mA
C
IN
=C
L
=open
6
Input Voltage: V
IN
[V]
1/33
XC6504
Series
■BLOCK
DIAGRAM
XC6504 Series, Type A
* Diodes inside the circuits are ESD protection diodes and parasitic diodes.
■PRODUCT
CLASSIFICATION
●Ordering
Information
XC6504①②③④⑤⑥
-
⑦
DESIGNATOR
①
②③
④
ITEM
Type
Output Voltage
Output Voltage Accuracy
Packages (Order Unit)
SYMBOL
A
11~50
1
7R-G
NR-G
MR-G
9R-G
DESCRIPTION
Refer to Selection Guide
e.g. 1.8V
→ ②=1, ③=8
±0.02V (V
OUT
＜2.0V),
±1% (V
OUT
≧2.0V)
USPN-4B02 (5,000pcs/Reel)
SSOT-24 (3,000pcs/Reel)
SOT-25 (3,000pcs/Reel)
USPQ-4B04 (3,000pcs/Reel)
⑤⑥-⑦
(*1)
(*1)
The “-G” suffix denotes Halogen and Antimony free as well as being fully EU RoHS compliant.
●Selection
Guide
TYPE
A
CURRENT LIMITTER
Yes
CE PULL-DOWN
RESISTOR
No
C
L
AUTO-DISCHARGE
Yes
2/33
XC6504
Series

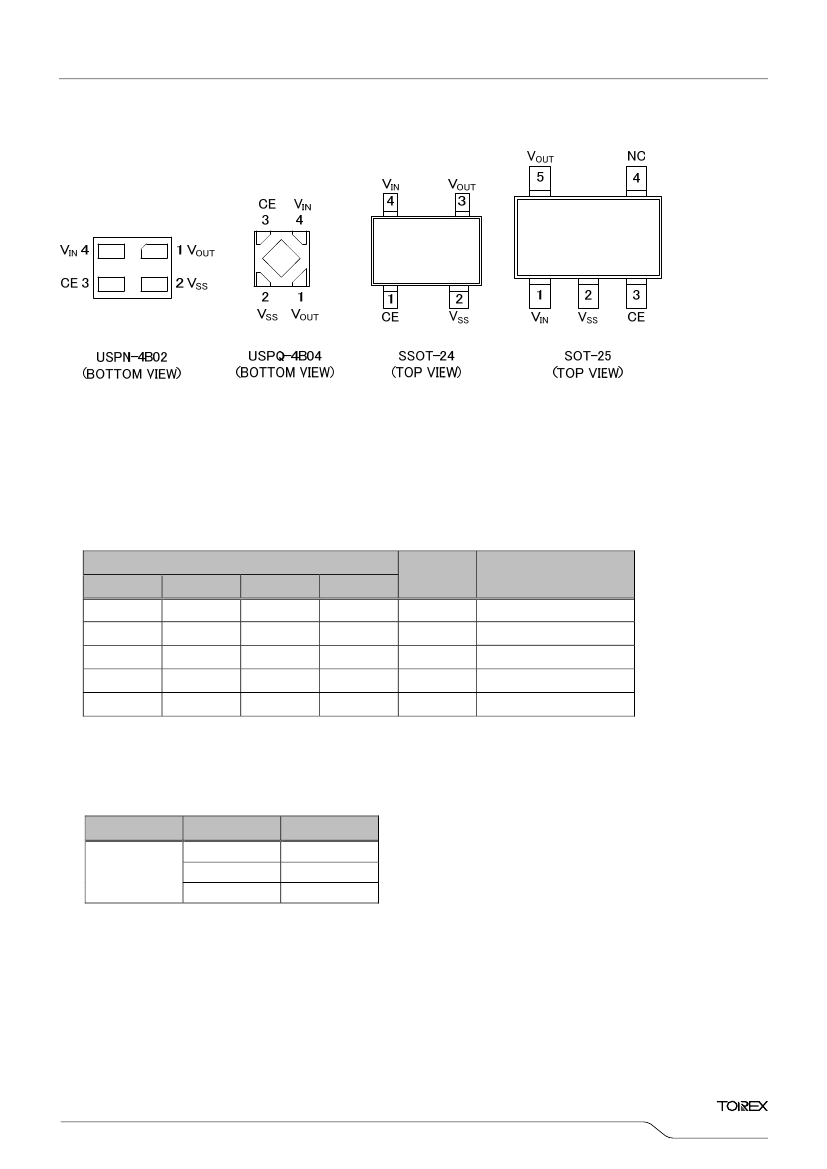

■PIN
CONFIGURATION
*The dissipation pad for the USPQ-4B04 package should be solder-plated in reference mount pattern and metal masking
so as to enhance mounting strength and heat release.
If the pad needs to be connected to other pins, it should be connected to the V
SS
(No. 2) pin.
■PIN
ASSIGNMENT
PIN NUMBER
USPN-4B02
1
2
3
4
-
USPQ-4B04
1
2
3
4
-
SSOT-24
3
2
1
4
-
SOT-25
5
2
3
1
4
V
OUT
V
SS
CE
V
IN
NC
Output
Ground
ON/OFF Control
Power Supply Input
No Connection
PIN NAME
FUNCTIONS
■FUNCTION
CHART
PIN NAME
CE
SIGNAL
L
H
OPEN
STATUS
Stand-by
Active
Unstable
* Please avoid the state of OPEN, and connect CE pin to any arbitrary voltage.
3/33
XC6504
Series
■ABSOLUTE
MAXIMUM RATINGS
Ta=25℃
PARAMETER
Input Voltage
Output Current
Output Voltage
CE Input Voltage
USPQ-4B04
USPN-4B02
Power Dissipation
SSOT-24
SOT-25
Operating Ambient Temperature
Storage Temperature
All voltages are described based on the V
SS
.
(*1)
(*2)
(*3)
SYMBOL
V
IN
I
OUT
V
OUT
V
CE
RATINGS
-0.3½+6.5
470
(*1)
-0.3½V
IN
+0.3 or +6.5
(*2)
-0.3½+6.5
100
550 (40mm x 40mm Standard board)
(*3)
100
550 (40mm x 40mm Standard board)
(*3)
150
500 (40mm x 40mm Standard board)
(*3)
250
600 (40mm x 40mm Standard board)
(*3)
UNITS
V
mA
V
V
Pd
mW
Topr
Tstg
-40½+85
-55½+125
℃
℃
Please use within the range of I
OUT
≦Pd
/ (V
IN
-V
OUT
)
The maximum rating corresponds to the lowest value between V
IN
+0.3 or +6.5.
The power dissipation figure shown is PCB mounted and is for reference only
Please see the power dissipation page for the mounting condition.
.
4/33
XC6504
Series
■ELECTRICAL
CHARACTERISTICS
Ta=25℃
PARAMETER
Input Voltage
Output Voltage
Maximum Output Current
Load Regulation
SYMBOL
V
IN
V
OUT(E) (*1)
I
OUTMAX
∆V
OUT
Vdif1
(*3)
Vdif2
(*3)
1μ
A≦I
OUT
≦1mA
1mA≦I
OUT
≦150mA
I
OUT
=50mA
I
OUT
=150mA
V
OUT(T)
＜1.9V
Supply Current
I
SS
I
OUT
=0mA
1.9V≦V
OUT(T)
＜4.0V
V
OUT(T)
≧4.0V
Stand-by Current
I
STB
V
IN
=6.0V, V
CE
=V
SS
I
OUT
=1μ
A
Line Regulation
∆V
OUT
/
(∆V
IN
・V
OUT
)
I
OUT
=1mA
V
OUT(T)
+0.5V≦V
IN
≦6.0V
V
OUT(T)
＜1.2V,
1.7V≦V
IN
≦6.0V
V
OUT(T)
≧1.2V,
V
OUT(T)
+0.5V≦V
IN
≦6.0V
Output Voltage
Temperature
Characteristics
Current Limit
Short-Circuit Current
C
L
Auto-Discharge
Resistance
CE "H" Level Voltage
CE "L" Level Voltage
CE "H" Level Current
CE "L" Level Current
∆V
OUT
/
(∆Topr
・V
OUT
)
I
LIM
I
SHORT
R
DCHG
V
CEH
V
CEL
I
CEH
I
CEL
V
IN
= 6.0V
V
IN
=6.0V, V
CE
=V
SS
I
OUT
=10mA,
-40℃≦Topr≦85℃
V
OUT
=V
OUT(E)
×0.95
V
OUT
=V
SS
V
CE
=V
SS
, V
OUT
=V
OUT(T)
-
150
-
280
0.91
V
SS
-0.1
-0.1
±50
270
80
450
-
-
-
-
-
-
-
640
6.00
0.38
0.1
0.1
ppm/℃
mA
mA
Ω
V
V
μ
A
μ
A
①
①
①
①
③
③
③
③
-
0.01
0.19
%/V
①
I
OUT
=1μ
A
V
OUT(T)
＜2.0V
V
OUT(T)
≧2.0V
CONDITIONS
MIN.
1.4
-0.02
×0.99
150
-
-
-
-
-
-
-
-
-
0.60
0.65
0.80
0.01
0.01
TYP.
-
V
OUT(T)(*2)
-
3
17
E-1
(*4)
E-2
(*4)
1.27
1.50
1.80
0.10
0.13
μ
A
②
μ
A
②
MAX.
6.0
+0.02
×1.01
-
16
50
UNITS
V
V
mA
mV
CIRCUIT
①
①
①
①
Dropout Voltage
V
①
NOTE:
Unless otherwise stated, V
CE
=V
IN
, I
OUT
=1mA, C
IN
=C
L
=open, V
IN
is below:
V
OUT(T)
＜2.5V
: V
IN
=3.5V
V
OUT(T)
≧2.5V
: V
IN
=V
OUT(T)
+1.0V
(*1)
V
OUT(E)
is Effective output voltage
(*2)
V
OUT(T)
is Nominal output voltage
(*3)
Vdif={V
IN1
－V
OUT1
}
V
IN1
is the input voltage when V
OUT1
appears at the V
OUT
pin while input voltage is gradually decreased.
V
OUT1
is the voltage equal to 98% of the normal output voltage when amply stabilized V
OUT(T)
+1.0V is input at the V
IN
pin.
(*4)
E-1 / E-2: DROPOUT VOLTAGE (Refer to the Voltage Chart)
5/33
