54F32L1MQB datasheet, PDF - EEWORLD Datasheet

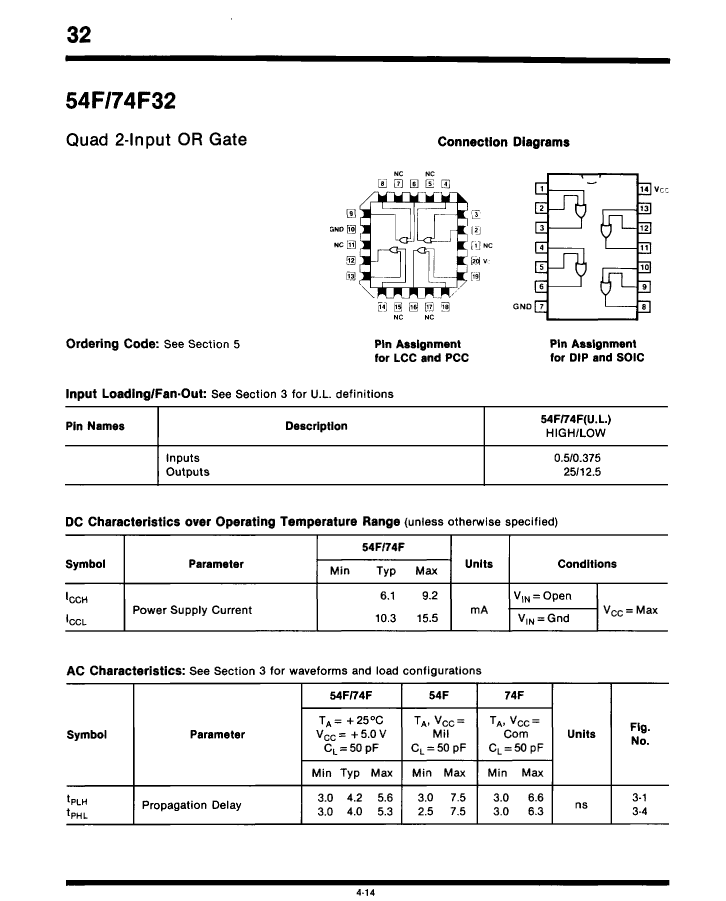

54F32L1MQB: DescriptionOR Gate, F/FAST Series, 4-Func, 2-Input, TTL, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size21KB，1 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

54F32L1MQB Overview

OR Gate, F/FAST Series, 4-Func, 2-Input, TTL, CQCC20, CERAMIC, LCC-20

Parameter Name	Attribute value
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	20
Reach Compliance Code	unknow
series	F/FAST
JESD-30 code	S-CQCC-N20
length	8.89 mm
Logic integrated circuit type	OR GATE
Number of functions	4
Number of entries	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
propagation delay (tpd)	7.5 ns
Certification status	Not Qualified
Maximum seat height	2.54 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.89 mm
Base Number Matches	1
