507-4860-3732-500 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 507-4860-3732-500

Preview

507-4860-3732-500: DescriptionSingle Color LED, Green, 7.14mm,; CategoryLED optoelectronic/LED photoelectric; File Size35KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric Compare View All

507-4860-3732-500 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	507-4860-3732-500	-	-	View	Buy Now

507-4860-3732-500 Overview

Single Color LED, Green, 7.14mm,

507-4860-3732-500 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
color	GREEN
Configuration	SINGLE
Maximum forward current	0.02 A
JESD-609 code	e0
Nominal luminous intensity	50.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	23.8 mm
method of packing	BULK
shape	ROUND
size	7.14 mm
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

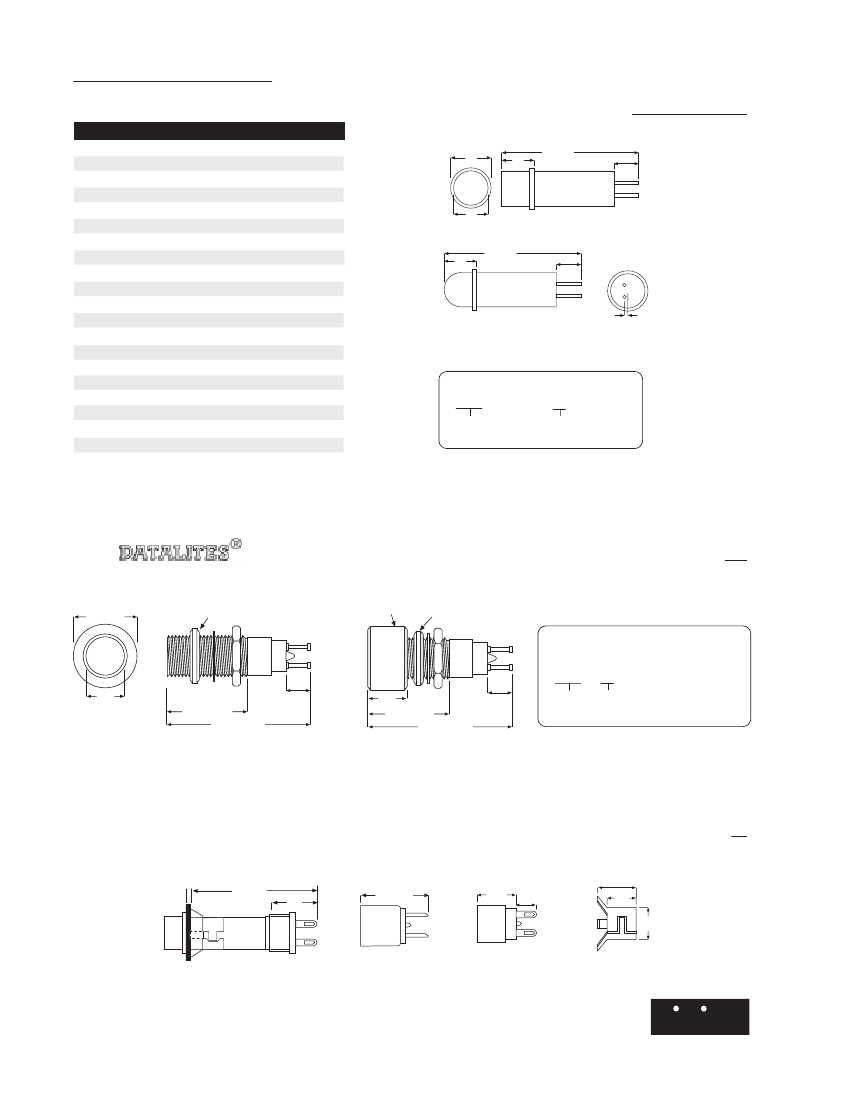

LED PANEL MOUNT INDICATORS

507 SERIES CARTRIDGES FOR USE WITH HOLDERS & CLIPS

507-4762-3331-500

507-4862-3332-500

507-4962-3333-500

507-5062-3334-500

507-4757-3331-500

507-4857-3332-500

507-4957-3333-500

507-5064-3334-500

507-4759-3331-500

507-4859-3332-500

507-4959-3333-500

507-5066-3334-500

507-4760-3331-500

507-4860-3332-500

507-4960-3333-500

507-5067-3334-500

507-4761-3331-500

507-4861-3332-500

507-4961-3333-500

507-5068-3334-500

PART NO.

*

COLOR V

F

Red

Green

Yellow

Blue

Red

Green

Yellow

Blue

Red

Green

Yellow

Blue

Red

Green

Yellow

Blue

Red

Green

Yellow

Blue

2

2.1

3

5

10

14

28

mA mcd† FIG.

20

10

15

20

10

15

20

10

20

10

15

20

10

30

40

45

100

10

50

35

100

10

50

35

100

10

50

35

100

10

50

35

100

3

8.38

[.330]

6.73

[.265]

FIG. 3

28.96 [1.140]

5.16

[.203]

7.14

[.280]

FIG. 4

28.96 [1.140]

6.73

[.265]

5.16

[.203]

+

.51

[.020]

Polarity: To facilitate proper installation of the cartridge, the cartridge is

marked on the cartridge housing and the terminal base is keyed.

*

PART NUMBER ORDERING CODE

507 – xxxx – xx3x – 500

Series

Lens Shape:

33 – Fig 3 = Cylindrical

37 – Fig 4 = Stovepipe

† mcd intensity of LED

* Blue mcd rating with cylindrical cap is 100 mcd;

stovepipe cap is 275 mcd

250

13.1

[.515]

FLANGE

NUT

& 508 SERIES HOLDERS FOR 3/8" MOUNTING HOLE

HOLDER WITHOUT COLLAR

*

HOLDER WITH COLLAR

*

COLLAR

FLANGE

NUT

*

PART NUMBER ORDERING CODE

250 – xx38 – 14 – 504

508 – xx38 – 504

7.90

[.310]

15.90 [.625]

29.70 [1.170]

5.00

[.197]

7.10

[.280]

15.90 [.625]

29.70 [1.170]

5.00

[.197]

Series

Terminal Type:

87 = Turret Terminals

74 = Solder Blade (Not Shown)

75 = Solder Cups (Not Shown)

508-8738-504

Material & Finish: Housing, Cartridge and Holder - Black Anodized Aluminum. Cap -High Impact Plastic

Terminals of holders marked A and B. A = Positive

515 SERIES CONNECTORS & SPEED CLIPS FOR 9/32" MOUNTING HOLE

CARTRIDGE WITH SPEED CLIP & CONNECTOR

1.59 [.06]

PANEL

30.02 [1.19]

15.88

[.625]

CONNECTOR

515-0012

15.88 [.625]

CONNECTOR

515-0074

13.89

[.547]

4.76

[.188]

SPEED CLIP 515-0051

9.14

[.360]

6.86

[.270]

7.49

[.295]

† mcd intensity of LED

Material & Finish: Housing, Cartridge and Holder - Black Anodized Aluminum. Cap -High Impact Plastic

Dimensions in mm [inches]

12

Dialight Corporation • 1501 State Route 34 • Farmingdale, NJ 07727 • TEL: (732) 919-3119 • FAX: (732) 751-5778 • www.dialight.com

Dialight

507-4860-3732-500 Related Products

	507-4860-3732-500	507-4959-3733-500	507-4759-3731-500	507-4962-3733-500	507-4960-3733-500	507-5062-3734-500	507-4762-3731-500	507-4760-3731-500
Description	Single Color LED, Green, 7.14mm,	Single Color LED, Yellow, 7.14mm,	Single Color LED, Red, 7.14mm,	Single Color LED, Yellow, 7.14mm,	Single Color LED, Yellow, 7.14mm,	Single Color LED, Blue, 7.14mm,	Single Color LED, Red, 7.14mm,	Single Color LED, Red, 7.14mm,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compli	compli	compliant	compliant	compliant	compliant	compliant	compliant
color	GREEN	YELLOW	RED	YELLOW	YELLOW	BLUE	RED	RED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.02 A	0.02 A	0.015 A	0.02 A	0.02 A	0.01 A	0.02 A	0.02 A
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Nominal luminous intensity	50.0 mcd	35.0 mcd	10.0 mcd	45.0 mcd	35.0 mcd	275.0 mcd	30.0 mcd	10.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	23.8 mm	23.8 mm	23.8 mm	23.8 mm	23.8 mm	23.8 mm	23.8 mm	23.8 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	7.14 mm	7.14 mm	7.14 mm	7.14 mm	7.14 mm	7.14 mm	7.14 mm	7.14 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Base Number Matches	1	1	1	1	1	1	1	-
